Operating manual
Wideband modems – PROFI MX160
version 1.3
1/12/2009
.
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PROFI MX160 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RACOM PROFI MX160

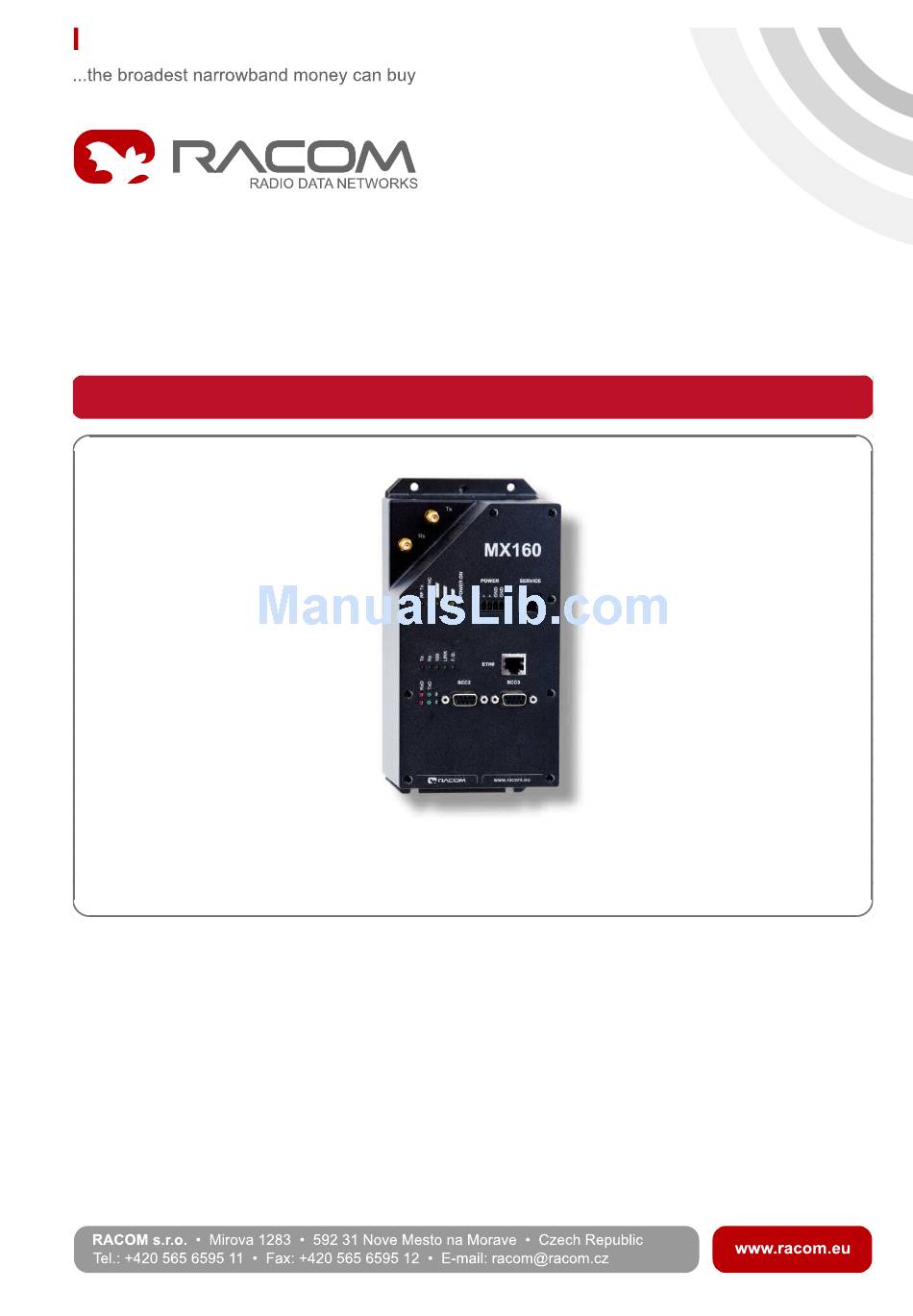

  • Page 1 Operating manual Wideband modems – PROFI MX160 version 1.3 1/12/2009...
  • Page 3: Table Of Contents

    3.15. View of radio modem — description of connectors, model with DSUB (Canon) connectors and with terminals ... 21 5.1. Mounting dimensions of the radiomodem ... 24 6.1. Consistency declaration ... 27 © RACOM s.r.o. – Wideband modems – PROFI MX160...
  • Page 4 3.13. Table of service connector connections ... 20 3.14. Slot options ... 21 4.1. Table of technical parameters MX160 ... 22 4.2. Standards complied ... 22 4.3. Standards complied for Railway Safety Appliance Standards Regulations ... 23 Wideband modems – PROFI MX160 – © RACOM s.r.o.
  • Page 5: Introduction

    For this reason modem MR400 images are often used in other parts of the manual. In order to master all the functions of the radio modem and the MORSE system you should refer to other documents.
  • Page 6: Radio Modem Mx160

    The radio modem uses 2-state GMSK modulation providing for a maximum signalling rate of 133 kbit/s. The radio modem is of modular design with one to four standard RS232 ports (an RS422 or RS485 port can be used in place of two of them) available to the user. The configuration can be extended by an Ethernet interface and also by a module with analog and digital inputs/outputs and GPS modul.
  • Page 7: Description Of Radiomodem Mx160

    The radiomodem is supplied by the DC current 13.8 V. The consumption in the quiet state is from 350 to 500 mA according to module used, the consumption at transmitting is up to 2 A. The modem can be set in the SLEEP mode when the consumtion drops down to 2.5 mA. The return in the active mode can be done by the signal inputting on the serial port or after a preset time.
  • Page 8 Description of Radiomodem MX160 Important CAUTION! Danger of explosion upon replacing the incorrect type of battery. Follow the manufacturers instructions for handling used batteries. Wideband modems – PROFI MX160 – © RACOM s.r.o.
  • Page 9: Connectors

    The radio modem can be equipped with serial ports RS232 or RS422/485, the ports can be optical isolated. According to the configuration of the radio modem it is possible to use a terminal block or DSUB 9 (Canon) connectors for connecting data cables via the serial interface. See Chapter Labelling modems.
  • Page 10: Data Cable Rs485 Connections

    3.2.2. Distinguishing Data Modules by Colour For RS232 RxD is the output from the radio modem (approx. -8V when inactive) and TxD is the input to the radio modem (according to the RS 232 standard). Hardware versions of the interface can be distinguished according to the colours of LED diodes next to the connector.
  • Page 11: Ethernet

    Fig. 3.3: Labelling of serial interface terminals The SCC ports of the radio modem are DCE type devices. Based on standards the receiver terminal RxD of the connected DTE device is connected to the transmitting terminal of the modem's SCC port which is also labelled RxD.
  • Page 12: Analog And Digital Inputs And Outputs

    +A IN 0 +A IN 1 A IN 0, 1 Analog inputs Wideband modems – PROFI MX160 – © RACOM s.r.o. Fig. 3.4: RJ-45F D OUT 0 D OUT 0 D OUT 1 D OUT 1 Digital outputs...
  • Page 13: Description Of Analog And Digital Inputs And Outputs

    • max. value of input current 50 mA Analog inputs 0 and 1 have connected terminals - (minus), which are galvanically separated from the modem GND. © RACOM s.r.o. – Wideband modems – PROFI MX160 A IN D OUT Connectors...
  • Page 14: M-Bus Module

    A M-BUS module can be positioned in the first or second slot of optional modules, see section Sec- tion 3.11, “View of Radio Modem”. (For MG100 only in the first slot.) The second slot is recommended because when using slot 1 you first need to disconnect it in the modem´s service mode, see section Section 3.10, “Service Connector”.
  • Page 15: Gps Module

    “View of Radio Modem”. (For MG100 only in the first slot.) The second slot is recommended because when using slot 1 you first need to disconnect it in the modem´s service mode, see section Section 3.10, “Service Connector”. You can find further detailed information on the module manufacturer’s web...
  • Page 16: Meaning Of Gps Module Leds

    TP – Time Pulse green St – Status (in progress) The GPS is providing the correct data if the red LED is flashing to the rhythm of time pulses (typically 1 s). 900 ms Wideband modems – PROFI MX160 – © RACOM s.r.o.
  • Page 17: T-Port

    The module automatically set communication to a speed of 10 or 100 Mbit/s according to the speed of the network to which it is connected. https://www.racom.eu/eng/support/firmware/mr400/index.html © RACOM s.r.o. – Wideband modems – PROFI MX160 16 channel, L1 frequency, C/A code max. 4 times a sec., typiccally 1 s position 2,5 m, SBAS 2,0 m hot start <...
  • Page 18: T-Port Module On The 2Nd Slot Of The Modem

    The T-port module can be positioned in the first or second optional module slot, see section Section 3.11, “View of Radio Modem”. (Or only in the first slot for MG100 modems.) The second slot is recommended because when using slot 1 you need to take into consideration the fact that it needs disconnecting when the modem is in service mode.
  • Page 19: Supply Connector

    10.8 to 15.6 V can be connected. Connecting higher voltage may damage the radio modem. Terminal PI (power indicator) - if the radio modem is fed from the MS2000 power supply information about supply method from source clamp MAIN PWR OFF can be lead: •...
  • Page 20: Service Connector

    ATTENTION! The service mode is not suitable for normal operation 1 2 3 4 5 6 Fig. 3.14: Service cable connector connections RX data pin 2 TX data pin 3 pin 5 Wideband modems – PROFI MX160 – © RACOM s.r.o. Fig. 3.13: Service connector Cannon DSUB9F...
  • Page 21: View Of Radio Modem

    A IN D OUT ETH0 SCC2 SCC1 SCC0 Fig. 3.15: View of radio modem — description of connectors, model with DSUB (Canon) connectors and with terminals Tab. 3.14: Slot options slot 5 ADIO (analog and digital inputs and outputs) slot 4...
  • Page 22: Table Of Technical Parameters

    1.3 kg ETSI EN 301 489-5 V 1.3.1 ETSI EN 300 908-9 V 1.1.1 (2002-01), ETSI EN 300 113-1 V 1.5.1 (2003-09) CSN EN 60 950:2001 UN Regulation No.10 (EHK No.10) Wideband modems – PROFI MX160 – © RACOM s.r.o.
  • Page 23: Standards Complied For Railway Safety Appliance Standards Regulations

    Tab. 4.3: Standards complied for Railway Safety Appliance Standards Regulations Electronic appliances in railway vehicles EMC (Electromagnetic Compatibility) Vibrations and beats © RACOM s.r.o. – Wideband modems – PROFI MX160 Table of Technical Parameters CSN EN 50155 ed. 2 : 2002. art. 10.2.8.2 CSN EN 50121 art.
  • Page 24: Dimensional Diagram And Labeling Modems

    For the high-performance P model the modem is mounted on the back wall to ensure sufficient cooling of the modem. In this case 4x M4 screws are used for mounting purposes. There are no centre holes in the P version for attachment to a DIN rail.
  • Page 25: Condition For Mx160

    Liability for defects does not apply to any product that has been used in a manner which conflicts with the instructions contained in this operator manual, or if the case in which the radio modem is located has been opened, or if the equipment has been tampered with.
  • Page 26 Condition for MX160 equipment denoting radio equipment with possible limitations or with requirements on authorisation to use radio equipment in certain countries. Wideband modems – PROFI MX160 – © RACOM s.r.o.
  • Page 27: Consistency Declaration

    Condition for MX160 © RACOM s.r.o. – Wideband modems – PROFI MX160...
  • Page 28: Limitations Of Use

    The MX160 radio modem has been developed for the frequency range 154 to 164 MHz. Specific fre- quencies are used for each country or region. A radio modem user must keep in mind that this radio device cannot be operated without the permission of the respective local radio spectrum administrator who provides a specific frequency for use and issues the appropriate permission for this.
