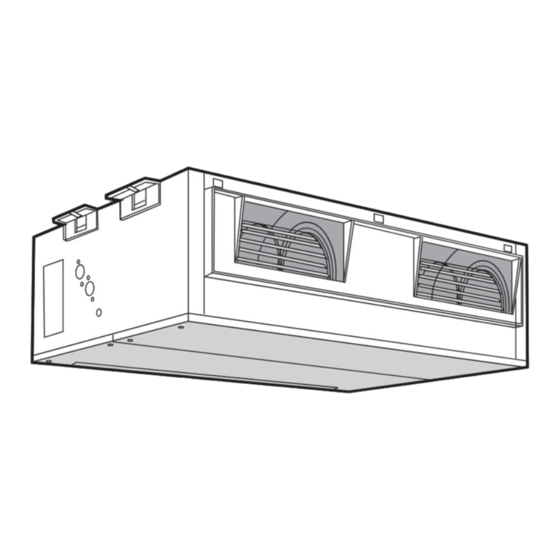

  • Page 1 40SMC---N INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS...

  • Page 2: Table Of Contents

    40SMC---N Ducted above-ceiling units (Cooling only and heat pump) Contents page Safety considerations ................. Physical data ....................Electrical data ..................... Operating limits ................... Dimensions ....................Service area ....................Installation ....................Electrical connections ................. Refrigerant line connection (Flare connnections) ........Maintenance and service ................Alarm code ....................

  • Page 3: Safety Considerations

    40SMC---N Safety considerations Installation and servicing of air conditioning equipment can Only use original spare parts when repairing and pay special be hazardous due to system pressure and electrical attention when positioning the same. components. They must be placed indentically to the previus ones. Only trained and qualified service personnel should install, These units must not be installed in an explosive repair or service air conditioning equipment.

  • Page 4: Electrical Data

    40SMC---N Technical data E N G L I S H Table III - Electrical data (heat pump) - 38YY - 38BH + 40SMC---N 38YY - 38BH 40SMC---N Operation voltage V/Ph/Hz CONSUMPTION Nominal (on cooling) * 1,00 1,22 1,79 2,20 2,77 3,48 5,15 4,52...

  • Page 5: Dimensions

    048 - 060 1250 1268 1306 1030 40SMC---N 009 - 012 - 018 024 - 028 - 036 165.5 048 - 060 1030 When designin an installation ensure the use of up-to-date drawings available from your local Carrier office. GB - 4...

  • Page 6: Service Area

    40SMC---N Installation E N G L I S H Service area Screws-in rod Shoch absorbers Washer • Inspect the shipment. IMPORTANT: Check to see if it has been damaged or if there are missing The unit must be perfectly levelled. parts.

  • Page 7: Installation

    IMPORTANT: units (field wiring) Operation of unit on improper line voltage constitutes abuse Connecting cable and is not covered by Carrier warranty. indoor unit control (field wiring) IMPORTANTE: • The mains supply connecting cable must be H07 RN-F type (or higher), synthetic rubber insulation with Neoprene coating, according to EN 60335-2-40 codes.

  • Page 8: Electric Connection

    40SMC---N Electric connection E N G L I S H Cooling only 40SMC 009, 012N 10 80 N N Y O W2 V1 V2 V3 V4 40 41 IMPORTANT: Cable must always be placed above cable NOTE: See the outdoor unit installation manual. Power supply cable (H07 RN-F) Interconnection cable (A07 RN-F) Interconnection cable (H07 RN-F)
  • Page 9 40SMC---N Electric connection Heat pump 40SMC009N N N Y O W2 V1 V2 V3 V4 40 41 IMPORTANT: Cable must always be placed above cable Power supply cable (H07 RN-F) Interconnection cable (A07 RN-F) Indoor and outdoor units interconnections Model 40SMC009N 3 x 1,5 4 x 1,5...
  • Page 10 40SMC---N Electric connection E N G L I S H Cooling only 40SMC 018, 024, 028, 036, 048, 060N NOTE: C C Y O W2 V1 V2 V3 V4 40 41 See the outdoor unit installation manual. Power supply cable (H07 RN-F) Interconnection cable (A07 RN-F) 10 80 Indoor and outdoor units interconnections...

  • Page 11: Refrigerant Line Connection (Flare Connnections)

    40SMC---N Refrigerant line connection (Flare connnections) For refrigerant tubes use seamless, insulated refrigeration grade Diameter Min. thikness Tightening tube, (Cu DHP type according to ISO1337), degreased and tubing nominal torque deoxidized, suitable for operating pressures of at least 4200 kPa (inches) and for burst pressure of at least 20700 kPa.

  • Page 12: Maintenance And Service

    40SMC---N Maintenance and service E N G L I S H ATTENTION: Before performing any service or maintenance operations, turn OFF the main power switch. In order to obtain maximum performance, special attention should be paid to the following points: •...

  • Page 13: Fan Diagrams

    40SMC---N Fan diagrams 40SMC012N 40SMC009N 170 180 190 40SMC024N 40SMC018N 1 - Super high speed (optional) 2 - High speed 3 - Medium speed 4 - Low speed Air flow (l/s) GB - 12...
  • Page 14 40SMC---N Fan diagrams E N G L I S H 40SMC028N 40SMC036N 40SMC048N 40SMC060N 800 850 900 1 - Super high speed (optional) 2 - High speed 3 - Medium speed 4 - Low speed Air flow (l/s) GB - 13...
  • Page 15 L010125H82 - 0303 Via R. Sanzio, 9 - 20058 Villasanta (MI) Italy - Tel. 039/3636.1 The manufacturer reserves the right to change any product specifications without notice. Order No. 14014-74, March 2003. Supersedes Order No. 14014-74, October 2002. Printed in Italy...
