Reely EP Leopard Pro 36 Service Manual

Reely EP Leopard Pro 36 Service Manual

1:8 stadium buggy ep leopard pro 36 2,4 ghz rtr
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

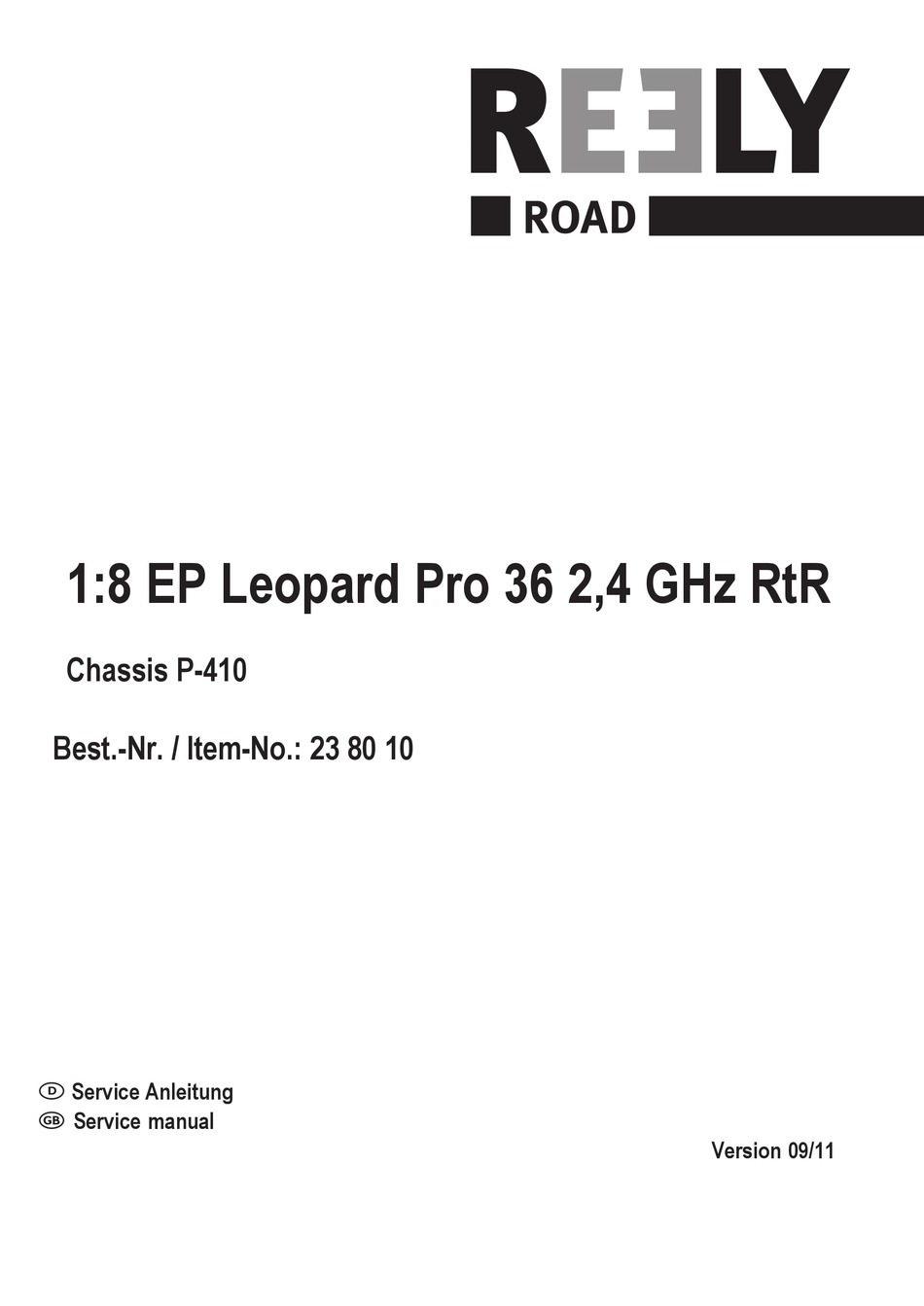

1:8 EP Leopard Pro 36 2,4 GHz RtR
Chassis P-410
Best.-Nr. / Item-No.: 23 80 10
 Service Anleitung
 Service manual
236490
Version 09/11
•

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EP Leopard Pro 36 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Reely EP Leopard Pro 36

Summary of Contents for Reely EP Leopard Pro 36

  • Page 1 1:8 EP Leopard Pro 36 2,4 GHz RtR Chassis P-410 236490 Best.-Nr. / Item-No.: 23 80 10  Service Anleitung  Service manual Version 09/11 •...
  • Page 2 ADDITIONAL ITEMS NEEDED FOR OPERATION INTRODUCTION ˙ Receiver ˙ Tx/Rx Charger (Included with RTR version) (Purchase separately) ˙ Engine (Included with RTR version) ˙ Servo ˙ Plug ˙ 2 Channel Radio Set (Included with RTR version) (Included with RTR version) (Included with RTR version) ˙...
  • Page 3 Step 1 Front, Rear Differentials 1A - O-Ring 3x1mm -- 8 MV11721 1B - Pin 2.5x12.8mm -- 4 1C - Pin 4x26.6mm -- 4 MV22873 MV22873 MV22873 <1-1> MV22811 (43T) MV22873 MV22873 Differential Step 1-1 MV22873 MV22873 For Front and Rear (x2) Differential Oil -- 1 MV11721 1E - Grub Screw 4x3mm -- 2...
  • Page 4 Step 2 Front Gearbox MV1173 MV22821 For Front and Rear (x2) <2-1> 2A - Grub Screw w/Threadlock 5x4mm -- 2 2D - Shim 8.1x12x0.3mm -- 2 2B - Button Head Tapping Screw 4x8mm -- 2 2C - Ball Bearing 8x16x5mm -- 4 MV162 Step 2-1 Step 1...
  • Page 5 Step 3 Front Shock Tower and Body Mount MV1653 Please assemble both right and left sides. MV1653 MV110 SEM1328BA <3-1> Step 2 Step 3-1 3A - Button Head Tapping Screw 3x10mm -- 4 3B - Button Head Tapping Screw 4x12mm -- 4 3C - Cap Screw 3x25mm -- 2...
  • Page 6 Step 4 Front Up Arm Carry and Suspension Plate Holder Mounting MV162U1 MV162D1 Step 3 4A - Round Head Tapping Screw 3x15mm -- 4 4B - F/H Tapping Screw 4x16mm -- 2...
  • Page 7 Step 5 Front CVD and Wheel Hubs For Right and Left Sides (x2) SEM1341BA MV3576 MV107Ti MV3574 MV3576 <5-1> (x2) MV3531 SEM3481BA SEM3481BA Step 5-1 Step 5-1 For Right Side MV3531 5A - Grub Screw 4x3mm -- 4 5B - Grub Screw w/Threadlock 5x5mm -- 2 For Left Side 5C - Cap Screw w/Threadlock 4x12mm -- 4 5D - Ball Bearing 8x16x5mm -- 4...
  • Page 8 Step 6 Front Upper, Lower Suspension Arms and CVD 6A - Lock Nut 3mm -- 4 6B - Hub Stud 3x38mm -- 4 6C - Turnbuckle 5x25mm -- 2 MV349F2 10mm (MV3491) MV349F2 For Right and Left Sides (x2) <6-1> For Left Side Step 6-1 ( L)

  • Page 9: Front Suspension Arms

    Step 7 Front Suspension Arms Step 4 Step 6 Step 6 (MV111) (MV1502) 7A - Lock Nut 3mm -- 2 7B - Cap Screw 3x33mm -- 2 7C - E-Ring 3mm -- 4 7D - Hinge Pin 4x64.4mm -- 2 Step 8 Bumper 8A - Round Head Tapping Screw 4x14mm -- 2...

  • Page 10: Rear Gearbox

    Step 9 Rear Gearbox 9A - Round Head Tapping Screw 3x15mm -- 2 9B - Round Head Tapping Screw 4x18mm -- 2 9C - Button Head Tapping Scerw 4x8mm -- 2 9D - F/H Tapping Screw 4x16mm -- 2 MV162 Step 2-1 Step 1 MV162...
  • Page 11 Step 10 Rear Shock Tower and Body Mount 10A - Lock Nut 3mm -- 1 10B - Button Head Tapping Scerw 3x10mm -- 4 10C - Button Head Machine Screw 3x15mm -- 1 10D - Button Head Tapping Scerw 3x18mm -- 1 10E - Cap Screw 3x25mm -- 2 MV1653 MV110...
  • Page 12 Step 11 Rear Shock Tawer Mounting 11A - Button Head Tapping Scerw 4x12mm -- 4 11B - Round Head Tapping Screw 3x15mm -- 2 11C - Round Head Tapping Screw 4x25mm -- 2 Step 10 Step 9...
  • Page 13 Step 11 Step 12 Rear Chassis Brace Mounting 12A - Lock Nut 3mm -- 1 12B - Cap Screw 3x25mm -- 1 MV1621 (V221524) MV1621 MV1621 (MV113) MV1621 (V221524) MV1621 <12-1> Step 11 Step 12-1...
  • Page 14 Step 13 Rear Hubs For Left Side MV105 SEM3461BA MV107Ti MV107Ti SEM3461BA MV105 For Right Side 13A - Pin 2.5x16.8mm -- 2 13C - Grub Screw w/Threadlock 5x5mm -- 2 13B - Ball Bearing 8x16x5mm -- 4 13D - Washer 8x12x0.2mm -- 2 Step 14 Rear Upper Suspension Arms 14A - Turnbuckle 5x36mm -- 2...
  • Page 15 Step 15 Rear Upper, Lower Suspension Arms and Hubs 15C - Hub Stud 3x43.5mm -- 2 15A - Lock Nut 3mm -- 4 15B - Button Head Machine Screw 3x25mm -- 2 For Right Side Step 14 Step 13 Step 14 (MV1503) MV347R2 Step 13...
  • Page 16 Step 16 Rear Suspension Arms Step 12 Step 15 (MV111) Step 15 Please assemble both right and left sides. MV3554 16A - Lock Nut 3mm -- 2 16B - E-Ring 3mm -- 4 16C - Cap Screw 3x25mm -- 2 16D - Hinge Pin 4x64.4mm -- 2...
  • Page 17 Step 17 Rear Stabilizing Rods 17A - Grub Screw 3x12mm -- 2 MV3617 MV3617 (MV3617) For Right and Left Sides (x2) MV3617 MV3617 Step 18 Rear Sway Bar MV3617 (MV3611) Step 17 MV3617 Step 17 Step 16 Please assemble both right and left sides.
  • Page 18 Step 19 Engine Mount Spacers Mounting MV3114Ti MV310 MV12603 MV30731 SXV3012BA 19A - Flanged Lock Nut 3mm -- 1 19B - F/H Tapping Screw 3x10mm -- 2 19C - F/H Machine Screw 3x12mm -- 1 19D - F/H Machine Screw w/Threadlock 4x10mm -- 6...
  • Page 19 Step 20 Receiver Case 20A - Flanged Lock Nut 4mm -- 1 20B - Button Head Tapping Screw 3x10mm -- 11 MV3746 MV3746 Step 20-1 XV3741 Receiver MV3746 <20-1> XV3741 Receiver Case <20-2> XV3022Ti Step 20-2 (Receiver Case) (Steering Servo) MV3103...

  • Page 20: Battery Case

    Step 21 Battery Case 21A - Round Head Machine Screw 2x10mm -- 2 21E - Post 6x32mm -- 3 21B - Round Head Machine Screw 2x15mm -- 1 21C - Button Head Machine Screw w/Threadlock 3x8mm -- 3 21D - Button Head Tapping Screw 3x10mm -- 6 XV3731 Battery Holder (XV3731)
  • Page 21 Step 22 Receiver Case and Battery Case 22A - Button Head Tapping Screw 3mm -- 1 Step 21 Step 20 Step 23 Front Chassis Brace 23A - Flanged Lock Nut 3mm -- 1 23B - Cap Screw 3x16mm -- 1 23C - Turnbuckle 4x90.5mm -- 1 MV1623F7 (V221524)
  • Page 22 Step 24 Radio Tray Mounting 24A - F/H Machine Screw w/Threadlock 3x8mm -- 3 24B - F/H Tapping Screw 3x10mm -- 4 Step 22 Step 19...

  • Page 23: Servo Saver

    Step 25 Servo Saver 25A - Lock Nut 3mm -- 2 25B - Servo Saver Screw 3x19.7mm -- 2 MV30731 MV3071 25C - Shim 8x12x0.8mm -- 2 MV3071 MV3071 25D - Bushing 6x10x3mm -- 4 25E - Flanged Ball Bearing 5x8x2.5mm -- 2 MV30731 MV30731 <25-1>...

  • Page 24: Steering Rod

    Step 26 Steering Rod 26B - Cap Screw 3x18mm -- 2 26A - Lock Nut 3mm -- 2 26C - Turnbuckle 5x90.5mm -- 2 MV1304 MV1304 (V221514) (MV1131) 75mm (MV1304) MV1304 (MV113) MV1304 (V221514) For Right and Left Sides (x2) <26-1>...
  • Page 25 Step 42 Step 27 Shock Bodies and Shock Shafts Shock Bodies and Shock Shafts 27B - O-Ring 2.5x1mm -- 4 27A - Lock Nut 2.6mm -- 4 27C - Washer 2.5x5.9x0.5mm -- 4 27D - Nylon Washer 3x6.3x2.4mm -- 4 27E - O-Ring 3mm -- 8 27G - Shock Shaft 3x61mm -- 4 27H - Shock Body 14x53mm -- 4...

  • Page 26: Shock Oil

    Step 28 Shock Oil Silicone Shock Oil MV1386 (Not Included) MV1364B After filling with shock oil, GENTLY pump shock shaft up and down several times to eliminate air bubbles. Step 27 For Front and Rear (x4) Step 29 Shock Springs Step 28 MV13761 (MV112)
  • Page 27 Step 30 Front and Rear Shock Mounting Step 7 Step 29 MV1382 Step 29 For Front Step 18 Step 29 MV1382 Step 29 For Rear 30A - Flanged Lock Nut 3mm -- 4 30B - F/H Machine Screw 3x20mm -- 4...
  • Page 28 Step 31 Front Bumper, Suspension Mounting 31A - F/H Tapping Screw 4x16mm -- 2 31B - F/H Tapping Screw 4x19mm -- 4 Step 30 Step 24 Step 8...
  • Page 29 Step 32 Steering Linkages Mounting Step 23 Step 26 Step 31 32A - Shim 6.1x9.8x0.2mm -- 2 32B - Round Head Tapping Screw 4x25mm -- 2 32E - Cap Screw w/Threadlock 3x18mm -- 2 32C - Flanged Lock Nut 3xmm -- 1 32F - F/H Machine Screw 3x20mm -- 1 32D - Washer-Head Screw w/Threadlock 4x10mm -- 2...
  • Page 30 Step 33 Rear Suspension Mounting Step 30 Step 32 33A - Flange Lock Nut 3mm -- 1 33C - F/H Machine Screw 3x25mm -- 1 33B - F/H Tapping Screw 4x16mm -- 4...
  • Page 31 Step 34 Centre Differential 34B - F/H Machine Screw w/Threadlock 3x8mm -- 6 34A - Grub Screw 5x4mm -- 2 34D - Ball Bearing 8x16x5mm -- 2 34C - Flanged Ball Bearing 8x12x3.5mm -- 2 Tighten Loosen Tighten the grub screw to get later The grub screw head clutch shoe spin timing or loosen should be adjusted to...
  • Page 32 Step 35 Brake Pads and Brake Disc 35A - Button Head Tapping Screw 3x10mm -- 4 35B - Brake Pin 3x10mm -- 4 35C - Ball Bearing 5x10x4mm -- 2 MV3062 XV3041 MV3062 MV309 <35-1> XV30422Ti MV1261 (BB0306025) MV1261 Step 35-2 (BB0306025) Step 34 Step 35-1...
  • Page 33 Step 36 Centre Differential and Drive Shafts 36A - F/H Tapping Screw 4x12mm -- 4 Step 35 MV3551 MV3561 Step 33...

  • Page 34: Fuel Tank Mounting

    Step 37 Fuel Tank Mounting MV3031 Silicone Tubing (MV303T) Silicone Tubing (MV308) (MV303T) (MV308) Step 36 37A - Shim 3x8x1mm -- 2 37D - Post 6x32mm -- 2 37B - F/H Machine Screw w/Threadlock 3x8mm -- 2 37E - Rivet 8x4.2x6mm -- 2 37C - Washer Head Screw w/Threadlock 3x10mm -- 2...
  • Page 35 Step 38 Flywheel and Engine Mounts 38A - Lock Nut 3mm -- 4 38B - Cap Screw 3x16mm -- 4 Engine MV3113BA Use the collet that comes with your engine and tighten the engine nut securely. (MV204P) MV36304 38D - Collet for SG Shaft 38C - Engine Nut for SG Shaft Step 39 Clutch Shoes and Springs Mounting...
  • Page 36 Step 40 Flathead Screwdriver and Clutch Tool <Assemble Clutch Shoes> Use Flathead Screwdriver Use Clutch Tool (Option Part - SET270BAGV) <Disassemble Clutch Shoes>...
  • Page 37 Step 41 Clutch Tool <Assemble Clutch Shoes> Use Clutch Tool (Option Part - SET007) <Disassemble Clutch Shoes> Use Clutch Tool (Option Part - SET007)
  • Page 38 Step 42 2 - Speed Clutch Bell Mounting 42A - Shim 5.1x8x0.4mm -- 1 42B - Flanged Ball Bearing 5x10x4mm -- 2 Step 39 SEM2251 (MV3131) SEM2251 (MV3191) SEM2251 (MV3141) 42C - Button Head Machine Screw w/Threadlock 3x6mm -- 1 Step 43 Air Filter Mounting 43A - F/H Tapping Screw 3x8mm -- 1...
  • Page 39 Step 44 Linkage Tuned Pipe and Manifold Mounting MV3766CHS4 (MV2057CH) MV3766CHS4 (MV2057CH) MV3766CHS4 MV3766CHS4 (MV2057CH) (MV3766CH4) <44-1> MV3766CHS4 Step 44-1 (MV2057CH) MV3766CHS4 (MV2057CH)

  • Page 40: Engine Mounting

    Step 45 Engine Mounting 45A - Grub Screw w/Threadlock 4x4mm -- 1 45B - Button Head Machine Screw w/Threadlock 5x10mm -- 4 Step 44 Step 37...
  • Page 41 Step 46 Steering Linkage Mounting 46C - Button Head Machine Screw 3x12mm -- 1 46A - Lock Nut 3mm -- 1 46B - Flanged Lock Nut 3mm -- 1 46D - Cap Screw 3x18mm -- 1 46E - Grub Screw 3x16mm -- 1 MV1302 MV1302 Servo Arm...

  • Page 42: Throttle And Brake Linkages

    Step 47 Throttle and Brake Linkages 47C - Button Head Tapping Screw 3x12mm -- 1 47A - Grub Screw w/Threadlock 3x3mm -- 6 47B - Spring 8.3mm -- 2 47D - Spring 18mm -- 1 50mm SE002 SE0031BA SE0031BA MV12603 27mm <47-1>...
  • Page 43 Step 48 Throttle and Brake Linkages Mounting 48A - Grub Screw w/Threadlock 3x3mm -- 2 Retaining Screw (Included with Servo) Step 47 Step 46 Make sure the servo is in the neutral position. First through the Brake linkage into the brake pin, Install the servo arm to the servo and tighten the retaining screw.
  • Page 44 Step 49 Throttle and Brake Linkage Adjustment High Throttle Full Brake Throttle Step 50 Fuel Pick-Up Tubing and Pressure Tubing Mounting Fuel Pick-Up Tubing Fuel Pressure Tubing Step 49...
  • Page 45 Step 51 Front and Rear Magnet Holder Mounting 51A - Button Head Machine Screw w/Threadlock 3x4mm -- 8 SE2911 (SE2912) For Front and Rear (x4) The magnet holder position should depend on the body you use. First <51-1> please use wire cutters to cut the body mount to appropriate lengths, then install them and change the position to fit with your body height.
  • Page 46 Step 52 Receiver, Servo and Battery Install Servo (CH2) Battery Receiver (Steering) (Throttle/Brake) BATT Switch CH. 1 CH. 2 CH. 3 BATT Servo (CH1) Receiver Step 53 Antenna Support Tube Mounting Antenna Support Tube Receiver - Antenna...

  • Page 47: Wheels And Tires

    Step 54 Wheels and Tires MV36939 MV36939 MV37042GA For Right Side (X2) MV37042GA For Left Side (X2) <54-1> Instant Cement (Not Included) Step 54-1 For Right and Left Sides (x4)
  • Page 48 Step 55 Tires Mounting 55A - Wheel Nut 17mm -- 4 Step 54 (MV106Ti) Step 53 Step 54 Step 54 Step 54 (MV106Ti)
  • Page 49 Ersatzteile / Spare parts BB0508025/Best-Nr.214787-EQ BB0508025T/Best-Nr.295493-EQ BB051004 / Best-Nr.295620-EQ BB0306025/Best-Nr.221990-EQ Flansch-Kugellager Kugellager 5x10x4mm Kugellager 3x6x2,5mm Kugellager 5x8x2,5mm Ball bearing 5x8x2,5mm Ball bearing 5x10x4mm Ball bearing 3x6x2,5mm Ball bearing 5x8x2,5mm BB081605/Best.-Nr.214493-EQ MV105/Best.-Nr. 223387-EQ BB081235T/Best-Nr229653-EQ BU061003/Best.-Nr. 234512-EQ Flansch-Kugellager Kugellager 8x16x5mm Buchsen 6x10x3mm Radachsen 43mm Bushing 6x10x3mm Ball bearing 8x12x3,5mm...
  • Page 50 SEM1328BA/Best-Nr235122-EQ SEM1341BA/Best-Nr235109-EQ MV1382/Best.-Nr. 223326-EQ MV1386/Best.-Nr. 223389-EQ Feder-Vorspannerset CNC-Alu-Achsschenkel vorne sw Stoßdämpfer-Reparaturset CNCAlu-Dämpferbrücke 5mm Alu steering hub black CNC Shock spring spacer Shock rebuild kit Shock tower 5mm black CNC XV3751 /Best.-Nr.234543-EQ MV141 /Best.-Nr.223294-EQ MV1393BA/Best.-Nr.228153-EQ 34A116A01/Best.-Nr.237045-EQ Heckspoiler-Halterung Tuning-Federn 1.7x80,5mm sw Alu-Stoßdämpfer blau/sw 126mm Heckspoiller BiWing Wing mount Shock spring 1,7x80,5mm black...
  • Page 51 MV2032/Best.-Nr.223362-EQ F1/Best.-Nr.228680-EQ MV3769CH4Best.-Nr.-226959-EQ MV3766GAS4Best.-Nr.-235192 Luftfiltereinsatz 2 Stück 2-Kammer-Resonanzrohr chrom Luftfilteröl Resonanz-Rohrset Dual-chamber tuned pipe chrome Air filter elements 2pcs. Airfilter oel Linkage tuned pipe set MV227542/Best.-Nr.238769-EQ MV22811/Best.-Nr.232736-EQ MV22821/Best.-Nr.232737-EQ Kegelrad klein 13 Z Differenzial-Dichtringe Kegelrad groß 43 Z Ring gear 13 T Gaskets for bevel diff Ring gear 43 T MV22873FR1Best-Nr234485-EQ...
  • Page 52 MV310/Best.-Nr.-223330-EQ MV309/Best.-Nr.-223375-EQ MV3103/Best.-Nr.-234495-EQ MV3113/Best.-Nr.-234496-EQ Bremsscheibe Servomontage-Set Lenkservomontage-Set Motorhalter Brake disc Servo mount set Steering Servo mount set Engine mount MV3114TI/Best.-Nr.-234497-EQ SEM3461BA/Best.-Nr.235115 MV347R2/Best.-Nr.-225629-EQ MV347F2/Best.-Nr.-225628-EQ CNC-Alu-Achsschenkelhalter sw Querlenker unten/vorne Querlenker unten/hinten Motorabstandshalter Alu rear hub black CNC Suspension arm lower/front Suspension arm lower/rear Engine mount spacer SEM3481BA/Best.-Nr.235112 MV3491/Best.-Nr.-223397-EQ...
  • Page 53 MV3746/Best.-Nr.-232650-EQ MV3131/Best.-Nr.-229076-EQ MV3191/Best.-Nr.-229078-EQ MV3141/Best.-Nr.-229077-EQ Alu-Antennenhalterung 2-Gang-Getriebe-Zahnrad 19Z 2-Gang-Getriebe-Kupplung 2-Gang-Getriebe-Zahnrad 14Z Antenna mount alu 2-Speed Clutch bell 2-Speed Pinion gear 14 T 2-Speed Pinion gear 19 T SE002/Best.-Nr.-234499-EQ SE0031BA/Best.-Nr.-234744-EQ V22151/Best.-Nr.-229171-EQ V221513/Best.-Nr.-229133-EQ Vergaseranlenkungsteile Kugelkopfpfannen 4 Stk. Kugelkopfpfannen 4 Stk. Stellringset 2mm Plastic parts accessories Ball ends M3x7x22,5mm Ball ends M3x7x25,5mm Rod stopper set...
  • Page 54 Tuningteile / Option parts MV22812/Best.-Nr.-236769-EQ MV22822/Best.-Nr.-236770-EQ SEM1170BA/Best.-Nr.229088-EQ SEM1170B/Best.-Nr.223270-EQ Silikonmanschetten CVDs bl Silikonmanschetten CVDs sw Stahl-Differenzial-Zahnrad 43Z Stahl-Differenzial-Kegelrad 13Z CVD Dust boots blue CVD Dust boots black Steel Ring gear 43 T Steel pinion gear 13 T SEM1621BA/Best-Nr235110-EQ SEM162C2/Best.-Nr.223278-EQ SEM162C3/Best.-Nr. 223279 SEM162D2BA/Best.-Nr.235114 CNC-Alu-Querlenkerhalter vorne CNC-Alu-Chassisversteifung sw...
  • Page 55 SEM375T/Best-Nr235072-EQ SEM2036BA/Best-Nr235428-EQ MV375BA/Best-Nr232878-EQ Luftfilter oval sw Heckflügel BiWing sw Alu Heckflügel CNC Air filter big oval Rear wing black Alu wing CNC MV1201/Best-Nr 223350-EQ MV120/Best-Nr 223351-EQ Karosserieklammern Karosserieklammern Carbody clips 80mm Carbody clips 80mm SEM106S/Best.-Nr.235432-EQ SEM106B/Best.-Nr.235434-EQ SEM106BA/Best.-Nr.235436-EQ SEM106TA/Best.-Nr.235437-EQ Stop-Radmuttern silber Stop-Radmuttern sw Stop-Radmuttern blau Stop-Radmuttern titan...
  • Page 56 34C530HA08315WH Shock Set - C Type (Hard Anodize)
  • Page 57 Schnell – einfach – zuverlässig Ersatzteilbestellung bei Conrad Electronic Für viele Artikel können wir schnell und zuverlässig Ersatzteile liefern. Unser Lager hält im Bedarfsfall mehrere Tausend Teile für Sie bereit. Bestellung per Telefon: 0180 - 531 21 11* Bestellung per Telefax: 0180 - 531 21 10* Bestellung per Mail: sales@conrad.de Bestellung per Internet:...
