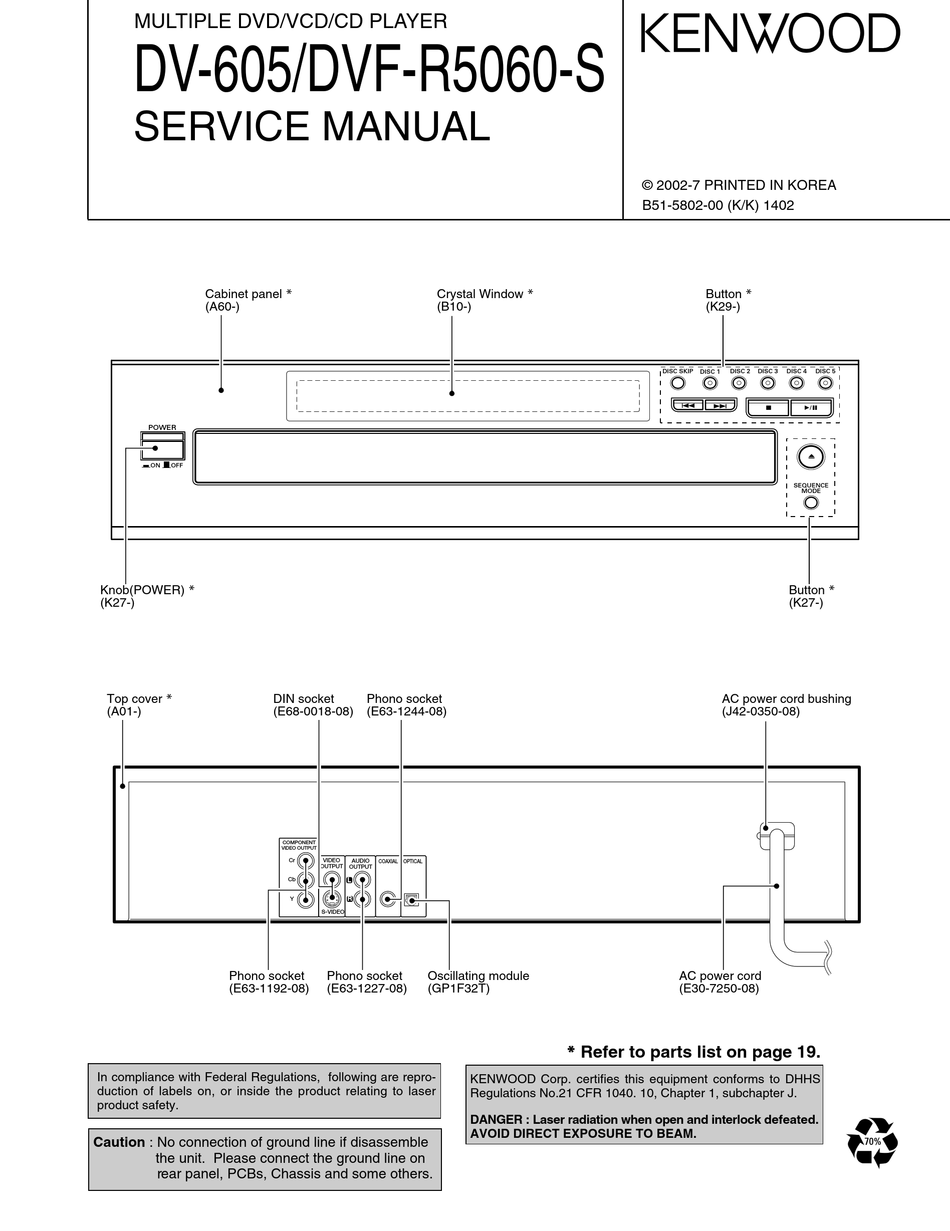

MULTIPLE DVD/VCD/CD PLAYER
DV-605/DVF-R5060-S
SERVICE MANUAL
Cabinet panel *
(A60-)
POWER
ON
OFF
Knob(POWER) *
(K27-)
Top cover *
(A01-)
Phono socket
(E63-1192-08)
In compliance with Federal Regulations, following are repro-
duction of labels on, or inside the product relating to laser
product safety.
Caution : No connection of ground line if disassemble
the unit. Please connect the ground line on
rear panel, PCBs, Chassis and some others.
Crystal Window *
(B10-)
DIN socket
Phono socket
(E68-0018-08)
(E63-1244-08)
COMPONENT
VIDEO OUTPUT
Cr
VIDEO
AUDIO
COAXIAL
OPTICAL
OUTPUT
OUTPUT
Cb
L
R
Y
S-VIDEO
Phono socket
Oscillating module
(E63-1227-08)
(GP1F32T)
© 2002-7 PRINTED IN KOREA
B51-5802-00 (K/K) 1402
* Refer to parts list on page 19.
KENWOOD Corp. certifies this equipment conforms to DHHS
Regulations No.21 CFR 1040. 10, Chapter 1, subchapter J.
DANGER : Laser radiation when open and interlock defeated.
AVOID DIRECT EXPOSURE TO BEAM.
Button *
(K29-)
DISC SKIP
DISC 1
DISC 2
DISC 3
DISC 4
DISC 5
4
¢
7
6
0
SEQUENCE
MODE
Button *
(K27-)
AC power cord bushing
(J42-0350-08)
AC power cord
(E30-7250-08)
70%

Advertisement

Table of Contents

   Also See for Kenwood DV-605

   Related Manuals for Kenwood DV-605

   Summary of Contents for Kenwood DV-605

  • Page 1: Audio Video Cord (red, White, Yellow)

    * Refer to parts list on page 19. In compliance with Federal Regulations, following are repro- KENWOOD Corp. certifies this equipment conforms to DHHS duction of labels on, or inside the product relating to laser Regulations No.21 CFR 1040. 10, Chapter 1, subchapter J.
  • Page 2: Table Of Contents

    DV-605/DVF-R5060-S CONTENTS / ACCESSORIES / CAUTIONS Contents CONTENTS / ACCESSORIES / CAUTIONS..... 2 SCHEMATIC DIAGRAM .......... 11 DISASSEMBLY FOR REPAIR........3 EXPLODED VIEW ............17 BLOCK DIAGRAM ............4 PARTS LIST..............19 ADJUSTMENT ............4 SPECIFICATIONS ........Back cover PC BOARD ..............5 Accessories Please confirm that the following accessories are present.
  • Page 3: Disassembly For Repair

    DV-605/DVF-R5060-S DISASSEMBLY FOR REPAIR 1. How to open the tray if it does not come out. (Fig.1) 1. Remove the plastic plate. 2. Turn the gear fully CCW using a flat driver and so on in the drawing through the hole on the loading chassis bottom.
  • Page 4: Block Diagram

    DV-605/DVF-R5060-S BLOCK DIAGRAM +5VS FL AC FL AC IC91 -27V F-OE(DRAM OE) F-CE IC21 IC61 IC41 ADDR+ DAC LATI25 F-WE DAC SCKDSD FLASH MEMORY F-RESET DAC SDIDEM 8MBIT BA4560 F-DE DAC MUTEB JK82 M29F400T-90N1 WM8728 DATA+ CSBWL L AUDIO DAC ZERO L.P.F...
  • Page 5: Circuit Description

    DV-605/DVF-R5060-S CIRCUIT DESCRIPTION 1. Pin Description of MPEG Processor (Main, IC21) Pin No. Pin Name Pin Description PIOs and communication PIO2(5) DAC SDIDEM IN/OUT I/O DAC data input and output. PIO2(6) DAC MUTEB IN/OUT I/O DAC mute control. PIO2(7) DAC CSBIWL OUT DAC chip select.
  • Page 6 DV-605/DVF-R5060-S CIRCUIT DESCRIPTION Pin No. Pin Name Pin Description SMI DQMU DQ MASK enable up. SMI CLKIN SDRAM clock input. 84~93 SMI DATA(0~9) I/O SDRAM data bus. SMI CLKOUT SDRAM clock out. 97~102 SDI DATA(10~15) I/O SDRAM data bus. Reserved ADC SCLK I/O Digital audio port clock (Unused).
  • Page 7 DV-605/DVF-R5060-S CIRCUIT DESCRIPTION Pin No. Pin Name Pin Description PIO0(6) SLIDER SENSOR I/O Detection port of slider sensor for DVD mechanism. OPEN/CLOSE (DRAWER POSITION ) PIO0(7) SLIDER IN I/O Control port of slider (IN) for DVD mechanism. (DRAWER CCW/CTRL) PIO1(0) SDA...
  • Page 8 DV-605/DVF-R5060-S CIRCUIT DESCRIPTION Pin No. Pin Name Description Digital ground for core. SPR4/V06~ Multi-purpose parallel output converted from serial data through 37~39 SPR6/V08 MPU interface / pixel data output. 40,41 VDD3 Positive supply voltage (+3.3V) for pad ring. Digital ground for core.
  • Page 9 DV-605/DVF-R5060-S CIRCUIT DESCRIPTION 2-3 64 Bit SDRAM : HY57V651620B (Main, IC31) Pin No. Pin Name Description The system clock input. all other inputs are registered to the SDRAM on the rising edge of CLK. Controls internal clock signal and when deactivated, the SDRAM will be one of the states among power down, suspend or self refresh.
  • Page 10 DV-605/DVF-R5060-S CIRCUIT DESCRIPTION 2-6 24-bit, 192kHz Stereo DAC : WM8728 (Main, IC61) Pin No. Pin Name Pin Description DAC sample rate clock input : PCM input mode LRCIN Right channel DSD bitstream input : DSD input mode Serial audio data input : PCM input mode...
  • Page 11: Pc Board

    PC BOARD (Component side view) MECHA CONTROL BOARD CAROUSEL P003 P004 MOTOR BOARD C005 C002 JW18 IC001 D001 PI004 P406B R003 PI002 R004 D002 PI001 IC002 L001 P406 CONNECTION BOARD CP210 CN93 S930 S913 CP95 CP94 PI003 R933 P027 SEQUENCE MODE OPEN/CLOSE FRONT BOARD CN92...
  • Page 12 PC BOARD (Component side view) MAIN BOARD C608 C311 R606 CN25 CN27 C606 C61R R67R C66R C65R GND1 C505 Q61R R63R R314 R603 Q202 IC61 IC62 Q61L R218 C65L C66L C502 C603 C61L R214 CN21 R216 X501 C206 R254 IC31 R63L R215 C601...
  • Page 13 PC BOARD(Foil side view) MAIN BOARD R602 C312 R315 C602 R313 R311 L601 R312 R310 L210 C121 R125 C123 R126 R124 C616 R230 C111 R404 R234 C110 R235 C109 R102 C209 R147 R413 R101 C204 C404 R28S Q12R R28C R607 Q14R R206 R28Y...
  • Page 14 MAIN BOARD +2.5V +2.5V 3.3V +3.3V +3.3V 3.3V DOWN LOAD R414 CP22 FLASH MEMORY 2.5V 5.2V IC41 3.3V RA41 47 C406 2.5V 100u10 BYTE 3.3V C213 C212 RA43 47 C210 DQ15 RA42 47 100u10 Q201 Q202 C208 DQ14 C211 0.01 C405 1000P DQ13...
  • Page 15 MAIN BOARD MECHA CONTROL BOARD IC001 R219 R220 +2.5V +2.5V 3.3V +3.3V +3.3V JTAG TEST L501 C504 0.1 CONNECTION P406 C503 22P C505 3.3V IC61 HEX INVERTER 470u6.3 ROU MO- R502 (SINGLE STAGE) C613 10P C502 22P ROU MO+ LAT12S CP23 LRCIN ROU SEN...
  • Page 16 Q801 RM91 W02-2801-08 OPTICAL 1.6V Q911-915 : DTC114YKA R802 R801 D906 RB501V-40 DIGITAL 3.3V +3.5 +3.5V +3.5V D907 1N4148 4.7uH 3.4V DL91-95 B30-XXXX-08 JK81 2.5V R807 C803 R808 0.01 +2.5 +2.5V COAXIAL 1u50 DV-605/DVF-R5060-S DV-605(K) Y22-8690-10 CHGND...
  • Page 17: Exploded View

    DV-605/DVF-R5060-S EXPLODED VIEW (MECHANISM) 3x10 : N09-5408-08 2.6x4 : N09-5409-08 3x10 : N09-5410-08 : N89-3008-46 3x18 : N09-5411-08 2x14.7 : N09-5450-08 CC21 CC25 CC21 DV-605/DVF-R5060(2/2) Parts with exploded numbers larger than 700 are not supplied.
  • Page 18 DISC SKIP S911 S915 S917 S921 S924 S927 FL91 S901 S903 S905 S907 φ3x10(BLK) : N89-3010-45 φ4x8 (BLK) : N09-5268-08 φ3x8 : N89-3008-46 φ3x6 : N89-3006-46 φ3x8 : N09-1515-05 φ3x8(SIL) : N89-3008-41 φ4x8(SIL) : N09-5369-08 S930 SEQUENCE MODE S913 DV-605/DVF-R5060-S(1/2)
  • Page 19: Parts List

    ✽ K27-2502-08 BUTTON OPEN/CLO 55295550 C61R CE04LW1C470M ELECTRO 47UF 16WV ✽ K27-2507-08 BUTTON OPEN/CLO 55296030 2D,2E J02-1510-08 FOOT KENWOOD DV 55235230 C62L CK73GB1H222K CHIP C 2200PF C62R CK73GB1H222K CHIP C 2200PF J02-1529-08 FOOT KENWOOD BL 55235300 C63L CC73FCH1H331J CHIP C 330PF ✽...
  • Page 20 ✽ New Parts ✽ New Parts Parts without Parts No. are not supplied. Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No.
  • Page 21 ✽ New Parts ✽ New Parts Parts without Parts No. are not supplied. Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No.
  • Page 22 ✽ New Parts ✽ New Parts Parts without Parts No. are not supplied. Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No.
  • Page 23 ✽ New Parts ✽ New Parts Parts without Parts No. are not supplied. Parts without Parts No. are not supplied. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Les articles non mentionnes dans le Parts No. ne sont pas fournis. Teile ohne Parts No.
  • Page 24: Specifications

    COAXIAL ..........0.5 Vp-p / 75 Ω Weight (net) ..........7.0 kg (15.4 lb) OPTICAL ..-21 dBm ~ -15 dBm (Wave length 660 nm) KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be Notes Notes changed without notice.
