Summary of Contents for Repotec RP-PE054J/F

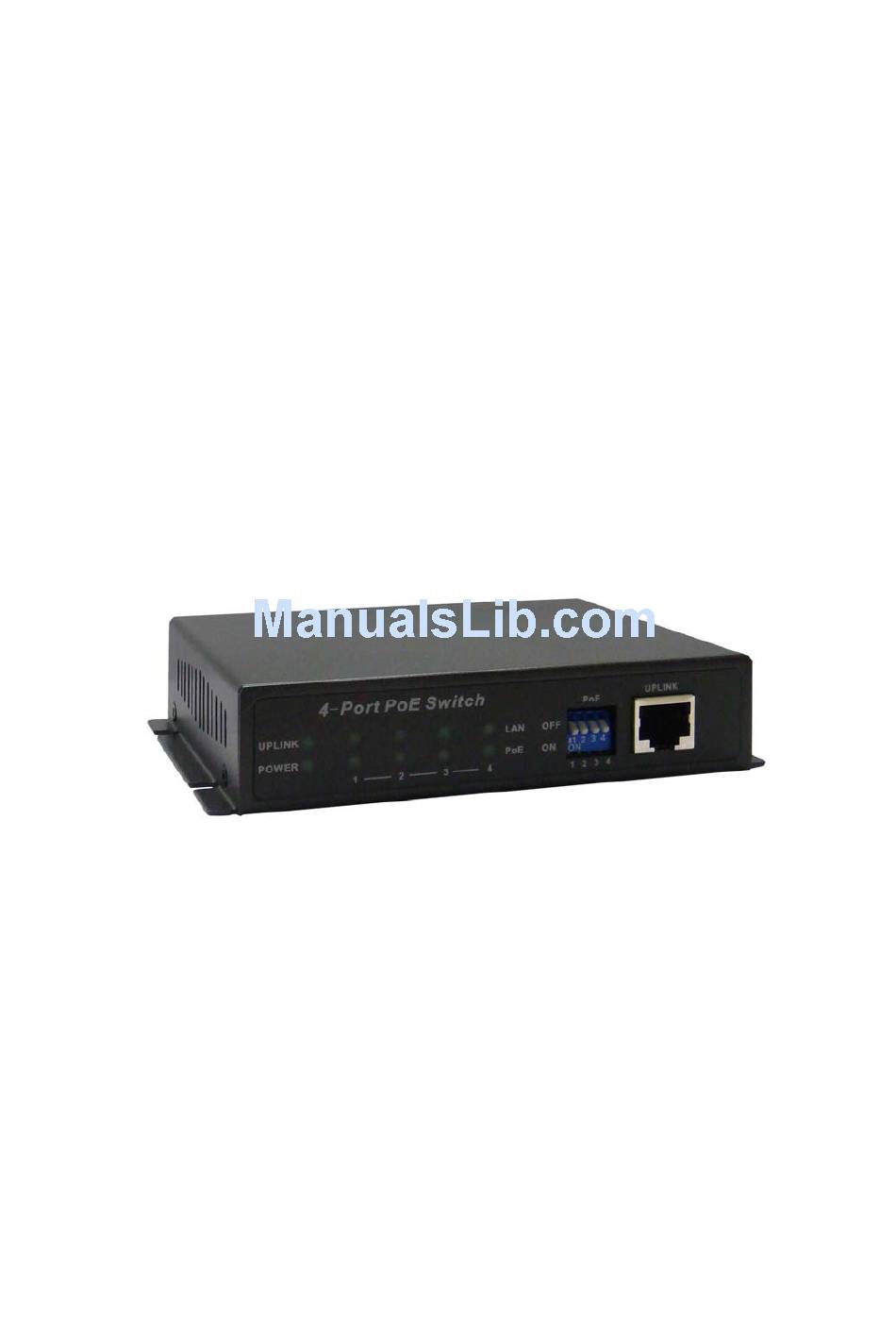

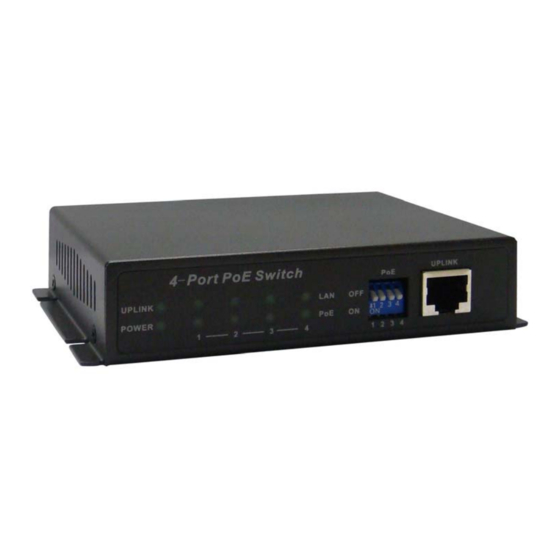

- Page 1 5 ports Fast Ethernet Switch With 4 Port PoE High Power Injector User Manual Ver 1.0...
- Page 2 10M/100Mbps Fast Ethernet. With 4 dip switches, each PoE port can be manually set for On-Off control. RP-PE054J/F is supporting high power injector of upto 48W if one port PoE is ON, or 48W on each PoE port if two PoE ports are...
- Page 3 3. LED Indicators On the front panel, there are 10 LED indicators as the following; POWER: “Green On” indicates power is on and normal. UPLINK: “Green On” indicates Ethernet Uplink port is in connection. “Fast Flashing” indicates Ethernet Uplink data activities at 100M. “Slow Flashing”...
- Page 4 6. Technical Specifications IEEE 802.3 10BaseT Standards IEEE 802.3u 100BaseTX IEEE 802.3x Flow Control Number of Ports: 5 PoE Ports: 4 PoE Features PoE On/Off Control: Dip Switches PoE Power Injection: 120Watts in total MAC Address: 2K Buffer Memory: 512K bits Store and Forward Ethernet Switch Features Auto MDIX...
