Summary of Contents for Air Live AC-1200R

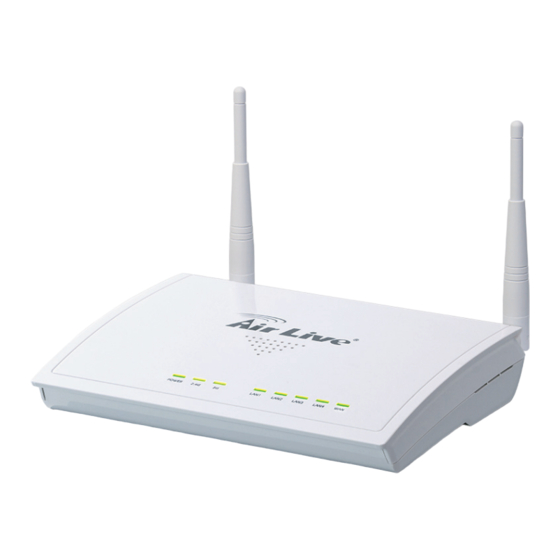

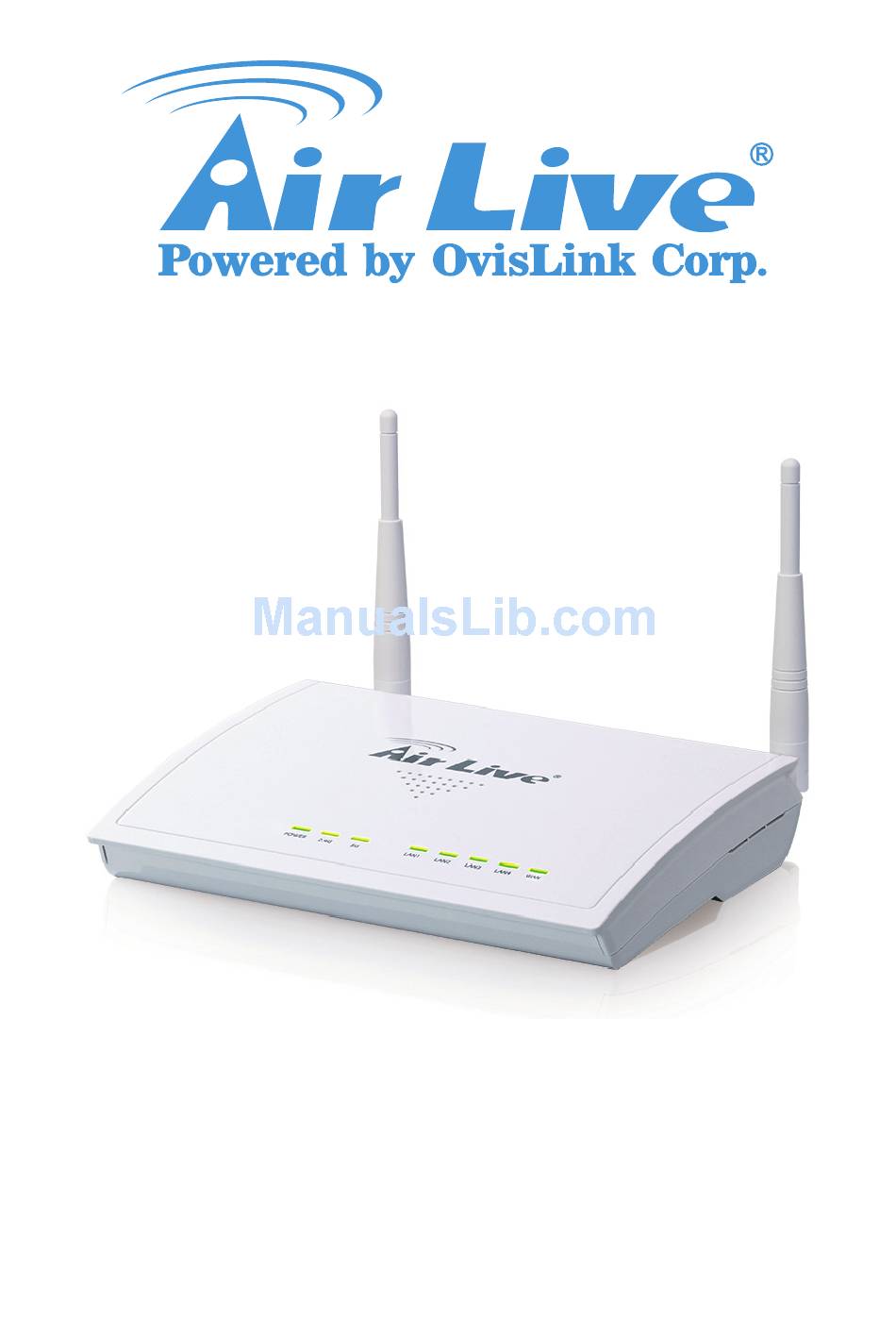

- Page 1 AC-1200R Wireless Access Point Quick Installation Guide...
- Page 2 Support You can download the complete guides and supporting programs from <http://www.airlive.com/pro duct/ac-1200r/download>, or scan the QR code here. Please consult with the FAQs <http://www.airlive.com/pro duct/ac-1200r/faq> before writing to OvisLink Tech Support Team for further assistance For any other question, please read the user manual in the CD or mail to tech@airlive.com...
- Page 3 AC-1200R Package Contents Please check the package contents and contact your distributor if any part is missing. POWER POWER 2.4G 2.4G LAN1 LAN1 LAN2 LAN2 LAN3 LAN3 LAN4 LAN4 One AC-1200R One 12V 1A DC main unit power adapter Declaration of Conformity We, Manufacturer/Importer OvisLink Corp.
- Page 4 I/O Interface 12V DC Ant. LAN4 LAN3 LAN2 LAN1 Reset/WPS Ant. Antenna Power Reset/ Antenna...
- Page 5 Power up the AC-1200R Connect the 12V adapter to power up the AC-1200R 12V DC Ant. LAN4 LAN3 LAN2 LAN1 Reset/WPS Ant. 12V DC...
-
Page 6: Cable Modem
Connect AC-1200R to Network a. Connect your xDSL/ cable modem to the WAN port of router by Ethernet cable b. Connect all your computers , network devices to the LAN port of the router 12V DC Ant. LAN4 LAN3 LAN2... - Page 7 The default username/password is admin/airlive The default SSID for 2.4G is Airlive The default SSID for 5G is Airlive-5G Note: AC-1200R has 2 radio 2.4G/5G and each radio can work in difference mode. The default mode is AP router. You can change operation...
