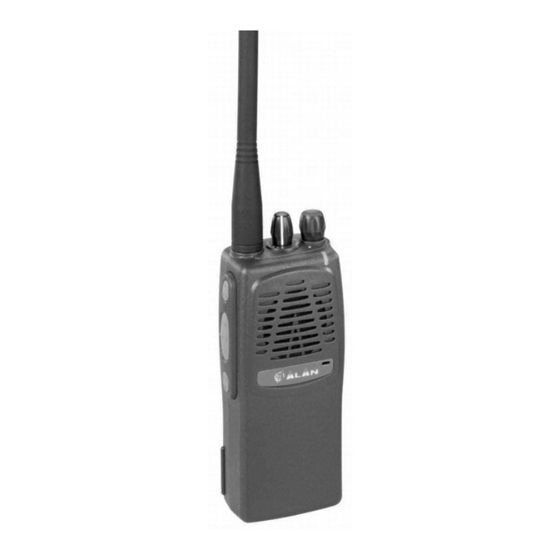

ALAN HP 106
SERVICE MANUAL

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HP106 and is the answer not in the manual?

Questions and answers

Related Manuals for Alan HP106

Summary of Contents for Alan HP106

  • Page 1 ALAN HP 106 SERVICE MANUAL...
  • Page 2 HP106 Service Manual ALAN HP106 Portable VHF Transceiver Service Manual Copyright  2003 by CTE International Italy; all rights reserved Page 1 of 12...

  • Page 3: Table Of Contents

    HP106 Service Manual Contents TECHNICAL SPECIFICATIONS........................3 Test methods.................................3 Specifications table ...............................3 CIRCUIT DESCRIPTION ..........................4 General information...............................4 Microprocessor/control ..............................4 VCO / Synthesizer (PLL) ...............................4 2.3.a Temperature-Compensated Crystal Oscillator (TCXO) ..................... 4 2.3.b Voltage-Controlled Oscillators ............................4 2.3.c Synthesizer ................................... 5 2.3.d Loop Filter ...................................

  • Page 4: Test Methods

    HP106 Service Manual ECHNICAL SPECIFICATIONS 1.1 Test methods ETS 300-086 IEC 529 IP54 and MIL STD 810 C/D/E 1.2 Specifications table General Characteristic Units Value/Measurements conditions Frequency from 148 to 174 Operating Band Number of Programmable Channels Channel Spacing 12.5 / 20 / 25 Frequency Steps 5 / 6.25...

  • Page 5: Circuit Description

    HP106 Service Manual 2 CIRCUIT DESCRIPTION 2.1 General information The HP-106 has three printed circuit boards. Circuitry is divided in the following sections: Microprocessor/Control VCO/Synthesizer Transmitter Receiver Signalling Battery Refer to the Block Diagram and the Schematics. 2.2 Microprocessor/control The microprocessor IQ9 is constantly operating when the radio is turned ON. It is continuously monitoring the keyboard, the PTT line and other internal inputs such as the squelch detect, etc.

  • Page 6: Synthesizer

    HP106 Service Manual The synthesizer is tuned in 5.00 KHz or 6.25 KHz step. 2.3.c Synthesizer The frequency synthesizer is a large scale monolithic synthesizer integrated circuit Q429. The synthesizer IC contains a dual modular prescaler, programmable divide-by-N counter, prescaler control (swallow) counter, reference oscillator, reference divider, phase detector, charge pump and lock detector.

  • Page 7: Power Control

    HP106 Service Manual 2.4.c Power control Output power is controlled via the dual Op-Amp (Q408) , which is used as a differential amplifier and comparator. Current is sensed by the voltage drop across R421 and R422. This voltage is compared to the one set by the 2- watt Adjustment RV401.

  • Page 8: Receiver Audio Circuit

    HP106 Service Manual The output on IC6 Pin 14 signals the microprocessor IQ9 with a low level (～0V) to unmute the radio. The audio is unmuted by the microprocessor IQ9 Pin 27 switching to a high value (～5V on SQL MUTE) thus biasing on Q206.
  • Page 9 HP106 Service Manual The battery voltage status is monitored by the microprocessor IQ9 Pin 61 which senses the battery voltage through the BATT+SW line by means of IR51/IR49. When the battery voltage is approximately 5.8V, the microprocessor considers the battery discharged and switches off the circuits of the radio.

  • Page 10: Adjustments

    HP106 Service Manual DJUSTMENTS 3.1 General For proper alignment, the unit should be programmed with the following channel and frequency information Channel Receive Frequency Transmit Frequency RX/TX Tone Code Channel Spacing number (MHz) (MHz) (KHz) CH 1 174.050 174.025 NO TONE CH 2 163.050...

  • Page 11: Ctcss/Dcs Adjustment

    HP106 Service Manual 5) Set the audio generator's output level at approximate 300mVrms at TPA of the Test adapter. 6) Operate the transmitter, using TA-S1, and adjust RV201(MOD.ADJ) for ±4.0 KHz deviation. 3.3.c CTCSS/DCS adjustment 7) To adjust CTCSS and DCS Deviation, perform step1 though 6 above. Then set the FM liner detector audio bandwidth of 0.25 Hz or less to15,000 Hz or more.

  • Page 12: Figure 1 - Equipment Test Set-Up

    HP106 Service Manual 3.5 Figure 1 - Equipment Test set-up Test Set-Up Legend 1) HP-105 2) 7.5VDC Supply (3 A) 3) 3 Amp DC Ammeter 4) AC Voltmeter 5) Distortion Meter 6) Test Adapter (Figure 2) 7) Audio Signal Generator (600 Ohm)

  • Page 13: Figure 2 - Test Adaptor

    HP106 Service Manual 3.6 Figure 2 - Test adaptor Page 12 of 12...
  • Page 15 H P 4 0 6 S e r v i c e M a n u a l ALAN HP406 Portable VHF Transceiver Service Manual Ó C o p y r i g h t 2 0 0 3 b y C T E I n t e r n a t i o n a l I t a l y ; a l l r i g h t s r e s e r v e d...
  • Page 16 H P 4 0 6 S e r v i c e M a n u a l Contents T E C H N I C A L S P E C I F I C A T I O N S .

  • Page 17: E C H N I C A L S P E C I F I C A T I O N S

    H P 4 0 6 S e r v i c e M a n u a l E C H N I C A L S P E C I F I C A T I O N S 1 .

  • Page 18: Circuit Description

    H P 4 0 6 S e r v i c e M a n u a l 2 CIRCUIT DESCRIPTION 2 . 1 G e n e r a l i n f o r m a t i o n T h e H P - 4 0 6 h a s t h r e e p r i n t e d c i r c u i t b o a r d s .

  • Page 19: S Y N T H E S I Z E R

    H P 4 0 6 S e r v i c e M a n u a l T h e s y n t h e s i z e r i s t u n e d i n 5 . 0 0 K H z o r 6 . 2 5 K H z s t e p . 2 .

  • Page 20: P O W E R C O N T R O L

    H P 4 0 6 S e r v i c e M a n u a l 2 . 4 . c P o w e r c o n t r o l O u t p u t p o w e r i s c o n t r o l l e d v i a t h e d u a l O p - A m p ( ) , w h i c h i s u s e d a s a d i f f e r e n t i a l a m p l i f i e r a n d c o m p a r a t o r .

  • Page 21: R E C E I V E R A U D I O C I R C U I T

    H P 4 0 6 S e r v i c e M a n u a l T h e o u t p u t o n P i n s i g n a l s t h e m i c r o p r o c e s s o r w i t h a l o w l e v e l ( 0 V ) t o u n m u t e t h e r a d i o .

  • Page 22: B A T T E R Y

    H P 4 0 6 S e r v i c e M a n u a l 2 . 7 B a t t e r y T h e b a t t e r y c o n n e c t s t o t h e c o n t a c t p i n s ( a n d ) o n t h e b o t t o m e n d o f t h e R a d i o .

  • Page 23: D J U S T M E N T S

    H P 4 0 6 S e r v i c e M a n u a l D J U S T M E N T S 3 . 1 G e n e r a l F o r p r o p e r a l i g n m e n t , t h e u n i t s h o u l d b e p r o g r a m m e d w i t h t h e f o l l o w i n g c h a n n e l a n d f r e q u e n c y i n f o r m a t i o n C h a n n e l R e c e i v e F r e q u e n c y T r a n s m i t F r e q u e n c y...

  • Page 24: C T C S S / D C S A D J U S T M E N

    H P 4 0 6 S e r v i c e M a n u a l T P A 5 ) S e t t h e a u d i o g e n e r a t o r ' s o u t p u t l e v e l a t a p p r o x i m a t e 3 0 0 m V r m s a t o f t h e T e s t a d a p t e r .

  • Page 25: Figure 1 - E Q U I P M E N T T E S T S E T - U

    H P 4 0 6 S e r v i c e M a n u a l 3 . 5 F i g u r e 1 - E q u i p m e n t T e s t s e t - u p T e s t S e t - U p L e g e n d 1 ) H P - 4 0 6 2 ) 7 .

  • Page 26: Figure 2 - T E S T A D A P T O

    H P 4 0 6 S e r v i c e M a n u a l 3 . 6 F i g u r e 2 - T e s t a d a p t o r P a g e 1 2 o f 1 2...
  • Page 27 ALAN HP 106 PCB LAYOUTS AND TEST POINTS...
  • Page 37 HP106/HP406 Programmer software guide HP106/HP406 VHF/UHF Handheld Transceiver Programmer Software Guide Ver. 1.0 issued on June 15 2003 Ver. 1.0 Page 1...
  • Page 38 HP106/HP406 Programmer software guide Copyright  2003 by CTE International Italy; all rights reserved. Microsoft, MS and Windows are registered trademarks of Microsoft Corporation. IBM is a registered trademark of International Business Machines Corporation. Screen shots reprinted by permission from Microsoft Corporation.
  • Page 39 Only authorized and qualified technicians should be allowed to follow the operation described into this manual. This manual has been written for use by CTE International dealers and distributors who are programming the HP106 handheld transceivers for customers. You should be familiar with conventional radio systems, radio system and radio network settings parameters as well as general PC operation.
  • Page 40 HP106/HP406 Programmer software guide CONTENTS ABOUT THIS MANUAL ...........................4 Warning notes ................................4 Conventions and Symbols in this Book .........................4 1.2.a Notes and warnings ................................4 1.2.b Font format ...................................4 1.2.c Screenshots ...................................4 INSTALLATION ...............................5 Unpacking..................................5 System requirements..............................5 Installing programming Software ...........................5 Connecting to your computer ............................6...

  • Page 41: Installation

    If something is missing please promptly advise your supplier. 2.2 System requirements To use the CTE Programming Software for HP106 you need the following hardware and software: IBM-compatible personal computer with Pentium (I) processor or higher (basically depending on the operating system) Operating system Windows...

  • Page 42: Connecting To Your Computer

    HP106/HP406 Programmer software guide 2.4 Connecting to your computer This section explains how to connect the transceiver to your computer’s serial port. You will need to use the supplied serial cable (item C previously described in “Unpacking”). 1) Make sure that the transceiver is turned off.

  • Page 43: Programming

    HP106/HP406 Programmer software guide ROGRAMMING 3.1 Running HPx06 programmer software 1) Make sure that the transceiver’s battery is properly charged and the radio is turned off 2) Keep the MON button pressed and switch the radio on by rotating clockwise the On-Off/Volume knob provided in its top panel. After the mechanical click, the status LED will steadily glow orange, showing that the radio is switched on in programming mode 3) Click the Start button, point to Programs and then to HPx06 folder.

  • Page 44: Create A New Programming Filename

    HP106/HP406 Programmer software guide 3.5 Create a new programming filename IMPORTANT! If this is the first time you are using the programming software, or it is the first time you are going to create a new file, you must restore the default signal database as explained in the par. 7.3 before going on with the following steps.
  • Page 45 HP106/HP406 Programmer software guide 2) Go to the Rf Freqs (MHz/KHz) dialog box and select the TX frequency in MHz in the upper box TX by clicking its left drag down button, then click the hundreds MHz you require (e.g. 156 for 156 MHz) 3) Select now the decimal TX frequency in KHz by clicking the right drag down button, then point the decimal frequency you need (e.g.

  • Page 46: Ctcss/Dcs Tx Rx Setup (Ctcss/Dcs Button)

    HP106/HP406 Programmer software guide same parameters. Just go back to the step(s) related to the parameter(s) you need to modify If you need to delete a channel (in case of total mistake), select it with the buttons, then click the Delete button..

  • Page 47: Channel Data And Global Data Windows

    HP106/HP406 Programmer software guide HANNEL ATA AND LOBAL INDOWS IMPORTANT! Don’t skip this chapter, otherwise you will loose an important information to keep on programming 4.1 Switching between Channel Data and Global Data windows Starting from now, we’ll need to switch between Channel Data and Global data Windows. Global data window can be recalled at any time by clicking the Global Data button from the Channel Data window.
  • Page 48 HP106/HP406 Programmer software guide 4.2 Structure of Global Data window As you can see, Global Data window is divided into three areas: Set-Up, Set-Up 2 and Tables Set-Up Set-Up 2 Tables The Set-Up area allows you to The Set-Up 2 area is useful to set...

  • Page 49: Selective Call Setup

    You can define two separate databases for selective calls: one is for TX and the other for RX. Each database can store up to 15 tone sequences, each of them can be programmed up to 20 tones. HP106 can be programmed in order to: RX - decode up to two RX sequences (Seq.

  • Page 50: Defining Selcal Tx Parameters

    HP106/HP406 Programmer software guide 7) You have now other available options: if you check Partial Match you will enable to decode the sequence if it partially matches as well. In other words receiving just the tones with a tick in the ID checkbox are sufficient for a full decode operation. With the over stated example, you will accept any sequence beginning with 3 4 0 1 1.

  • Page 51: Defining Rx Standard And Sequences

    HP106/HP406 Programmer software guide 6) Now you have 20 events (from box 1 to box 20) in which you can define the tone sequence you need. Type the related numbers or letters related to the tones you want to send. In the example we typed the format 4 3 0 1 1 F(pause tone) 4 3 0 0 0 0 0.

  • Page 52: Defining Call1, Call2, Emergency Default Tx Calls And Auto Id (Ani)

    HP106/HP406 Programmer software guide 5.4 Defining Call1, Call2, Emergency default TX calls and Auto ID (ANI) 1) Make sure to be on the right RF channel and, from the Channels Data window, click on TX sequences button: the Channel X Txed Selcal window will open.

  • Page 53: Manual/Autoreset For Selective Calls

    HP106/HP406 Programmer software guide 2) From the Channel Data window – Monitor / Autoreset area - click the Monitor key behaviour button: the Monitor key behaviour window will open. 3) in the Monitor opens... area, tick the available ckeckbox(es) you need to activate (not available checkboxes will be shaded in gray).
  • Page 54 HP106/HP406 Programmer software guide 3) You have two options: if you want to use the summary as a programming monitor, click the Update button. It will remain on the screen providing an useful programming monitor. In fact, it can be manually updated every time you press the Update button or automatically after any programming operation you will make as described in par.

  • Page 55: Customizations

    HP106/HP406 Programmer software guide USTOMIZATIONS In this section we’ll explain how to define personal (non-standard) Selcall parameters. Moreover you can define the availability of the basic controls to the end user and boost the customization in order to make the radio better matching with your needs.

  • Page 56: Scanning Configuration (Scan Configuration Button)

    6) The Two-tone paging checkbox enables the said paging standard which is used in the U.S.A. This option is not normally supported in the standard HP106/406 versions and needs to be implemented upon specific request. For further information please contact your dealer.

  • Page 57: Power-On Selcal Auto Sending

    HP106/HP406 Programmer software guide 6.3 Power-ON Selcal auto sending You can define a selective call to be automatically transmitted every time the radio is switched on and which channel the radio should send it. 1) From the Global Data window - Set-Up area - click the Txed Selcal at Power-ON button: the Txed Selcal at Power-ON window will open.

  • Page 58: Setting The Ptt Lock

    HP106/HP406 Programmer software guide 6.4.b Setting the PTT lock 3) You have now three choices to lock the PTT in certain conditions: If you don’t want to lock the PTT, even when the channel is busy or the correct CTCSS tone is present, leave the NO PTT Lock radio button active.

  • Page 59: Enabling/Disabling The Key And Warn Beeps (Key & Warn Beeps Button)

    HP106/HP406 Programmer software guide 6.5 Enabling/disabling the key and warn beeps (Key & Warn beeps button) Normally, when you press any key or rotate the channel switch, you hear a short beep as a confirmation in the loudspeaker. Moreover, in case of mistakes or particular events, different beeps are emitted. If your customer requires a very silent use, you can disable the said acoustic signals as follows: From the Global Data window - Set-Up area - click the Key &...

  • Page 60: Enabling/Disabling The Scrambler

    HP106/HP406 Programmer software guide • Secondary (Seq II) – When secondary selcal (with Sequence II) is properly received • Group – When group selcal (with group sequence) is properly received 3) Press the TEST button in order to check the current ring for the selected event. Now you have three choices:...

  • Page 61: Power Save Function

    6.10 Power save function HP106 is equipped with a power save function which switches off (sleep state) and on (work state) the radio’s receiver at regular times during stand by (no signals received). If a signal is received during work state, the power save cycle is interrupted and will be resumed again after a certain time in which the signal is terminated.

  • Page 62: Final Operations

    HP106/HP406 Programmer software guide INAL OPERATIONS 7.1 Uploading programming data to the radio Once you are sure to have properly programmed all the radio’s data (at least one TX/RX frequency with basic parameters) you can transfer the said data to its memory and terminate the programming. Do as follows: 1) From the menu Radio Programming select Program radio: the Radio Data Program window will open (or use the shortcut Ctrl+R) 2) Make sure the radio has been properly connected as described in par.

  • Page 63: Viewing Session History

    HP106/HP406 Programmer software guide When a software upgrade has been performed. The Programmer software is in continuous development in order to add new features to the radio and make your programming operations easier. So if you have just upgraded your software by substituting the “.exe” main file with a new updated one, restoring the default signal database is mandatory.

  • Page 64: Additional Options

    HP106/HP406 Programmer software guide DDITIONAL OPTIONS 8.1 Modifying previously programmed parameters If you already have saved programming data in a transceiver unit or in a PC file and you need to “clone” them to other transceiver(s), or the said programming data are very close to a new programming data you have to set up, you can...

  • Page 65: Index

    HP106 Programmer software guide NDEX Channel Data Summary ........17 Manual/Autoreset for selective calls ..... 17 Channel Data window Monitor Key Behaviour ......... 16 Autoreset button ............17 Channel bandwidth............9 Channel Data Summary button ........17 New or already stored data?........7 Channel num.
  • Page 66 HP106 Programmer software guide scanning condition ............20 scanning timing (speed, priority, wait) ......20 Transferring data to the radio ....... 26 scanning with CTCSS/DCS......... 20 scanning with Selcal............ 20 Tx PTT resume timer........... 21 Tx timeout timer............21 Viewing session history ........27 wrong CTCSS Tx lockout ..........
  • Page 67 ALAN HP 106 ELECTRICAL DIAGRAMS...
  • Page 73 ALAN HP 106 EXPLODED VIEW AND PART LIST...
  • Page 75 HP-106/406 EXPLODED VIEW PART'S LIST. PART NO. PART NAME DESCRIPTION Q'TY Remark codice cte 719-896 Cov Front 795-920 Name Plate PC Clear T0.3 719-894 Cov Spk/Mic 895-789 PTT Button Silicone Rubber 733-005A Holder PTT 853-223 Ring GND BSBM CR Plate 753-127 Spacer Ant Acetel CR-Plate 650-358 Nut Ant...
  • Page 76 HP-106/406 EXPLODED VIEW PART'S LIST. PART NO. PART NAME DESCRIPTION Q'TY Remark codice cte 895-796 Gasket Poron T0.8 650-357 Nut ( Volume) M7x0.75 BSBM Ni-plate 895-836 Cushion ( Main Frame ) Poron T2.0 95A-872B Label Product Polyester 44x 34.5 95A-872C ( HP-405) 895-785 Bushing Terminal Silicone Rubber 702-484 Frame Main...
  • Page 77 FELT(SPEAKER) FELT T0.3 3 907-023 SHEET TAPING PE T0.15 577-59F-C1 FRONT COVER ASS'Y 3 508-790-F PTT HOLDER ASS'Y 75-440BP 4 733-005-E HOLDER PTT PC PANTONE 433 4 853-227 INSERT(PTT HOUSING) BSBM NI PLATE 3 508-792-F FRONT COVER ASS'Y ALAN HP-106...
  • Page 78 4 719-896-E COVER FRONT PC PANTONE 202U 4 853-228 INSERT(FRONT COVER) BSBM NI PLATE 3 702-483-B PANEL TOP ABS PANTONE 202U 3 795-920-D NAME PLATE PC 41.8X9.8 T0.3 BLK 11 2 577-59M-BMA MAIN BOARD MANUAL AS 3 06K-027-3Z CHIP RESISTOR 0.27 1/ 8W 10% T 3216 EA R567 3 221-728-8...
  • Page 79 3 05B-392-9Z CHIP RESISTOR 3.9K 1/16W 5% T 1608 EA R140 3 05B-434-4Z RESISTOR CHIP 430K 1/16W 5% T 1608 EA R235 3 05B-470-6Z CHIP RESISTOR 1/16W 5% T 1608 EA R201.402.480 3 05B-471-7Z CHIP RESISTOR 470 1/16W 5% T 1608 EA R132.135.252.437 3 05B-472-8Z CHIP RESISTOR...
  • Page 80 3 131-564-8Y CHIP CERAMIC 15PF GRM39 COG150J 50V PT EA C202.452.484.505 3 131-610-7Y CHIP CERAMIC 160PF CL10 X7R161J 50V EA C18 3 131-834-2Y CHIP CERAMIC 18PF GRM39 COG180J 50V PT EA C203.419.424 3 132-024-2Y CHIP CERAMIC GRM39 COG020C 50V PT EA C481 3 132-025-3Y CHIP CERAMIC...
  • Page 81 3 221-542-6 I.C DUAL OP AMP NJM2904V-TE1/2(SSOP8) EA U6.213.408 3 221-544-8 I.C LOW VOLT.PWR AMPNJM2070M-TE1/2(DMP8) EA U221 3 221-545-9 I.C SING.LEVEL SENS.NJM2072M-TE1/2(DMP8) EA U240 3 221-546-0 I.C OP AMP NJM324V-TE1/2(SSOP14) EA U1.208.212. 3 221-547-1 I.C OP AMP NJM2058V-TE1/2(SSOP14) EA U214 3 221-555-8 I.C PLL MB15A02PFV1 (FPT-16P-M05)
  • Page 82 3 895-796 GASKET PORON T0.8 3 895-836 CUSHION(MAIN FRAME) PORON T2.0 3 895-925-A GASKET PET T0.15+3M 3 896-006 CUSHION(FOR LCD) PORON 23X3.5 T0.1 3 907-029 INSULATION PLATE INSULATION PAPER T0.15 3 95B-129-A LABEL NAME POLYESTER 44X35 14 2 577-59M-FA1 MAIN FRAME ASS'Y 3 772-543 SHIELD CAN-E SPTE T0.3...
  • Page 85 HP-106/406 EXPLODED VIEW PART'S LIST. N O . P A R T N O . P A R T N A M E D E S C R I P T I O N Q ' T Y R e m a r k c o d i c e c t e 7 1 9 - 8 9 6 C o v F r o n t 7 9 5 - 9 2 0 N a m e P l a t e...
  • Page 86 HP-106/406 EXPLODED VIEW PART'S LIST. N O . P A R T N O . P A R T N A M E D E S C R I P T I O N Q ' T Y R e m a r k c o d i c e c t e 7 5 3 - 1 2 6 T e r m i n a l A n t N S S T o .
