7.2.2

LAN

Manufacturer
Description
Number of contacts
Area
Order code

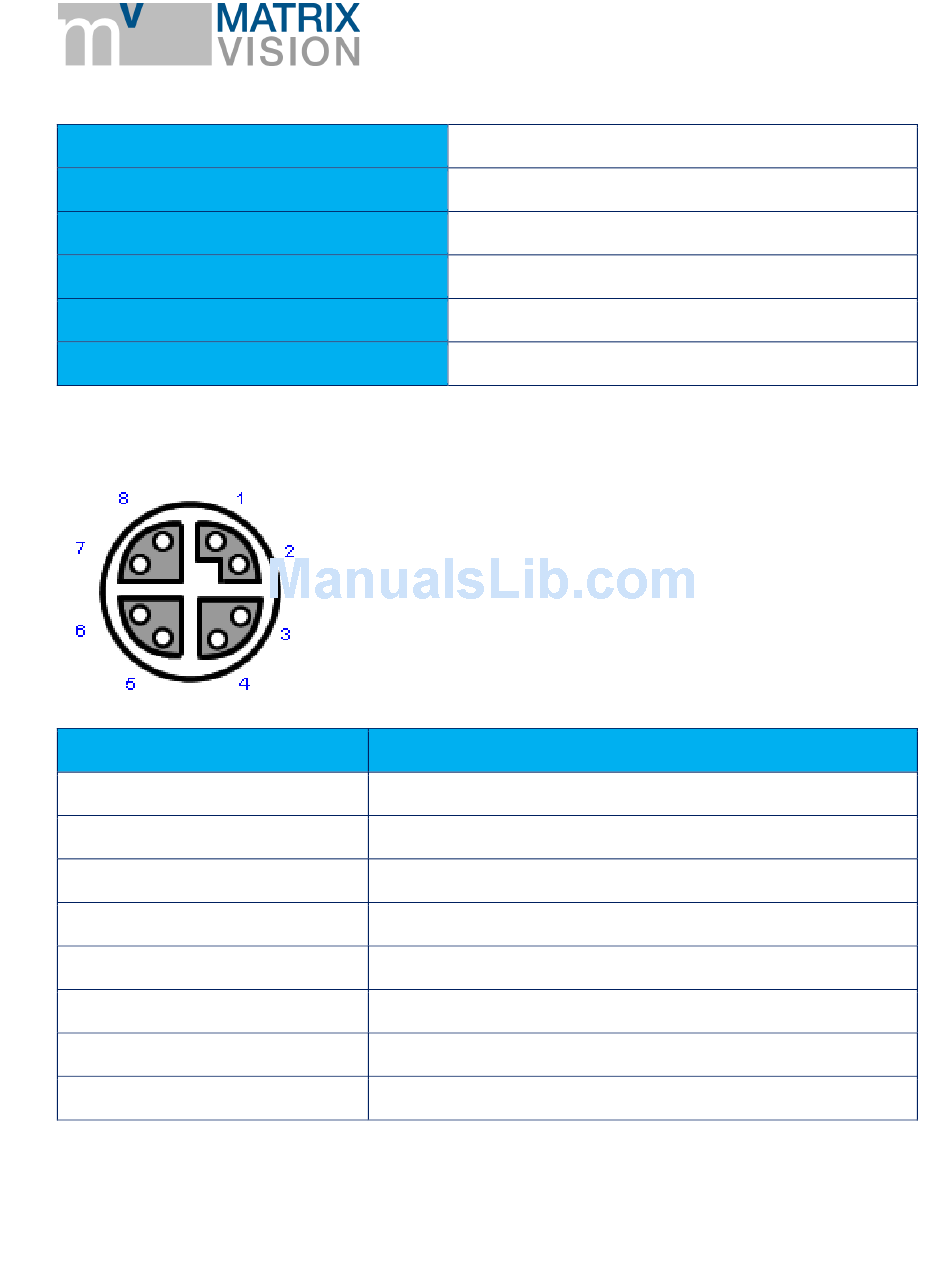

Figure 2 x-coded flange receptacle
Pin
1
2
3
4
5
6
7
8
mvBlueGEMINI Technical Manual (EN)
Binder
x-coded flange receptacle
8
M12-D, M12-X
99 3782 210 08
Serien 825/876
Signal
MDX0+
MDX0-
MDX1+
MDX1-
MDX3+
MDX3-
MDX2-
MDX2+
TECHNICAL DATA - CONNECTIONS
v1.2.2
15
