7.2

Connections

7.2.1

PWR/IO

Manufacturer
Description
Number of contacts
Area
Order code

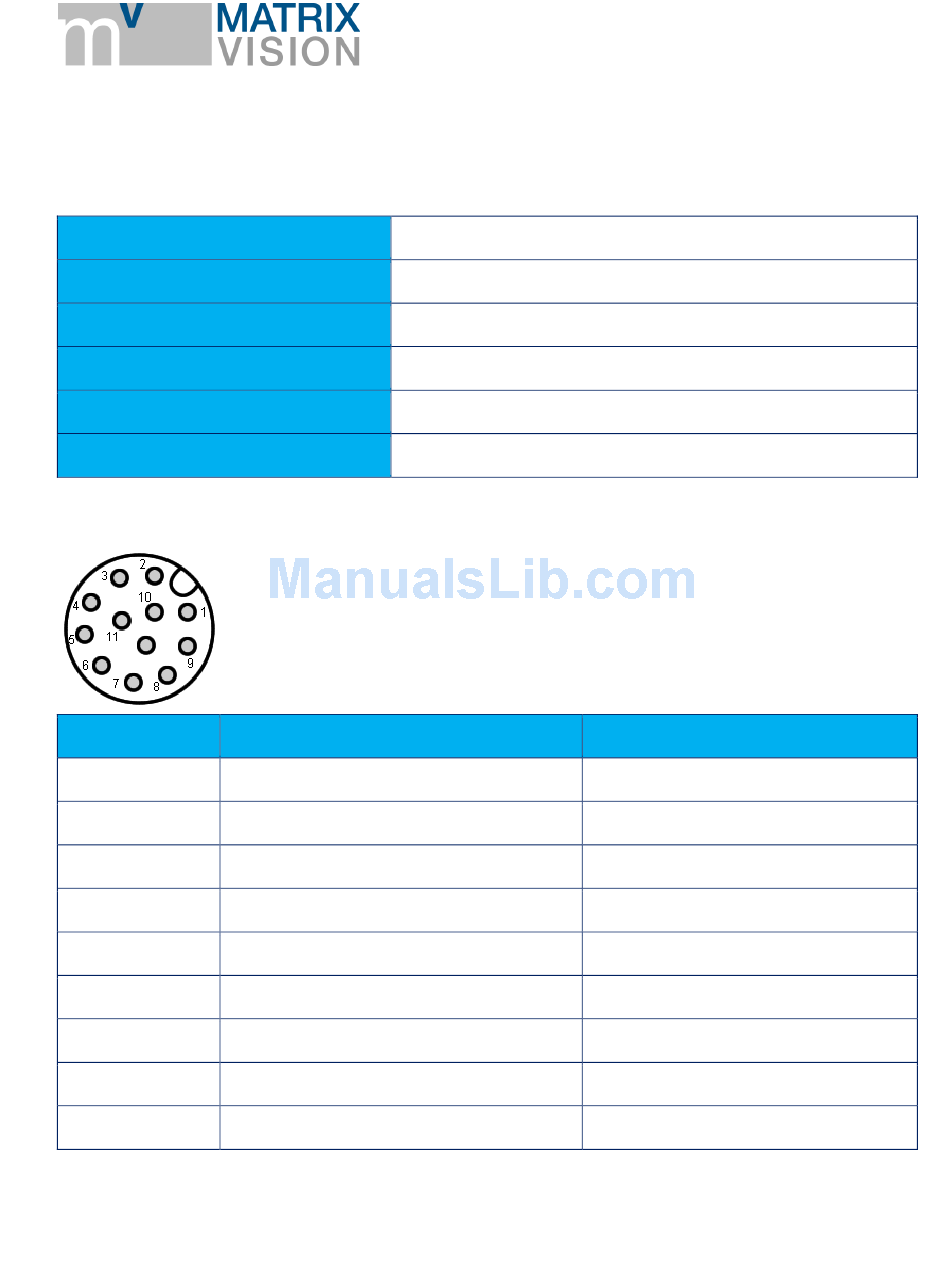

Figure 1 Power / IO connector
Pin Signal
1 VIN_L+
2 VIN_L-
3 RS232RX
4 RS232TX
5 SPSIO1
6 SPSGND
7 SPSIO0
8 SPSIO2
9 SPSIO3
mvBlueGEMINI Technical Manual (EN)
Binder
Flanschstecker, M12 x 1, 10,5 mm
12
M12-A
09 3491 550 12
713/763
TECHNICAL DATA - CONNECTIONS
Color
brown
blue
white
green
pink
yellow
black
gray
red
v1.2.2
