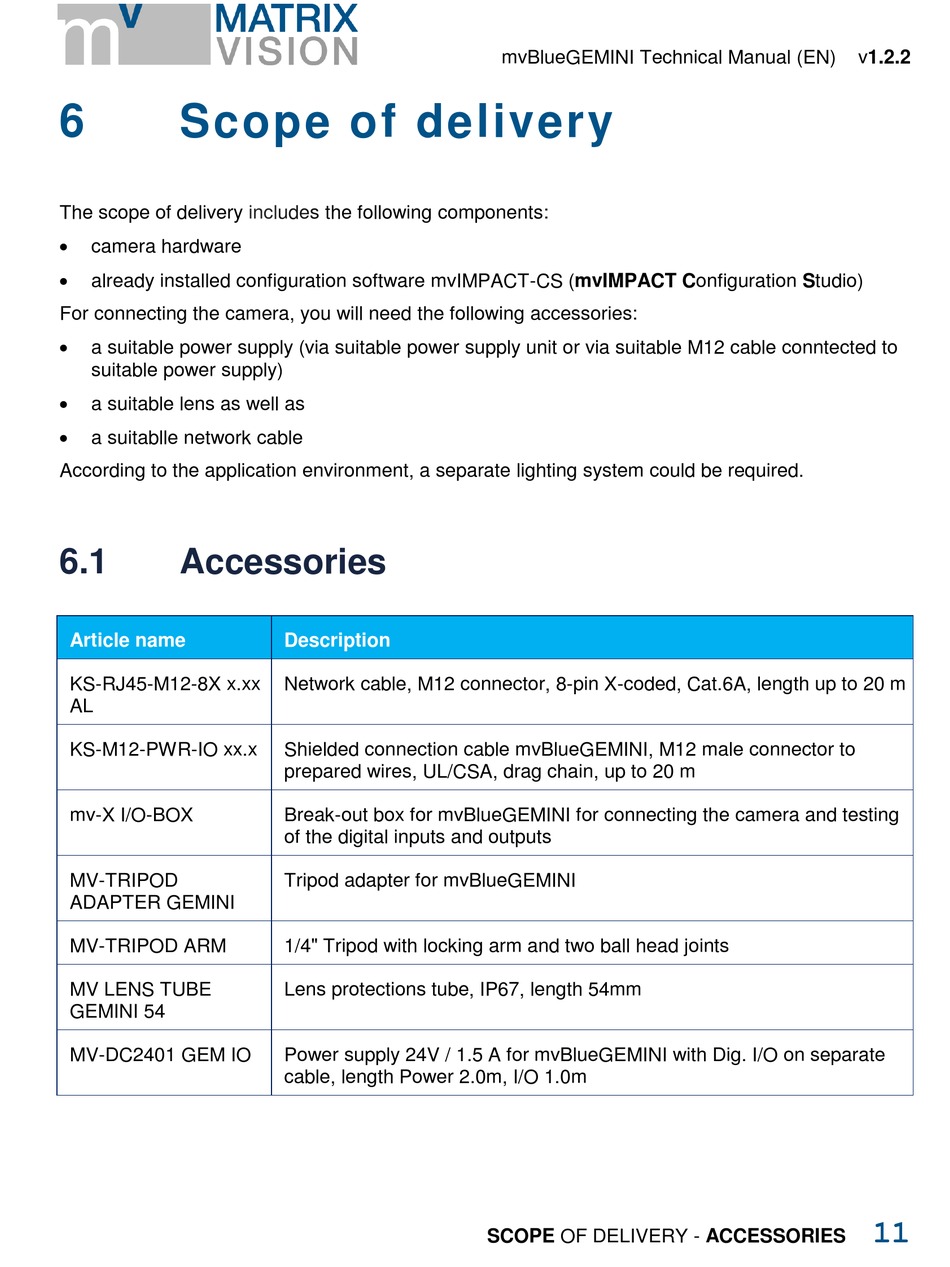

Scope of delivery

The scope of delivery

camera hardware

already installed configuration software mvIMPACT-CS (mvIMPACT Configuration Studio)
For connecting the camera, you will need the following accessories:

a suitable power supply (via suitable power supply unit or via suitable M12 cable conntected to
suitable power supply)

a suitable lens as well as

a suitablle network cable
According to the application environment, a separate lighting system could be required.
6.1

Accessories

Article name
KS-RJ45-M12-8X x.xx
AL
KS-M12-PWR-IO xx.x
mv-X I/O-BOX
MV-TRIPOD
ADAPTER GEMINI
MV-TRIPOD ARM
MV LENS TUBE
GEMINI 54
MV-DC2401 GEM IO
includes the following components:
Description
Network cable, M12 connector, 8-pin X-coded, Cat.6A, length up to 20 m
Shielded connection cable mvBlueGEMINI, M12 male connector to
prepared wires, UL/CSA, drag chain, up to 20 m
Break-out box for mvBlueGEMINI for connecting the camera and testing
of the digital inputs and outputs
Tripod adapter for mvBlueGEMINI
1/4" Tripod with locking arm and two ball head joints
Lens protections tube, IP67, length 54mm
Power supply 24V / 1.5 A for mvBlueGEMINI with Dig. I/O on separate
cable, length Power 2.0m, I/O 1.0m
