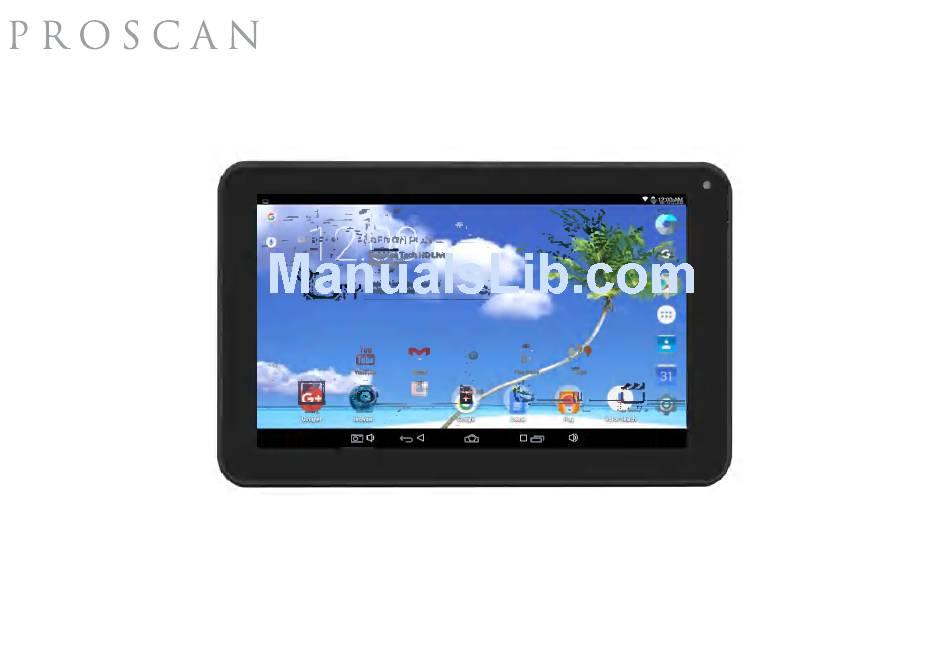

  • Page 1 User Manual PLT1065G(K-512-8GB)

  • Page 2: Key Points

    Key points This manual includes security measures and correct operating methods. For personal safety, please make sure to read this manual before using. Thank you! The machine adopts capacitive touch screen, you can just touch it by finger or click with capacitive pen for operation. (Never use the sharp objects to click the screen, or the touch screen may be damaged).

  • Page 3: Packing List

    Packing List: Please check box for the following items 1. Device 2. User Manual 3. Product Warranty 4. Power Adaptor USB Cable 6. Black case & Keyboard(see the image below) Other accessories can be purchased at local retailers The accessories may not be compatible with other devices Power Adaptor Specification: INPUT: AC 100- 240V 50/60Hz 0.6A...
  • Page 4 RESET: Reset the device. MI C TF CARD TIPS 1. When the battery is low, it will power off automatically. 2. Shutdown illegally, when you restart, device would scan and repair the disk. The screen will stay at the progress bar for a long time .
  • Page 5 Setting up for the first time Charging your device For first-time use, you need to charge the device for ten hours. After that you can recharge the device as needed. Connect the DC-in jack to your device and plug the AC adapter into any AC outlet. TIPS : 1.

  • Page 6: Sleep Mode

    Power On Keep pressing power button over 2 seconds, device will start up opening screen, Android system is activating and enter the main screen. Sleep Mode After devise is on, press power button once and it goes to sleep mode. The screen is now on standby and under low battery consumption.
  • Page 7 Tap and hold -- Tap over 2 seconds, it will turn on option list Slide -- Slide up, down, left or right for fast scrolling browsing page and display screen Drag – drag an icon and relocate the position...
  • Page 8 Double Click – Double click to enlarge or shrink the display size of picture or under browsing webpage. Shut --Use two fingers at same time on touch panel, to enlarge or to shrink the display scale.

  • Page 9: Home Screen

    Home Screen ⑥ ① ② ⑧ ⑦ ③ ④ ⑤ ① Google search ② Click to turn on voice search, it will search according to voice input ( Make sure WIFI is ③ List of last running applications ④ Back to Home screen ⑤...
  • Page 10 Home screen with a set of 5 screens, slide left/ right to view individual screen ¾ Change of Wallpaper 1. Press home screen about 2 seconds, it will pop-up wallpaper selection 2. Select preloaded wallpapers or picture as wallpaper 3. Click “set wallpaper” to confirm ¾...
  • Page 11 ¾ Notification screen In home screen or under running application, select right side notification screen, check device status and set up below options Icon Icon Description WiFi signal Wifi connection, icon is full under strong signal Battery Status of battery or if device is being charged USB Connection To show if USB port is connected Press it to take screen shot...
  • Page 12 ¾ Browsing webpage 1. Enter application page, select ”Browser” Icon 2. To brows certain webpage, select URL and input website address, and select “confirm” 3. See below browsing options Open new window Shut down current webpage Go to Next or Previous webpage Accessing webpage, icon becomes “X”...
  • Page 13 ¾ Browser setting When browsing webpage click upper right corner adjust setting in the option menu ¾ Current visited webpage 1. Enter application page, click ”Browser” 2. Select bookmark Æ current visited history 3. Select webpage Email Send and Receive email ¾...
  • Page 14 ¾ Sending outgoing message 1. Enter application page and select “Email”Æ 2. Type in Recipients Manual input email address use “ ;” or “,” to separate more than one recipients 3. Type in Subject 4. Type in message in content 5.
  • Page 15 Google Play Music Click “Play Music in application page Music will be categorized by listen now,My Library, and play list. It will display all music inside Songs . Click the song and it will play automatically.
  • Page 16 Video player Click “ Video in application page. Video player will search for all supported video files in the device, click the designated video file to play. Camera The built-in front camera can take picture and video file. in application page, slide to the right on the screen,it will show camera and Click video shooting mode,please check the image at the right side.
  • Page 17 ¾ Camera Setting & In camera and video mode click for set up. File Explorer Go to application page and click Explorer ¾ Check file user can check and manage files in SD Card Internal Memory and USB storage In Explorer Connect USB port with OTG cable it shall detect USB device such as memory stick, click Explorer to check files ¾...
  • Page 18 Uninstall APK file 1. Go to application page and click ApkInstaller 2. Select “Manage” 3. Click APK file to uninstall. Shut down running application 1. Go to setting menu page 2. Click “Apps”,slide to the right and find the running applications 3.
  • Page 19 Inserting the Micro SD card: You may install a Micro SD card to expand your device’s storage space. 1. This device supports Micro SD card up to 32GB capacity. 2. Insert the Micro SD card as shown. Note : Ensure that the Micro SD card is inserted all the way into the card slot. Caution : Before removing this card, make sure your device is not accessing data on TF CARD the card.

  • Page 20: Commonly Used Settings

    Commonly used settings Press the setup icon to enter the setting. Wi-Fi: Click ON or OFF to open or close Wi-Fi. When open Wi-Fi the system will scan the wifi signal around automatically. Meanwhile, users could add network manually as well.
  • Page 21 ‹ Language & input: 1. Language: Users can choose OSD Languages. 2. KEYBOARD & INPUT METHODS: select language method. Remark In this state users can switch the input method . ‹ Date & time: when the internet is connected , turn on “Automatic date & time” the device can obtain the real date and time from the internet.

  • Page 22: Troubleshooting

    Trouble shooting • Can not power on: --Connect the power cable to charge to the device, after a while and then check again. --If it still can not power on, please contact with our distributor or service centre. • Serious noise: --Check if the music file is damaged.

  • Page 23: Product Specification

    Product Specification Android 5.1, Lollipop CPU Type: Rockchip 3126, Cortex-A7 1.2GHz / GPU: Mali-400 MP System RAM 512MB DDRIII Memory 8GB NAND Flash 10.1" LCD 1024x600 Touch Panel 5 Point pacitive touch screen 802.11 b/g/N Wi-Fi Camera(front) 0.3-megapixel Gravity 3D gravity sensor Music format MP3,WMA,FLAC,AAC,OGG,WAV,APE Video format...
  • Page 24 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
