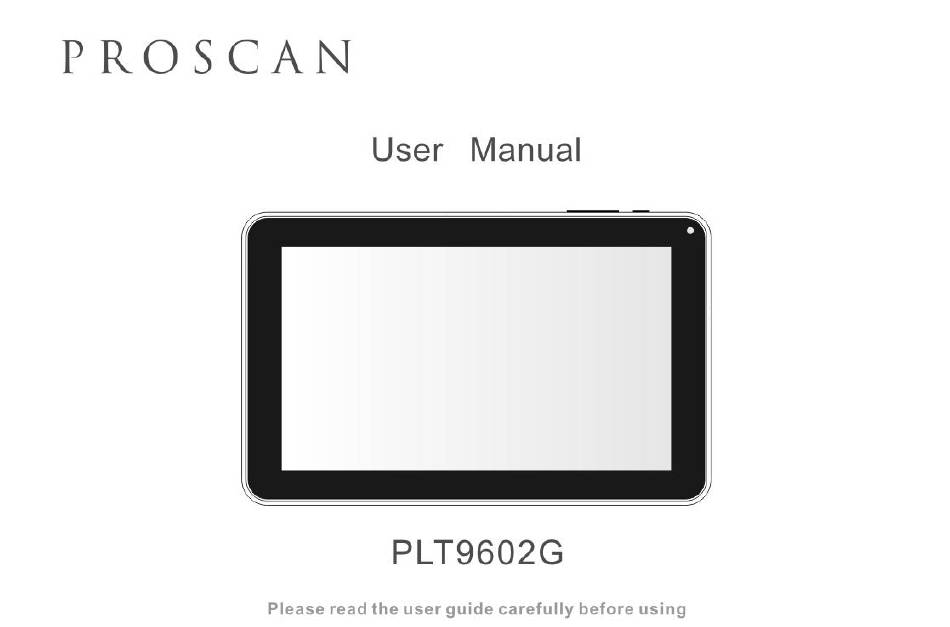

- Page 1 User Manual...
-
Page 2: Key Points
User Manual Key points： This manual includes security measures and correct operating methods. For personal safety, please make sure to read this manual before using. Thank you! The machine adopts capacitive touch screen, you can just touch it by finger or click with capacitive pen for operation. (Never use the sharp objects to click the screen, or the touch screen may be damaged). -
Page 3: Packing List
User Manual ： Packing List: Please check box for the following items 1. Device 2. User Manual 3. Product Warranty 4. Power Adaptor (Note that this unit is meant to be charged by using the adapter. USB charging is an option but charging time will be increased greatly. -
Page 4: Device Description
User Manual Device description ①Touch screen：You can click and drag in the touch screen. ★②Camera：You can take photos and videos etc.. ③Volume-：Turn down the volume. ④Volume+：Turn up the volume. ⑤POWER：Keep pressing button over 2 seconds for power on/ off, press button once to turn on screen from sleep mode . - Page 5 User Manual Setting up for the first time Charging your device： For first-time use, you need to charge the device for ten hours. After that you can recharge the device as needed. Connect the DC-in jack to your device and plug the AC adapter into any AC outlet.
-
Page 6: Sleep Mode
User Manual Power On Keep pressing power button over 2 seconds, device will start up opening screen, Android system is activating and enter the main screen. Sleep Mode After devise is on, press power button once and it goes to sleep mode. The screen is now on standby and under low battery consumption. - Page 7 User Manual Tap and hold -- Tap over 2 seconds, it will turn on option list Slide -- Slide up, down, left or right for fast scrolling browsing page and display screen Drag – drag an icon and relocate the position...
- Page 8 User Manual Double Click – Double click to enlarge or shrink the display size of picture or under browsing webpage. Shut --Use two fingers at same time on touch panel, to enlarge or to shrink the display scale.
-
Page 9: Home Screen
User Manual Home Screen ① Google Search ② Click to turn on voice search, it will search according to voice input ( Make sure WIFI is on ) ③ Back to previous screen ④ Back to Home screen ⑤ List of last running applications ⑥... - Page 10 User Manual Home screen with a set of 5 screens, slide left/ right to view individual screen Change of Wallpaper 1. Tag home screen, it will pop-up wallpaper selection 2. Select preloaded wallpapers or picture as wallpaper 3. Click “setup” to confirm ...
-
Page 11: Notification Screen
User Manual Notification screen In home screen or under running application, select right side notification screen, check device status and set up below options： Icon Icon Description WiFi signal Wifi connection, icon is full under strong signal Battery Status of battery or if device is being charged USB Connection To show if USB port is connected Soft keyboard... - Page 12 User Manual Browsing webpage 1. Enter application page, select ”Browser” Icon 2. To brows certain webpage, select URL and input website address, and select “confirm” 3. See below browsing options： ① Open new window ② Shut down current webpage ③...
- Page 13 User Manual Browser setting When browsing webpage，click upper right corner“ ” ，adjust setting in the option menu Current visited webpage 1. Enter application page, click ”Browser” current visited history 2. Select bookmark 3. Select webpage Email Send and Receive email ...
- Page 14 User Manual Sending outgoing message 1. Enter application page and select ”Email” 2. Type in Recipients ；Manual input email address，use ” ;” or ” ,” to separate more than one recipients 3. Type in Subject 4. Type in message in content 6.
- Page 15 User Manual Camera The built-in front camera can take picture and video file. Take picture ” 1. Click“Camera”in application page, device is default at picture taking, icon is“ 2. To take picture，click “ ” Video shooting ” 1. Select recording in video file，click“ 2.
- Page 16 User Manual File Explorer Go to application page and click“Explorer” 。 Check file In“Explorer” ，user can check and manage files in SD Card、Internal Memory and USB。 Connect USB port with OTG cable，it shall detect USB device such as memory stick, click“Explorer”to check files ...
- Page 17 User Manual Connecting to a PC: • You can connect with PC by USB cable attached with the device. You can transfer your personal data to the PC. • Connect the PC and the device, it will change to the USB mode, in this state, realize the files transfer function between the PC and the device.
- Page 18 User Manual Inserting the MicroSD card : You may install a Micro SD card to expand your device’s storage space. 1. This device supports Micro SD card up to 32GB capacity. 2. Insert the Micro SD card as shown. 【Note】: Ensure that the Micro SD card is inserted all the way into the card slot.
-
Page 19: Commonly Used Settings
User Manual Commonly used settings Press the setup icon to enter the setting. Wi-Fi: Click ON or OFF to open or close Wi-Fi. When open Wi-Fi，the system will scan the wifi signal around automatically. Meanwhile, users could add network manually as well. ... -
Page 20: Language And Input
User Manual Language & input: 1. Language: Users can choose OSD Languages. 2. KEYBOARD & INPUT METHODS: select language method. 【Remark】：In this state, users can switch the input method . Date & time: 1. In the settings for your device, always keep the Automatic Date & Time checked. -
Page 21: Troubleshooting
User Manual Trouble shooting • Can not power on: --Connect the power cable to charge to the device, after a while and then check again. --If it still can not power on, please contact with our distributor or service centre. •... - Page 22 Manuel de l'utilisateur FCC Statement： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: The manufacturer is not responsible for any interference, for example RADIO or TV interference, caused by unauthorized modifications to this equipment.
