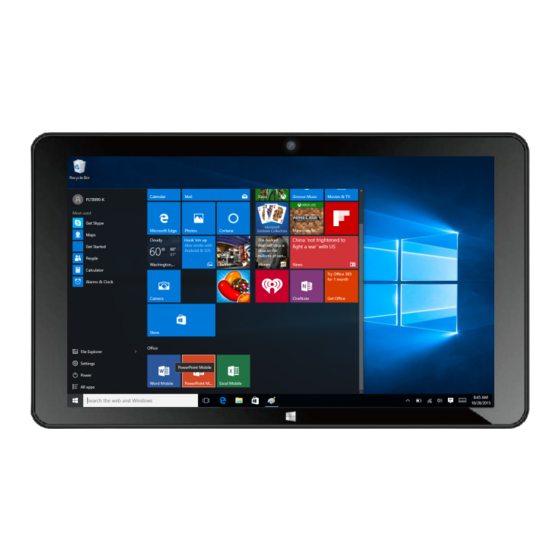

PLT8990-K(UK-1GB-32GB )
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLT8990-K and is the answer not in the manual?

Questions and answers

Summary of Contents for ProScan PLT8990-K

  • Page 1: User Manual

    User Manual PLT8990-K(UK-1GB-32GB )
  • Page 2: Quick Start Guide

    Quick Start Guide Thank you for your choosing the new Tablet PC. This guide serves to enable users to get to know and familiar with our product as soon as possible. Here we have made a brief introduction to the key layout and definitions in figures and words. Product specification Windows 10 Intel Bay Tray Z3735G...
  • Page 3 Packing List___________________________________________________________ Please check box for the following items 1.Device 2.User Manual 3.Product Warranty 4.Power Adaptor 5.OTG Cable 6.Black case &keyboard Power Adaptor Specification: Input :AC 100-240V 50/60Hz 0.35A Output :5.0V...
  • Page 4: Table Of Contents

    Contents Ⅰ. Precautions before Use --------------------------------------------04 Ⅱ. Device Description -------------------------------------------------06 Ⅲ. Descriptions of Keys -----------------------------------------------08 Ⅳ. Introduction to Desktop -------------------------------------------09 1. Windows 10 start image -------------------------------09 2. Image Slide Application--------------------------------10 3. Introduction to app interface---------------------------11 4. Charm Menu Column-----------------------------------14 5. Close app--------------------------------------------------17 Ⅴ.
  • Page 5 6. Do not clean the Tablet PC with any detergent containing chemical element or other liquid to avoid causing damage due to corrosion and becoming damp. If cleaning is really necessary, clean it with dry soft cloth tissue paper. 7. Our company shall not bear any and all responsibilities for loss or deletion of material inside the machine caused due to abnormal software and hardware operation, maintenance or any other accident.
  • Page 6: Ⅱ. Device Description

    Ⅱ:Device Description Back: 1, Power button: Keep pressing the button over 5 seconds for power on and 10 seconds for power off, press button once to turn on screen from sleep mode . 2, Sound-/sound+: Lower/raise volume 3,Rear camera . 4,MIC 5, Socket for earphone and microphone: This socket can transmit the audio signals of Tablet PC to loudspeaker or earphone.
  • Page 7 Front: 12,USB Docking. You can connect the keyboard buy USB docking. 13,LED light. When your pad is being charging. The light becomes blue. 14,Front camera.
  • Page 8: Ⅲ. Descriptions Of Keys

    Ⅲ. Descriptions of Keys Attention: Keyboard is optional, and configure the product according to the specific type of the tablet PC you have bought. ○ 1 Movable base keyboard interface: which is convenient for alignment the Table PC and the keyboard.
  • Page 9: Ⅳ. Introduction To Desktop

    IV. Introduction to Desktop 1. Windows 10 start image: On the start screen, you can see many programs fixed in the image. These application programs are displayed in the form of “magnet”. As long as you click them, you can easily visit them. You need to log on your Microsoft account before the application program completely runs.
  • Page 10: Image Slide Application

    Reduce Enlarge On the touch screen, narrow two fingers On the touch screen, widen two fingers to reduce the image. to enlarge the image. Slide with finger In start screen, slide finger right and left to move the image.
  • Page 11: Introduction To App Interface

    3. Introduction to app Interface Besides the application programs already fixed on the start screen, you can also start other application programs in all application programs, such as other software application programs attached to the Tablet PC. Point ,you can see all apps. Than you can choose your app the you want.
  • Page 12 If you want to fix more application programs to the start or taskbar, see the operation in the figure below, (1) lightly touch, press and hold the application program magnet for about one second and then let go, and select (2) to fix to the start screen. Conversely, if you want to cancel or delete a certain application in the start screen, (1) lightly touch, press and hold the application program magnet for about one second and then let it go and run, and select (2) attribute column to cancel the programs such...
  • Page 13 Take away from taskbar. Other function to change the ICON size.
  • Page 14: Charm Menu Column

    4. Charm menu column Click “ ” on the screen to start Charm menu column. Slide to the left from the right side of the screen to start quick setup column Lightly touch the ICON to turn ON/OFF the function. Tablet mode :You can turn on tablet mode by lightly touching.
  • Page 15 Rotation lock: Lock the screen that the screen will not rotation when tilting the tablet. Note: Turn or turn off the note. All settings: Touch the All setting ICON to set your tablet. Connect: To connect other equipment from here. Battery saver: Turn on it can let your tablet working longer.
  • Page 16 Location: Turn on/off you location for apps. Airplane mode: Turn on/off airplane mode. Search menu...
  • Page 17: Close App

    5. Close apps (Figure 1), slide it inward from the left side of the screen to right side. (Figure 2), press close button to close the apps. (Figure 1) (Figure 2)
  • Page 18: Ⅴ. Basic Operations

    Ⅴ. Basic Operations 1. Sleep, restart and shut down 2. Tablet mode and windows mode If you turn on the tablet mode , the desktop will disappear. Turn off tablet mode can come in windows mode, the desktop will appear.
  • Page 19: Notice

    VI. Notice 1,The 32GB Nand Flash was divided into two parts .One part is used for system memory witch will not show on the tablet .The other part you can see from the tablet is available memory. 2,The manufacturer is not responsible for any interference , For example RADIO or TV interface , caused by unauthorized modifications to this equipment.
