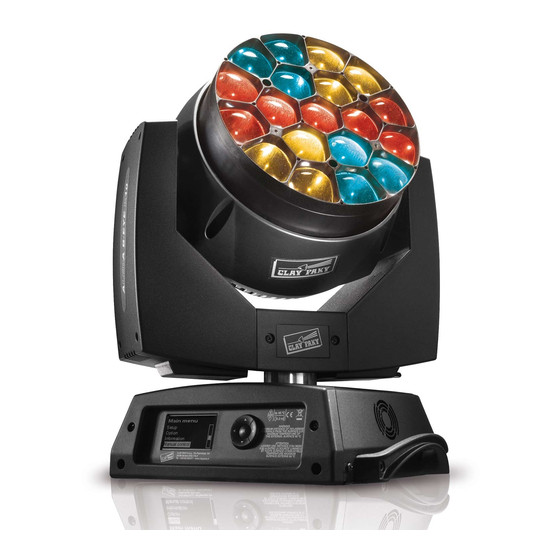

Clay Paky A.LEDA B-EYE K10 CC Instruction Manual
  1. Manuals
  2. Brands
  3. Clay Paky Manuals
  4. Lighting Equipment
  5. A.LEDA WASH K10 CC
  6. Instruction manual

Clay Paky A.LEDA B-EYE K10 CC Instruction Manual

Hide thumbs Also See for A.LEDA B-EYE K10 CC:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
INDEX
Page
Contents
2
3
4
5
7
14
15
16
17

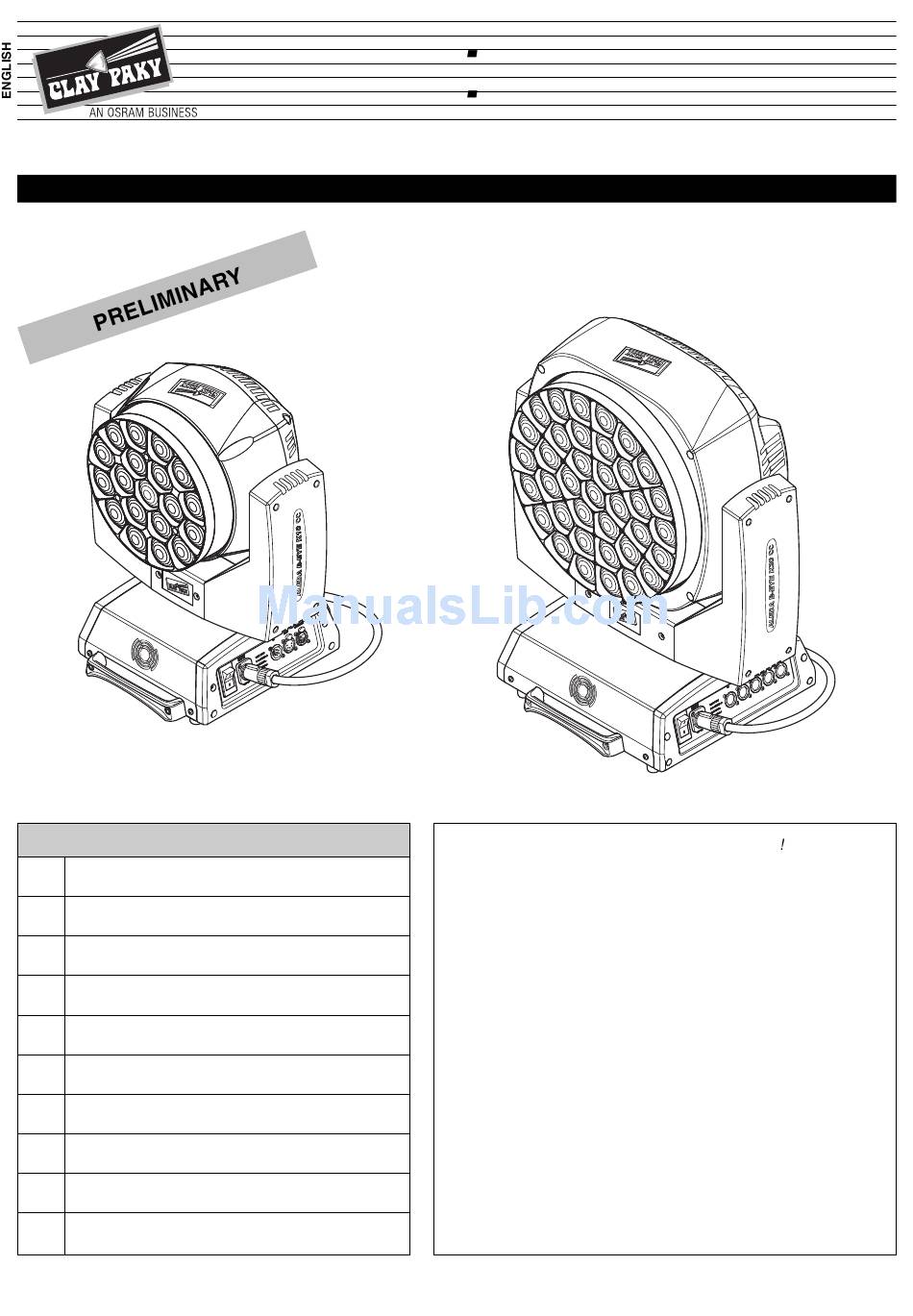

INSTRUCTION MANUAL
Congratulations on choosing a Clay Paky product
We thank you for your custom.
Please note that this product, as all the others in the rich Clay
Paky range, has been designed and made with total quality to
ensure excellent performance and best meet your expectations
and requirements.
Carefully read this instruction manual in its entirety and keep it
safe for future reference. It is essential to know the information
and comply with the instructions given in this manual to ensure
the fitting is installed, used and serviced correctly and safely.
CLAY PAKY S.p.A. disclaims all liability for damage to the fitting
or to other property or persons deriving from installation, use and
maintenance that have not been carried out in conformity with this
instruction manual, which must always accompany the fitting.
CLAY PAKY S.p.A. reserves the right to modify the
characteristics stated in this instruction manual at any time and
without prior notice.
1
C61418
C61421

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A.LEDA B-EYE K10 CC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clay Paky A.LEDA B-EYE K10 CC

Summary of Contents for Clay Paky A.LEDA B-EYE K10 CC

  • Page 1: Table Of Contents

    Control panel the fitting is installed, used and serviced correctly and safely. CLAY PAKY S.p.A. disclaims all liability for damage to the fitting Menu setting or to other property or persons deriving from installation, use and...

  • Page 2: Safety Information

    SAFETY INFORMATION • Installation Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be properly hooked onto the fitting and secured to the framework, so that, if the primary support system fails, the fitting falls as little as possible.

  • Page 3: Unpacking And Preparation

    UNPACKING AND PREPARATION IST00J/001 2 x 183102/805 Packing contents - Fig. 1 UNLOCKED LOCKED PAN Mechanism Lock and Release (every 90°) - Fig. 2 A.LEDA B EYE CC...

  • Page 4: Installation And Start-Up

    INSTALLATION AND START-UP Installing the projector - Fig. 3 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. Cod. 105041/003 available on request). This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.

  • Page 5: Control Panel

    CONTROL PANEL Mains Connecting to the mains supply - Fig. 5 DMX 512 5 PIN SCREEN SIGNAL SIGNAL Connecting to the control signal line (DMX) - Fig. 6 Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity. Do not use microphone cable or other cable with characteristics differing from those specified.
  • Page 6 Reversal of the display - Fig. 8 To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode. This status will be memorised and maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again. Setting the projector starting address On each projector, the starting address must be set for the control signal (addresses from 1 to 512).

  • Page 7: Menu Setting

    MENU SETTING Invert System Set Up Option Pan / Tilt Information Address Errors Invert Fixture Tilt Fixture ID Hours Swap Pan-Tilt Led Energy Encoder Pan-Tilt System Version Silent Standard Option Mode Board Quiet Diagnost. Information Dimmer cut-off Monitor Manual Control Display Fans Monitor...

  • Page 8: Options Menu

    NOTE: On grey the default options SET UP MENU DMX ADDRESS Set Up Address xxx NOTE: without the DMX signal the Address (XXX) flashing Address Allows you to select the DMX ADDRESS. 1) Press - the current DMX Adress appear on the display. 2) Use the UP and DOWN , RIGHT...
  • Page 9 SPECIAL FUNCTIONS Special Pan / Tilt Pan / Tilt speed Functions speed Lets you select two different Pan and Tilt speeds. 1) Press - the current setting appears on the display. 2) Use the UP and DOWN keys to select one of the following settings: - Normal - Fast...

  • Page 10: Information Menu

    INFORMATION MENU SYSTEM ERRORS System Information Errors Shows a list of warnings and messages relevant to errors occurred since the fixtures switching-on. 1) Pressing you are allowed to reset the SYSTEM ERRORS list. A confirmation message (Are you sure you want to clear error list ?) appears on the display.

  • Page 11: Test Menu

    MANUAL CONTROL RESET Manual Reset Used for resetting the projector. Control 1) Press to reset the projectors, a confirmation message (Are you sure ?) appears on the display. 2) Select YES to starting reset the fixture or NO to keep the current setting and return to the top menu level.
  • Page 12 - General cleaning of internal parts. - Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Clay Paky. - General visual check of the internal components, cabling, mechanical parts, etc. - Electrical, photometric and functional checks; eventual repairs.
  • Page 13 Battery removal - Fig. 10 This product contains a rechargeable lithium iron tetraphosphate battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. LiFePO4 A.LEDA B EYE CC...

  • Page 14: Maintenance

    MAINTENANCE Opening the covers - Fig. 11 Removing/Assembling the lens unit - Fig. 12 A.LEDA B EYE CC...

  • Page 15: Cause And Solution Of Problems

    Replacing the line actuator - Fig. 13 CAUSE AND SOLUTION OF PROBLEMS THE PROJECTOR WILL NOT SWITCH ON ELECTRONICS NON-OPERATIONAL PROBLEMS DEFECTIVE PROJECTION REDUCED LUMINOSITY POSSIBLE CAUSES CHECKS AND REMEDIES No mains supply. Check the power supply voltage. LED exhausted or defective. Call an authorised technician.

  • Page 16: Technical Information

    TECHNICAL INFORMATION Power supplies available 100-240V 50/60Hz (13.39") A.Leda B-EYE K10 CC Input power Zoom OUT • K10 CC - 350VA (9.06") (11.42") Zoom OUT • K20 CC - 550VA Zoom IN (9.76") (7.09") LED source Zoom IN Osram Ostar RGBW - 15W LED Average LED life: 50.000 h...

  • Page 17: Channel Functions

    CHANNEL FUNCTION A.LEDA B-EYE K10 CC A.LEDA B-EYE K20 CC NB: To prevent accidental breakage of the effects, which could collide with each other during transport, before switching the projector OFF check that all the projector Channels have been excluded (DMX level @0 bit).
  • Page 18 NOTE: On conclusion of resetting in case of absence of DMX signal, Pan & Tilt move to the "Home" position (Pan 128 bit - Tilt 128 bit) all the others channels stay at 0 bit. • (1 - 3 - 5 - 7) •...
  • Page 19 • (11) • (14) STROBE Operation with option InvertPan EFFECT 252 - 255 LED ON K10 CC 239 - 251 RANDOM FAST STROBE K10 CC K20 CC 226 - 238 RANDOM MEDIUM STROBE 213 - 225 RANDOM SLOW STROBE K20 CC 208 - 212 LED ON FAST PULSATION (25 flash/sec)
  • Page 20 Last selected function still active. Enable setting a new function. Operation with option InvertTilt • (20) ZOOM EFFECT WIDE BEAM K10 CC K20 CC NARROW BEAM CLAY PAKY - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.it S.p.A.
