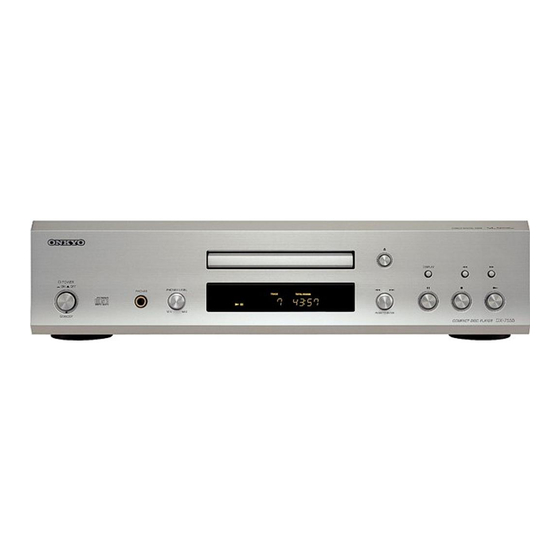

Compact Disc Player
DX-7555
Instruction Manual
Thank you for purchasing an Onkyo Compact Disc
Player. Please read this manual thoroughly before
making connections and plugging in the unit.
Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new Compact Disc Player.
Please retain this manual for future reference.
Contents
Introduction .................................... 2
Connections ................................. 10
Operation...................................... 12
Others ........................................... 23
E
n

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DX DX-7555 and is the answer not in the manual?

Questions and answers

Related Manuals for Onkyo DX DX-7555

Summary of Contents for Onkyo DX DX-7555

  • Page 1 Compact Disc Player DX-7555 Instruction Manual Thank you for purchasing an Onkyo Compact Disc Player. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new Compact Disc Player.

  • Page 2: Introduction Important Safety Instructions

    WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING QUALIFIED PERSONNEL.

  • Page 3: Precautions

    5. Never Touch this Unit with Wet Hands—Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer. 6. Handling Notes •...
  • Page 4 We, ONKYO EUROPE ELECTRONICS GmbH LIEGNITZERSTRASSE 6, 82194 GROEBENZELL, GERMANY declare in own responsibility, that the ONKYO product described in this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, EN55020 and EN61000-3-2, -3-3. GROEBENZELL, GERMANY...

  • Page 5: Table Of Contents

    Features ❑ Plays Audio CDs, MP3 CDs, CD-R/RWs ❑ VLSC (Vector Linear Shaping Circuitry) ❑ Super Precision Clock (±1.5 ppm) ❑ Massive Power Transformer ❑ Wolfson 192 kHz/24-Bit D/A Converter ❑ 2 Digital Outputs (Optical/Coaxial) ❑ Headphone Jack with Volume Control ❑...

  • Page 6: Front & Rear Panels

    Front & Rear Panels The page numbers in parentheses show where you can find the main explanation for each item. Front Panel & Display C D E F G Display PHONES LEVEL knob Use to control the phones level. Turn the dial clockwise to increase the phones level and counterclockwise to decrease it.

  • Page 7: Rear Panel

    These two identical (Remote Interactive) jacks can be connected to the jacks on your other Onkyo components for interactive control. To use , the DX-7555 must be connected with an cable and an audio cable. AUDIO OUTPUT ANALOG (10) This analog audio output can be connected to an amplifier’s analog input by using the supplied audio...

  • Page 8: Remote Controller

    Remote Controller RC-625C Remote Controller The page numbers in parentheses show where you can find the main explanation for each item. ON button (12) Press to turn on the DX-7555 from its standby mode. STANDBY button (12) Press to put the DX-7555 on standby from its pow- ered on status.

  • Page 9: Before Using The Dx-7555

    Before Using the DX-7555 Installing the Remote Controller’s Batteries To open the battery compartment, press the small hollow and slide open the cover. Insert the two supplied batteries (AA/R6) in accordance with the polarity diagram inside the battery compartment. Slide the cover shut. Notes: •...

  • Page 10: Connecting The Dx-7555

    Connecting the DX-7555 Audio Connections • Read the manuals supplied with your other audio equipment. • Don’t connect the power cord until you’ve completed all audio connections. ANALOG AUDIO OUTPUT If your hi-fi amp or AV receiver doesn’t have a digital input, use the supplied RCA/phono audio connecting cable to connect the DX-7555’s ANALOG AUDIO OUTPUTs to your amp’s analog CD inputs.

  • Page 11: Connections

    Onkyo AV component, the displays on all other AV components connected via are dimmed as well. To use you must make an analog audio connection (RCA/phono) between the DX-7555 and your other Onkyo equipment even if they are connected digitally. RCA/phono audio cable To use the -compatible DX-7555’s...

  • Page 12: Turning On The Dx-7555

    Turning On the DX-7555 Turning On the DX-7555 POWER STANDBY indicator To wall outlet STANDBY Plug the power cord into a suit- able wall outlet. Press the DX-7555’s [POWER] switch. Make sure the switch is set to ON To put the DX-7555 on standby, press the STANDBY button on Remote the remote controller while the...
  • Page 13 Playing CDs—Continued Number buttons I To Stop Playback Press the Stop [ ] button. I To Pause Playback Press the Pause [ ] button. The Pause appears. To resume playback, press the Play [ button again. I To Fast Forward or Fast Reverse During playback or while playback is paused, press and hold the [ ] button to fast forward or the [...
  • Page 14 Playing CDs—Continued I Selecting MP3 Tracks You don’t have to navigate the folder hierarchy to find an MP3 track because all folders that contain MP3 tracks appear at the same level. This mode can be used during playback and while playback is stopped. To select a track for playback You can select a track by rotating the ] dial.

  • Page 15: Selecting Mp3 Folders & Tracks By

    Playing CDs—Continued I To Select MP3 Tracks in Navigation Mode With Navigation mode you can select MP3 tracks by navigating through the folder hierarchy. This mode can only be used while playback is stopped. While playback is stopped, press and hold [ ] dial.

  • Page 16: Displaying Information

    Playing CDs—Continued Displaying Information This section explains how to display various informa- tion, including the remaining track time, remaining disc time, disc name, track name, and various ID3 tags for MP3 tracks, including title name, artist name, and so on. During playback, press the [DIS- PLAY] button repeatedly to cycle through the following options.

  • Page 17: Memory Playback

    Playing CDs—Continued Number buttons ENTER RANDOM REPEAT Memory Playback I To Play back Tracks and Folders (for MP3 disc only) in Your Favorite Order You can store up to 25 tracks in memory. To switch over to memory mode Press the Stop [ ] button to stop play- back.

  • Page 18: Random Playback

    Playing CDs—Continued I To View the Reserved Memory Press the Stop [ ] button to stop playback. Now you can view the reserved mem- ory by pressing the [ Press the STOP button to finish view- ing. I To Stop Memory Playback Press the Stop [ ] button.

  • Page 19: Various Settings

    Various Settings You can configure operating conditions of the DX-7555 for sound, display and MP3 disc. The Structure of the SETUP MENU Key Item AUDIO DISPLAY EXTRA INITIALIZE Title DIGI OUT (ON/OFF) FILTER* (SHARP/SLOW) PHASE* (NORMAL/REVERSE) CLOCK ADJ* (–40~+40) DISC NAME (DISPLAY/NOT) GROUP NAME* (SCROLL/NOT)
  • Page 20 Various Settings—Continued Stop playback. • The numbers of all the groups (fold- ers) and the tracks should be indi- cated on the display. • The memory mode should be dese- Remote lected. controller Press and hold the STOP button until “SETUP MENU” appears on the display (about a few sec- onds).
  • Page 21 Various Settings—Continued PHASE (Switching Analog Output Phase)* This preference configures the setting to switch the phase of the audio output. You may give it a try to switch and listen so that an opti- mum sound quality can be obtained from the amplifier and the speakers on line.
  • Page 22 Various Settings—Continued To Return Each Setting to the Factory Default Stop playback. • The numbers of all the groups (fold- ers) and the tracks should be indi- cated on the display. • The memory mode should be dese- lected. Remote controller Press and hold the STOP button until “SETUP MENU”...

  • Page 23: Others

    About CDs Handling CDs • Carefully lift the disc from its case, making sure to hold it by its edges or cen- ter hole. • You can use a soft, dry cloth to wipe dust and finger- prints off the surface of CDs. Do not use volatile agents, such as thinner or benzene.
  • Page 24 About CDs—Continued • MP3 file and folder names (excluding the extension) are shown on the display. • The emphasis is not supported. • Multisession discs are supported, however, some mul- tisession discs may take a long time to load and some may not load at all.

  • Page 25: Troubleshooting

    Troubleshooting If you have any trouble using the DX-7555, look for a solution here. If you can’t resolve the issue yourself, contact your Onkyo dealer. Power Can’t turn on the DX-7555. • Make sure that the power cord is properly plugged into the wall outlet (page 12).
  • Page 26 In the unlikely event that this should happen, unplug the power cord, wait at least 10 seconds, and then plug it again. Onkyo is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by the unit’s malfunction. Before you record important data, make sure that the material will be recorded correctly.

  • Page 27: Specifications

    Specifications Signal readout: Frequency response: SN ratio: Audio dynamic range: THD (total harmonic distortion): Audio output Digital optical: Audio output/Impedance Digital coaxial: Audio output/Impedance Analog: Power supply: Power consumption: Standby power consumption: Dimensions (W × H × D): Weight: Operation condition Temperature, humidity: Supported discs: Specifications and features are subject to change without notice.
  • Page 28 Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung, N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039 http://www.ch.onkyo.com/ SN 29344106 (C) Copyright 2005 ONKYO CORPORATION Japan. All rights reserved. HOMEPAGE http://www.onkyo.com/ D0510-1 * 2 9 3 4 4 1 0 6 *...
