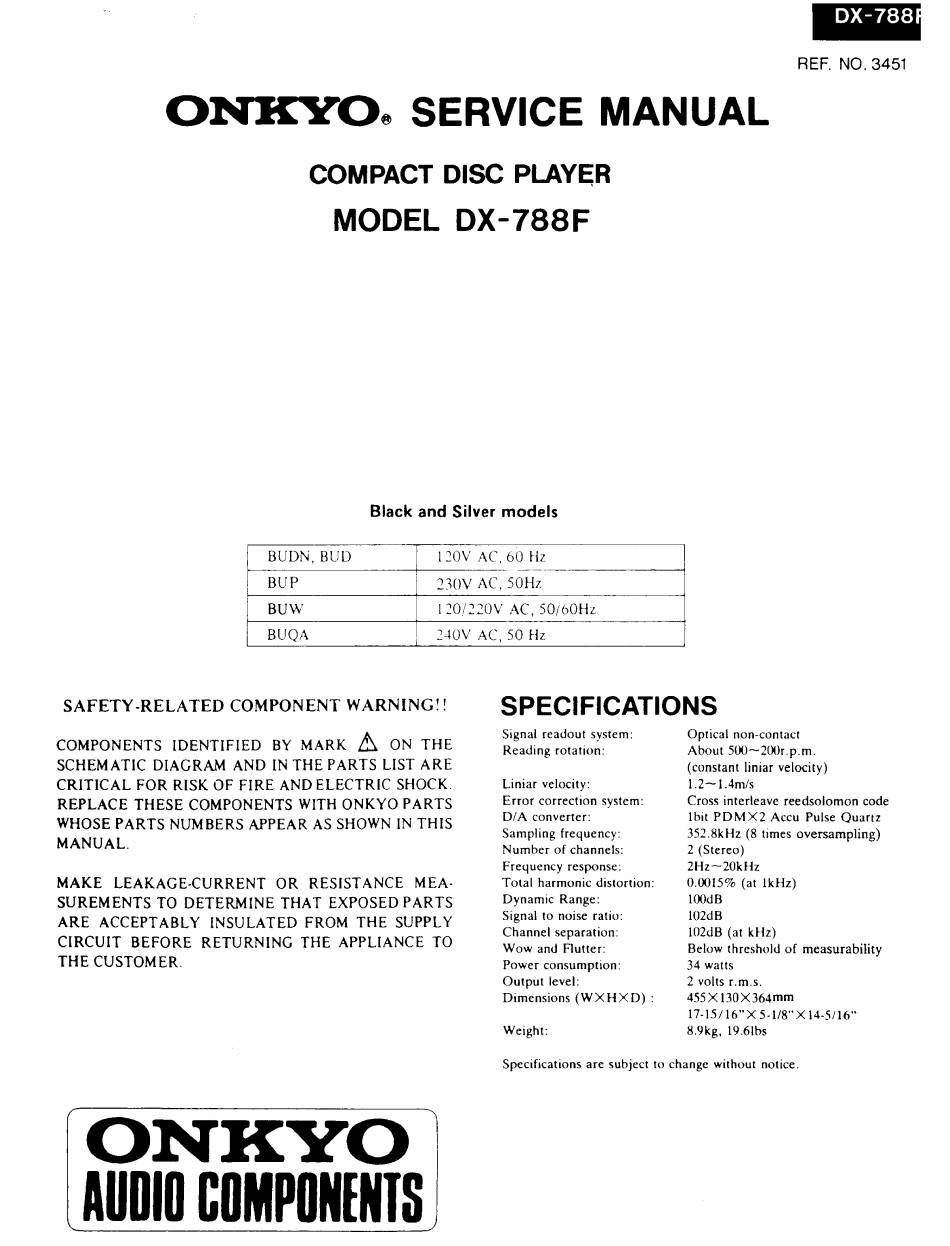

Onkyo DX-788F Service Manual

REF. NO, 3451
ONKYO. SERVICE MANUAL
COMPACT DISC PLAYER
MODEL DX-788F
Black and Silver models
BUDN, BUD
BUP
t
BUW
_
| BUQA 240V AC, 50 Hz
SAFETY-RELATED COMPONENT WARNING!?!
COMPONENTS IDENTIFIED BY MARK /\ ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO PARTS
WHOSE PARTS NUMBERS APPEAR AS SHOWN IN THIS
MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE MEA-
SUREMENTS TO DETERMINE THAT EXPOSED PARTS
ARE ACCEPTABLY INSULATED FROM THE SUPPLY
CIRCUIT BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER.
ONKYO
AUDIO COMPONENTS
120V AC, 60 Hz
930y AC. SOHz
nS URE RE
—_——
120/220V AC, 50/60Hz
SPECIFICATIONS
Signal readout system:
Reading rotation:
Lintar velocity:
Error correction system:
D/A converter:
Sampling frequency:
Number of channels:
Frequency response:
Total harmonic distortion:
Dynamic Range:
Signal to noise ratio:
Channel separation:
Wow and Flutter:
Power consumption:
Output ievel:
Dimensions (WXH XD) :
Weight:
Optical non-contact
About 500~200r.p.m.
(constant liniar velocity)
1.2~1.4m/s
Cross interleave reedsolomon code
lbit POM X2 Accu Pulse Quartz
352.8kHz (8 times oversampling)
2 (Stereo)
2Hz~20kHz
0.0018% (at 1kHz)
100dB
102dB
102dB (at kHz)
Below threshold of measurability
34 watts
2 volts r.m.s.
455 X 130 364mm
17-15/16" & $-1/8" & 14-5/16"
8.9kg, 19.6lbs
Specifications are subject to change without notice.
