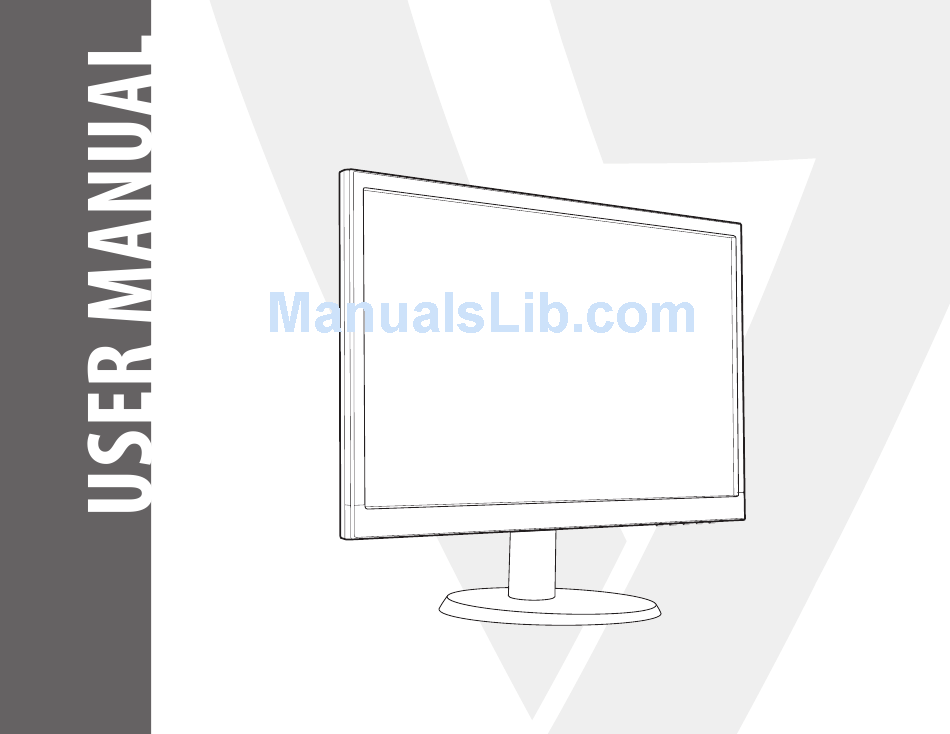

- Page 1 18" Class Slim HD Widescreen Monitor L185V...
-
Page 2: Getting Started
1 Getting Started Package Includes Installation 2 Front Panel / Back Panel Front Panel Back Panel 3 On Screen Display 4 Technical Specs 5 Care & Maintenance 6 Troubleshooting No Power Power on but no screen image Wrong or Abnormal Colors 7 Safety info &... - Page 3 Package Includes • AC Power Cord • VGA Cable • Quick Start Guide AC Power Cord VGA Cable...
-
Page 4: Installation
Installation 1. Insert post into base 2. Slide Post into monitor slot 3. Connect Video Cable, Connect Power Cord 4. Power on Computer and Monitor... - Page 5 Control Panel Menu Auto Back Panel VESA Power...
- Page 6 Using On Screen Display (OSD) Function Display main menu Menu Exit from OSD menu Auto Auto Adjust of the screen Select the desired item when in OSD menu When not in OSD menu, directly enters COLOR VISION MODE Select the desired item when in OSD menu When not in OSD menu, directly enters CONTRAST/BRIGHTNESS Recall both of Contrast and Brightness (when not in OSD menu) Menu +...
-
Page 7: User Color
Short Cuts Function from the button(s) To auto adjust Horizontal Position, Vertical Position, Phase (Fine Tune) and Clock (H. Size) of the screen Auto Image Adjust To manually adjust the CONTRAST, BRIGHTNESS, DCR and ECO of screen image CONTRAST: To adjust the foreground white level of screen image increase contrast decrease contrast BRIGHTNESS: To adjust the luminance of the video... - Page 8 Short Cuts Function from the button(s) To manually adjust the H. / V. Position, Horizontal size, Fine tune, Sharpness, Aspect Ratio and Color Vision Mode. H. / V. Position: To adjust the width of the screen image. H. Position: move screen to the right, : move screen to the left.
- Page 9 Technical Specification LED Panel 47.0 cm (18.5”) TFT (with LED back light) Power Off Mode, < 0.5 W Management Displayable 1366 x 768 max. Resolution Vertical Frequency 60Hz max. Pixel Dimension 0.3 x 0.3 mm LED Display 16.7M Color Tilt -3°~18°...
- Page 10 Care • Avoid exposing your monitor directly to sunlight or other heat source. Place your monitor away from the sun to reduce glare. • Put your monitor in a well ventilated area. • Do not place any heavy things on top of your monitor •...
- Page 11 No Power • Make sure AC power cord is securely connected to the power adapter and the power supply is firmly connected to the monitor • Plug another electrical device into the power outlet to verify that the outlet is supplying proper voltage •...
-
Page 12: Safety Precautions
Safety Precautions This monitor is manufactured and tested to ensure user’s safety. However, improper use or installation may result danger to the monitor as well as to the user. Carefully go over the following warnings before installation and keep this guide handy. WARNINGS •...
