V7 L215DS User Manual

V7 L215DS User Manual

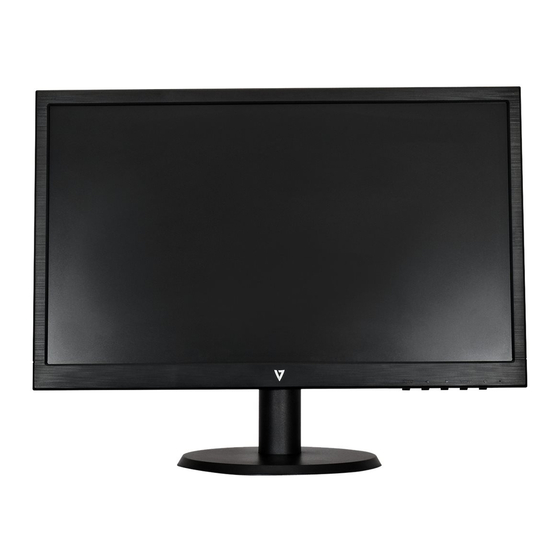

22" class slim hd widescreen monitor

Advertisement

Quick Links

22" Class Slim HD Widescreen Monitor
L215DS

Advertisement

loading
Need help?

Need help?

Do you have a question about the L215DS and is the answer not in the manual?

Questions and answers

Summary of Contents for V7 L215DS

  • Page 1 22" Class Slim HD Widescreen Monitor L215DS...
  • Page 2: Getting Started

    1 Getting Started Package Includes Installation 2 Control Panel / Back Panel Control Panel Back Panel 3 On Screen Display 4 Technical Specs 5 Care & Maintenance 6 Troubleshooting No Power Power on but no screen image Wrong or Abnormal Colors 7 Safety info &...
  • Page 3 Package Includes • AC Power Cord • VGA Cable • Audio Cable • Quick Start Guide AC Power Cord VGA Cable Audio Cable...
  • Page 4 Installation 1. Insert post into base 2. Slide Post into monitor slot 3. Connect Video Cable, Connect Power Cord Power 4. Power on Computer and Monitor...
  • Page 5 Control Panel Menu Auto Back Panel VESA Power...
  • Page 6 Using On Screen Display (OSD) Function Display main menu Menu Exit from OSD menu Auto Auto Adjust of the screen Select the desired item when in OSD menu When not in OSD menu, directly enters COLOR VISION MODE Select the desired item when in OSD menu When not in OSD menu, directly enters CONTRAST/BRIGHTNESS Recall both of Contrast and Brightness (when not in OSD menu) Menu +...
  • Page 7: User Color

    Short Cuts Function from the button(s) To auto adjust Horizontal Position, Vertical Position, Phase (Fine Tune) and Clock (H. Size) of the screen Auto Image Adjust To manually adjust the CONTRAST, BRIGHTNESS, DCR and ECO of screen image CONTRAST: To adjust the foreground white level of screen image increase contrast decrease contrast BRIGHTNESS: To adjust the luminance of the video...
  • Page 8 Short Cuts Function from the button(s) To manually adjust the H. / V. Position, Horizontal size, Fine tune, Sharpness, Video mode adjustment and Picture mode. H. / V. Position: To adjust the width of the screen image. H. Position: : move screen to the right, : move screen to the left.
  • Page 9 Technical Specification LED Panel 54.7cm (21.5”) TFT (with LED back light) Power VESA DPMS compatible Management Off Mode, < 0.5 W Displayable Full HD 1920 x 1080 max. Resolution Vertical Frequency 60Hz max. Pixel Dimension 0.24825 x 0.324825 mm LED Display 16.7M Color Tilt...
  • Page 10 Care • Avoid exposing your monitor directly to sunlight or other heat source. Place your monitor away from the sun to reduce glare. • Put your monitor in a well ventilated area. • Do not place any heavy things on top of your monitor •...
  • Page 11 No Power • Make sure AC power cord is securely connected to the power adapter and the power supply is firmly connected to the monitor • Plug another electrical device into the power outlet to verify that the outlet is supplying proper voltage •...
  • Page 12: Fcc Radio Frequency Interference Statement

    Safety Precautions This monitor is manufactured and tested on a ground principle that a user’s safety comes first. However, improper use or installation may result danger to the monitor as well as to the user. Carefully go over the following WARNINGS before installation and keep this guide handy. WARNINGS •...

This manual is also suitable for:

L215ds-2e
