Installing The Battery; Adding Water To The Battery - Toro 74806 TimeCutter ZX525 Operator's Manual

5. Slide the rubber cover up the positive (red)
cable. Disconnect the positive (red) cable from
the battery post (Figure 31).
6. Remove the battery hold-down (Figure 31) and
lift the battery from the battery tray.

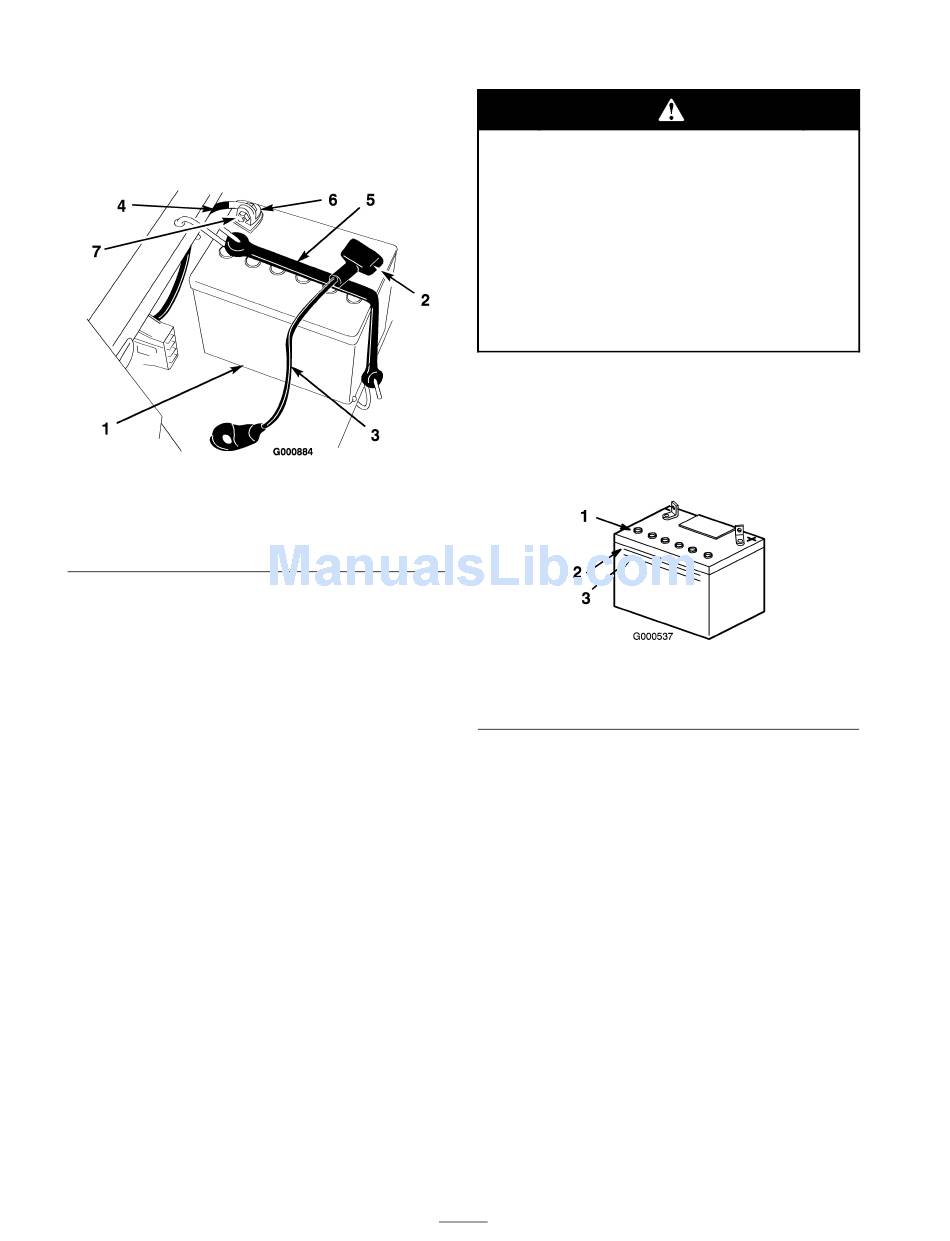

Figure 31
1. Battery
2. Terminal boot
3. Positive battery cable
4. Negative battery cable

Installing the Battery

1. Position the battery in the tray with the
terminal posts away from the control panel
(Figure 31).
2. Install the positive (red) battery cable to the
positive (+) battery terminal.
3. Install the negative battery cable to the negative
(-) battery terminal.
4. Secure the cables with 2 bolts (1/4 x 3/4 inch),
washers (1/4 inch), and nuts (1/4 inch)
(Figure 31).
5. Slide the red terminal boot onto the positive
(red) battery post.
6. Secure the battery with the hold-down
(Figure 31).
5. Battery hold-down
6. Bolt and washer
7. Nut
Checking the Electrolyte Level
Battery electrolyte contains sulfuric acid
which is a deadly poison and causes severe
burns.
• Do not drink electrolyte and avoid
contact with skin, eyes or clothing. Wear
safety glasses to shield your eyes and
rubber gloves to protect your hands.
• Fill the battery where clean water is
always available for flushing the skin.
1. Tip the seat forward to see the battery.
2. Look at the side of the battery. The electrolyte
must be up to the Upper line (Figure 32).
Do not allow the electrolyte to fall below the
Lower line (Figure 32).
Figure 32
1. Vent caps
2. Upper line
3. If the electrolyte is low, add the required
amount of distilled water; refer to Adding
Water to the Battery.

Adding Water to the Battery

The best time to add distilled water to the battery is
just before you operate the machine. This lets the
water mix thoroughly with the electrolyte solution.
1. Remove the battery from the tractor; refer to
Removing the Battery.
Important: Never fill the battery with
distilled water while the battery installed in
the tractor. Electrolyte could be spilled on
other parts and cause corrosion.
2. Clean the top of the battery with a paper towel.
3. Remove the vent caps from the battery
(Figure 32).
28
3. Lower line
