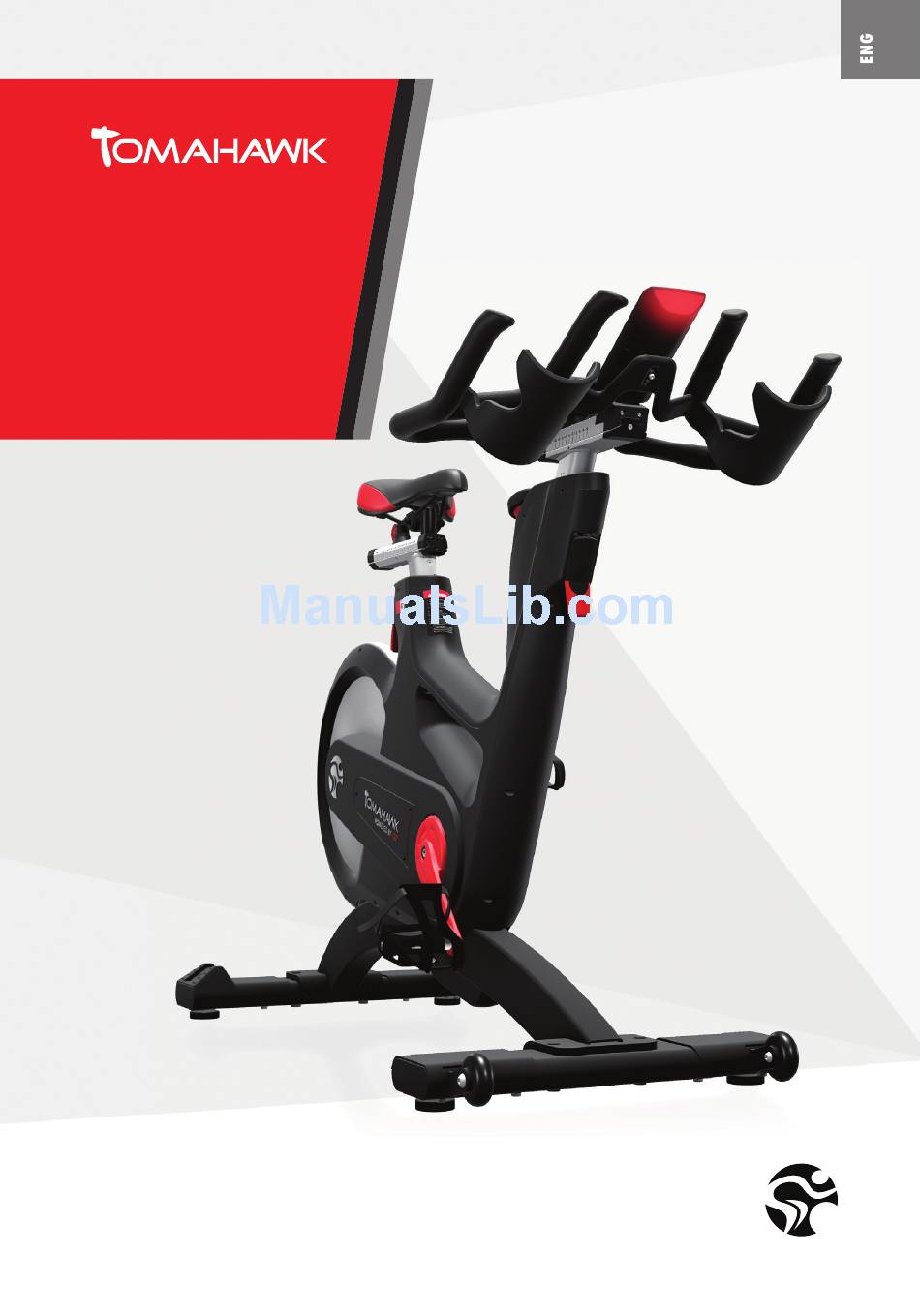

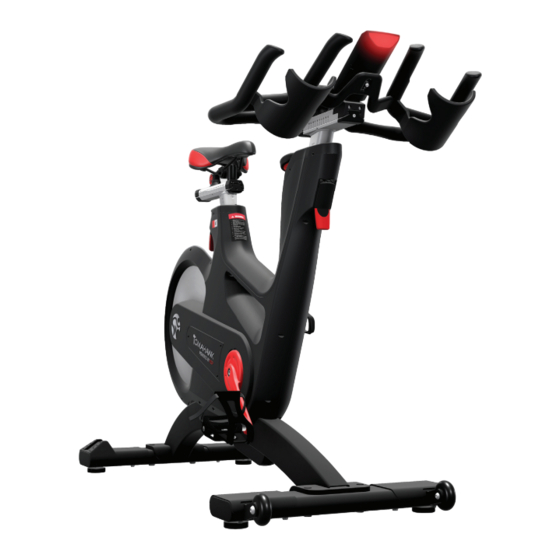

IC7
MODEL NO:IC-TKIC7B2
CAUTION!
READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE YOU START
USING THIS EQUIPMENT. PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE.
IMPROPER ASSEMBLY, USE OR MAINTENANCE CAN VOID THE WARRANTY TERMS.
ADDITIONAL LANGUAGES AVAILABLE FOR DOWNLOAD AT WWW.INDOORCYCLING.COM
Version 1.0 2016 IC-TKIC7B2 Copyright by Indoor Cycling Group GmbH 2016 | www.indoorcycling.com
MANUFACTURED BY:
Indoor Cycling Group GmbH
Happurger Str. 86
90482 NUERNBERG | Germany
info@indoorcycling.com
www.indoorcycling.com
Phone: +49(0)911 / 54 44 50
Advertisement
Related Manuals for Tomahawk IC-TKIC7B2
Summary of Contents for Tomahawk IC-TKIC7B2
- Page 1 USING THIS EQUIPMENT. PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE. IMPROPER ASSEMBLY, USE OR MAINTENANCE CAN VOID THE WARRANTY TERMS. ADDITIONAL LANGUAGES AVAILABLE FOR DOWNLOAD AT WWW.INDOORCYCLING.COM Version 1.0 2016 IC-TKIC7B2 Copyright by Indoor Cycling Group GmbH 2016 | www.indoorcycling.com...
- Page 2 ATTENTION Warning labels on the bikes must be replaced by warning labels in your language during the assembly process. Version 1.0 2016 IC-TKIC7B2 Copyright by Indoor Cycling Group GmbH 2016 | www.indoorcycling.com...
- Page 3 ATTENTION To download the owners manual in Lataa omistajan käsikirja omalla your language, visit the IC7 support kielelläsi IC7-ohjeosiosta sivustolta: section at: www.teamicg.com www.teamicg.com Um das Handbuch in Ihrer Sprache Du kan laste ned bruksanvisningen herunterzuladen, besuchen Sie bitte på ditt eget språk ved å gå til IC7 den IC7 Support Bereich auf unserer støttesiden på: www.teamicg.com Webseite unter www.teamicg.com...
-
Page 4: Table Of Contents
WARRANTY P.31 TECHNICAL SPECIFICATIONS: The TOMAHAWK IC7 Bike is, according to EN ISO 20957 (1 & 10), a Class S product for use in a controlled environment such as sports or fitness facilities under the supervision of a trainer. WEIGHT OF BIKE:... -
Page 5: Important Precautions
IMPORTANT PRECAUTIONS 8. Children under the age of 14 shall only be allowed WARNING! to use the indoor cycle with parental approval and To reduce the risk of serious injury due to improper supervision of a qualifi ed Trainer or Instructor. Use of use of the equipment, carefully read and adhere the bike by persons over the age of 14 only after they to the following important precautions and... -
Page 6: Getting Started
WARNING! You will fi nd the production code for the Tomahawk IC7 Bike on the tag plate which is located on the lower left side of the frame tube of the Indoor Bike. Please enter this production code into care and maintenance lists. -
Page 7: How To Assemble The Indoor Cycle
HOW TO ASSEMBLE THE INDOOR CYCLE TORQUE WRENCH 17MM PEOPLE WARNING! Avoid high fl uctuations in temperature whilst transporting the bike from the store to the installation site. If there are nevertheless large fl uctuations in temperature, please allow the bike to acclimatise to the surrounding temperature before proceeding with assembly. - Page 8 THE HANDLEBARS ARE LOCATED UNDERNEATH THE WITH ASSEMBLY. MOUNTING BRACKET FOR THE COMPUTER. DO NOT REMOVE WARNING TAPE FROM THE SLIDERS PRIOR TO THE HANDLEBAR BEING ASSEMBLED. Version 1.0 2016 IC-TKIC7B2 Copyright by Indoor Cycling Group GmbH 2016 | www.indoorcycling.com...
- Page 9 HOW TO ASSEMBLE THE INDOOR CYCLE TORQUE WRENCH PEOPLE 30 NM IN ORDER TO AVOID DAMAGING THE INTERIOR AFTER ASSEMBLY, REMOVE THE WARNING TAPE. CABLING, THE HANDLEBARS MUST NOT BE ADJUSTED DO NOT MOVE HORIZONTAL SLIDER BACKWARDS. HORIZONTALLY BEFORE THIS STEP. ENSURE THAT BOLTS ARE TIGHTENED WITH SUFFICIENT FORCE (30 NM) WHEN MOUNTING THE HANDLEBARS.
- Page 10 CHECK THE CLAMPING FORCE OF THE VERTICAL ADJUSTMENT WITH THE FLIP LEVER CLOSED. MAKE SURE THE VERTICAL ADJUSTMENT PERFORMS SUFFICIENTLY. ADJUST IF REQUIRED REFERING TO SERVICE GUIDELINES ON AVAILABLE ON MANUFACTURERʻS SERVICE WEBSITE OR CONTACT YOUR LOCAL DISTRIBUTOR. Version 1.0 2016 IC-TKIC7B2 Copyright by Indoor Cycling Group GmbH 2016 | www.indoorcycling.com...
- Page 11 HOW TO ASSEMBLE THE INDOOR CYCLE 15 MM HAND TIGHT PEDAL WRENCH PEOPLE INSERT THE BIKE COMPUTER FASTEN THE BIKE COMPUTER INTO PLACE FROM INTO THE COMPUTER BRACKET. THE UNDERSIDE OF THE HANDLEBARS WITH THE BOLT AND PLASTIC SLEEVE PROVIDED. PLASTIC SLEEVE MUST BE LOCATED BETWEEN HANDLEBAR BRACKET AND COMPUTER.
- Page 12 Instructions stated in this manual must be performed during initial installation of the TOMAHAWK Indoor Cycle in order to ensure optimal performance and a long lifespan. Please read and follow the following instructions carefully. If the Indoor Cycles are not installed and configured as described, the components may be subjected to excessive wear and tear and the bike may become damaged.
- Page 13 INSTALLATION AND DISPOSING OF BATTERIES CUSTOMER SERVICE 1. Provide the customer with basic maintenance instructions, and direct them to detailed maintenance instructions. 2. Have the sign-off sheet for the manual, explanation of maintenance procedures and verifi cation of impeccable condition of the bikes confi rmed by the customer when handing over the goods.
-
Page 14: How To Adjust The Indoor Cycle
HOW TO ADJUST THE INDOOR CYCLE The Tomahawk Indoor Cycle can be very easily adjusted, depending on the requirements of various user groups. This enables maximum riding comfort to be ensured whilst achieving optimal training results. The confi gurations described in the following paragraphs demonstrate just a few of the most often used adjustment variations of which the Indoor Cycle is capable. - Page 15 HOW TO ADJUST THE INDOOR CYCLE ADJUSTING THE SADDLE HORIZONTALLY: Properly positioning the saddle horizontally is very important in order to avoid injury to the knees. Sit on the saddle and move the pedals until the crank arms are in the horizontal position. The knee of your forward-facing leg should be positioned directly above the centre of the pedal.
- Page 16 It is recommended to change hand positions frequently during extended workouts in order to minimise one-sided and monotonous exertions on your muscles, ligaments and joints. Version 1.0 2016 IC-TKIC7B2 Copyright by Indoor Cycling Group GmbH 2016 | www.indoorcycling.com...
-
Page 17: How To Operate The Indoor Cycle
HOW TO OPERATE THE INDOOR CYCLE RESISTANCE ADJUSTMENT: The resistance adjustment can be set precisely and regulated in fi ne increments according to the requirements of the cyclist using the resistance adjustment knob with a range of motion of 300°. The resistance in % (where 0% is no resistance and 100% is maximum resistance) is also displayed on the Indoor Cycle computer display. - Page 18 Allow a minimum safety distance away from the nearest equipment, objects or walls as illustrated below. 3.9“ (10cm) 23.6“ 23.6“ (60cm) (60cm) 3.9“ (10cm) 23.6“ (60cm) 23.6“ (60cm) Version 1.0 2016 IC-TKIC7B2 Copyright by Indoor Cycling Group GmbH 2016 | www.indoorcycling.com...
- Page 19 HOW TO OPERATE THE INDOOR CYCLE Check the stability of the Indoor Cycle where it is to be operated and if necessary adjust the levelling feet underneath the front or rear stabilizers to ensure the desired stability. IMPORTANT! Please do not unscrew the levelling feet more than 1 cm! The free standing Indoor cycle shall only be installed and operated on a stable and leveled fl oor.
-
Page 20: Preventive Maintenance
Never spray the maintenance spray directly onto the flywheel, as this could cause the drive belt to slip through (belt slip) and could have negative impact on E-brake functionality. Version 1.0 2016 IC-TKIC7B2 Copyright by Indoor Cycling Group GmbH 2016 | www.indoorcycling.com... - Page 21 PREVENTIVE MAINTENANCE BI-WEEKLY MAINTENANCE: 1. Emergency brake: To ensure operating safety, the emergency brake must be regularly checked to make sure it is functioning properly. To do this, press down the red emergency brake handle whilst pedalling. When functioning optimally, it should produce an immediate braking eff ect and bring the fl ywheel to a complete standstill.
- Page 22 Indoor Cycle must be checked for fi rm seating and function, and parts showing wear or damage (saddle, pedal teeth, pedals, SPD system) replaced. Version 1.0 2016 IC-TKIC7B2 Copyright by Indoor Cycling Group GmbH 2016 | www.indoorcycling.com...
- Page 23 PREVENTIVE MAINTENANCE USER-DEFINED MAINTENANCE: 1. Vertically adjusting the handlebars and saddle: To ensure the easy adjustment of the vertical handlebar and saddle posts, it is recommended that you check the clamping mechanism and if necessary apply a small amount of lithium/silicone grease to the vertical clamping mechanism of the handlebar posts (1) and saddle posts (2/3).
- Page 24 THE HANDLEBARS AND SADDLE MONTHLY P 23 EXAMPLES OF MAINTENANCE PLAN CHARTS FOR IN-HOUSE SERVICE TECHNICIANS: WEEKLY MAINTENANCE CHECKLIST BIKE NO. PRODUCTION CODE OBSERVATIONS ACTION TAKEN RESULT NAME / DATE Version 1.0 2016 IC-TKIC7B2 Copyright by Indoor Cycling Group GmbH 2016 | www.indoorcycling.com...
- Page 25 MAINTENANCE ACTIVITY AND REQUIRED SCHEDULE BI-WEEKLY MAINTENANCE CHECKLIST BIKE NO. PRODUCTION CODE OBSERVATIONS ACTION TAKEN RESULT NAME / DATE MONTHLY MAINTENANCE CHECKLIST BIKE NO. PRODUCTION CODE OBSERVATIONS ACTION TAKEN RESULT NAME / DATE...
-
Page 26: Spare Parts
CONSOLE KIT 120-01-00015-02 SPORT SADDLE BLACK & RED INCL. SADDLE CLAMP 900-10-00003-01 LEVELING FEET, RUBBER 75° SHORE 150-01-00005-02 COMBI PEDAL SET, SPD COMPATIBLE 150-03-00048-01 TOE STRAP SET Version 1.0 2016 IC-TKIC7B2 Copyright by Indoor Cycling Group GmbH 2016 | www.indoorcycling.com... -
Page 27: Warranty
WARRANTY ICG warrants that all new equipment will be free of manufacturing defects in workmanship and materials, eff ective on the date of original assembly at its production facility. Parts repaired or replaced under the terms of this warranty will be warranted for the remainder of the original warranty period only. ICG is obligated to uphold its manufacturer warranty obligation so long as the product is used in the closed environment it was designed for, Temperature range between 15ºC~40°C Celsius (59ºF~104°F) and max. - Page 28 CAUTION. READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE YOU BEGIN USING THIS EQUIPMENT. PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE. IMPROPER ASSEMBLY, SET UP, USE OR MAINTENANCE MAY VOID THE WARRANTY. EMAIL: INFO@INDOORCYCLING.COM WEBSITE: WWW.INDOORCYCLING.COM © 2016 Indoor Cycling Group Manufactured by: Indoor Cycling Group®...
