INSTRUCTION MANUAL
IntelliSense™
Automatic Blood Pressure Monitor
with Easy Wrap Cuff
HEM-773AC
Model

Advertisement

   Related Manuals for Omron IntelliSense HEM-773AC

   Summary of Contents for Omron IntelliSense HEM-773AC

  • Page 1

    INSTRUCTION MANUAL IntelliSense™ Automatic Blood Pressure Monitor with Easy Wrap Cuff HEM-773AC Model...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction...3 Notes on Safety...4 Know Your Unit ...5 Quick Reference Guide...6 Initial Set-Up Battery Installation/Replacement...7 How to Set Time and Date...8 How to Use the AC Adapter ...9 Correct Usage How to Apply the Arm Cuff ...10, 11 How to Take a Reading...12, 13 How to Use the Memory Function ...14 Troubleshooting ...15...

  • Page 3: Introduction

    INTRODUCTION Thank you for purchasing the Omron IntelliSense™ Automatic Blood Pressure Monitor with Easy Wrap Cuff, HEM-773AC. Although your blood pressure fluctuates throughout the day, no self-adjustment is necessary as the monitor intelligently adjusts to your changing conditions. The IntelliSense™ monitor uses fuzzy logic intelligence to sense both your systolic and diastolic blood pressure values, and the result is personalized inflation with every reading.

  • Page 4: Notes On Safety

    Do not use a cellular phone near the unit. Improper operation may result. Do not disassemble, repair, or remodel the main unit or the arm cuff of the blood pressure monitor. The battery liquid may leak and damage the main unit. Please observe the following points.

  • Page 5: Know Your Unit

    KNOW YOUR UNIT Main Unit: Systolic Blood Pressure Diastolic Blood Pressure User Indicator (A or B) Pulse Rate Components: Arm Cuff (Applicable arm cuff for Adults 9 to 17 in.) Release Button of Cover Cuff Storage Container Air Jack Heart Symbol Date/Time Display Green Mark Air Plug...

  • Page 6: Quick Reference Guide

    QUICK REFERENCE GUIDE 1. Avoid eating, smoking, and exercising for at least 30 minutes before taking a measurement. 2. Remove tight-fitting clothing from your upper left arm. 3. Sit in a chair with your feet flat on the floor and place your left arm on a table so that the cuff is at the same level as your heart.

  • Page 7

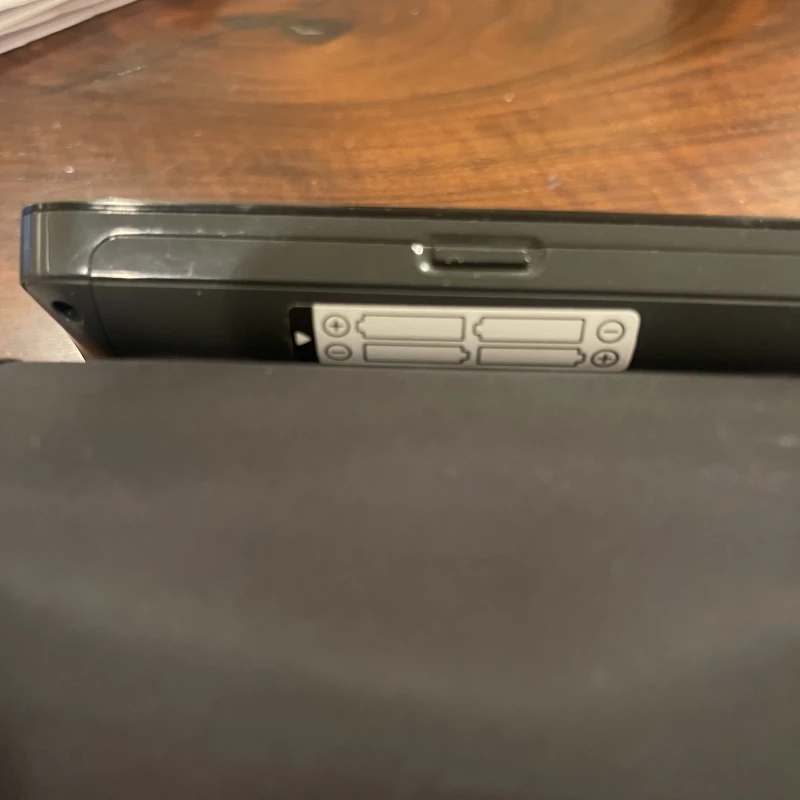

    BATTERY INSTALLATION/REPLACEMENT 1. Slide the battery cover off in the direction of the arrow. 2. Install or replace 4 “AA” size batteries so the + (positive) and – (negative) polarities match the polarities of the battery compartment as indicated. 3. Replace the battery cover. NOTES: If the Low Battery Indicator (...

  • Page 8: How To Set Time And Date

    HOW TO SET TIME AND DATE 1. When the batteries are installed, the display will show 12:00 a.m. 2. Press and hold the SET button. The year digits (2002) will flash. 3. Press the ADJUST button to advance the digit(s) one at a time. If you hold down the ADJUST button, the digits will advance rapidly.

  • Page 9: How To Use The Ac Adapter

    HOW TO USE THE AC ADAPTER To avoid potential damage to the monitor, use only the exclusive Omron AC adapter (HEM-ADPT1). To connect the AC adapter 1. Insert the AC adapter plug into the AC Adapter jack on the right side of the main unit. 2.

  • Page 10: How To Apply The Arm Cuff

    HOW TO APPLY THE 1. Check if the air plug is securely inserted in the main unit. 2. Remove tight-fitting clothing from your upper arm. 3. Sit in a chair with your feet flat on the floor and place your arm on a table so that the cuff will be at same level as your heart.

  • Page 11

    HOW TO APPLY THE ARM CUFF 6. Align the Green Marker of the cuff over the brachial artery on the inside of the arm The bottom of the cuff should be approximately 1/2''-1'' above your elbow. 7. Secure the cuff around your arm using the cloth velcro.

  • Page 12: How To Take A Reading

    HOW TO TAKE A READING If you are going to use the unit’s memory function to automatically store the measurement values, you need to choose user A or B on the User Selector before starting a measurement. 1. Press the ON/OFF button. a) All display symbols appear for approximately one second.

  • Page 13

    HOW TO TAKE A READING 4. When the measurement is complete, the arm cuff completely deflates and your blood pressure and pulse rate are displayed. NOTE: The monitor automatically stores blood pressure and pulse rate into the memory. • When 21 sets of readings are stored in memory, the oldest set will be deleted to store a new set.

  • Page 14: How To Use The Memory Function

    HOW TO USE THE MEMORY FUNCTION This monitor has a memory capable of storing 21 sets of readings each for A and B User Selector. Every time you complete the measurement, the monitor automatically stores blood pressure and pulse rate. •...

  • Page 15: Troubleshooting

    TROUBLESHOOTING Error Indicator If you continue to have difficulty obtaining a reading, call OMRON HEALTHCARE CUSTOMER SERVICE TOLL FREE 1-800-634-4350. Please tell the representative you have an OMRON Model HEM-773AC. Cause Cuff under-inflated. Movement during measurement. Cuff over-inflated (more than 280 mmHg).

  • Page 16: Caution

    Changes or modifications not expressly approved by Omron Healthcare, Inc. could void the user’s warranty. NOTE : POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for U.S.A. only) This product has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.

  • Page 17: Care And Maintenance

    CARE AND MAINTENANCE To keep your digital blood pressure monitor in the best condition and protect the unit from damage follow the directions listed below: Clean the monitor with a soft dry cloth. Do not use any abrasive or volatile cleaners. Do not attempt to clean the cuff. Never immerse the monitor or any components in water.

  • Page 18: Warranty

    Your HEM-773AC IntelliSense™ Automatic Blood Pressure Monitor is warranted to be free from manufacturing defects for a period of five years under normal use. The five year warranty excludes the arm cuff. The arm cuff is warranted for a one year period.

  • Page 19: Specifications

    Main Unit Dimensions: Cuff Size: Cuff Circumference: Components: NOTE: These specifications are subject to change without notice. SPECIFICATIONS HEM-773AC LCD Digital Display Pressure: 0 to 280 mmHg Pulse: 40 to 180/minute Pressure: ±3 mmHg Pulse: ±5% of reading Automatic by electric pump...

  • Page 20

    Manufactured by: OMRON Distributed by: OMRON HEALTHCARE, INC. 300 Lakeview Parkway Vernon Hills, Illinois 60061 www.omronhealthcare.com Copyright © 2003 OMRON HEALTHCARE, INC. 773ACINST Rev A...
