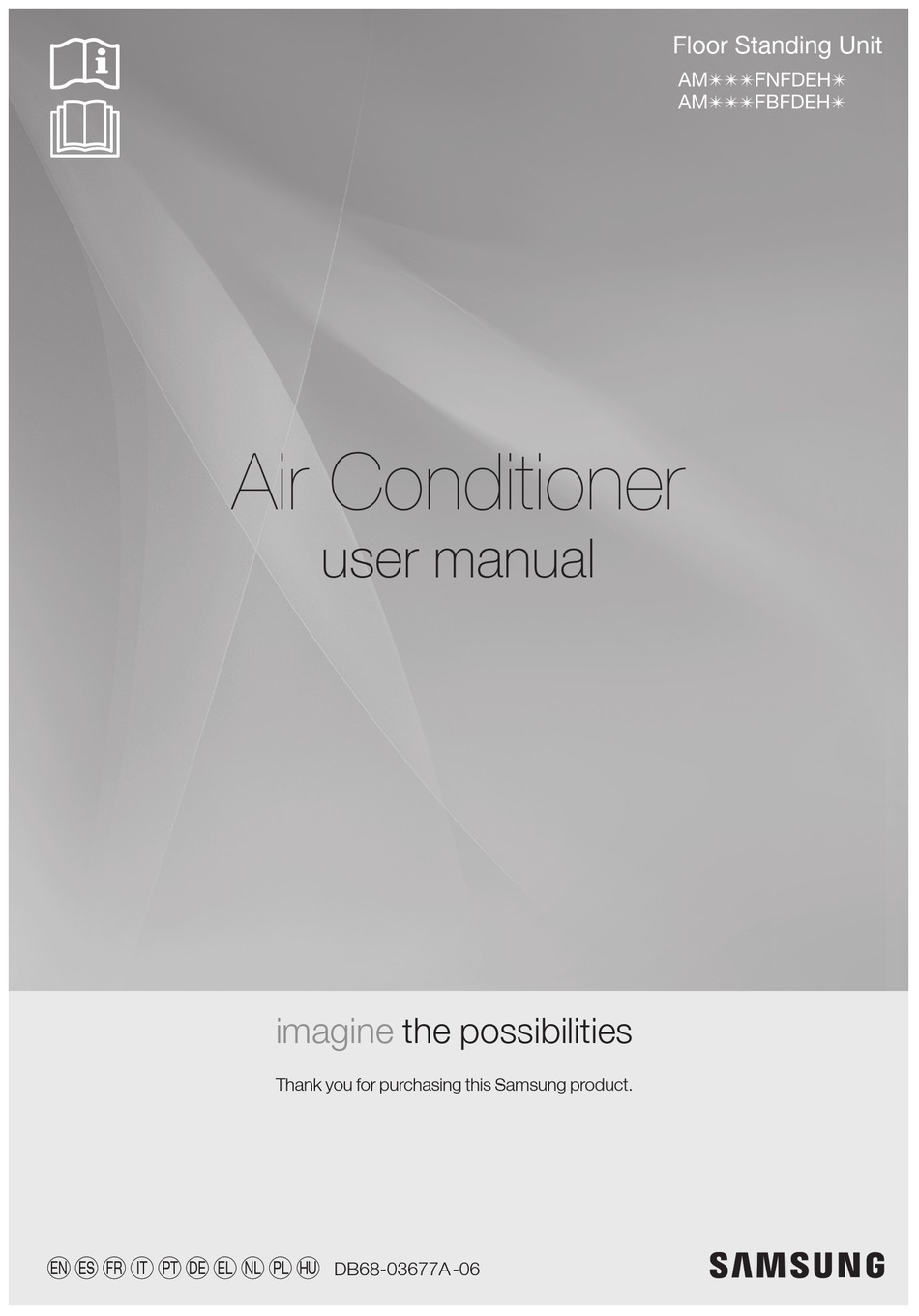

- Page 1 Floor Standing Unit AMFNFDEH AMFBFDEH Air Conditioner user manual imagine the possibilities Thank you for purchasing this Samsung product. DB68-03677A -06...
- Page 2 features of your new air conditioner • Cool Summer Offer On those hot sweltering summer days and long restless nights, there is no better escape from the heat than the cool comforts of home. Your new air conditioner brings an end to exhausting hot summer days and lets you rest.
- Page 3 If you have any questions, call your nearest contact center or find help and information online at www.samsung.com. Important safety symbols and precautions: Hazards or unsafe practices that may result in severe personal injury or death.
- Page 4 safety information SEVERE WARNING SIGNS WARNING Do not place the air conditioner near hazardous substances or equipment that releases free flames to avoid fire, explosions or injuries. • Potential risk of fire hazard or explosion. Do not install the outdoor unit at an unstable place or elevated surface where there is potential risk of falling.
- Page 5 Do not run the air conditioner for an extended period of time in a room with the door closed or with babies, elderly or disabled people. • Open the door or windows to ventilate your room at least once an hour to prevent oxygen shortage. The air conditioner is composed of moving parts.
- Page 6 safety information SEVERE WARNING SIGNS (CONT’D) WARNING Verify that the voltage and frequency of the power supply comply with the specifications and that the installed power is sufficient to ensure the operation of any other domestic appliance connected to the same electric lines. Use a rated circuit breaker only.
- Page 7 CAUTION SIGNS CAUTION Do not block or place items in front of the air conditioner. Do not step, hang onto, or place heavy items on the air conditioner. • Potential risk of personal injury. If failure or damage occurs on the conditions of improper use not followed by the installation manual, there will be an extra labor charge for installing and construction.
- Page 8 safety information CAUTION SIGNS (CONT’D) CAUTION Install the indoor unit away from lighting apparatus using the ballast. • If you use the wireless remote control, reception error may occur due to the ballast of the lighting apparatus. Install the outdoor unit where operating noise and vibration will not disturb your neighbor and in a well-ventilated area with no obstacle.
- Page 9 Check for damages on the outdoor unit installation pad at least once a year. • Potential risk of personal injury or property loss. When using a wireless remote control, the distance should not be more than 7 meters from the air conditioner. If the remote control is not used for a long period of time, remove the batteries to prevent leakage of electrolyte.
- Page 10 safety information CAUTION SIGNS (CONT’D) CAUTION Our units must be installed in compliance with the spaces indicated in the installation manual to ensure either accessibility from both sides or ability to perform routine maintenance and repairs. The units’ components must be accessible and that can be disassembled in conditions of complete safety either for people or things.
-
Page 11: Table Of Contents
contents VIEWING YOUR AIR CONDITIONER Floor standing unit USING YOUR AIR CONDITIONER Tips on using your air conditioner CLEANING AND MAINTAINING Cleaning the filter Air filter THE AIR CONDITIONER Maintaining your air conditioner Periodical checks Internal protections via the unit control system AppENDIx Troubleshooting... -
Page 12: Floor Standing Unit
viewing your air conditioner Congratulations on the purchase of the air conditioner. We hope you enjoy the features of your air conditioner and stay cool or warm with optimal efficiency. Please read the user manual to get started and to make the best use of the air conditioner. FLOOR STANDING UNIT Air Outlet Filter... -
Page 13: Tips On Using Your Air Conditioner
using your air conditioner TIpS ON USING YOUR AIR CONDITIONER Here are some tips that you would follow when using your air conditioner. TOPIC RECOMMENDATION • If current outside temperatures are much higher than the selected indoor Cooling temperature, it may take time to bring the inner temperature to the desired coolness. -
Page 14: Cleaning The Filter
cleaning and maintaining the air conditioner CLEANING THE FILTER When cleaning the filter, make sure to unplug the power from the unit. No special tools are needed to clean it. Air filter Washable air filter captures large particles from the air. The filter is cleaned with a vacuum or by hand washing. - Page 15 4. Clean the Air filter with a vacuum cleaner or soft brush. When the dust is too heavy, rinse the Air filter with warm water mixed with neutral detergent. However, if you rub the air filter during washing, air filter may get damaged. 5.
-
Page 16: Maintaining Your Air Conditioner
cleaning and maintaining the air conditioner MAINTAINING YOUR AIR CONDITIONER If the air conditioner will not be used for an extended period of time, dry the air conditioner to maintain it in best condition. 1. Dry the air conditioner thoroughly by operating in Fan mode for 3 to 4 hours and disconnect the power plug. -
Page 17: Internal Protections Via The Unit Control System
Internal protections via the unit control system This internal protection operates if an internal fault occurs in the air conditioner. Type Description The internal fan will be off to against cold air when the heat pump is Against cold air heating. -
Page 18: Troubleshooting
appendix TROUBLESHOOTING Refer to the following chart if the air conditioner operates abnormally. This may save time and unnecessary expenses. PROBLEM SOLUTION The air conditioner does not • Because of the protective mechanism, the appliance does not start operating operate immediately after it immediately to keep the unit from overloading. -
Page 19: Operation Ranges
OpERATION RANGES The table below indicates the temperature and humidity ranges the air conditioner can be operated within. Refer to the table for efficient use. OPERATIONAL TEMPERATURE MODE INDOOR HUMIDITY IF OUT OF CONDITIONS INDOOR OUTDOOR Condensation may occur on the indoor unit with risk to have 18˚C to 32˚C -5˚C to 48˚C 80% or less... -
Page 20: Model Specification (Weight And Dimension)
appendix MODEL SpECIFICATION (WEIGHT AND DIMENSION) Net dimension (W × D × H) Type Model Net weight 945 × 220 × 600 mm AM036FBFDEH/EU 23.0 kg 1225 × 220 × 600 mm Indoor unit AM056FBFDEH/EU 28.5 kg 1225 × 220 × 600 mm AM071FBFDEH/EU 28.5 kg 945 ×... -
Page 21: Indoor Unit Installation
Indoor unit installation Installation Part Select a location with no obstacles in surrounding area while allowing easy pipe and electrical installation, and also consider a place where it may not fall or get shaken by vibration or any other external force. Drill a hole for the drain on the bottom or rear side of the indoor unit with a diameter between 60~65mm. -
Page 22: Connecting The Refrigerant Pipe
Connecting the Refrigerant Pipe Performing Leak Test & Insulation Leak test There are two refrigerant pipes of differing diameters: A smaller one for the liquid refrigerant. LEAK TEST WITH NITROGEN (before opening valves) A larger one for the gas refrigerant. ... - Page 23 Select the insulation of the refrigerant pipe. Insulate the gas side and liquid side pipe referring to the • Install the insulation not to get wider and use the thickness according to the pipe size. adhesives on the connection part of it to prevent moisture from entering.
-
Page 24: Wiring Work
Water leakage test Wiring Work Pour water to the hole for the drain test or drain pan of the Power and communication cable connection indoor unit as shown in the figure. (About 1ℓ) AMFNFDEH Series Make sure that draining is done properly by checking end of the drain pipe. - Page 25 Connecting power for optional product Specification of electronic wire When installing optional product, make sure to follow below current capacity. Power Power Earth Communication MCCB supply cable cable cable ※ Optional product is not supplied by manufacturer. ELCB Max : 242V XA, 30mmA 2.5mm 2.5mm...
-
Page 26: Setting An Indoor Unit Address And Installation Option
Setting an indoor unit address and installation option AMFNFDEH Series Set the indoor unit address and installation option with remote controller option. Set the each option separately since you cannot set the ADDRESS setting and indoor unit installation setting option at the same time. - Page 27 Option setting Status 1. Setting SEG2, SEG3 option Press Low Fan button(∨) to enter SEG2 value. Press High Fan button(∧) to enter SEG3 value. Each time you press the button, … will be selected in rotation. SEG2 SEG3 2.
- Page 28 Setting an indoor unit address and installation option(Continued) Option setting Status 12. Setting Cool mode Press Mode button to be change to Cool mode in the OFF status. 13. Setting SEG16, SEG17 option Press Low Fan button(∨) to enter SEG16 value. Press High Fan button(∧) to enter SEG17 value.
- Page 29 Setting an indoor unit address (MAIN/RMC) Check whether power is supplied or not. - When the indoor unit is not plugged in, there should be additional power supply in the indoor unit. Indoor Unit 1(L) The panel(display) should be connected to an indoor unit to receive option. 2(N) Before installing the indoor unit, assign an address to the indoor unit according to the air conditioning system plan.
- Page 30 Setting an indoor unit address and installation option(Continued) Setting an indoor unit installation option (suitable for the condition of each installation location) Check whether power is supplied or not. - When the indoor unit is not plugged in, there should be additional power supply in the indoor unit.
- Page 31 02 series installation option(Detailed) Option No. : 02XXXX-1XXXXX-2XXXXX-3XXXXX Option SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 Use of external room temperature sensor / Explanation PAGE MODE Use of robot cleaning Minimizing fan operation when thermostat Use of central control FAN RPM compensation is off Remote Controller...
- Page 32 Setting an indoor unit address and installation option(Continued) Option SEG19 SEG20 SEG21 SEG22 SEG23 SEG24 EEV Step of stopped Individual control of a Heating setting compensation / Removing Explanation PAGE unit during oil return / Motion detect sensor remote controller condensated water in heating mode defrost mode Remote...
- Page 33 This function can be applied to 4 Way Cassette and Mini 4 Way Cassette only. If the air conditioner operates the heating mode (*5) immediately after finishing the cooling mode, the condensated water in the drain pan becomes water vapor by the heat of the indoor unit heat exchanger.
- Page 34 Setting an indoor unit address and installation option(Continued) 05 series installation option(Detailed) Option No. : 05XXXX-1XXXXX-2XXXXX-3XXXXX Option SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 (When setting SEG3) Use of Auto Change (When setting SEG3) (When setting SEG3) Standard for mode Explanation PAGE MODE...
- Page 35 Option SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 Control variables when using hot water / Explanation external heater Remote Controller Display Details Indication Set temp. for Delay time for heater On/Off heater On At the same time No delay as thermo on At the same time 10 minutes as thermo on...
-
Page 36: Changing A Particular Option
Setting an indoor unit address and installation option(Continued) SEG 3, 4, 5, 6, 8, 9 additional information When the SEG 3 is set as "1" and follow Auto Change Over for HR only operation, it will operate as follows. Standard temp. for Temp. - Page 37 AMFBFDEH Series Setting the function switch Before installing the indoor unit, assign an address to the indoor unit according to the air conditioning system plan. AMFBFDEH Series 2. The address of the indoor unit is assigned by adjusting Switch No.
- Page 38 VIETNAM 1800 588 889 www.samsung.com/vn/support SAMSUNG ELECTRONICS CO., LTD. 107, Hanamsandan 6beon-ro, Gwangsan-gu, Gwangju-si, Korea 62218 Samsung Electronics (UK) Ltd, Euro QA Lab. Blackbushe Business Park. Saxony Way, Yateley, Hampshire. GU46 6GG United Kingdom This product is RoHS compliant...
