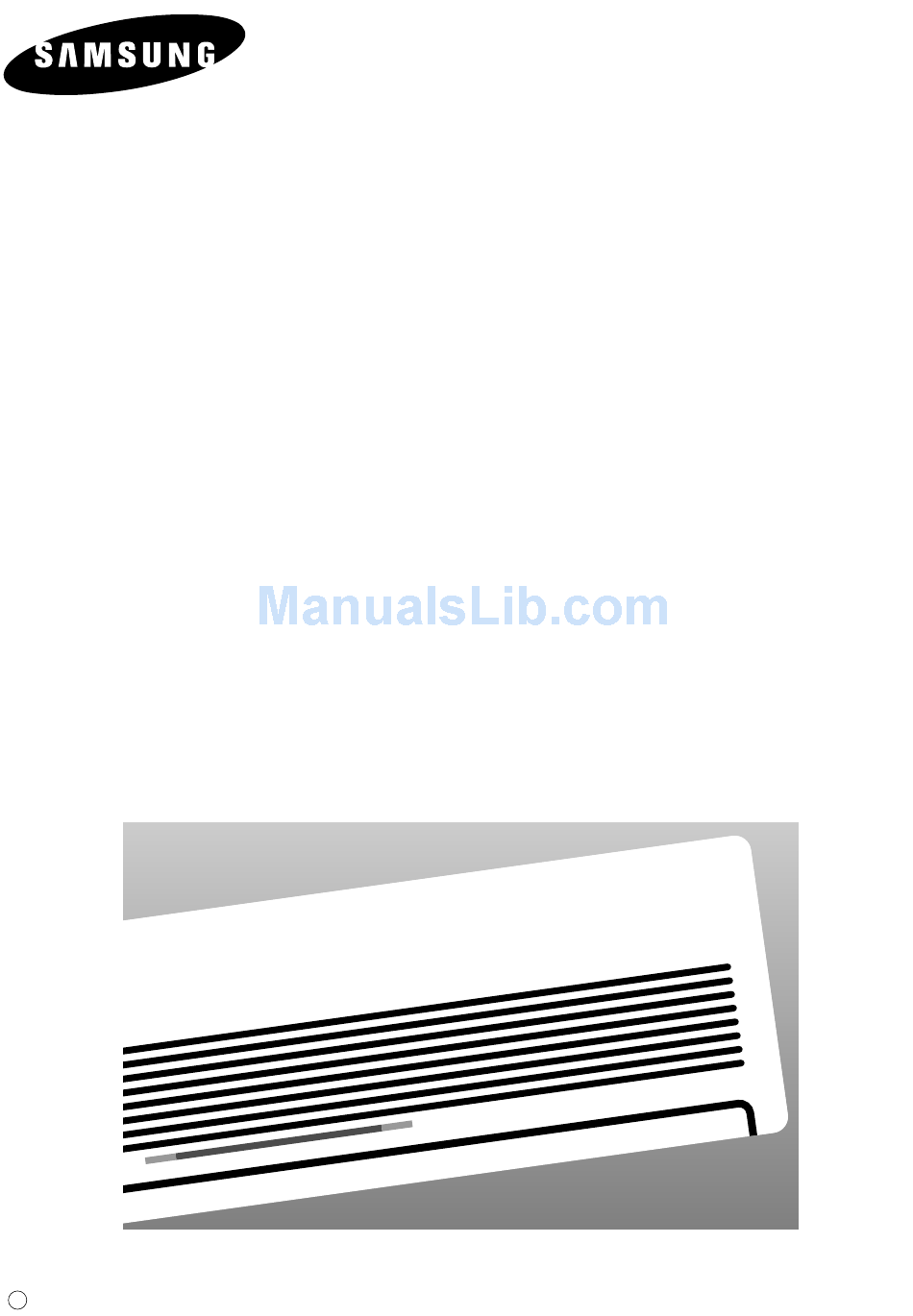

- Page 1 FREE JOINT MULTI ROOM AIR CONDITIONER DB98-09657A(1) OWNER’S INSTRUCTIONS Indoor Unit AMF09C2E AMF12C2E AMF18C2E (Cool) Outdoor Unit UMF26C2E3 UMF30C2E4...
-
Page 2: Safety Precautions
Safety Precautions The following safety precautions must be taken when using your air conditioner. Make sure that the indoor unit is correctly ventilated at all times; do NOT place clothing or other materials over it. NEVER spill liquid of any kind into the indoor unit. Should this happen, switch off the breaker used for your air conditioner and contact your installation specialist. -
Page 3: Table Of Contents
Contents REPARING YOUR AIR CONDITIONER Safety Precautions ........2 View of the Unit . -
Page 4: View Of The Unit
View of the Unit Indoor Unit Air filter (under the grille) Standard Standard indicator Nature indicator Air Inlet Air flow blades (outlet) Power Nature Saving Silence Power indicator For details on the 5 Way, refer to page 9. Inverter Power Monitor indicator : Following the condition of it's operation, Power Monitor indicator would be allowed to increase or decrease. -
Page 5: Outdoor Unit
Outdoor Unit Air Inlet(Rear) SH30ZC1(C2)X Air Outlet Connection Valve... -
Page 6: Remote Control-Buttons And Display
Remote Control - Buttons and Display Remote control transmission indicator Operating mode AUTO, DRY, Temperature setting Turbo mode Sleep mode Fan speed Air flow direction On Timer setting Off Timer setting Battery discharge indicator 5 Way selection button COOL, FAN) Mode selection button (AUTO, COOL, DRY, FAN) Temperature adjustment... -
Page 7: Getting Started
etting Started You have just purchased a split type air conditioner and it has been installed by your installation specialist. Your Owner’s Instructions contains valuable information on using your air conditioner. Please take the time to read it as it will help you take full advantage of the unit’s features. -
Page 8: Inserting The Remote Control Batteries
Inserting the Remote Control Batteries Installing the Remote Controller Holder You must insert or replace the remote control batteries when : You purchase the air conditioner The remote control does not work correctly Use two AAA, LR03 1.5V batteries. Do not use old batteries or different kinds of batteries together. Batteries may be completely discharged after 12 months, even if they have not actually been used. -
Page 9: Selecting With Remote Control
5 Way Function You can select the 5 Way function with operating mode of the air conditioner for more comfortable circumstances. You can use the 5 Way function with the indoor unit as well as the remote control. Thus, you can use this function even though you have lost your remote control. -
Page 10: Selecting The Automatic Operating Mode
Selecting the Automatic Operating Mode You can start the air conditioner in Automatic mode from your remote control. In the Automatic mode, the standard temperature and the optimum fan speed is selected automatically. You can adjust the standard temperature but not the fan speed. If necessary, press the (On/Off) button. -
Page 11: Cooling Your Room
Cooling Your Room You must select the Cool mode if you wish to adjust the: Cooling temperature Fan speed when cooling If necessary, press the (On/Off) button. Result: The 5 Way indicator on the indoor unit lights up. The air conditioner starts up in the mode selected when the unit was last used. -
Page 12: Changing The Room Temperature Quickly
Changing the Room Temperature Quickly The Turbo cooling function is used to cool your room as quickly as possible. You have just come home and find that the room is very hot. You wish to cool it down as quickly as possible. The Turbo function operates for 30 minutes with the maximum settings before returning automatically to the mode and temperature previously selected. -
Page 13: Removing Excess Humidity
Removing Excess Humidity If the atmosphere in your room is very humid or damp, you can remove excess humidity without lowering the room temperature too much. If necessary, press the (On/Off) button. Result: The 5 Way indicator on the indoor unit lights up. The air conditioner starts up in the mode selected when the unit was last used. -
Page 14: Airing Your Room
Airing Your Room If the atmosphere in your room is stale, you can air the room using the Fan feature. If necessary, press the (On/Off) button. Result: The 5 Way indicator on the indoor unit lights up. The air conditioner starts up in the mode selected when the unit was last used. -
Page 15: Adjusting The Air Flow Direction Vertically
Adjusting the Air Flow Direction Vertically Depending on the position of the indoor unit on the wall of your room, you can adjust the position of the outer air flow blade on the bottom of the unit, thus increasing the efficiency of the air conditioner. Press the SWING button one or more times as required. -
Page 16: Setting The On Timer
Setting the On Timer The On Timer enables you to switch on the air conditioner automatically after a given period of time. You can set the period of time from 30 minutes to 24 hours. To set the operating time, press the ON TIMER button one or more times until the required time is displayed. -
Page 17: Setting The Off Timer
Setting the Off Timer The Off Timer enables you to switch off the air conditioner automatically after a given period of time. You can set the period of time from 30 minutes to 24 hours. To set the operating time, press the OFF TIMER button one or more times until the required time is displayed. -
Page 18: Setting The Sleep Timer
Setting the Sleep Timer When you are cooling your room, the Sleep Timer can be used to switch the air conditioner off automatically after a period of six hours. If you wish to switch the unit off at a specific time, refer to page 17. -
Page 19: Operating Recommendations
Operating Recommendations Here is a recommendation that you should follow when using your air conditioner. Topic Recommendation Power failure If a power failure occurs when the air conditioner is operating, the unit is switched off. When the power returns, the air conditioner starts up again automatically. -
Page 20: Temperature And Humidity Ranges
Temperature and Humidity Ranges The following table indicates the temperature and humidity ranges within which the air conditioner can be used. If the air conditioner is used at... High temperatures Low temperatures High humidity levels Mode Indoor Temperature Cooling 18°C to 32°C approx. Drying 18°C to 32°C approx. -
Page 21: Solving Common Problems
Solving Common Problems Before contacting the after-sales service, perform the following simple checks. They may save you the time and expense of an unnecessary call. Problem The air conditioner does not operate at all The air conditioner does not operate with the remote control No beep is heard when you press (On/Off) on the remote control... -
Page 22: Installing A Filter (Option)
Installing a Filter (Option) Deodorizing filter Bio-Pure Filter The air conditioner can be fitted with a deodorizing and Bio-Pure filter to remove minute dust particles or odours. The service life of the filter is approximately three months depending on the time during which the air conditioner is used. -
Page 23: Technical Specifications
Technical Specifications Model Power Supply AMF09C2E AMF12C2E 220-240V~, 50Hz AMF18C2E... - Page 24 THIS AIR CONDITIONER IS MANUFACTURED BY: ELECTRONICS Printed in Korea...
