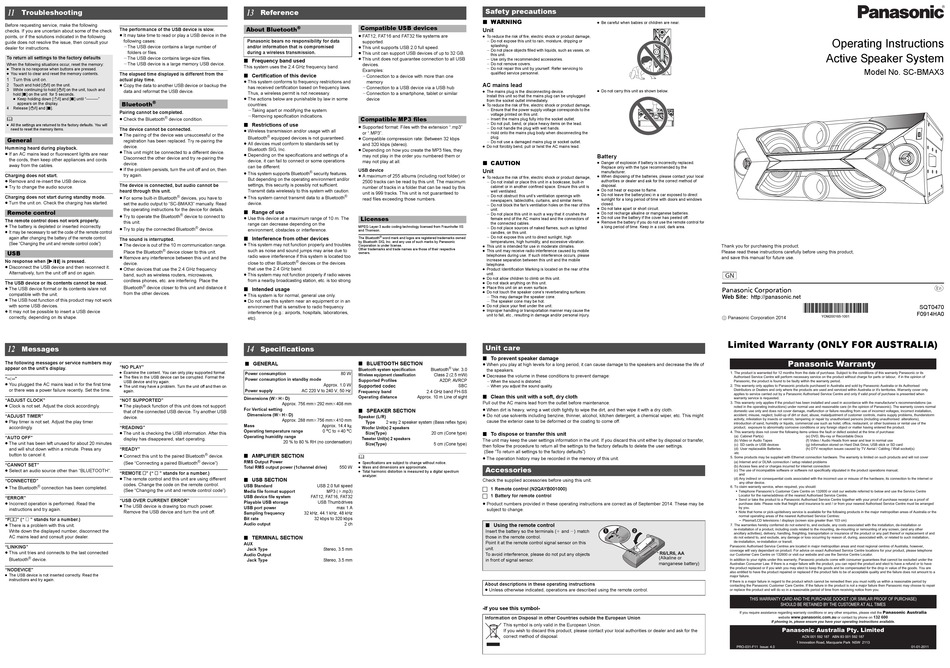

Panasonic SC-BMAX3 Operating Instructions

11 Troubleshooting
Before requesting service, make the following
The performance of the USB device is slow.
checks. If you are uncertain about some of the check
≥ It may take time to read or play a USB device in the
points, or if the solutions indicated in the following
following cases:
guide does not resolve the issue, then consult your
jThe USB device contains a large number of
dealer for instructions.
folders or files.
To return all settings to the factory defaults jThe USB device contains large-size files.
jThe USB device is a large memory USB device.
When the following situations occur, reset the memory:
≥ There is no response when buttons are pressed.
≥ You want to clear and reset the memory contents. The elapsed time displayed is different from the
1 Turn this unit on. actual play time.
2 Touch and hold [Í/I] on the unit. ≥ Copy the data to another USB device or backup the
3 While continuing to hold [Í/I] on the unit, touch and
data and reformat the USB device.
hold [∫] on the unit for 5 seconds.
≥ Keep holding down [Í/I] and [∫] until "---------"
®
Bluetooth
appears on the display.
4 Release [Í/I] and [∫].
Pairing cannot be completed.
®
≥ Check the Bluetooth device condition.
≥ All the settings are returned to the factory defaults. You will
need to reset the memory items. The device cannot be connected.
≥ The pairing of the device was unsuccessful or the
General
registration has been replaced. Try re-pairing the
device.
Humming heard during playback.
≥ This unit might be connected to a different device.
≥ If an AC mains lead or fluorescent lights are near
Disconnect the other device and try re-pairing the
the cords, then keep other appliances and cords
device.
away from the cables.
≥ If the problem persists, turn the unit off and on, then
Charging does not start. try again.
≥ Remove and re-insert the USB device.
The device is connected, but audio cannot be
≥ Try to change the audio source.
heard through this unit.
Charging does not start during standby mode. ®
≥ For some built-in Bluetooth devices, you have to
≥ Turn the unit on. Check the charging has started.
set the audio output to "SC-BMAX3" manually. Read
the operating instructions for the device for details.
Remote control
®
≥ Try to operate the Bluetooth
The remote control does not work properly.
this unit.
≥ The battery is depleted or inserted incorrectly.
≥ Try to play the connected Bluetooth
≥ It may be necessary to set the code of the remote control
again after changing the battery of the remote control.
The sound is interrupted.
(See "Changing the unit and remote control code")
≥ The device is out of the 10 m communication range.
®
USB Place the Bluetooth device closer to this unit.
≥ Remove any interference between this unit and the
No response when [1/;] is pressed.
device.
≥ Disconnect the USB device and then reconnect it.
≥ Other devices that use the 2.4 GHz frequency
Alternatively, turn the unit off and on again.
band, such as wireless routers, microwaves,
cordless phones, etc. are interfering. Place the
The USB device or its contents cannot be read.
®
Bluetooth device closer to this unit and distance it
≥ The USB device format or its contents is/are not
from the other devices.
compatible with the unit.
≥ The USB host function of this product may not work
with some USB devices.
≥ It may not be possible to insert a USB device
correctly, depending on its shape.
12 Messages
The following messages or service numbers may
"NO PLAY"
appear on the unit's display.
≥ Examine the content. You can only play supported format.
≥ The files in the USB device can be corrupted. Format the
"--:--"
USB device and try again.
≥ You plugged the AC mains lead in for the first time
≥ The unit may have a problem. Turn the unit off and then on
or there was a power failure recently. Set the time.
again.
"ADJUST CLOCK" "NOT SUPPORTED"
≥ Clock is not set. Adjust the clock accordingly. ≥ The playback function of this unit does not support
that of the connected USB device. Try another USB
"ADJUST TIMER"
device.
≥ Play timer is not set. Adjust the play timer
accordingly. "READING"
≥ The unit is checking the USB information. After this
"AUTO OFF"
display has disappeared, start operating.
≥ The unit has been left unused for about 20 minutes
and will shut down within a minute. Press any "READY"
button to cancel it.
≥ Connect this unit to the paired Bluetooth
(See "Connecting a paired Bluetooth
"CANNOT SET"
≥ Select an audio source other than "BLUETOOTH".
"REMOTE " (" " stands for a number.)
≥ The remote control and this unit are using different
"CONNECTED"
codes. Change the code on the remote control.
®
≥ The Bluetooth connection has been completed.
(See "Changing the unit and remote control code")
"ERROR"
"USB OVER CURRENT ERROR"
≥ Incorrect operation is performed. Read the
≥ The USB device is drawing too much power.
instructions and try again.
Remove the USB device and turn the unit off.
"F " (" " stands for a number.)
≥ There is a problem with this unit.
Write down the displayed number, disconnect the
AC mains lead and consult your dealer.
"LINKING"
≥ This unit tries and connects to the last connected
®
Bluetooth device.
"NODEVICE"
≥ The USB device is not inserted correctly. Read the
instructions and try again.
13 Reference
Compatible USB devices
®
About Bluetooth
≥ FAT12, FAT16 and FAT32 file systems are
Panasonic bears no responsibility for data
supported.
and/or information that is compromised
≥ This unit supports USB 2.0 full speed.
during a wireless transmission. ≥ This unit can support USB devices of up to 32 GB.
≥ This unit does not guarantee connection to all USB
∫ Frequency band used
devices.
This system uses the 2.4 GHz frequency band.
Examples:
∫ Certification of this device
jConnection to a device with more than one
≥ This system conforms to frequency restrictions and
has received certification based on frequency laws. jConnection to a USB device via a USB hub
Thus, a wireless permit is not necessary. jConnection to a smartphone, tablet or similar
≥ The actions below are punishable by law in some
countries:
jTaking apart or modifying the system.
jRemoving specification indications.
Compatible MP3 files
∫ Restrictions of use
≥ Supported format: Files with the extension ".mp3"
≥ Wireless transmission and/or usage with all
or ".MP3".
®
Bluetooth equipped devices is not guaranteed. ≥ Compatible compression rate: Between 32 kbps
≥ All devices must conform to standards set by
and 320 kbps (stereo).
Bluetooth SIG, Inc.
≥ Depending on how you create the MP3 files, they
≥ Depending on the specifications and settings of a
may not play in the order you numbered them or
device, it can fail to connect or some operations may not play at all.
can be different.
USB device
®
≥ This system supports Bluetooth security features.
≥ A maximum of 255 albums (including root folder) or
But depending on the operating environment and/or
2500 tracks can be read by this unit. The maximum
settings, this security is possibly not sufficient.
number of tracks in a folder that can be read by this
Transmit data wirelessly to this system with caution.
unit is 999 tracks. This unit is not guaranteed to
®
≥ This system cannot transmit data to a Bluetooth
read files exceeding those numbers.
device.
∫ Range of use
device to connect to
Licenses
≥ Use this device at a maximum range of 10 m. The
range can decrease depending on the
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS
®
device.
environment, obstacles or interference.
and Thomson.
∫ Interference from other devices
The Bluetooth
by Bluetooth SIG, Inc. and any use of such marks by Panasonic
≥ This system may not function properly and troubles
Corporation is under license.
Other trademarks and trade names are those of their respective
such as noise and sound jumps may arise due to
owners.
radio wave interference if this system is located too
®
close to other Bluetooth devices or the devices
that use the 2.4 GHz band.
≥ This system may not function properly if radio waves
from a nearby broadcasting station, etc. is too strong.
∫ Intended usage
≥ This system is for normal, general use only.
≥ Do not use this system near an equipment or in an
environment that is sensitive to radio frequency
interference (e.g.: airports, hospitals, laboratories,
etc).
14 Specifications
∫ GENERAL ∫ BLUETOOTH SECTION
Bluetooth system specification
Power consumption 80 W
Wireless equipment classification
Power consumption in standby mode
Supported Profiles
Approx. 1.0 W
Supported codec
Power supply AC 220 V to 240 V, 50 Hz Frequency band
Operating distance
Dimensions (WkHkD)
Approx. 756 mmk292 mmk408 mm
For Vertical setting
∫ SPEAKER SECTION
Dimensions (WkHkD)
Speaker (L/R)
Approx. 288 mmk756 mmk410 mm
Mass Approx. 14.4 kg
Woofer Unit(s) 2 speakers
o o
Operating temperature range 0 C to r40 C
Operating humidity range
Tweeter Unit(s) 2 speakers
20 % to 80 % RH (no condensation)
® ∫ AMPLIFIER SECTION
device.
® RMS Output Power
device") ≥ Specifications are subject to change without notice.
Total RMS output power (1channel drive) 550 W
≥ Mass and dimensions are approximate.
≥ Total harmonic distortion is measured by a digital spectrum
analyzer.
∫ USB SECTION
USB Standard USB 2.0 full speed
Media file format support MP3 (¢.mp3)
USB device file system FAT12, FAT16, FAT32
Playable USB storage USB Thumbdrives
USB port power max 1 A
Sampling frequency 32 kHz, 44.1 kHz, 48 kHz
Bit rate 32 kbps to 320 kbps
Audio output 2 ch
∫ TERMINAL SECTION
AUX
Jack Type Stereo, 3.5 mm
Audio Output
Jack Type Stereo, 3.5 mm
Safety precautions
∫ WARNING
Unit
≥ To reduce the risk of fire, electric shock or product damage,
j Do not expose this unit to rain, moisture, dripping or
splashing.
j Do not place objects filled with liquids, such as vases, on
this unit.
j Use only the recommended accessories.
j Do not remove covers.
j Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
memory
AC mains lead
≥ The mains plug is the disconnecting device.
Install this unit so that the mains plug can be unplugged
device
from the socket outlet immediately.
≥ To reduce the risk of fire, electric shock or product damage,
j Ensure that the power supply voltage corresponds to the
voltage printed on this unit.
j Insert the mains plug fully into the socket outlet.
j Do not pull, bend, or place heavy items on the lead.
j Do not handle the plug with wet hands.
j Hold onto the mains plug body when disconnecting the
plug.
j Do not use a damaged mains plug or socket outlet.
≥ Do not forcibly bend, pull or twist the AC mains lead.
∫ CAUTION
Unit
≥ To reduce the risk of fire, electric shock or product damage,
j Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this unit is
well ventilated.
j Do not obstruct this unit's ventilation openings with
newspapers, tablecloths, curtains, and similar items.
j Do not block the fan's ventilation holes on the rear of this
unit.
j Do not place this unit in such a way that it crushes the
female end of the AC mains lead and the connectors of
the connected cables.
j Do not place sources of naked flames, such as lighted
candles, on this unit.
j Do not expose this unit to direct sunlight, high
®
word mark and logos are registered trademarks owned
temperatures, high humidity, and excessive vibration.
≥ This unit is intended for use in moderate climates.
≥ This unit may receive radio interference caused by mobile
telephones during use. If such interference occurs, please
increase separation between this unit and the mobile
telephone.
≥ Product Identification Marking is located on the rear of the
unit.
≥ Do not allow children to climb on this unit.
≥ Do not stack anything on this unit.
≥ Place this unit on an even surface.
≥ Do not touch the speaker cone's reverberating surfaces:
j This may damage the speaker cone.
j The speaker cone may be hot.
≥ Do not place your feet under the unit.
≥ Improper handling or transportation manner may cause the
unit to fall, etc., resulting in damage and/or personal injury.
Unit care
∫ To prevent speaker damage
≥ When you play at high levels for a long period, it can cause damage to the speakers and decrease the life of
®
Bluetooth Ver. 3.0
the speakers.
Class 2 (2.5 mW)
≥ Decrease the volume in these conditions to prevent damage:
A2DP, AVRCP
j When the sound is distorted.
SBC j When you adjust the sound quality.
2.4 GHz band FH-SS
∫ Clean this unit with a soft, dry cloth
Approx. 10 m Line of sight
Pull out the AC mains lead from the outlet before maintenance.
≥ When dirt is heavy, wring a wet cloth tightly to wipe the dirt, and then wipe it with a dry cloth.
≥ Do not use solvents including benzine, thinner, alcohol, kitchen detergent, a chemical wiper, etc. This might
cause the exterior case to be deformed or the coating to come off.
Type 2 way 2 speaker system (Bass reflex type)
Size(Type) 20 cm (Cone type)
∫ To dispose or transfer this unit
The unit may keep the user settings information in the unit. If you discard this unit either by disposal or transfer,
Size(Type) 5 cm (Cone type)
then follow the procedure to return all the settings to the factory defaults to delete the user settings.
(See "To return all settings to the factory defaults")
≥ The operation history may be recorded in the memory of this unit.
Accessories
Check the supplied accessories before using this unit.
∏ 1 Remote control (N2QAYB001000)
∏ 1 Battery for remote control
≥ Product numbers provided in these operating instructions are correct as of September 2014. These may be
subject to change.
∫ Using the remote control
Insert the battery so the terminals (i and j) match
those in the remote control.
Point it at the remote control signal sensor on this
unit.
To avoid interference, please do not put any objects
in front of signal sensor.
About descriptions in these operating instructions
≥ Unless otherwise indicated, operations are described using the remote control.
-If you see this symbol-
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the
correct method of disposal.
≥ Be careful when babies or children are near.
≥ Do not carry this unit as shown below.
Battery
≥ Danger of explosion if battery is incorrectly replaced.
Replace only with the type recommended by the
manufacturer.
≥ When disposing of the batteries, please contact your local
authorities or dealer and ask for the correct method of
disposal.
≥ Do not heat or expose to flame.
≥ Do not leave the battery(ies) in a car exposed to direct
sunlight for a long period of time with doors and windows
closed.
≥ Do not take apart or short circuit.
≥ Do not recharge alkaline or manganese batteries.
≥ Do not use the battery if the cover has peeled off.
≥ Remove the battery if you do not use the remote control for
a long period of time. Keep in a cool, dark area.
Thank you for purchasing this product.
Please read these instructions carefully before using this product,
and save this manual for future use.
GN
Panasonic Corporation
Web Site: http://panasonic.net
C Panasonic Corporation 2014
Limited Warranty (ONLY FOR AUSTRALIA)
1. The product is warranted for 12 months from the date of purchase. Subject to the conditions of this warranty Panasonic or its
Authorised Service Centre will perform necessary service on the product without charge for parts or labour, if in the opinion of
Panasonic, the product is found to be faulty within the warranty period.
2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or its Authorised
Distributors or Dealers and only where the products are used and serviced within Australia or it's territories. Warranty cover only
applies to service carried out by a Panasonic Authorised Service Centre and only if valid proof of purchase is presented when
warranty service is requested.
3. This warranty only applies if the product has been installed and used in accordance with the manufacturer's recommendations (as
noted in the operating instructions) under normal use and reasonable care (in the opinion of Panasonic). The warranty covers normal
domestic use only and does not cover damage, malfunction or failure resulting from use of incorrect voltages, incorrect installation,
accident, misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply problems, thunderstorm
activity, infestation by insects or vermin, tampering or repair by unauthorised persons (including unauthorised alterations),
introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the
product, exposure to abnormally corrosive conditions or any foreign object or matter having entered the product.
4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:
(a) Cabinet Part(s)
(b) Video or Audio Tapes
(c) SD cards or USB devices
(d) User replaceable Batteries
etc
5. Some products may be supplied with Ethernet connection hardware. The warranty is limited on such products and will not cover
(a) Internet and or DLNA connection / setup related problems
(b) Access fees and or charges incurred for internet connection
(c) The use of incompatible software or software not specifically stipulated in the product operations manual;
and
(d) Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its connection to the internet or
any other device.
6. To claim warranty service, when required, you should:
Telephone Panasonic's Customer Care Centre on 132600 or visit our website referred to below and use the Service Centre
Locator for the name/address of the nearest Authorised Service Centre.
Send or take the product to a Panasonic Authorised Service Centre together with your proof of purchase receipt as a proof of
purchase date. Please note that freight and insurance to and / or from your nearest Authorised Service Centre must be arranged
by you.
Note that home or pick-up/delivery service is available for the following products in the major metropolitan areas of Australia or the
normal operating areas of the nearest Authorised Service Centres:
Plasma/LCD televisions / displays (screen size greater than 103 cm)
7. The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-installation or
re-installation of a product, including costs related to the mounting, de-mounting or remounting of any screen, (and any other
ancillary activities), delivery, handling, freighting, transportation or insurance of the product or any part thereof or replacement of and
do not extend to, and exclude, any damage or loss occurring by reason of, during, associated with, or related to such installation,
de-installation, re-installation or transit.
Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia, however,
coverage will vary dependant on product. For advice on exact Authorised Service Centre locations for your product, please telephone
our Customer Care Centre on 132600 or visit our website and use the Service Centre Locator.
(Alkaline or
In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded under the
manganese battery)
Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have a refund or to have
the product replaced or if you wish you may elect to keep the goods and be compensated for the drop in value of the goods. You are
also entitled to have the product repaired or replaced if the product fails to be of acceptable quality and the failure does not amount to a
major failure.
If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period by
contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic may choose to repair
or replace the product and will do so in a reasonable period of time from receiving notice from you.
THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)
If you require assistance regarding warranty conditions or any other enquiries, please visit the
If phoning in, please ensure you have your operating instructions available.
PRO-031-F11 Issue: 4.0

Operating Instructions

Active Speaker System
Model No. SC-BMAX3
p
SQT0470
F0914HA0
YOM200165-1001
Panasonic Warranty
(e) DVD, Blu-ray or Recordable Discs
(f) Video / Audio Heads from wear and tear in normal use
(g) Information stored on Hard Disk Drive, USB stick or SD card
(h) DTV reception issues caused by TV Aerial / Cabling / Wall socket(s)
SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES
Panasonic Australia
www.panasonic.com.au 132 600
website or contact by phone on
Panasonic Australia Pty. Limited
ACN 001 592 187 ABN 83 001 592 187
1 Innovation Road, Macquarie Park NSW 2113
01-01-2011
