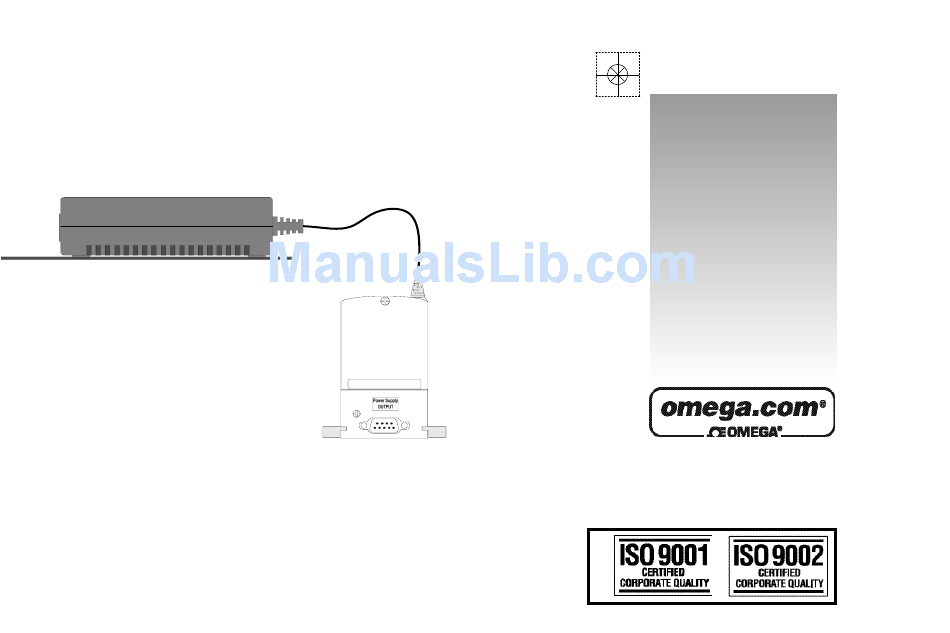

- Page 1 User’ s Gui d e Shop online at solartron omega.com e-mail: info@omega.com LDN-PS For latest product manuals: omegamanual.info...
- Page 2 The information contained in this document is believed to be correct, but OMEGA Engineering, Inc. accepts no liability for any errors it contains, and reserves the right to alter specifications without notice. WARNING: These products are not designed for use in, and should not be used for, human applications. LDN-PS OMEGAnet On-Line Service ®...
-
Page 3: Table Of Contents
5 Dimensions and Mechanical Installation ..10 5.1 Power Supply ......10 5.2 PSIM ....... .11 LDN-PS 6 Specification . -
Page 4: Introduction
Orbit Network. Note: Throughout this manual the Orbit System is referred to as requring a 5V power supply. For any applications, actual voltages or power supplies may be within the 4.75 to 5.25V range according to configuration. PSIM-AC and PSIM-DC has a nominal 5.1V output no load voltage. -
Page 5: Safety Information
This symbol indicates where applicable cautionary or other information is to be found. LDN-PS CAUTION: Power Source. The PSIM-AC unit should be connected to the mains supply via a suitable lead with a IEC320 socket. The user should fuse this connection with a suitable fuse. - Page 6 A protective ground connection by way of the grounding conductor in the power lead is essential for safe operation. LDN-PS CAUTION This equipment contains no user serviceable parts. This equipment must be returned to original supplier for all service and repair.
-
Page 7: General Information
Power Supply OUTPUT PSIM-5V To power Orbit Modules from a local 5V regulated Power Supply OUTPUT supply LDN-PS 5m flying lead PSIM-AC PSIM-DC IEC plug mains input Input: 90 - 230 VAC Output: 5 VDC to Orbit Network 5m flying lead... -
Page 8: Psim General Layout
• PSIM-DC and PSIM-5V input cables are supplied 5m long. This may be cut to length as required. Plug side 5V connection is interrupted Orbit Network LDN-PS Socket side 5V from external power supply introduced Power Supply OUTPUT Orbit Network... -
Page 9: Psim Used In A Small Network Configuration
3.0: General Information (continued) PSIM-AC PSIM-DC PSIM-5V PSIM used in a small network configuration LDN-PS M-3340/1206... -
Page 10: Psim Schematic And Pin-Out
The 5V power supply line from the network is isolated at the PSIM. All modules before the PSIM are powered from the network. Example: Orbit Network Card. All modules after the PSIM are powered from the external power supply connected via the PSIM. 0 V is common. 5 V from Orbit Network... - Page 11 Orbit Modules are designed to work from a supply voltage of 4.75 to 5.25 Vdc and care must be taken to ensure that all modules have the right working voltage applied. See application notes. LDN-PS Plug Pin-out 1 = No connection...
-
Page 12: Dimensions And Mechanical Installation
The mounting plate must not be removed. The mounting plate is isolated and does not need to be at earth potential. The power supply may be mounted in any orientation. The power supply must not be exposed to fluids or excessive dust. -
Page 13: 5.2 Psim
5.0: Dimensions and Mechanical Installation (continued) 5.2 PSIM LDN-PS T-CON is permanently attached, module does not separate. For more information on mounting, refer to the Orbit Measurement System Manual. Power Supply OUTPUT PSIM-AC PSIM-DC PSIM-5V Power Supply OUTPUT M-3340/1206... -
Page 14: Specification
Transient Response Ripple and Noise Efficiency Protection see note 2 Thermal Derating LDN-PS 85 to 264 Vac @ 47 Hz to 440 Hz. 0.8 A via IEC320 connector 2500 Vac input/output Input fuse and filter (not user replaceable) 2A T (slo-blo) 250 V rating 5.1 Vdc Nominal... -
Page 15: Psim-Dc
Ripple and Noise Efficiency Protection see note 2 Thermal Derating LDN-PS 10 to 30 Vdc. 1.1 A @ 12 Vdc; 0.5 A @ 24 Vdc (nominal). 5m flying lead (Red = positive, White = negative) >500 VDC input/output Input fuse and filter (not user replaceable) -
Page 16: Psim-5V
Under a fault condition, Orbit modules will not function correctly and a power on reset is required. See application notes for further information. Note 3: Supplied with 5m input cable as standard. This may be cut to length as required. LDN-PS 5.1 Vdc Nominal as supplied by user 5.25 Vdc MAX 1.8 A MAX... -
Page 17: Environmental
5% to 95% non-condensing Cooling Convection Protection Rating Power supply unit Protection Rating PSIM module Approvals Susceptibility EN 50082-1 Emission EN 50081-2 (note: ferrite block on cable must not be removed) Safety EN61010-1 LDN-PS IP40 IP53 PSIM-AC PSIM-DC PSIM-5V M-3340/1206... -
Page 18: Applications
Note: Throughout this manual the Orbit System is referred to as requring a 5V power supply. For any applications, actual voltages or power supplies may be within the 4.75 to 5.25V range according to configuration. PSIM-AC and PSIM-DC has a nominal 5.1V output no load voltage. -
Page 19: Voltage Drop Estimation
Note 1 Input cable length has no affect on this calculation. Note 2 1 + 2 + 3 + ... + N = N(N+1)/2. Note 3 The cable supplied with the Orbit Network Card. LDN-PS PSIM-5V Orbit Module with T-CON volt drop V = 0.04 x 1+2+3+...+N... -
Page 20: Application 1: Basic Small Network Connection
Modules connected using standard communication cables. Volt drop total in mV Then approximate voltage at end of network LDN-PS cable 1 + module (3 off) + cable 2 + module (3 off) (15.2 x 6) + 0.04(6+5+4+3+2+1) + (15.2 x 3) + 0.04(3+2+1) -
Page 21: Application 2: Large Network With Modules Close To Computer And At A Distance
Application 2: Large network with modules close to computer and at a distance. • Power supplied from PC and PSIM (located at a distance from PC). • Communications via standard communications cable and custom cable. LDN-PS PSIM-AC PSIM-DC PSIM-5V M-3340/1206... - Page 22 4.75 Vdc; the minimum working voltage. Calculation for V Then approximate voltage at end of network i.e. greater than 4.75 Vdc; the minimum working voltage. LDN-PS volt drop = cable + module (3 off) = (15.2 x 3) + 0.04(3+2+1)
-
Page 23: Application 3: Large Network Using Psim-5V And Rs232Im For Network Control
7.0: Applications (continued) PSIM-AC PSIM-DC PSIM-5V Application 3: Large Network using PSIM-5V and RS232IM for network control. LDN-PS M-3340/1206... - Page 24 4.75 Vdc the minimum working voltage. In this example the input supply to the PSIM-5V could be reduced to 5.1 V (the Orbit nominal value). LDN-PS = nominal supply voltage - calculated volt drop = 5.25 - 0.191 = 5.06 V...
-
Page 25: Application 4: Modules Located A Long Distance
Application 4: Modules located a long distance from computer. • Also for a computer that is not suitable for supplying power to Orbit Modules. • Power supplied from PSIM to modules. • Connection via long cable providing RS485, 0V reference and screening. LDN-PS M-3340/1206... -
Page 26: Application 5: Use With Rs232 Interface Module
7.0: Applications (continued) PSIM-AC PSIM-DC PSIM-5V Application 5: Use with RS232 Interface Module (RS232IM). • Communication is via a RS232IM. • Power to the RS232IM and Orbit Modules is via PSIM. LDN-PS M-3340/1206... - Page 27 WARRANTY / DISCLAIMER language, and, additionally, purchaser will indemnify OMEGA and hold OMEGA harmless from any liability or damage whatsoever arising out of the use of the Product(s) in such a manner. LDN-PS RETURN REQUESTS/INQUIRIES Direct all warranty and repair requests/inquiries to the OMEGA Customer Service Department.
