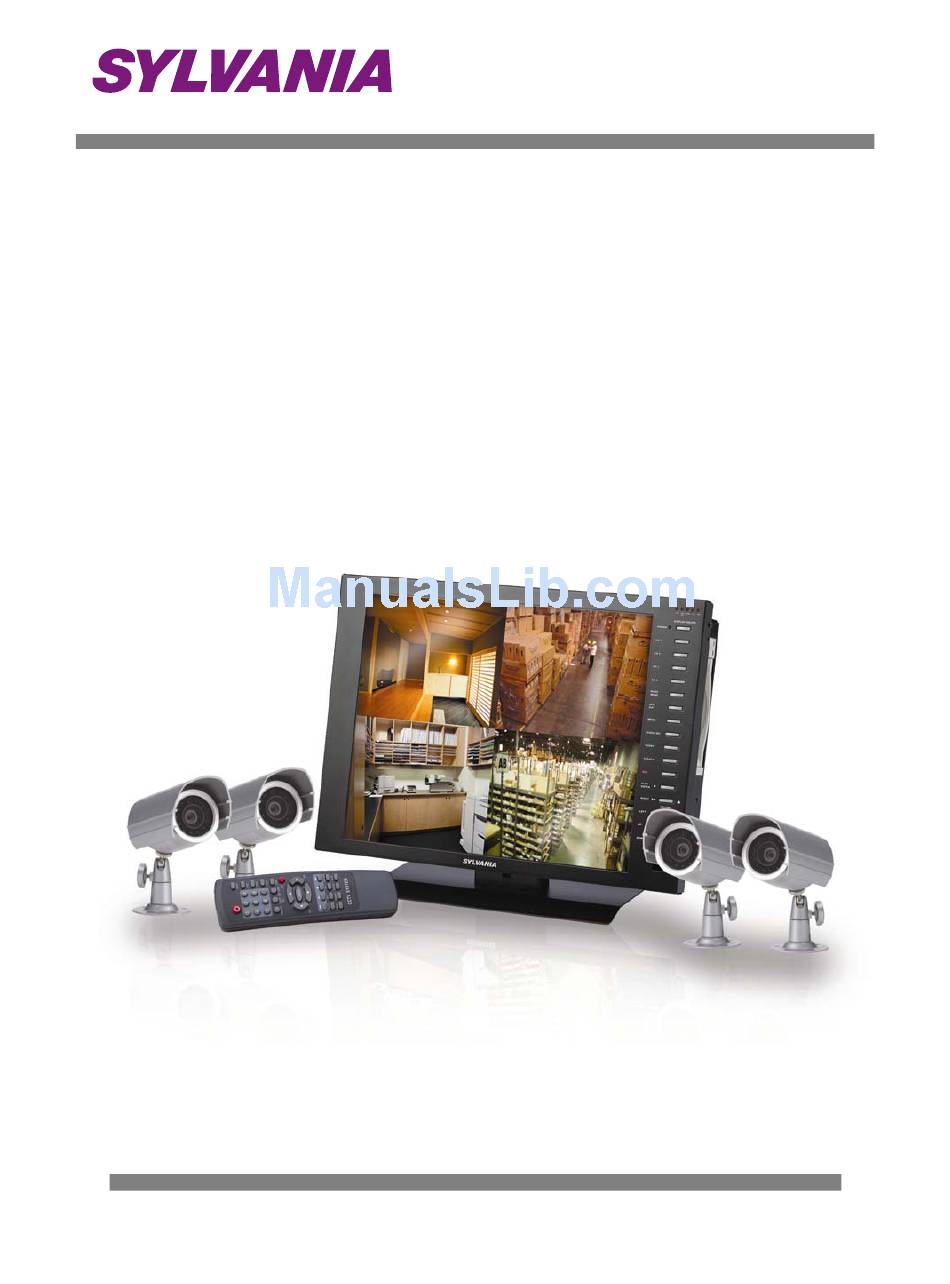

Model: SY17TD8144-A
17 Inch Flat Screen
TFT/4-Channel DVR
Instruction Manual
English Version1.0
Copyright © 2006 LOREX Technologies Inc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SY17TD8144-A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sylvania SY17TD8144-A

  • Page 1 Model: SY17TD8144-A 17 Inch Flat Screen TFT/4-Channel DVR Instruction Manual English Version1.0 Copyright © 2006 LOREX Technologies Inc...
  • Page 2 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER FOR SERVICE TO QUALIFIED SERVICE PERSONNEL. WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture The lightning flash with arrowhead symbol, within an equatorial triangle, is intended to alert the user to the presence of un-...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS General Precautions ......................4 Introduction......................... 6 Features ..........................6 System Contents........................6 Installation........................... 7 Getting Started ........................8 Front Panel Controls ......................9 Back Panel Connections ....................12 Pan / Tilt / Zoom Control and Connections ..............13 IR Remote Control Functions ...................
  • Page 4: General Precautions

    General Precautions 1. Read Instructions. All of the safety and operating instructions should be read and understood before the product is used. 2. Retain Instructions. The safety and operating instructions should be retained for future reference. 3. Heed Warnings. All warnings on the product and the instruction manual should be followed.
  • Page 5 15. Servicing. Do not attempt to service this product yourself as opening or removing covers may expose you to voltage or other hazards. Refer all servicing to qualified service personnel 16. Damage Requiring Service. Disconnect this product from the power supply and refer servicing to qualified service personnel under the following conditions: a.
  • Page 6: Introduction

    Introduction The SY17TD8144-A is a 17-inch, Flat Screen thin-film transistor (TFT) LCD color monitor with integrated 4-channel Digital Video Recorder. Capable of resolutions up to 1280 x 1024, this advanced monitor produces crisp, clear pictures and brilliant colors. The integrated DVR features M-JPEG compression and allows recording of up to 4 video sources with an overall frame rate of 30fps.
  • Page 7: Installation

    Installation 1. The monitor comes with both a desk mount stand and rack mount ears. If using the desk mount, secure the mount to the bottom of the monitor using the screws provided (Fig 1.0). If rack mounting, secure the rack mount ears to each side of the monitor using the included screws (Fig 1.1).
  • Page 8: Getting Started

    Getting Started 1. Ensure that all connections have been made as shown in the previous section. Press the Power Button on the front of the unit. 2. Upon Powering Up, a message will appear “Please Check HDD Key Lock before Turn ON”.
  • Page 9: Front Panel Controls

    Front Panel Controls 1. LED Indicators – HDD, HDD Full, ALARM, REC, PLAY 2. POWER ON/OFF button 3. CHANNEL 1 select button 4. CHANNEL 2 select button 5. CHANNEL 3 select button 6. CHANNEL 4 select button 7. QUAD view select / MODE select button 8.
  • Page 10 1) LED Indicators I. HDD – Illuminates when the HDD is being accessed. II. HDD FULL - Blinks when the remaining space of HDD is less than 1GB. III. ALARM – This LED will be on when the ALARM or MOTION function is set. When an ALARM or MOTION event is detected, the LED will blink.
  • Page 11 11) SEARCH – Press this button to enter the search menu. See ‘Searching Video’ in the ‘Operation’ section for instructions on navigating the search menu. 12) REC - Press this button once to begin manual recording. 13) PLAY / ENTER – Press this button once to begin playing back the most recent recording.
  • Page 12: Back Panel Connections

    Back Panel Connections 1. BNC Camera Inputs - Channel 1-4 camera inputs 2. RCA Audio inputs - Channel 1-4 Audio inputs 3. Monitor A/V Out - Audio/Video out for an additional monitor. 4. Slave A/V Out - Audio/Video for a VCR or other video equipment. 5.
  • Page 13: Pan / Tilt / Zoom Control And Connections

    Pan / Tilt / Zoom Control and Connections The DVR supports the control of a single Pan/Tilt/Zoom camera on Channel 1. Currently only PTZ camera’s using the ‘Pelco D’ protocol may be used. 1) Connect a compatible PTZ camera to Channel 1 2) Connect the RS-485 control wires to the RS-485 terminals on the back of the monitor.
  • Page 14: Ir Remote Control Functions

    IR Remote Control Functions...
  • Page 15: Entering The Sub Menu

    Entering the Sub Menu Pressing and holding the MENU button for 2 seconds access’s the Main Menu. Use the UP/DOWN buttons to scroll between menu items. The ENTER button is used to select a section and enter its sub-menu. To change a toggle option, use the ENTER key to enable/disable.
  • Page 16: Sequence Set

    2. SEQUENCE SET - QUAD 03 sec Select the amount of time the unit will stay on each screen when the unit is in Sequence mode. 03 sec Valid dwell times are 00 – 59 seconds. Setting a channel to 00 03 sec will remove that channel from the sequence.
  • Page 17: System Set(I)

    Motion Detect Zones: 6. SYSTEM SET(I) - When enabled, a tone will sound for each key press on the unit. KEY BUZZER LOSS BUZZER When enabled, a tone will sound when video signal is lost. QUAD LINE This option activates/deactivates the border-line separation in Quad Mode.
  • Page 18: Alarm Rec Set

    REC SPEED [60] IPS Select the images per second (IPS) that the unit will record. Note that this is an overall value and is split between the active cameras. Example – 60 IPS / 4 (cameras) = 15 IPS per camera REC SELECT CH1 –...
  • Page 19: Operation

    NOTE : Displays whether HDD in use is for MASTER or SLAVE. When MASTER HDD is in use, it displays “M”, “S” for SLAVE HDD. NOTE : When the Power is On, a message appears as follows, “Please Check HDD KeyLock Before Turn On”...
  • Page 20: Secondary (Slave) Hard Drive

    Secondary (Slave) Hard Drive The Master HDD is the removable drive accessible on the side of the monitor. On the back of the monitor there is an IDE-SUB input for connecting another HDD to serve as a backup to the Master HDD, providing extra storage space. To connect a Slave HDD, you will need an External IDE drive with a built-in power supply.
  • Page 21: Vga Mode Controls

    VGA Mode Controls Use the same steps as shown above to change OSD options in this mode. In VGA mode the following OSD options are available. Brightness Increase/Decrease the brightness of the display. Contrast Increase/Decrease the contrast of the display. H –...
  • Page 22: Specifications

    Specifications Model SY17TD8144-A LCD Panel: Type 17-inch TFT color Colors 16.7M colors Viewable Size 13.3 (H) x 10.6 (V) inches (337.9 x 270.3 mm) Contrast Ratio 350 : 1 Brightness Ratio 250 cd/m2 Pixel Pitch 0.264(H) x 0.264(V) mm Viewing Angle (L/R/T/B)
  • Page 23 It’s all on the web Product Information Specification Sheets User Manuals Software Upgrades Firmware Upgrades Quick Start Guides www.sylvaniasecurity.com www.sylvaniasecurity.com LOREX Technologies Inc.
