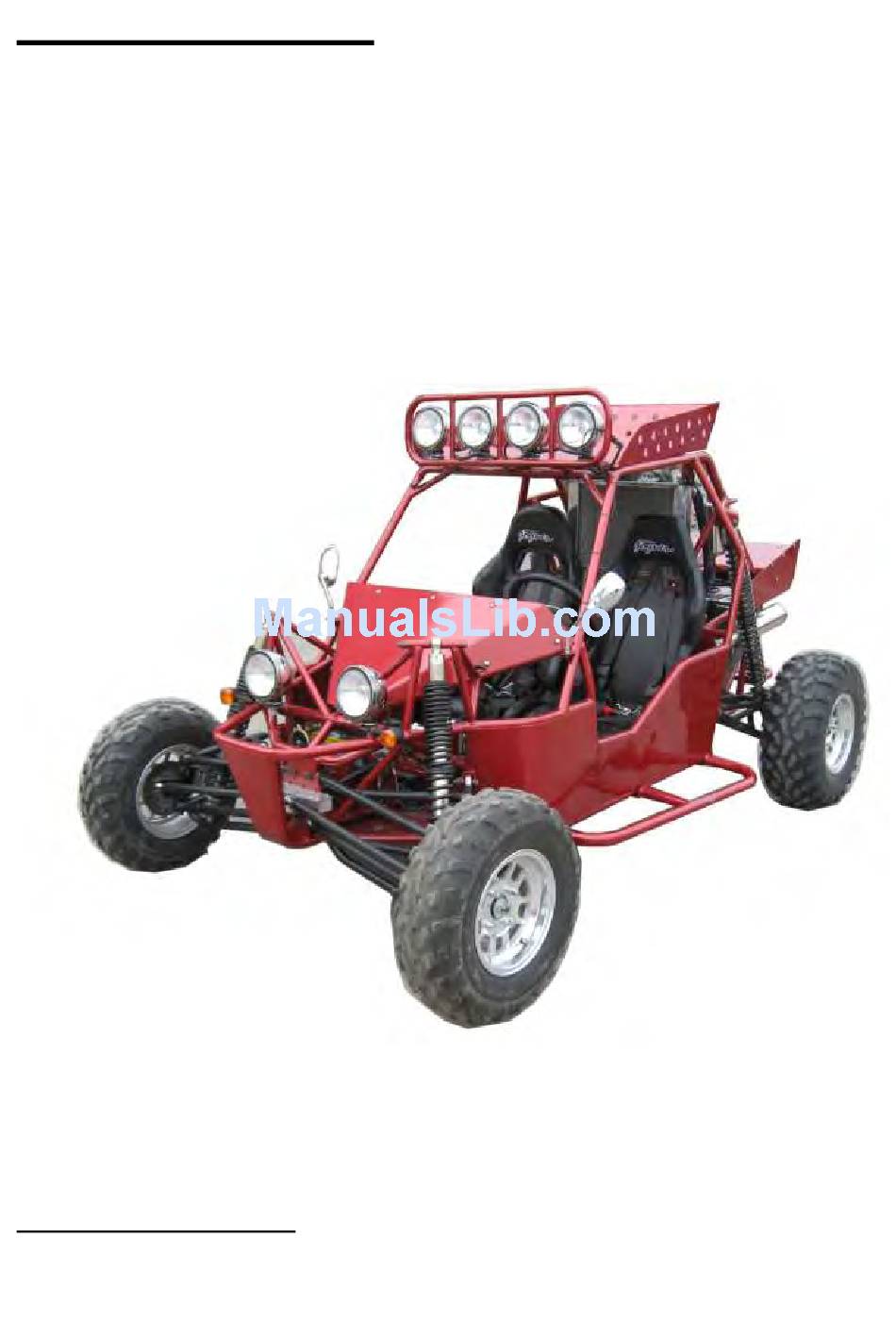

Joyner JNSZ800MV Owner's Manual

Hide thumbs Also See for JNSZ800MV:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
Owner's Manual
JNSZ800MV
READ THIS MANUAL CAREFULLY.
IT CONTAINS IMPORTANT SAFETY INFORMATION.
16
MINIMUM
RECOMMENDED
OPERATOR AGE:
FOR OFF-ROAD USE ONLY
This vehicle is designed and manufactured for off-road use only.
USA only:
It does not confirm to federal motor vehicle safety standards, and operation on
Public streets, roads, or highways is illegal.
