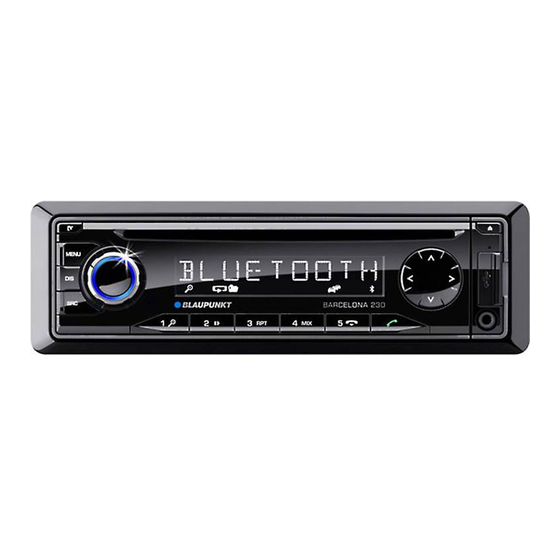

CAR RADIO
BARCELONA
BRISBANE
Operating and installation instructions
230
230
1 011 402 211 001
1 011 402 201 001
Enjoy it.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BARCELONA 230 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Blaupunkt BARCELONA 230

Summary of Contents for Blaupunkt BARCELONA 230

  • Page 1 CAR RADIO BARCELONA 1 011 402 211 001 BRISBANE 1 011 402 201 001 Enjoy it. Operating and installation instructions...

  • Page 2: Control Panel

    Controls button button (Eject) (Barcelona 230 only) Unlock the detachable control panel Eject a CD MENU button Microphone Short press: Call up/close menu USB socket Long press: Start scan function Front AUX-IN socket On/Off button < button Short press: Switch on car sound system...

  • Page 3: Table Of Contents

    Making settings in the "VOLUME" menu ..27 Changing to CD/MP3/WMA/iPod mode ..10 Making settings in the "CLOCK" menu ....28 Inserting/ejecting a CD (Barcelona 230 only) ...11 Making settings in the "VARIOUS" menu ..28 Connecting/removing a USB data carrier ..11 Factory settings ..........29 Inserting/removing the memory card .....11...

  • Page 4: Safety Notes

    • Do not modify or open the device. The device DANGER! contains a Class 1 laser that can cause injuries to your eyes (Barcelona 230 only). Warns about injuries • Do not increase the volume during mute phases, e. g. when changing the audio source.

  • Page 5: Declaration Of Conformity

    Declaration of conformity Optional equipment (not part of the scope of delivery) The Blaupunkt Europe GmbH declares that the car sound systems Barcelona 230 and Brisbane 230 Use only accessories approved by Blaupunkt. comply with the basic requirements and the other...

  • Page 6: Switching On/Off

    Placing the device in operation Always take the control panel with you when leav- The car sound system switches off . ing the vehicle. The car sound system is worthless Note: to a thief without this control panel. If you switch on the car sound system while the vehicle ignition is switched off , it auto- Caution matically switches off after 1 hour to preserve...

  • Page 7: Switching Demo Mode On/Off

    Placing the device in operation | Traffi c information | Radio mode • The display brightness can be adjusted Radio mode separately for day and night (see the chap- ter "User settings", section "Making set- tings in the "DISPLAY" menu", menu items Many FM stations broadcast an RDS (Radio Data "DIM DAY"...

  • Page 8: Tuning Into A Station

    Radio mode Tuning into a station Scanning stations There are various ways of tuning into a station: With the scan function, you can scan either every receivable station or the stored stations of the cur- Tuning into stations manually rent waveband. u Briefl y press the button once or...

  • Page 9: Pty

    Radio mode The tuner starts the automatic station seek Searching for stations u Press the tuning; the display shows "FM TSTORE" or button "AM TSTORE". After the storing is completed, During the seek tuning, the currently selected the radio plays the station at memory location programme type is shown on the display.

  • Page 10: Cd/Mp3/Wma/Ipod Mode

    • Naming of tracks and directories: desired audio source is displayed: – Max. 32 characters without the fi le exten- • "CD" (Barcelona 230 only): Inserted CD sion ".mp3" or ".wma" (the use of more characters reduces the number of tracks •...

  • Page 11: Inserting/Ejecting A Cd (Barcelona 230 Only)

    "USB ERROR"). carrier Inserting/ejecting a CD Connecting a USB data carrier (Barcelona 230 only) u Switch off the car sound system so that the Inserting a CD data carrier will be correctly registered. u Pull the protective cap of the USB socket...

  • Page 12: Selecting Tracks

    Regular playback u Press the button briefl y to change to the previous/next folder. * Barcelona 230 only Note: If the MIX function is switched on, the icon MIX (mix all tracks) or MIX (mix tracks of In iPod mode, this allows you to change to the current folder) is shown on the display.

  • Page 13: Switching Display

    Pressing the button returns you to the as scrolling text folder list. * Barcelona 230 only u Press the button once or several ¹ Track name, artist and album name must be times or hold the button pressed to select a stored as ID3 tag to be able to display them.

  • Page 14: Pandora® Mode

    CD/MP3/WMA/iPod mode | Pandora® mode u Press the Browse mode in iPod mode button to play back the track. In iPod mode, you can select and play back the The playback starts. You are exiting the tracks via the categories "ARTISTS", "ALBUMS", browse mode.

  • Page 15: Connecting The Ipod/Iphone Device

    Pandora® mode u Press the Notes: button when the desired sta- tion is highlighted. • Pandora® is available only in the US. The playback will begin. • Refer to www.pandora.com/everywhere/ mobile for devices compatible with the Notes: Pandora® mobile application. •...

  • Page 16: Thumbs Feedback

    Pandora® mode | Bluetooth® Thumbs feedback Only one Bluetooth® device can be connected with the car sound system. If you connect a new Thumbs up device with the car sound system, the connection u Press the to a currently connected device is automatically button to tell Pandora®...

  • Page 17: Pairing And Connecting A Bluetooth® Device

    Bluetooth® Pairing and connecting a Bluetooth® • If a Bluetooth® device is connected with the car sound system, the display shows device the Bluetooth® icon . Notes: • If the device connected last cannot be • You can pair up to 5 Bluetooth® devices located after switching on the car sound with this car sound system.
  • Page 18 Bluetooth® Making a call - or - u In the Bluetooth® menu, select the "DIAL NEW u In the Bluetooth® menu, select the NUMBER" menu item. "PB SEARCH" (phone book search) menu item. u Press the On/Off button u Press the On/Off button to open the entry to open the entry menu.
  • Page 19 Bluetooth® • If the spoken name is not being recognised The display briefl y shows "NUMBER SAVED". or the time for the voice recognition has Afterwards, you are returned to the Blue- already expired, the display briefl y shows tooth® menu and the "DIAL NEW NUMBER" "DIAL FAILED".

  • Page 20: Bluetooth® Streaming Mode

    "Setting the button With the "Android Music Player Series 230" app function for speed dial"). from Blaupunkt, music fi les stored on an Android cell phone can be selected via the browse mode To activate the voice recognition with the speed of the car sound system and played back.

  • Page 21: Additional Functions In The Bluetooth® Menu

    • A list of Android cell phones with verifi ed connected Bluetooth® device compatibility is located on the Internet • Establishing a connection to one of the paired under www.blaupunkt.com. Blaupunkt Bluetooth® devices cannot guarantee the fl awless function of • Unpairing Bluetooth® devices other Android cell phones.
  • Page 22 Bluetooth® You have the following options: Note: If no device is paired, "EMPTY LIST" is briefl y To connect the displayed device, u press the < displayed. button As soon as the device is connected, "CON- Transferring the phone book of the cell phone NECTED"...

  • Page 23: External Audio Sources

    Bluetooth® | External audio sources Notes: Setting the button function for speed dial • To cancel the transfer, press the 5 but- You can select whether the long press of the < button directly opens the phone of the search function for phone book entries or activates voice •...

  • Page 24: Sound Settings

    Sound settings Sound settings Making settings in the "AUDIO" menu The following sound settings can be changed in the "AUDIO" menu: BASS • Adjusting bass and treble Bass level. Settings: –7 to +7. • Setting the left/right volume distribution u Press the On/Off button to change the (Balance) or front/rear (Fader) setting.

  • Page 25: User Settings

    Sound settings | User settings u Press the On/Off button PRESETS to open the selected menu. Selecting equalizer presettings. Settings: POP, u Turn the volume control ROCK, CLASSIC, EQ OFF. until the desired u Press the On/Off button menu item is selected. to change the u Perform the setting (see the following sec- setting.
  • Page 26 User settings u Press the On/Off button to change the setting. (only for reception areas EUROPE and USA) u Turn the volume control Switching the PTY function on or off . Settings: ON, to toggle OFF. between the settings ON (activate memory u Press the On/Off button bank) and OFF (deactivate memory bank).

  • Page 27: Making Settings In The "Display" Menu

    User settings Making settings in the "DISPLAY" Making settings in the "VOLUME" menu menu DIM MODE ON VOLUME Select automatic or manual switching of the dis- Setting the power-on volume. Settings: 1 – 50. play brightness for day or night. Settings: AUTO u Press the On/Off button to change the (display brightness is automatically switched by...

  • Page 28: Making Settings In The "Clock" Menu

    User settings Note: SET CLOCK During the phone call, you can change the Setting the time. volume directly by means of the volume con- u Press the On/Off button to change the trol setting. u Turn the volume control counterclockwise BEEP to set the hours.

  • Page 29: Factory Settings

    User settings | Factory settings BROWSE NORMSET Switching fast track selection in browse mode on Restoring the original factory settings of the car or off using the volume control and the On/Off sound system. button . Settings: ON, OFF. u Press the On/Off button u Press the On/Off button to change the The display shows "PRESS >...

  • Page 30: Specifications

    The warranty terms can be called up from www.blaupunkt.com. Pre-amp out 4 channels: Service In some countries, Blaupunkt off ers a repair and Input sensitivity pick-up service. Front AUX-IN: 300 mV / 10 kΩ Information about the availability of this service in Dimensions and weight your country can be found at www.blaupunkt.com.

  • Page 31: Installation Instructions

    • Do not connect the vehicle’s plug connec- tors to the radio! You can obtain the adapter cable required for your vehicle type from any BLAUPUNKT dealer. • Depending on the model, your vehicle may diff er from the description provided here. We...
  • Page 32 Installation instructions Supplied mounting hardware Available as an optional accessory 7 607 621 … Installation kits 7 608 … …...
  • Page 33 Installation instructions Steering wheel Microphone In remote control Antenna Antenna connection 1 2 V 2. Barcelona 230 only Sub Out Preamp Out (Subwoofer) (4 channels) 1-20 0° - 30° +/– 10° +/– 10°...
  • Page 34 Installation instructions Removal 1 2 V...
  • Page 35 Installation instructions Speaker out RR+ Telephone Mute Speaker out RR– Speaker out RF+ Permanent +12V Speaker out RF– Auto antenna* Speaker out LF+ Illumination Speaker out LF– Kl.15/Ignition Speaker out LR+ Ground Speaker out LR– Switched power supply +12 V / max. 150 mA Relais +12V 1 3 5...
  • Page 36 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. Android is a trademark of Google Inc. © 2014 All rights reserved by Blaupunkt. This material may be reproduced, copied or distributed for personal use only.
  • Page 37 Please keep the fi lled-in radio pass in a safe place!
  • Page 38 Passport Name: ........................1 011 402 _ _ _ 001 Type: ........................Serial no.: BP ....................... Blaupunkt Europe GmbH Robert-Bosch-Straße 200 D-31139 Hildesheim http://www.blaupunkt.com 06/14...
