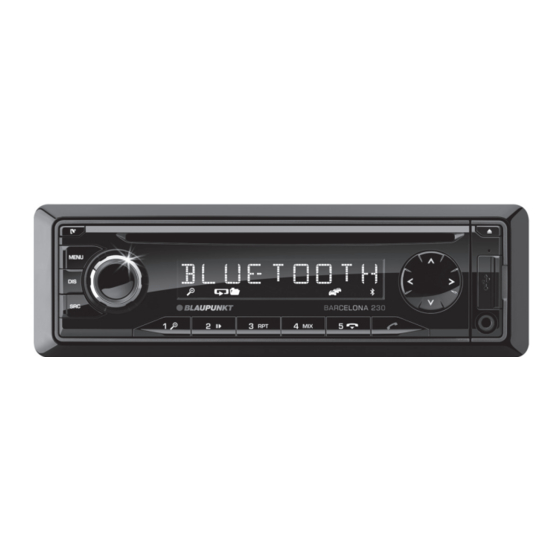

Blaupunkt BARCELONA 230 Operating And Installation Instructions
Hide thumbs
Also See for BARCELONA 230:
- Operating and installation instructions (40 pages) ,
- Operating and installation instructions (38 pages) ,
- Operating and installation instructions (36 pages)
Subscribe to Our Youtube Channel
Related Manuals for Blaupunkt BARCELONA 230
Summary of Contents for Blaupunkt BARCELONA 230
- Page 1 CAR RADIO BARCELONA BRISBANE Enjoy it. Operating and installation instructions 01_Barcelona_Brisbane_World_de.indd 1 20.06.14 09:42...
- Page 2 Controls button button (Eject) (Barcelona 230 only) Unlock the detachable control panel Eject a CD MENU button Microphone Short press: Call up/close menu USB socket Long press: Start scan function Front AUX-IN socket button button < Short press: Switch on car sound system...
-
Page 3: Table Of Contents
Making settings in the "DISPLAY" menu ..27 Changing to CD/MP3/WMA/iPod mode ..10 Making settings in the "VOLUME" menu ..27 Inserting/ejecting a CD (Barcelona 230 only)...11 Making settings in the "CLOCK" menu ....28 Connecting/removing a USB data carrier ..11 Making settings in the "VARIOUS" menu ..28 Inserting/removing the memory card .....11... -
Page 4: Safety Notes
• Do not modify or open the device. The device DANGER! contains a Class 1 laser that can cause injuries to your eyes (Barcelona 230 only). Warns about injuries • Do not increase the volume during mute phases, e. g. when changing the audio source. -
Page 5: Cleaning Notes
Transport securing screws of the car sound system. (Barcelona 230 only) • Use only a dry or slightly moistened cloth for Before the startup of the car sound system, ensure cleaning the car sound system. -
Page 6: Volume
Placing the device in operation Always take the control panel with you when leav- ing the vehicle. The car sound system is worthless Note: to a thief without this control panel. If you switch on the car sound system while , it auto- Caution after 1 hour to preserve... -
Page 7: C Information
c information | Radio mode Radio mode • The display brightness can be adjusted separately for day and night (see the chap- ter "User settings", section "Making set- tings in the "DISPLAY" menu", menu items Many FM stations broadcast an RDS (Radio Data "DIM DAY"... -
Page 8: Tuning Into A Station
Radio mode Tuning into a station Scanning stations There are various ways of tuning into a station: With the scan function, you can scan either every receivable station or the stored stations of the cur- Tuning into stations manually rent waveband. y press the button once or... -
Page 9: Pty
Radio mode Searching for stations The tuner starts the automatic station seek tuning; the display shows "FM TSTORE" or Press the button "AM TSTORE". After the storing is completed, During the seek tuning, the currently selected the radio plays the station at memory location programme type is shown on the display. -
Page 10: Cd/Mp3/Wma/Ipod Mode
• Naming of tracks and directories: desired audio source is displayed: le exten- • "CD" (Barcelona 230 only): Inserted CD sion ".mp3" or ".wma" (the use of more characters reduces the number of tracks • "SD(HC)": Inserted memory card and folders that the car sound system can •... -
Page 11: Inserting/Ejecting A Cd (Barcelona 230 Only)
(e. g. Connecting/removing a USB data "USB ERROR"). carrier Inserting/ejecting a CD (Barcelona 230 only) Connecting a USB data carrier the car sound system so that the Inserting a CD data carrier will be correctly registered. -
Page 12: Selecting Tracks
Regular playback Press the button y to change to the previous/next folder. * Barcelona 230 only Note: If the MIX function is switched on, the icon MIX (mix all tracks) or MIX (mix tracks of In iPod mode, this allows you to change to the current folder) is shown on the display. -
Page 13: Switching Display
Pressing the button returns you to the as scrolling text folder list. * Barcelona 230 only Press the button once or several ¹ Track name, artist and album name must be times or hold the button pressed to select a stored as ID3 tag to be able to display them. -
Page 14: Pandora® Mode
CD/MP3/WMA/iPod mode | Pandora® mode Browse mode in iPod mode Press the button to play back the track. In iPod mode, you can select and play back the The playback starts. You are exiting the tracks via the categories "ARTISTS", "ALBUMS", browse mode. -
Page 15: Connecting The Ipod/Iphone Device
Pandora® mode Notes: Press the button when the desired sta- tion is highlighted. • Pandora® is available only in the US. The playback will begin. • Refer to www.pandora.com/everywhere/ mobile for devices compatible with the Notes: Pandora® mobile application. • Stations must be created in your account •... -
Page 16: Thumbs Feedback
Pandora® mode | Bluetooth® Thumbs feedback Only one Bluetooth® device can be connected with the car sound system. If you connect a new Thumbs up device with the car sound system, the connection to a currently connected device is automatically Press the button to tell Pandora®... -
Page 17: Pairing And Connecting A Bluetooth® Device
Bluetooth® Pairing and connecting a Bluetooth® • If a Bluetooth® device is connected with the car sound system, the display shows device the Bluetooth® icon . Notes: • If the device connected last cannot be • You can pair up to 5 Bluetooth® devices located after switching on the car sound with this car sound system. - Page 18 Bluetooth® Making a call - or - In the Bluetooth® menu, select the "DIAL NEW In the Bluetooth® menu, select the NUMBER" menu item. "PB SEARCH" (phone book search) menu item. button to open the entry button to open the entry menu.
- Page 19 Bluetooth® • If the spoken name is not being recognised y shows "NUMBER SAVED". or the time for the voice recognition has Afterwards, you are returned to the Blue- y shows tooth® menu and the "DIAL NEW NUMBER" "DIAL FAILED". menu item.
-
Page 20: Bluetooth® Streaming Mode
Internet from The car sound system is muted and the dis- www.blaupunkt.com. play shows "SPEAK NOW". If you are using an Android cell phone with app Say the name of the desired calling partner. -
Page 21: Additional Functions In The Bluetooth® Menu
• Disconnecting the connection to the currently connected Bluetooth® device compatibility is located on the Internet • Establishing a connection to one of the paired under www.blaupunkt.com. Blaupunkt Bluetooth® devices awless function of • Unpairing Bluetooth® devices other Android cell phones. - Page 22 Bluetooth® Note: You have the following options: To connect the displayed device, displayed. press the button < As soon as the device is connected, "CON- Transferring the phone book of the cell phone y displayed and you are re- to the car sound system turned to the Bluetooth®...
-
Page 23: External Audio Sources
Bluetooth® | External audio sources Notes: Setting the button function for speed dial • To cancel the transfer, press the 5 but- You can select whether the long press of the button < directly opens the phone of the search function for phone book entries or activates voice •... -
Page 24: Sound Settings
Sound settings Sound settings Making settings in the "AUDIO" menu The following sound settings can be changed in the "AUDIO" menu: BASS • Adjusting bass and treble Bass level. Settings: –7 to +7. • Setting the left/right volume distribution button to change the (Balance) or front/rear (Fader) setting. -
Page 25: User Settings
Sound settings | User settings PRESETS button to open the selected menu. Selecting equalizer presettings. Settings: POP, ROCK, CLASSIC, EQ OFF. Turn the volume control until the desired menu item is selected. button to change the setting. Perform the setting (see the following sec- tions). - Page 26 User settings button to change the setting. (only for reception areas EUROPE and USA) . Settings: ON, Turn the volume control to toggle OFF. between the settings ON (activate memory bank) and OFF (deactivate memory bank). button to change the setting.
-
Page 27: Making Settings In The "Display" Menu
User settings Making settings in the "DISPLAY" Making settings in the "VOLUME" menu menu DIM MODE ON VOLUME Select automatic or manual switching of the dis- Setting the power-on volume. Settings: 1 – 50. play brightness for day or night. Settings: AUTO button to change the (display brightness is automatically switched by... -
Page 28: Making Settings In The "Clock" Menu
User settings Note: SET CLOCK During the phone call, you can change the Setting the time. volume directly by means of the volume con- button to change the trol setting. Turn the volume control counterclockwise BEEP to set the hours. . -
Page 29: Factory Settings
User settings | Factory settings BROWSE NORMSET Switching fast track selection in browse mode on Restoring the original factory settings of the car using the volume control sound system. button . Settings: ON, OFF. button button to change the The display shows "PRESS > TO CONFIRM". setting. -
Page 30: Technical Data
Voltage supply 530 – 1,710 kHz Operating voltage: 10.5 – 14.4 V FM frequency response: 30 – 15,000 Hz Current consumption CD (Barcelona 230 only) In operation: < 10 A Frequency range: 20 – 20,000 Hz : < 3.5 mA... -
Page 31: Supported Format
• Do not connect the vehicle’s plug connec- tors to the radio! You can obtain the adapter cable required for your vehicle type from any BLAUPUNKT dealer. • Depending on the model, your vehicle may er from the description provided here. We... - Page 32 Supplied mounting hardware Available as an optional accessory 7 607 621 … Installation kits 7 608 … … 07_EA_BarcelonaBrisbane_World.indd 32 20.06.14 09:52...
- Page 33 Steering wheel Microphone In remote control Antenna Antenna connection 1 2 V 2. Barcelona 230 only Sub Out Preamp Out (Subwoofer) (4 channels) 1-20 0° - 30° +/– 10° +/– 10° 07_EA_BarcelonaBrisbane_World.indd 33 20.06.14 09:52...
- Page 34 Removal 1 2 V 07_EA_BarcelonaBrisbane_World.indd 34 20.06.14 09:52...
- Page 35 Speaker out RR+ Telephone Mute Speaker out RR– Speaker out RF+ Permanent +12V Speaker out RF– Auto antenna* Speaker out LF+ Illumination Speaker out LF– Kl.15/Ignition Speaker out LR+ Ground Speaker out LR– Switched power supply +12 V / max. 150 mA Relais +12V 1 3 5...
-
Page 36: Troubleshooting
TROUBLESHOOTING SYMPTOM Power does not turn Replace with fuse of the same amperage. Fuse is blown If the fuse blows again, consult your store (No sound is of purchase produced.) In correct wiring Consult your local retailer. 1. Turn off the unit. 2. -
Page 37: Troubleshooting
SYMPTOM CAUSE SOLUTION If the power supply is properly connected to the car accessory switch the ignition key The car ignition is not on. to “acc”. No power The fuse is blown. Replace the fuse. Presence of disc inside Remove the disc in the player then put a Disc cannot be loaded. - Page 38 Designed and enginereed by Blaupunkt 07_EA_BarcelonaBrisbane_World.indd 38 20.06.14 09:52...
