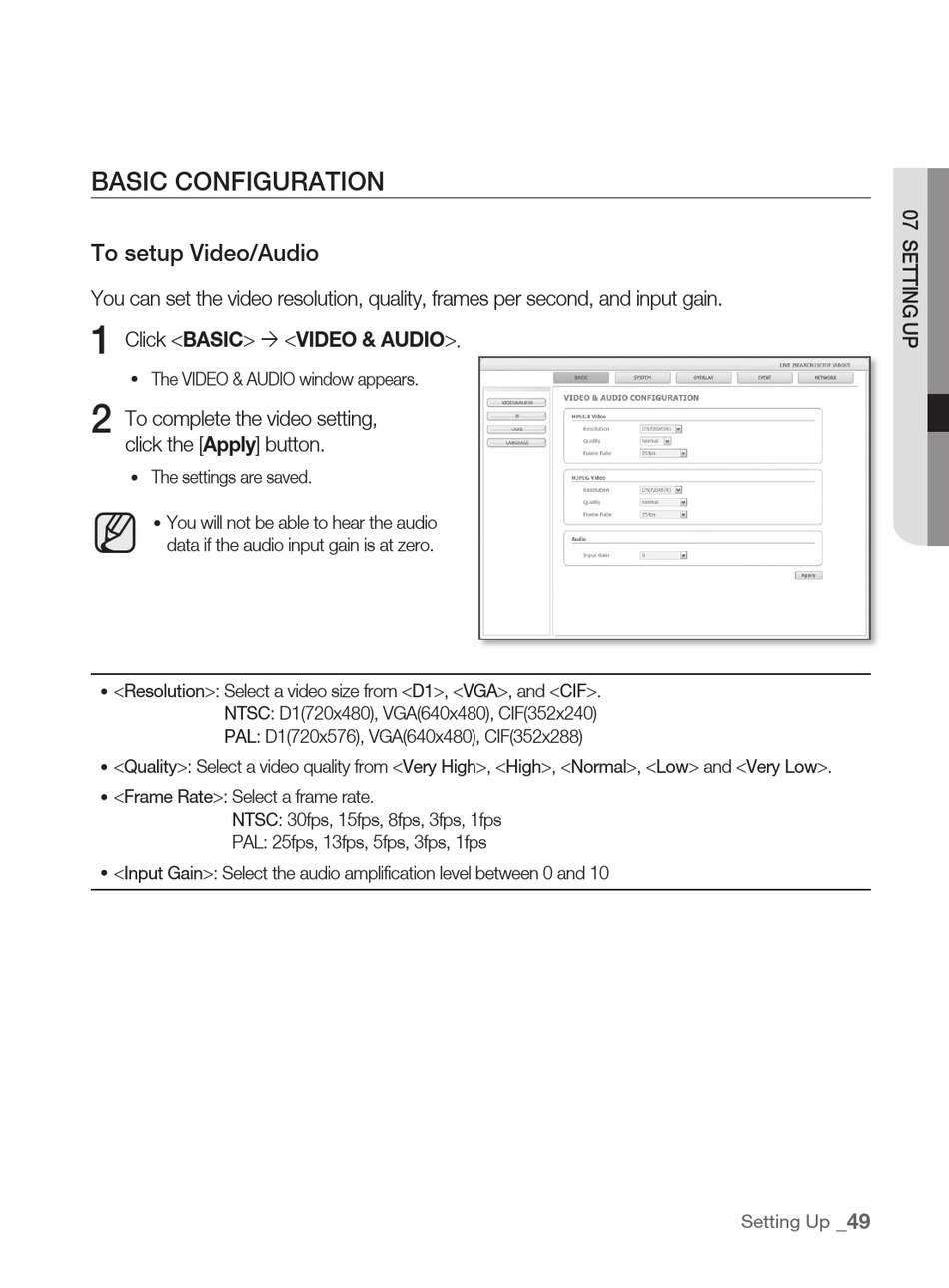

bASIC CONFIGURATION
To setup Video/Audio
You can set the video resolution, quality, frames per second, and input gain.
1
Click <BASIC> <VIDEO & AUDIO>.
The VIDEO & AUDIO window appears.
2
To complete the video setting,
click the [Apply] button.
The settings are saved.
You will not be able to hear the audio
data if the audio input gain is at zero.
<Resolution>: Select a video size from <D1>, <VGA>, and <CIF>.
NTSC: D1(720x480), VGA(640x480), CIF(352x240)
PAL: D1(720x576), VGA(640x480), CIF(352x288)
<Quality>: Select a video quality from <Very High>, <High>, <Normal>, <Low> and <Very Low>.
<Frame Rate>: Select a frame rate.
NTSC: 30fps, 15fps, 8fps, 3fps, 1fps
PAL: 25fps, 13fps, 5fps, 3fps, 1fps
<Input Gain>: Select the audio amplification level between 0 and 10
_49
Setting Up
