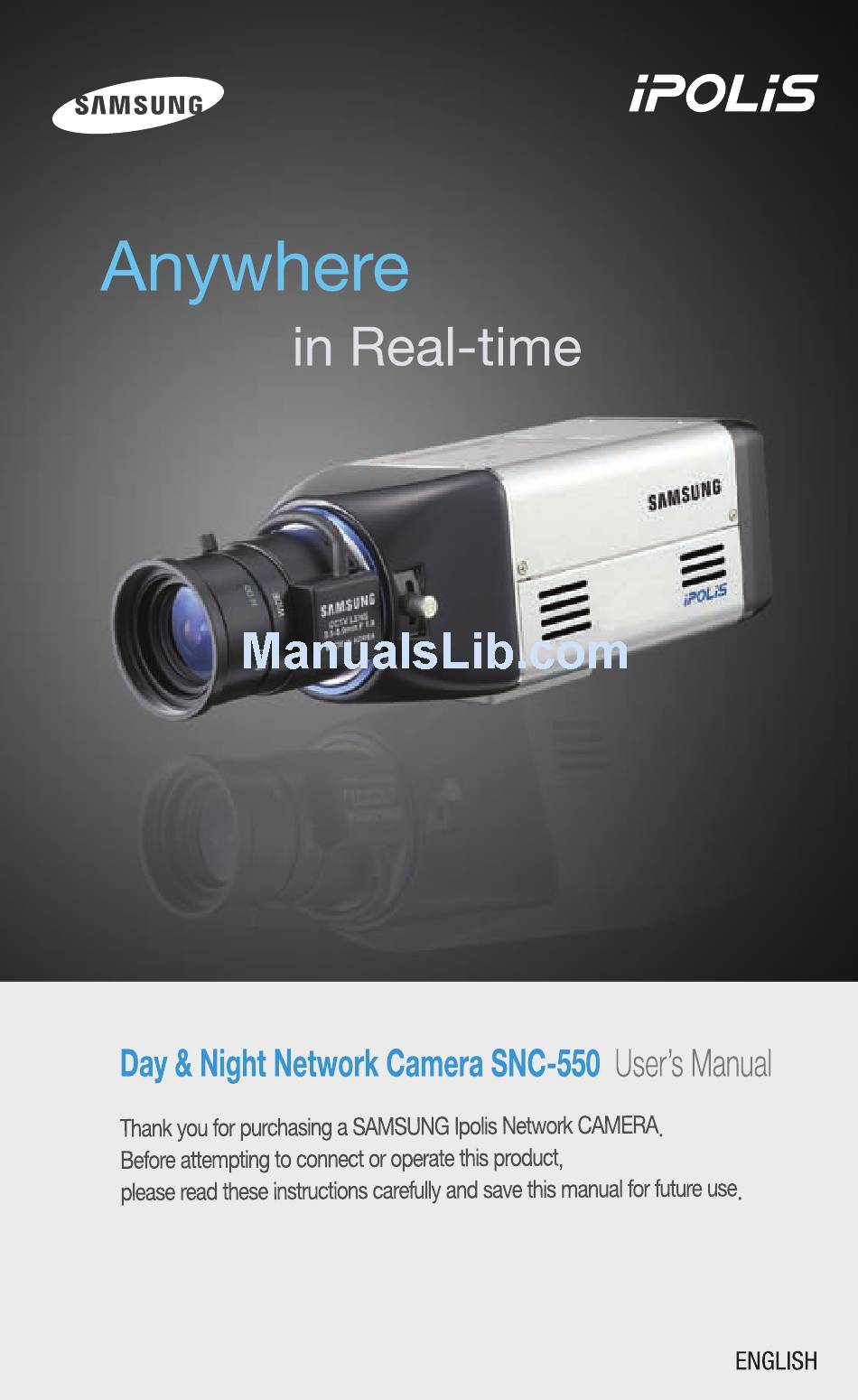

Samsung SNC-550 iPOLiS User Manual

Samsung SNC-550 iPOLiS User Manual

Day & night network camera
Hide thumbs Also See for SNC-550 iPOLiS:
Table of Contents

Advertisement

Quick Links

See also: User Manual

Advertisement

Table of Contents
loading

Related Manuals for Samsung SNC-550 iPOLiS

Summary of Contents for Samsung SNC-550 iPOLiS

  • Page 3: Preface

    Preface A brand that is integrated into Samsung's network products, stands for a convenient world (Polis) made safe (Police) through Samsung's superior network performance(Internet protocol). With products' clear digital images transmitted over the internet, real-time monitoring is possible anywhere with an internet connection. Easy remote control functions and the use of existing networks minimize installation costs.

  • Page 5: Table Of Contents

    Contents Contents Preface ................i Contents ................1 Note to User ..............4 Product Warranty and Limitations ........6 Warning Symbols .............7 Danger................7 Caution ................9 Ch1. Overview ............... 11 1.1. SNC-550 Network Camera Introduction....12 1.2. Features ..............12 Ch2. Production Description ..........16 2.1. Components and Accessories.........17 2.2.
  • Page 6 5.2. How to Set Up Functions.........62 5.2.1. Lens selection (LENS)..........64 5.2.2. SHUTTER (condition and speed control) ....66 5.2.3. WHITE BAL. (WHITE BALANCE control)....67 5.2.4. BACKLIGHT (Backlight Compensation) ....69 5.2.5. AGC (Auto Gain Control)........70 5.2.6. SSNR (Samsung Super Noise reduction)....71...
  • Page 7 Contents 5.2.7. SENS-UP (Low Illuminance) ........72 5.2.8. SPECIAL..............74 5.2.9. EXIT............... 80 Ch6. Troubleshooting............81 Appendix A. DDNS Usage.............86 Specifications ..............94 Dimension ..............96 If you refer to the enclosed Quick guide and the Note Manual in the CD, you can learn how to use Network Manager.

  • Page 8: Note To User

    SNC-550 Network Camera Note to User This machine’s electromagnetic waves have been registered as suitable for business purposes; the retailer and consumer should be aware of this registration. If in the case of wrongful purchases, please exchange the product for a home use product. Correct Disposal of This Product (Waste Electrical &...
  • Page 9 Note to User Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environment-friendly products.The Eco mark represents Samsung Techwin s will to create environment-friendly products, and indicates that the product satisfies the EU RoHS Directive.

  • Page 10: Product Warranty And Limitations

    SNC-550 Network Camera Product Warranty and Limitations The manufacturers of this product do not take any responsibility for this product; therefore, the manufacturer does not authorize the third-party, but allows that retailer is responsible. The product warranty does not extend to cover accidents, negligence, abuse, or wrongful use for the whole or any part of the product.

  • Page 11: Warning Symbols

    Warning Symbols Warning Symbols Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. Danger : Misuse or wrongful operation of the product may result in death, injury or bring about other fatal results.
  • Page 12 SNC-550 Network Camera There is risk of shock or fire; be sure to avoid setup in places with high humidity. To prevent shocks, please connect the ground wire. Do not install the camera on a surface that can not support it. Unless the surface is suitable, it could cause falling or other hazards.

  • Page 13: Caution

    Caution long time, Fire may be caused. Random replacement of built-in battery by other types of batteries may cause explosion. The battery shall be replaced by the same battery. The used batteries shall be disposed carefully because they can cause environment pollutions. The battery shall be replaced by the same battery.
  • Page 14 SNC-550 Network Camera +40°C. Provide good ventilation when using in high temperature conditions. Do not install under unstable lighting conditions. Severe lighting changes or flickering may hinder normal camera operation. Do not drop the camera or subject it to physical shock. May cause a product malfunction.

  • Page 16: Network Camera Introduction

    SNC-550 Network Camera 1.1. SNC-550 Network Camera Introduction The SNC-550 is a high-tech network camera that uses MPEG-4 codec technology to allow high compression rates and clear picture quality by allowing for high frame rates to be transmitted through the network. By using the network, remote connection, monitoring, and control is possible from any location for simple use;...
  • Page 17 0.002Lux(Sens-up) or lower illumination. SSNR (Samsung Super Noise Reduction) By using built-in SSNR function manufactured by SAMSUNG TECHWIN, the amount of low illuminance noise has been significantly reduced, and the signal-to- noise ratio (S/N) as well as horizontal resolution have been improved, resulting in a clear and sharp image display even in the dark.
  • Page 18 SNC-550 Network Camera SPOTLIGHT Function The SPOTLIGHT function is setting when you want subject in the center of the image exposed correctly, regardless of the back lighting. Controlled by OSD Menu The camera can be controlled by selecting text displayed on the monitor screen.
  • Page 19 1.2. Features Bi-directional audio and video transmission Video and bi-directional audio can be transmitted in real time and recording and playing are possible through exclusive viewer installed on user’s PC. Additional function SENS-UP, Horizontal reversal, SHARPNESS, SYNC selection(INT/LL), MPEG-4/JPEG selection function.

  • Page 21: Components And Accessories

    2.1. Components and Accessories 2.1. Components and Accessories High Resolution, Day&Night Network Camera User’s Manual / CD / Quick Guide C-Mount adaptor Auto iris lens connection plug Cross Cable...

  • Page 22: Section Names And Functions

    SNC-550 Network Camera 2.2. Section names and functions 2.2.1. Front ① CCD protection cap Please cover the CCD SENSOR when not using it. ② C-Mount lens adaptor Please attach the C-Mount lens here. ③ CS-Mount lens adaptor Please remove the C-MOUNT lens adaptor and then attach it.

  • Page 23: Side

    2.2. Section names and functions 2.2.2. Side ⑤ Auto iris lens connector This is the connection terminal for the auto iris lens.

  • Page 24: Bottom

    SNC-550 Network Camera 2.2.3. Bottom ⑥ Mounting bracket screw hole Please use the screw hole when fixing the camera onto the mounting bracket. Please 1/4”-20UNC(20THREAD) use the clamp screw as L:4.5 ㎜±0.2 ㎜(ISO Standard), or specified below. 0.197’’(ASA Standard) ※ The mounting bracket separated and attached to the top of...

  • Page 25: Back

    2.2. Section names and functions 2.2.4. Back ⑦ VIDEO OUTPUT TERMINAL Sends video signal and it can be used for setting ‘Incidence at image surface’ when you install a camera. ⑧ AUDIO IN/ OUT IN : Input audio signal to the camera and connect to the microphone.
  • Page 26 SNC-550 Network Camera ⑩ NETWORK LED LED lights ( green ) flash when the camera sends and receives data by the network. ⑪ POWER INPUT TERMINAL Connects to the power appropriate to each model. ⑫ AUTO IRIS LENS SELECTION SWITCH Please change the mode to DC or VIDEO depending on the type of auto iris lens being used.

  • Page 27: Recommended Pc Specifications

    2.3. Recommended PC specifications 2.3. Recommended PC specifications Items Specifications Pentium IV 3.0GHz or higher processor Main Memory 1GB or higher RAM More than 120GB when recording 128M or higher recommended Window 2000, XP, 2003 Web Browser Internet explorer 5.5 or higher Resolution 1024*768 or higher Network...

  • Page 29: Lens Installation

    3.1. Lens Installation 3.1. Lens Installation Lenses are sold separately. Lenses such as an auto iris lens, CS- Mount lens and C-Mount lens can be used. To effectively realize major performance of this Caution product, the use of DC format auto-iris lens is recommended.
  • Page 30 SNC-550 Network Camera Approx. 2 ㎜ 3. Please remove the cover of the auto iris lens connection plug and solder the lens cable to the connector pin in the plug. Lens Pin No VIDEO No.1 Pin Damping - Red(power) No.2Pin Damping + White No.3 Pin...
  • Page 31 3.1. Lens Installation When using a C-Mount lens Please take off the CCD protection cap and attach the C-Mount lens to the camera by screwing it in clockwise. When using a CS-Mount lens 1. Please attach the CS-Mount lens to the camera by screwing it in clockwise.
  • Page 32 SNC-550 Network Camera 2. Please attach the CS-Mount lens to the camera by screwing it in clockwise. Please use the specified lens connection parts as Caution shown in the picture below. The use of the wrong sized parts of the wrong size may cause damage to the inside of the camera or result in poor fitting.

  • Page 33: Connecting To Monitor

    3.2. Connecting to Monitor 3.2. Connecting to Monitor Please connect the video output terminal located on the back of the camera to the monitor. SNC-550 Network Camera Monitor The connection method varies depending on the type of monitor and accessories. Please refer to the user's manual for each instrument.

  • Page 34: Connecting To Power

    SNC-550 Network Camera This product is the network camera which Caution transmits video through network, video output terminal is for installation and used to determine imaging range when installing the product. 3.3. Connecting to Power AC/DC Power Both of AC24V and DC12V can be used for the input power of this product.
  • Page 35 3.3. Connecting to Power In case of SNC-550, as recommended adaptor specification is over AC 24V/1A or DC12V/2A, please use surely the adaptor complying with this specifications. Table 3-1. When the resistance value of copper wire is at [20℃(68℉)] Copper wire size (AWG) (0.22㎟) (0.33㎟)

  • Page 36: Connection To External Control Connector

    SNC-550 Network Camera device complying with PoE (IEEE802.3af) specifications. In case non-standard product is used, it may cause performance degradation or trouble. 3.4. Connection to External Control Connector The input order of terminal from left is Alarm input/Alarm output/Ground/RS-485 ‘+’signal/ RS-485 ‘-’signal. When connecting cable, push stripped part of electric wire in while pushing quadrangle button and take hands off from the button then the wire will be fixed.
  • Page 37 3.4. Connection to External Control Connector Connecting Alarm Input This is the input terminal for external alarm signal, use it by connecting as following. DC+3.3V 카메라 내부 Camera Inside 47KΩ Alarm In CMOS Sensor CMOS 입력 Input 220Ω In case of selecting Normal Open at setup menu: In case of contact type, it is short and in case of active type, sensor input acts at “LOW”...
  • Page 38 SNC-550 Network Camera Connecting Alarm output This is the output terminal for external alarm signal, use it by connecting as following. Alarm Out Relay Relay Open Collector Relay 출력 2.2KΩ Output CMOS CMOS 출력 Output Relay 전원 Relay Power 10KΩ Alarm output part is Open Collector structure and can be composed by using relay.
  • Page 39 3.4. Connection to External Control Connector Connecting RS-485 ※ GND pin of RS485 part may be not to be connected. ※ It may be effective when communication is not working properly.

  • Page 40: Network Configuration And Connection Method Using Web

    SNC-550 Network Camera 3.5. Network configuration and connection method using Web page Use when there is one SNC-550 network camera to be installed. 1. Please connect user’s PC to SNC-550 network camera using cross cable. 2. Please launch a Web browser on user’s PC and enter [192.168.1.100] in the URL address field and push <Enter>...
  • Page 41 3.5. Network configuration and connection method using Web page 3. Please login with administrator’s authorization and move to ‘Network’ page.(Default value for administrator login is ID: admin, PW:11111111) 4. Please configure according to the network environment where SNC-550 network camera will be installed and push <Save> button to save the configuration.

  • Page 43: How To Use Web Viewer

    4.1. How to Use Web Viewer 4.1. How to Use Web Viewer 4.1.1. Login To connect the login page, enter IP address of the camera on a internet Web browser and push enter key. Enter user ID and password and push <Login> button, then it move to related Web page.

  • Page 44: Web Viewer Screen

    SNC-550 Network Camera 4.1.2. Web Viewer screen Web Viewer screen is composed of menu area for camera/video configuration and screen area for displaying input video from camera. Controls Flip Image Vertical reversal of channel screen Stretch Image When selecting resolution with Half D1 and CIF, stretches channel screen to resolution D1 size.
  • Page 45 4.1. How to Use Web Viewer Save Image Saves channel screen to ‘JPEG file’. Quad Converts to 4 split screens (applied only to 4 channel server). Video compression mode (the mode of compressing Compression video) - MPEG, JPEG Video resolution (the size video...
  • Page 46 SNC-550 Network Camera Pause Stops video for a while. Displays related information. Displays the title Removes the title On/off function of Deinterlace. Deinterlace Deinterlace is a function to adjust the video quality Note softly by eliminating the border line which was made by an interlace function.
  • Page 47 4.1. How to Use Web Viewer Camera Setup Displays OSD control button of camera. Camera control button is displayed Camera OSD is displayed Day&Night configuration function Day&Night (Color, B/W configuration) PTZ control function PTZ Control...
  • Page 48 SNC-550 Network Camera Instruction for Camera OSD control button <↑>, <↓> button Moves selection displaying arrows up and down on camera OSD menu. <←>, <→> button Changes configuration of selected field on camera OSD menu. <Set> button Displays camera OSD or moves to upper/lower menu of selected field.

  • Page 49: Using Administration Page

    4.2. Using Administration page 4.2. Using Administration page 4.2.1. Live Please Move to Web Viewer page [Web Viewer live screen]...

  • Page 50: Basic

    SNC-550 Network Camera 4.2.2. Basic Configures basic information for camera. Video/Audio Setup Item Description Video compression mode Compression (Compression mode of video in the camera) If the type of installed camera (NTSC/PAL) is Video Size selected, then the size of screen on the camera becomes selectable.

  • Page 51: Product Information

    4.2. Using Administration page Item Description Selects the video channel to be used in the Video Channel camera. Selects whether to use the audio input Audio-In Channel channel in the camera or not. Selects whether to use the audio output in the Audio-Out Channel camera or not.

  • Page 52: Network

    SNC-550 Network Camera 4.2.3. Network Configures network information of the camera. Network Configuration According to the user’s network environment, it is classified into LAN, xDSL, DHCP. Item Description In case the camera is connected to the local network or xDSL with a static IP address, configure network information to be assigned to the camera.

  • Page 53: User

    4.2. Using Administration page Port/DDNS Configuration Item Description This controls communication with camera. Connection Port (Default : 4000) HTTP Port/ This helps to connect to web page or FTP server. FTP Port (Default : http=80, ftp=21) Select if use of SWR function is available. The way Use SWR of connection which used ID does not support.
  • Page 54 SNC-550 Network Camera Item Description Administrator Change password of administrator Password Change User clicks ‘Guest’ button to decide whether Guest Setup allowing guest to connect Main Viewer. You can register new user or delete, and set up Current User user’s authority. ※...
  • Page 55 4.2. Using Administration page Example 1) In case control function is limited (Do not check Controls box) ※ Pan, tilt, zoom, audio output, alarm output function icon is inactivated Example 2) In case video function is limited (Do not check Video) ※...

  • Page 56: Motion Detection

    SNC-550 Network Camera 4.2.5. Motion Detection This sets up motion detection function of camera. Item Description Basic grid, used to choose area on the screen, is Grid Display displayed or hidden. When selecting motion detection area, click <Select Select Area All>...

  • Page 57: Alarm/Sensor

    4.2. Using Administration page 4.2.6. Alarm/Sensor This sets up necessary information when using alarm function by attaching sensor to camera.
  • Page 58 SNC-550 Network Camera Alarm/Sensor Setup ◊ Digital In Setup Item Description Types of sensors are ‘Normal open’ and ‘Normal Sensor Type close.’ This selects up type of connected sensor. ◊ Digital Out Setup Item Description Set up Alarm Out responding when event is Alarm recognized by connected sensor (Sensor 1) or Motion Detection (MD)
  • Page 59 4.2. Using Administration page Item Description Recipient E-mail You can designate up to two e-mail Address 1 address receiving data when alarm Recipient E-mail occurs. Address 2 In case you use outside e-mail server, Server Name enter the name of the outside e-mail server.

  • Page 60: Time

    SNC-550 Network Camera 4.2.7. Time Current Time Item Description Date Current setup date displayed Time Current setup time displayed Time Setup Item Description Set Manually Adjust time manually. Time Server Set up address of time server for Server 1 - 5.

  • Page 61: Log

    4.2. Using Administration page 4.2.8. LOG Recent activities made for camera are displayed as log. Item Description Lines Set up number of lines of the list. Log is viewed with number of lines you set up most View recently. Clear Delete logs.

  • Page 62: Upgrade

    SNC-550 Network Camera 4.2.9. Upgrade Upgrade program of SNC-550 network camera. System Upgrade Configuration. Item Description Firmware Upgrade firmware of SNC-550 network camera. Upgrade webpage of SNC-550 network camera. WebPage Factory Mode Setup If you click <Reset> button, server is returned to initial value when shipped from the factory after confirmation procedure by administrator.

  • Page 63: System Reboot

    4.2. Using Administration page 4.2.10. System Reboot Server is rebooted after confirmation procedure of administrator. Click <OK> button to reboot server.

  • Page 65: Setup Menu

    5.1. Setup MENU 5.1. Setup MENU SETUP LENS SHUTTER WHITE BAL. BACKLIGHT MANUAL MANUAL MANUAL MIDDLE HIGH SPOTLIGHT SSNR SENSE-UP SPECIAL CAMERA ID NORMAL AUTO DAY&NIGHT HIGH MIDDLE COLOR GAIN HIGH SYNC PRIVACY MIRROR SHARPNESS RESET EXIT RETURN...

  • Page 66: How To Set Up Functions

    SNC-550 Network Camera 5.2. How to Set Up Functions Use OSD button displayed on Web Viewer screen to set up functions. : OSD button is popped up in Web Viewer. 1. Please press the <SETUP> button. Settings can now be made. The SETUP menu is displayed on the monitor.
  • Page 67 5.2. How to Set Up Functions 2. Please select any function you wish to activate by using the UP and DOWN buttons. The arrow can be moved up or down by using the UP and DOWN buttons. Please position the arrow to point to the function you wish to operate.

  • Page 68: Lens Selection (Lens)

    SNC-550 Network Camera appears at the mode you wish to operate, Caution it means that there is a sub-menu which can be selected by pressing the <SETUP> button. If - - - appears at the mode item, it means that there is no mode available to be selected.
  • Page 69 5.2. How to Set Up Functions When using an auto iris lens, the setting of the Caution auto iris lens selection switch, located on the back of the camera, must be on DC or VIDEO depending on the type of the lens which is being used.

  • Page 70: Shutter (Condition And Speed Control)

    SNC-550 Network Camera 5.2.2. SHUTTER (condition and speed control) Auto or manual control can be selected. 1. When the SETUP menu is on the screen, please position the arrow to point to 'SHUTTER' by using the DOWN button. 2. Please select the shutter mode by pressing the LEFT or RIGHT button.

  • Page 71: White Bal. (White Balance Control)

    5.2. How to Set Up Functions When selecting DC/VIDEO lens, the shutter speed is fixed at 1/60. Caution While using the internal synchronous system, if the shutter setting is on 'ESC' and the camera is directly facing a bright fluorescent light, the image on the screen can be adversely affected.
  • Page 72 SNC-550 Network Camera (Ex. fluorescent light, outdoor, sodium vapor lamp or inside tunnels) AWC(Auto White Balance Control) : Please press the <SETUP> button while the camera is directed at a piece of white paper to obtain the optimum state under current illumination. If the environment including the light source is changed, you have to adjust the white balance again.

  • Page 73: Backlight (Backlight Compensation)

    5.2. How to Set Up Functions 5.2.4. BACKLIGHT (Backlight Compensation) When there is a strong backlight behind the object, clear images of the background as well as the object can still be obtained by using the BACKLIGHT function. 1. Please position the arrow to point to 'BACKLIGHT' on the SETUP menu by using the UP and DOWN buttons.

  • Page 74: Agc (Auto Gain Control)

    SNC-550 Network Camera possible to a subject in the center of the image exposed correctly. Under ordinary circumstances, 'SPOTLIGHT' Caution may not be operated unstably. HIGH/MIDDLE/LOW: You can adjust the sensitivity of Backlight Compensation. OFF: BACKLIGHT function does not operate. BACKLIGHT ON BACKLIGHT OFF 5.2.5.

  • Page 75: Ssnr (Samsung Super Noise Reduction)

    1~70. 4. Please press the <SETUP> button when all the settings are complete. 5.2.6. SSNR (Samsung Super Noise reduction) The background noise in the low light level decreases automatically as the level of gain changes.

  • Page 76: Sens-Up (Low Illuminance)

    SNC-550 Network Camera SETUP 1. LENS MANUAL 2. SHUTTER 3. WHITE BAL. 4. BACKLIGHT 5. AGC NORMAL ► 6. SSNR 7. SENS-UP 8. SPECIAL 9. EXIT OFF: There is no reduction in noise level. LOW: There is a small reduction in noise level with almost no ghost image.
  • Page 77 5.2. How to Set Up Functions When SHUTTER is in the manual mode, SENS Caution UP does not operate. When AGC is turned off, SENS UP does not operate. SETUP 1. LENS MANUAL 2. SHUTTER 3. WHITE BAL. 4. BACKLIGHT 5.

  • Page 78: Special

    SNC-550 Network Camera 5.2.8. SPECIAL 1. Please position the arrow to point to 'SPECIAL' on the SETUP menu by using the UP and DOWN buttons. 2. Please select the mode you wish to operate by pressing the UP or DOWN button. SETUP ►...
  • Page 79 5.2. How to Set Up Functions 3. Please press the <SETUP> button. 4. Up to 15 letters can be used for the ID. Please move the cursor to the letter you wish to choose by using the UP and DOWN button. Select an ID from A~Z, a~z, 0~9 by using the UP, DOWN, LEFT and RIGHT buttons.
  • Page 80 SNC-550 Network Camera If the wrong name has been input... If you press the SETUP button after moving the Caution cursor to CLR, all the letters will be erased. If you want to correct a letter, please move the cursor to the arrow at the bottom left of the screen and press 'SET'.
  • Page 81 5.2. How to Set Up Functions Please find the position you wish to display the name by using the 4 directional buttons, and then press the <SETUP> button. 6. Please select 'END' and then press the SETUP button to complete ID input. DAY&NIGHT (ICR TYPE) : Select from COLOR, BW, AUTO or EXT modes.
  • Page 82 SNC-550 Network Camera If AGC is OFF, you can't select AUTO mode and B/W mode. Caution When selecting BW mode, AGC is fixed to HIGH mode. It may be out of focus when using Infrared rays lighting compared to general lighting. SYNC: Two SYNCHRONIZATION modes are available INTERNAL and EXTERNAL LINELOCK.
  • Page 83 5.2. How to Set Up Functions PRIVACY: Mask privacy area you do not wish to appear on the screen. OFF: Cancels the PRIVACY mode. ON: Operates the PRIVACY mode. - Please press the SETUP button. - Please select the area you do not wish to appear from the 4 areas in AREA SEL mode.

  • Page 84: Exit

    SNC-550 Network Camera - Please press <SETUP> button. - The available range of level is 0 ~ 31. RESET: Returns to the level which was set by the manufacturer for shipment. RETURN: Returns to the SETUP menu. 5.2.9. EXIT Saves all the setting menus and then exits.
  • Page 86 SNC-550 Network Camera If there are problems in operation, please refer to the items below. If the problem persists, please contact the agent you purchased this product from. Problem Solution Nothing appears on Please check the power connection. the screen. Please check the video signal line connection.
  • Page 87 Troubleshooting Problem Solution There is a problem with camera Please check if an appropriate power operation. source to the camera complies with the The camera surface is too hot and black manufacturer's standard requirement, or stripes appear if the voltage keeps changing. the screen.
  • Page 88 SNC-550 Network Camera Problem Solution SENS-UP function is Please check if the AGC menu is set to not working. the OFF position. Please check if the SHUTTER menu is set to MANUAL mode. Please check the limit of SENS-UP AUTO mode. Please check the audio is selected from Audio is not working admin page.
  • Page 89 Troubleshooting Problem Solution Click ‘refresh (shortcut; F5) ’ button at No image from web viewer browser to recall the page Check whether power of camera and network cable is properly connected. Check whether computer is connected to network. If you use hub or router, check whether such equipments are properly operated.

  • Page 91: Appendix A. Ddns Usage

    DDNS Usage Registration process of DDNS is as following: Step1) Complete the registration form in iPOLiS website. The website is ‘www.samsungipolis.com’. Figure A-1. Website of iPOLiS...
  • Page 92 SNC-550 Network Camera Figure A-2. Membership Registration: SIGNUP Figure A-3. Membership Registration: Input your information.
  • Page 93 DDNS Usage Step2) Register the equipment after login. Figure A-4. Login Figure A-5. The list of registered equipment.
  • Page 94 SNC-550 Network Camera Figure A-6. The list of registered equipment. Figure A-7. Product Registration. (Confirm repetition certainly at domain registration.)
  • Page 95 DDNS Usage Step3) Configure DDNS information in the equipment. Click the part of Network Configuration in website of Network Camera. Click “USE DDNS” in order to do “Enable” and input the address of DDNS Server. (Default: www.samsungipolis.com ) Enter the ID and Password that is written when register product is in iPOLiS website.
  • Page 96 SNC-550 Network Camera Step4) Confirm the connection status of relevant product in product list of iPOLiS website. Figure A-8. The List of Product. Be able to confirm the information of connected equipment if click <check> button of ‘Product information’.
  • Page 97 DDNS Usage Figure A-9. Product information Move to Login website of relevant product if click <view> button of ‘ view’. The buttons which are <Edit> and <Delete> of ‘product management’ move to relevant page through input password to item that fertilize or erase information of registered equipment in List of product.

  • Page 98: Specifications

    SNC-550 Network Camera Specifications Items SNC-550N SNC-550P Sensor 1/3 inch, Super HAD CCD Total Pixels 811(H) x 508(V) 795(H) x 596(V) Effective Pixels 768(H) x 494(V) 752(H) x 582(V) Scanning System 2:1 Interlace Synchronization Internal / Line Lock H : 15.734KHz / H : 15.625KHz / Frequency V : 59.94 Hz...
  • Page 99 Specifications Items SNC-550N SNC-550P NTSC : 704 x 480(D1), 704 x 240(HD1), 352 x 240(CIF) Image Resolution PAL : 704 x 576(D1), 704 x 288(HD1), 352 x 288(CIF) Compression MPEG4 / JPEG Selectable Image Compression 5Steps (Very Low, Low, Middle, High, Very High) Step Frame Rate NTSC/PAL : Max 30/25 frame/sec...

  • Page 100: Dimension

    SNC-550 Network Camera Dimension...
  • Page 102 SAMSUNG TECHWIN SALES NETWORK SAMSUNG TECHWIN CO., LTD. SAMSUNG OPTO-ELECTRONICS UK, LTD. 145-3, Sangdaewon-dong, Jungwon-gu, Samsung House, 1000 Hillswood Drive, Seongnam-si, Gyeonggi-do 462-120, Korea Hillswood Business Park Chertsey, Surrey KT16 OPS Tel: +82-31-740-8151~8 Fax: +82-31-740-8145 Tel: +44-1932-45-5308 Fax: +44-1932-45-5325 www.samsungtechwin.com www.samsungipolis.com...
