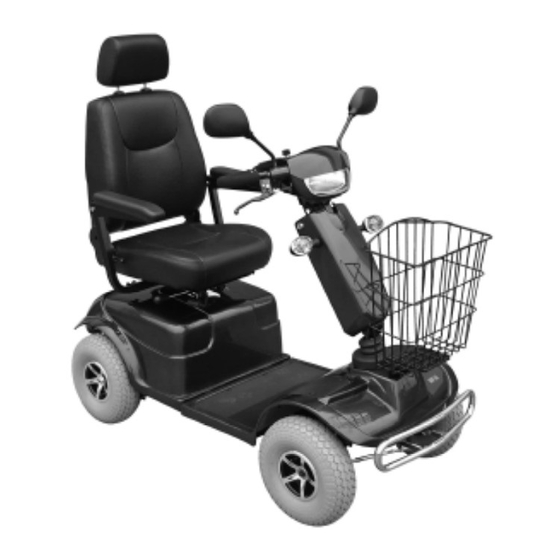

Electric Mobility Rascal 309 Owners Manual & Service Record

Electric Mobility Rascal 309 Owners Manual & Service Record

Electric scooter

Advertisement

On the following pages you will find the user manual for the ascal 309 / 329LE mobility
scooters.
We stock a range of
Electric Mobility
scooters.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rascal 309 and is the answer not in the manual?

Questions and answers

Summary of Contents for Electric Mobility Rascal 309

  • Page 1 On the following pages you will find the user manual for the ascal 309 / 329LE mobility scooters. We stock a range of Electric Mobility scooters.
  • Page 2 Rascal 309 / 329LE Scooter Owners Manual & Service Record Rascal 309 Rascal 329LE Electric Mobility Euro Limited, Canal Way, Ilminster, Somerset TA19 9DL Telephone: 01460 258100 www.electricmobility.co.uk Issue 1: 06/08...
  • Page 3 329LE Electric Mobility Euro Ltd has designed these powerful, durable long range, road-capable scooters for comfort during outdoor use. So long as they are maintained and operated in accordance with this manual they should last for many years, and provide you with freedom and independence.
  • Page 4: Table Of Contents

    Dealer information Contents Features and layout Safety information Intended use Safety Information Controls - Dashboard Controls - Driving Controls & Accelerator Freewheel Device Battery Cut-Out Brakes Armrest adjustment Swivel seat Seat back adjustment Seat position adjustment Tiller folding Driving the vehicle Driving the vehicle - hazards Transporting your scooter Assembling your scooter...
  • Page 5: Dealer Information

    Fold down backrest Forward/reverse lever Fold up / Adjustable armrests Tiller Adjustment Internal charger Removable and battery front basket Freewheel lever Charging cable (right hand side) Pneumatic tyres all round Rascal 309 & 329LE Scooter Owner’s Manual & Service Record...
  • Page 6: Safety Information

    Users could endanger themselves and others if they are not capable of driving this scooter safely. Dealers will advise on the most suitable vehicle from the Electric Mobility range, but it is up to users to ensure that they have the manual dexterity to drive the vehicle, adequate sight and hearing to perceive danger in time, and can at all times operate the scooter safely in the expected conditions.
  • Page 7: Safety Information

    Warning ! Sitting for long periods may increase the chance of thromboses or pressure sores. Users prone to such conditions are advised to take medical advice. Warning ! The Rascal 309 and 329LE scooters have been designed and tested for drivers with weights up to those in the Technical Specification Sheet. These weights should never be exceeded.
  • Page 8: Controls - Dashboard

    Warning ! Stopping If the scooter stops suddenly when turning, the scooter might topple. Try not to brake when turning. Warning ! Leaning Over Do not lean sideways, as this could cause the scooter to topple. Warning ! Escalators Never drive this scooter onto an escalator as this could cause toppling and severe injury. Warning ! Roads Cross roads at designated places where access and exit is ramped.
  • Page 9: Controls - Driving Controls/Accelerator

    Push the lever DOWN. This is the normal operating position. The brakes are enabled, and the vehicle can only operate with the lever in this position. Rascal 309 & 329LE Scooter Owner’s Manual & Service Record...
  • Page 10: Brakes

    Brakes There are 3 braking systems. The first works with the finger controls. When the finger control is released the scooter will automatically brake and bring the scooter smartly to a stop. When the scooter stops an automatic brake will engage. This will stop the vehicle rolling forward or backward. When you start this brake will automatically disengage.
  • Page 11: Seat Back Adjustment

    Warning! Before driving, always check that the tiller is securely in the most comfortable position and cannot move forwards or backwards. Warning! Do not hang anything on the tiller levers. Rascal 309 & 329LE Scooter Owner’s Manual & Service Record...
  • Page 12: Driving The Vehicle

    Driving the Vehicle Warning! Read this before driving the vehicle! Whether or not this is your first mobility vehicle, please read these guidelines as all vehicles differ. Failure to do this may cause damage to you, a third party or the vehicle. Before you set out, do check the weather forecast.
  • Page 13: Transporting Your Scooter

    Pinching or Crushing. Be careful to avoid being pinched or having your hands crushed when lifting or handling parts. Wear gloves whenever possible. Warning! This vehicle is not suitable for use as a seat for an occupant in a motor vehicle. Rascal 309 & 329LE Scooter Owner’s Manual & Service Record...
  • Page 14: Assembling Your Scooter

    To transport your scooter you may need to remove the seat lower and the tiller in order to reduce the overall height. You are advised to wear gloves during this operation . Lift off the front basket. Remove the seat by lifting it off the seat post while lifting the seat lever. A small rotation is sometimes necessary to free the seat.
  • Page 15: Battery Charging

    Do not disconnect the charger or switch it off before this lamp goes green. Note the fuse on the charger is there to protect against a severe battery fault. Rascal 309 & 329LE Scooter Owner’s Manual & Service Record...
  • Page 16 Connection Instructions When you receive your vehicle the batteries are only partially charged – always fully charge them before use preferably over-night. Always fit the full set of batteries before charging and always use an earthed connection. Place your scooter in an area that is dry and well ventilated. Make sure a power point is nearby. Check the vehicle is switched off and the key removed.
  • Page 17: User Maintenance

    Do not carry children as passengers. The product is designed for single person use only. Keep all packaging well away from children. They could be harmed. Rascal 309 & 329LE Scooter Owner’s Manual & Service Record...
  • Page 18: Troubleshooting Guide

    Troubleshooting Guide This table is a guide to fault finding. The fault may be a simple fix. If you have any doubts phone your dealer. Symptom Solution • Scooter does not move. • Batteries flat - check level. when power is switched on. •...
  • Page 19: Frequently Asked Questions

    Consult your dealer on the condition of your vehicle and remember vehicles of any type become more expensive to maintain the older they get. Rascal 309 & 329LE Scooter Owner’s Manual & Service Record...
  • Page 20: Servicing & Maintenance

    Servicing and Maintenance This vehicle is designed for minimum maintenance. However it is recommended that your vehicle is serviced at least once a year, by an approved Electric Mobility Dealer. If the vehicle is used constantly we recommend a twice yearly maintenance.
  • Page 21: Engineers Checklist

    Enquire if the customer is satisfied with the product. Please report all points good or bad directly to: Electric Mobility 01460 258100 If you have any comments please include them. Rascal 309 & 329LE Scooter Owner’s Manual & Service Record...
  • Page 22: Guarantee & Warranty

    Mobility Euro Limited. Any description, specifications, samples, models, bulletins or similar materials used in connection with the sales of Electric Mobility Euro Limited products are for the sole purpose of identifying the equipment and are not to be construed as expressed warranties. This limited warranty applies only to the original purchaser of the equipment and is not transferable.
  • Page 23: Technical Specification - 309

    The maximum climbing ability facing upwards degrees of slope 10˚ Ground clearance mm (in) 100 (4) Maximum obstacle climbing ability mm (in) 90 (3.5) Maximum safe descendable kerb height mm (in) 90 (3.5) Rascal 309 & 329LE Scooter Owner’s Manual & Service Record...
  • Page 24: Technical Specification - 329Le

    Technical Specification - Rascal 329LE Scooter Wheelchair type Class Class A, B or C Class B Department of Transport Class Class 1 2 or 3 Class 3 Overall dimensions fully assembled length x width x height mm (in) 1470 (58) x 645 (25) x 1300 (51) Dimensions seat removed tiller folded length x width x height mm (in) 1470 (58) x 645 (25) x 730 (29)
  • Page 25 Notes Rascal 309 & 329LE Scooter Owner’s Manual & Service Record...
  • Page 26: Brochure Request

    Postage will be paid by: Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, TA19 9ZA Dealer Information - Warranty Card This section is to be filled out by the Dealer and sent to Electric Mobility Euro Ltd. Dealer: Product Description: Serial No.:...
  • Page 27 Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, TA19 9ZA Electric Mobility Euro Ltd., FREEPOST (SWBI 1045), Ilminster, Somerset, TA19 9ZA...
  • Page 28: Service Log

    Service Log Notice for the Service Engineer. Please make sure this part is stamped and dated after each service. Dealer stamp - 1st Service Dealer stamp - 2nd Service Dealer stamp - 3rd Service Dealer stamp - 4th Service Dealer stamp - 5th Service Dealer stamp - 6th Service Dealer stamp - 7th Service Dealer stamp - 8th Service...
  • Page 29 Rascal 309 / 329LE Scooter Manufactured by Electric Mobility Euro Limited, Canal Way, Ilminster, Somerset TA19 9DL Telephone: 01460 258100 www.electricmobility.co.uk E. and O.E. Issue 1: 06/08...
  • Page 30 f you need any help with this manual, or if you are looking for a mobility scooter and parts please contact us and we will be delighted to help. Free on   08000 96 12 96 f you wish to call from a mobile then the call may not be free and you may be charged.   Landline 01305 213147 Alternatively, email us at sales@discountscooters.co.uk...
