Makita JS3200 Instruction Manual

Hide thumbs Also See for JS3200:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual See also: Instruction Manual
Shear

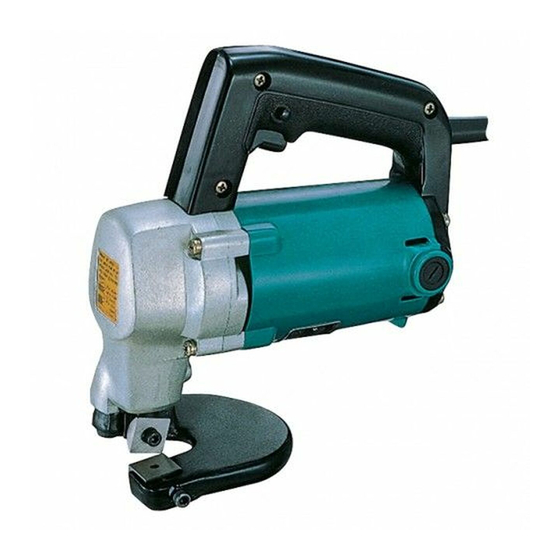

MODEL JS3200
I N S T R U C T I O N
WARNING:
For your personal safety, READ and UNDERSTAND before using.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
DOUBLE
INSULATION
M A N U A L
004667

Advertisement

loading

Related Manuals for Makita JS3200

Summary of Contents for Makita JS3200

  • Page 1 Shear MODEL JS3200 004667 DOUBLE INSULATION I N S T R U C T I O N M A N U A L WARNING: For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

  • Page 2: Specifications

    Responsible manufacturer: Power supply Makita Corporation Anjo Aichi Japan The tool should be connected only to a power supply of the same voltage as indicated on the nameplate, and can only be operated on single-phase AC supply. They...

  • Page 3: General Safety Rules

    GENERAL SAFETY RULES GEA001-3 WARNING: Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.
  • Page 4 19. Store idle power tools out of the reach of chil- the manner intended for the particular type of dren and do not allow persons unfamiliar with power tool, taking into account the working con- the power tool or these instructions to operate ditions and the work to be performed.

  • Page 5: Functional Description

    FUNCTIONAL CAUTION: DESCRIPTION • Always be sure that the tool is switched off and unplugged before adjusting or checking function on the tool. Switch action 004670 CAUTION: • Before plugging in the tool, always check to see that the switch trigger actuates properly and returns to the “OFF”...
  • Page 6 When all eight edges are dull on both the upper and lower blades, replace both 004679 blades with new ones. Each time blades are rotated or replaced, proceed as follows. Remove the blade securing bolts with the hex wrench provided and then rotate or replace the blades.

  • Page 7: Operation

    First, semi- tighten the lower blade securing bolt, then insert the thickness 004685 gauge for the desired clearance. The cutting thickness is indicated on the thickness gauge so the combinations shown in the table below should be used. Work the lower blade positioning bolt on the yoke until the clearance is such that the thickness gauge moves only with some difficulty.
  • Page 8 CAUTION: • These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.
