Summary of Contents for Inter-m PD-9359

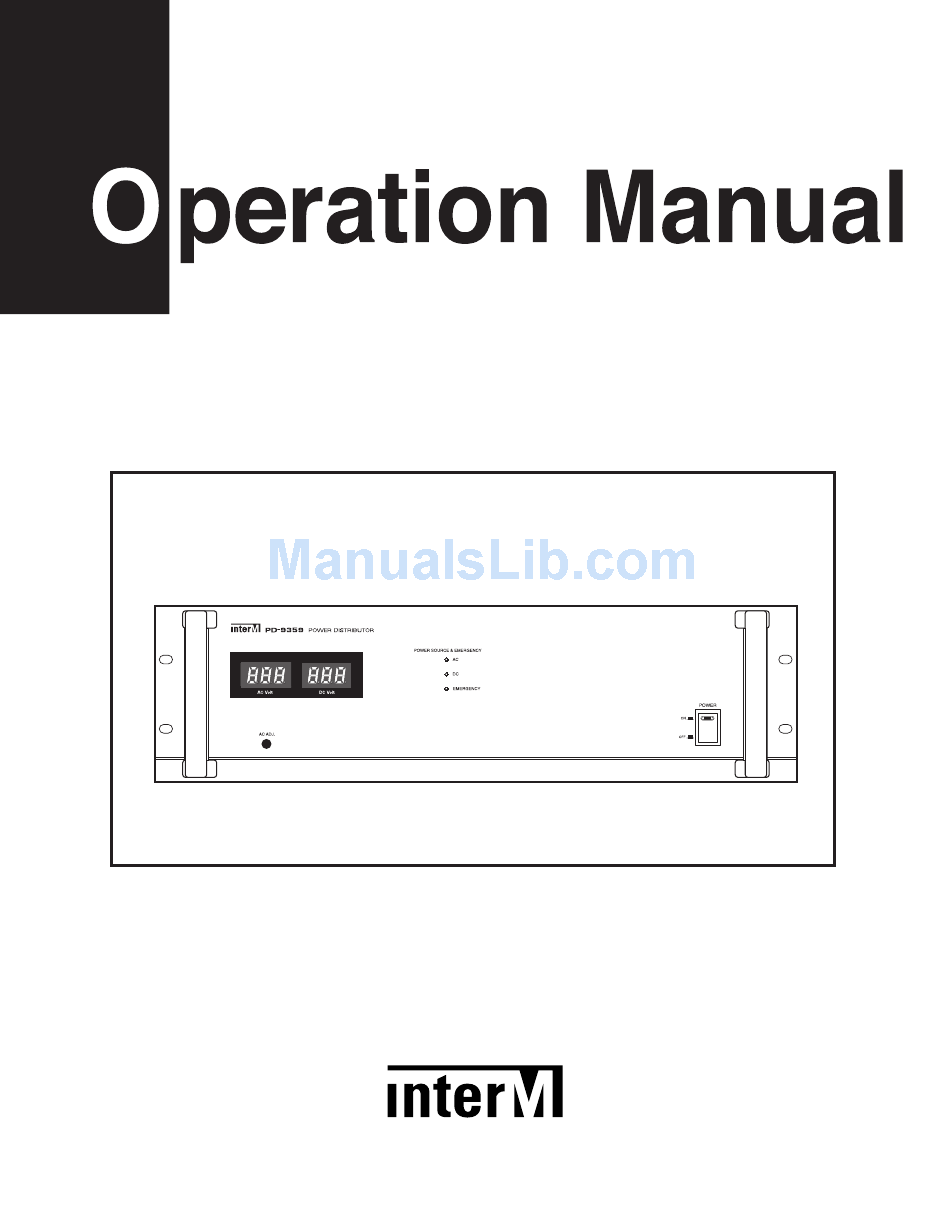

- Page 1 PD-9359 Power Distributor...
-
Page 2: Table Of Contents
Contents Contents Welcome Warning..........................1 Unpacking ..........................2 Installation Environment..........................2 Important Safety Instructions ....................2 Features ..........................3 Operation ..........................3 Front Panel ..........................4 Rear Panel ..........................5 Applications ..........................7 Block Diagram ........................8 Specifications ..........................9 Service Procedures .........................10 Schematic ...........................10 Parts List ..........................10 Variations and Options ......................10 Warranty ..........................10... -
Page 3: Warning
A personal welcome to you from the management and employees of Inter-M All of the co-workers here at Inter-M are dedicated to providing excellent products with inherently good value, and we are delighted you have purchased one of our products. -
Page 4: Unpacking
S3125A S3125A PD-9359... -
Page 5: Features
Keep volume levels at minimum gain before switching on. NOTE: The system’s operation is delayed by approximately three seconds after pressing the AC Mains power switch. This is due to the built-in protection circuitry, designed to protect speakers and other system components. PD-9359... -

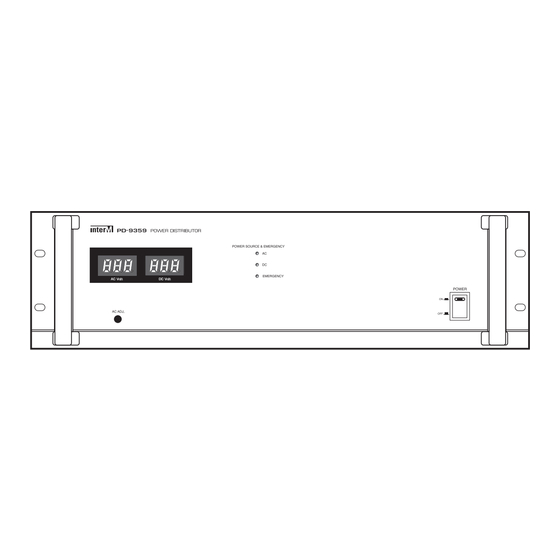

Page 6: Front Panel
The LED make a light when power is ON by switch on front panel or remote control terminal. 7. POWER SWITCH Pressing this switch to ON will make the power indicating LED ON and supply the power to this unit. PD-9359... -
Page 7: Rear Panel
AC power is always supplied by this outlet. If any equipment must be always turned ON, please use this outlet. 7. BATTERY INPUT TERMINAL This terminal is supplied DC power from the battery charger when unexpected AC power failure. PD-9359... - Page 8 This fuse holders contain AC and DC fuses. When fuses are blown out, it should be replaced with the same type just like following page. If it continues to blow, stop replacing fuse and refer servicing to qualified personnel. Voltage AC 110V/120V AC 220V/240V Fuse Rating 4A/250V 2A/250V 5A/250V PD-9359...
-
Page 9: Applications
PM-9208 PW-9242N PT-9107SD AC INPUT 220V 60Hz FUSE T125mAL / 250V PC-9335 CD-3500 PE-9103A PP-9113 EQ-2131 PO-9106 PS-9116 PA-9312 PA-9324 EMERGENCY MODEL ES-9116 PX-9116 RG-9116 EP-9216 PD-9359 REMOTE AC INPUT PB-9207A • •• • • • • • BATTERY PD-9359... -
Page 10: Block Diagram
POWER DISTRIBUTOR Block Diagram Block Diagram PD-9359... -
Page 11: Specifications
- GENERAL Power Source ...........100–120VAC or 220–240VAC; 50/60Hz or 24V DC ..........(Supplied AC mains transformer depends on country requirements) Weight ..........................19kg/41.9lb Dimensions ............482(W) x 132(H) x 280(D)mm/19(W) x 5(H) x 11(D)in * Specifications and design subject to change without notice. PD-9359... -
Page 12: Service
To obtain specific warranty information and available service locations contact Inter-M directly or the authorized Inter-M Distributor for your specific country or region. - Page 13 MADE IN KOREA December 2005 9007973810 A...
