- Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com HD160C Heavy-Duty True-rms Digital Multimeter User Manual...

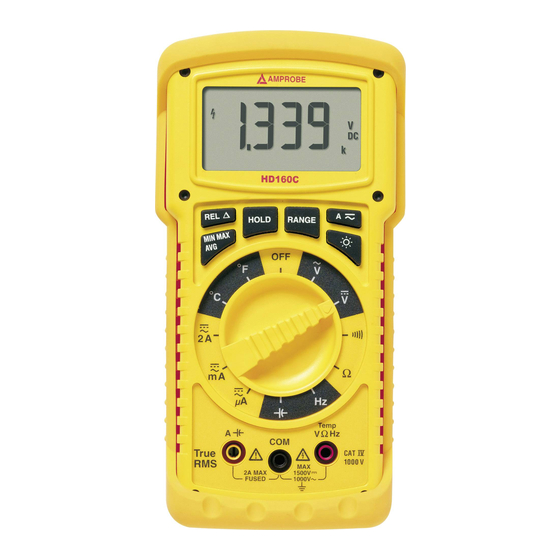

- Page 2 HD160C HD160C HOLD RANGE MIN MAX Temp 1000 V 2A MAX 1500V FUSED 1000V Description COM Input - common or low input for all measurements Current and Capacitance Input Function/Range Selector Switch MIN MAX AVG Button RELative Button Low Battery Indicator...
-
Page 3: Table Of Contents
HD160C Heavy-Duty True-rms Digital Multimeter Contents Symbols ............................2 Introduction ..........................2 Warnings and Precautions ......................2 Unpacking and Contents ......................3 Display Symbols and Audible Symbols ..................4 Overload Condition ........................4 Incorrect Input Warning ......................4 Dangerous Voltage Warning .......................4 Audible Feedback .........................4 Analog Bargraph ..........................5 Disable Beeper and Auto-Power Off ..................5... -
Page 4: Symbols
Off to save battery life. The instrument is completely o-ring sealed to pass strict IP-67 ratings for moisture and dust proof. The HD160C also has internal components shock - mounted for drop proof capability. The HD160C meets the highest safety rating of CAT IV 1000 V (1500V DC max). -
Page 5: Unpacking And Contents
Unpacking and Contents Your shipping carton should include the HD160C multimeter, a holster with Magna-Grip, one test lead set with alligator clips(one black, one red), one temperature adaptor, one Type K thermocouple probe, one 9 V battery (installed), a hex wrench (held inside holster) and this manual. -
Page 6: Display Symbols And Audible Symbols
Display Symbols and Audible Symbols Dangerous voltage warning (also double beep tone). Indicates input � voltages higher than 30 V ac or 60 V dc. Low-battery voltage Negative polarity indicator Overload Condition Input Overload (highest range in autoranging) is indicated by “OL or -OL” and a continuous tone. -
Page 7: Analog Bargraph
Analog Bargraph The 41 segment analog bargraph indicates the percentage of the range the displayed measurement relates to. The zero segment is lit when the instrument is turned on. Each segment after that equals 2.5 % of range. The 400 mA, 40 MΩ, and Capacitance ranges are limited to 16 segments. -
Page 8: Measuring Ac Voltage - True Rms (See Figure 2)
Read the display, and, if necessary, correct any overload (OL) conditions. True rms AC Measurements Model HD160C is an ac-coupled True rms measuring meter. It measures the True rms value of distorted AC voltage or current signals. The Crest Factor handling capability is shown in Table 1. -
Page 9: Measuring Dc Current (See Figure 3)
Measuring DC Current (See Figure 3) μA Set the Function Switch to a current function, , or If AC is displayed, press the A� button to turn on If the 2A function is not selected and RANGE is displayed, press the RANGE button to enable auto ranging. -
Page 10: Continuity Test (See Figure 5)
Continuity Test (See Figure 5) Set the Function Switch to �. Connect the test leads: Red to Temp VΩHz, Black to COM. Turn off power to the circuit being measured. Discharge any capacitors that may influence the reading. Connect the test leads across the resistance. Listen for the tone that indicates continuity (<... -
Page 11: Measuring Capacitance (See Figure 7)
Connect the TEMP adapter to the Temp VΩHz and COM inputs. Note: The HD160C is compatible with all K-type thermocouples. The K-type bead thermocouple supplied with the meter is not intended for contact with liquids or electrical circuits. -
Page 12: Button Functions
Button Functions Display Backlight Model HD160C has Digi-Glo backlighting, one of the best backlights available in the industry. This button turns the backlight on and off. To conserve battery life, backlight will Button automatically turn off after approximately 60 seconds. -
Page 13: Min Max Avg
MAX MIN AVG button while turning the meter ON. Safety Test Leads The test leads provided with your HD160C meter have shrouded banana plugs to eliminate the possibility of shock if the plugs accidentally pull out of the meter while making a measurement. -
Page 14: Specifications
Fuse: F 2 A/1500 V fuse (8 mm x 65 mm), µS/50 µS) based on EN 61010-1:2001 impulse I.R. 30 kA – Amprobe p/n FP700 requirement for at CAT IV 1000 V/1500V dc Power: Standard 9-volt battery, NEDA 1604, JIS product. -
Page 15: Ac Volts True Rms
DC Current Accuracy: ±(3.0% rdg +10dgts) on 40 ηF, 400 µF ranges Ranges: 100 µA, 1000 µA, 10mA, 100mA, 400mA, 2A (Auto/Manual ranging) ±(3.0% rdg +5dgts) on 400 ηF to 40 µF ranges Resolution: 0.01µA in 100 µA range Test voltange: < 1 V Accuracy: Test Frequency: 1.3 Hz on 40 ηF to 40 µF ranges;... -
Page 16: Maintenance And Repair
Maintenance and Repair If there appears to be a malfunction during the operation of the meter, the following steps should be performed in order to isolate the cause of the problem: Check the battery. Review the operating instructions for possible mistakes in operating procedure. Inspect and test the test leads for a broken or intermittent connection. -
Page 17: Repair Information
Please read the warranty statement and check your battery before requesting repair. During the warranty period any defective test tool can be returned to your Amprobe Test Tools distributor for an exchange for the same or like product. Please check the “Where to Buy” section on www.amprobe.com for a list of distributors near you. - Page 18 HD160C HOLD RANGE MIN MAX Temp 1000 V 2A MAX 1500V FUSED 1000V HD160C HOLD RANGE MIN MAX Temp 1000 V 2A MAX 1500V FUSED 1000V...
-
Page 19: Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, Ma
HD160C HOLD RANGE MIN MAX Temp 1000 V 2A MAX 1500V FUSED 1000V HD160C HOLD RANGE MIN MAX Temp 1000 V 2A MAX 1500V FUSED 1000V Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 FAX 781.665.0780 - TestEquipmentDepot.com... - Page 20 HD160C HOLD RANGE MIN MAX Temp 1000 V 2A MAX 1500V FUSED 1000V HD160C HOLD RANGE MIN MAX Temp 1000 V 2A MAX 1500V FUSED 1000V...
- Page 21 HD160C HOLD RANGE MIN MAX Temp 1000 V 2A MAX 1500V FUSED 1000V HD160C HOLD RANGE MIN MAX Temp 1000 V 2A MAX 1500V FUSED 1000V...
- Page 22 HD160C HOLD RANGE MIN MAX Temp 1000 V 2A MAX 1500V FUSED 1000V Visit us at www.TestEquipmentDepot.com Back to Amprobe HD110C/HD160C Page...
