Page 1: Operating Instructions
K 2.09 K 2.09 M 209 M 5.960–764 12/02_2004271 Operating Instructions PRESSURE WASHER K 2.09 K 2.09 M 209 M Before first use of the unit read these operating instructions and act in accordance with them... - Page 2 This provides the cleaning power behind the Karcher Pressure Washer. A Karcher Pressure Washer can be used for an endless list of applications around the home and garden. It provides an efficient, economical and labour saving way of cleaning with excellent results.
-
Page 3: Table Of Contents
INDEX APPLICATIONS ..........................SAFETY INSTRUCTIONS .................... GETTING STARTED ....................... Contents Water Connection Electrical Connection Suction Mode Detergent OPERATING YOUR PRESSURE WASHER ......High Pressure Operation Low Pressure Operation with Detergent End Of Operation IMPORTANT – CARE AND MAINTENANCE ..... ACCESSORIES / SPARE PARTS 14 / 15 ............. -
Page 4: Applications
• Garden tools and machinery, furniture and barbecues • Hygienic cleaning of animal pens and their surroundings With the addition of Karcher accessories, the list continues ..... • Clearing blocked drains and pipes • Removal of old paint and rust from garden furniture and gates... -
Page 5: Safety Instructions
2. SAFETY INSTRUCTIONS BEFORE STARTING UP YOUR PRESSURE WASHER PLEASE CHECK YOU HAVE THE FOLLOWING: We recommend you purchase these items from a reputable store • RCD plug and socket that will interrupt electrical supply in an emergency • A typical garden hose (minimum length 7.5 metres) with suitable hose connection (Hoselock/Gardena type) to match the coupling on the machine (hose and connector not supplied). -
Page 6: Getting Started

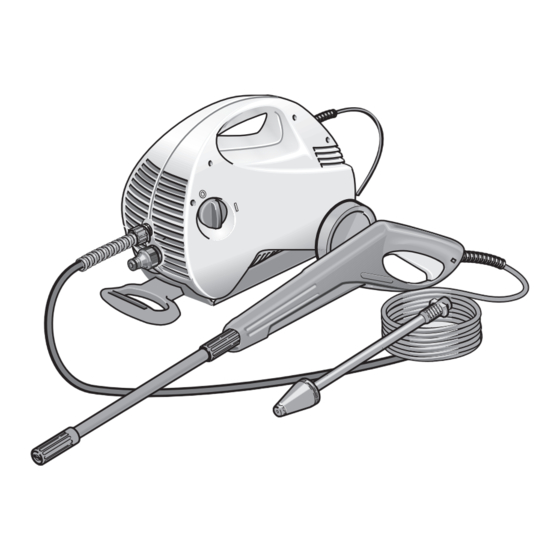

6 Spray lance with double 2 Power switch (ON/OFF) nozzle 10 Mains Electric Lead 3 High-pressure outlet 7 High-pressure hose 11 Transport handle 4 Water connection with filter 8 Spray gun with safety rat- 12 Transport cart (only with chet (A) K 2.09 M) -
Page 7: Water Connection
3.4 Suction Mode - an added benefit of the Karcher Pressure Washer • If you are drawing water from an open container such as a water butt disconnect the high pressure hose from the machine. -
Page 8: Detergent
3.5 Detergent Only cleaning agents recommended by Karcher (UK) Ltd. should be used. Unsuitable detergents could damage your Pressure Washer and the object being cleaned. Recommended Detergents 1. The following cleaning agent may be used undiluted: Universal Cleaner ......Profi RM 555 ASF 2. -
Page 9: Operating Your Pressure Washer
! • Once water is flowing through the machine, you may now switch on your Karcher Pressure Washer using the Power Switch (No. 2). • You can choose between two modes of operation on the Spray Lance (No. -
Page 10: High Pressure Operation
4.1 High Pressure Operation • Ensure the Spray Lance with the Double Nozzle (No.6) or the Dirt Blaster (No. 9) are attached securely to the Spray Gun (No.8), also the double nozzle is set to the required jet. • Aim the lance towards the object to be cleaned making sure the recommended working distance is used for reference (See Page 9). -
Page 11: End Of Operation
SUCTION TUBE IN A CONTAINER WITH CLEAN WATER AND RUN THE PUMP FOR APPROXIMATELY ONE MINUTE IN LOW PRESSURE SETTING. In the event of a break of 5 minutes in the operation of your Karcher Pressure Washer, always switch off the pump to avoid damage due to overheating. -
Page 12: Important - Care And Maintenance
• Always fully uncoil any extension lead when used. Chemicals Use of chemicals other than those recommended by Karcher could cau- se significant damage which may not be covered by your warranty. • After using chemicals, always run fresh water through your machine. - Page 13 • The high pressure hose of your Karcher Pressure Washer should not be mistreated. It is designed to withstand high pressure operation so vehicles should NOT run over it, nor should it be pulled across sharp or abrasive edges. These actions may weaken the hose and cause ballooning.
-
Page 14: Accessories / Spare Parts
6.291-080 RM 555 (5 litre) 6.291-079 RM 555 (6 x 1 litre) Most accessories will be available from your local store selling Karcher Pressure Washers. If they are not stocked, most stores will raise a special order for you. If you have difficulty obtaining accessories... -
Page 15: Spare Parts
6. SPARE PARTS In the event that your Karcher Pressure Washer requires replacement parts – please refer to the diagram below AND identify the particular model of your machine by reference to the data plate on the underside. Then telephone 0906 6800632 for assistance... -
Page 16: Problem Checklist / Troubleshooting
7. PROBLEM CHECKLIST The machine you have chosen is of the highest quality. Correctly stored away from frost it should operate without problems. If a problem does arise, please check the following chart as a solution may be at hand. i t c i t c c i f... -
Page 17: After Sales Service
8. Help-Line Karcher (UK) Limited operate a help-line allowing customers to dis- cuss any problems experienced with our products. The help-line operates during normal business hours, if you have diffi- culty getting through, please understand that there are peak periods during the day when our consultants are unable to take all calls co- ming in. -
Page 18: Technical Data
9. TECHNICAL DATA Power Connection Voltage ....230-240 V -AC Current ...... 1~50 Connected/Load ......1.2 Mains Fuse ......13 Water Connection Supply Temperature (Max) ......40 °C Supply Rate (Min) ......8 litres per minute Supply Pressure (Max) (12 bar) ....Supply Hose: Length ......7.5 metres Diameter... -
Page 19: Assembly
10. ASSEMBLY... - Page 20 EU Declaration of Conformity We hereby declare that the equipment described below conforms to the relevant fundamental safety and health re- quirements of the appropriate EU Directives, both in its ba- sic design and construction as well as in the version marke- ted by us.This declaration will cease to be valid if any modi- fications are made to the machine without our express ap- proval.
