Summary of Contents for Konig SDFTA11
-
Page 1: Satellite Receiver

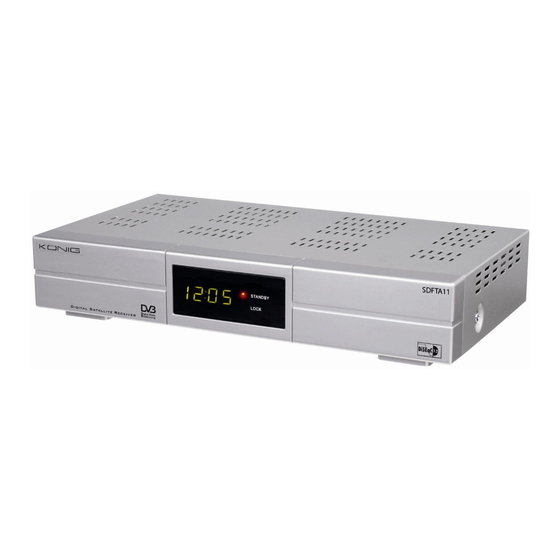

SDFTA11 FREE TO AIR SATELLITE RECEIVER ANLEITUNG MANUAL MODE D’EMPLOI GEBRUIKSAANWIJZING MANUALE MANUAL DE USO HASZNÁLATI ÚTMUTATÓ KÄYTTÖOHJE NÁVOD K POUŽITÍ BRUKSANVISNING... - Page 2 INTRODUCTION Features: This user manual covers the installation of the SDFTA11 satellite receiver and the necessary steps to operate various features. This manual also explains special features available only in this receiver and will allow you to get full advantage of these features.
- Page 4 Remote Control: : Turns power ON/OFF : Mute sound TV/Radio: Switches between TV and Radio 0~9: Numeric keys : Switches back to previous channel Menu: Enters menu EXIT: Exits menu or function OK/LIST: Confirms action or shows channel list FAV: Show favourite list INFO: Show info about current channel/program PR+/PR-: Change channels or move to higher/lower item Adjust volume or move left/right in the menu...
- Page 5 CONNECTIONS Connecting TV, auxiliary and antenna to the receiver. Connect the TV to the receiver (TV OUT) using a scart cable Connect a video recorder or DVD-recorder to the receiver (Video out) using a scart cable Connect the (active) antenna to the receiver (RF IN) ...
-
Page 6: Installation
INSTALLATION Installation menu 1. Press OK key or ▲ key to pop up the "Input Password" dialogue. You can not enter into the menu unless the correct password is inputted. The default password is "0000". (The password may be turned off in the parental lock option in system setup.) 2. - Page 7 Part B: Moter Suppose that you have selected Moter Antenna in the Antenna Connection window. 1. LNB Type: Select the proper LNB type. 2. Motor Type: Select between DiSEqC1.2 and USALS. If you select DiSEqC1.2, the following Local Longitude and Local Latitude items will turn grey. 3.
- Page 8 2.4 Single Satellite Search 1. Satellite : Press keys to select the satellite in circle. Or press OK key to pop up the drop-down list, then select the desired satellite in the list and press OK key to confirm. 2. FTA Only: Press keys to select between Yes and No. 3.
-
Page 9: Channel Manager
CHANNEL MANAGER 1. Press OK key or ▲ key in the Edit Channel menu to pop up the "Input Password" dialogue. You can not enter into the menu unless the correct password is inputted. The default password is "0000". 2. Press ▲/▼ keys to move the cursor up or down. 3. - Page 10 b. Edit (green colour key) Press green colour key to select the Edit menu. Select the program and press OK key to pop up the Rename window. In Rename window, press red colour key to switch between capital letter and lower letter; press green colour key to delete the character on the cursor; press keys to move the cursor left or right;...
-
Page 11: System Setup
SYSTEM SETUP 3.1 Language 1. Press OK key to enter into the Language window. Press keys to select the language in circle, while press ▲/▼ keys to move the cursor up or down in circle. 2. Press MENU key or EXIT key to save and exit. 3. - Page 12 3.5 Parental Lock Before entering the Parental Lock window, you need to enter the correct password. The default password is "0000". 1. Menu Lock: Press keys to select between Off and On. If select "On" , you can not enter into the most windows before entering the password.
- Page 13 TOOLS 1. Press OK key or key to pop up the "Input Password" dialogue. You can not enter into the menu unless the correct password is inputted. The default password is 0000. 2. Press ▲/▼ keys to move the cursor up or down. 3.
-
Page 14: Operation
OPERATION 6.1 Info Press INFO key to pop up the Info bar. Press INFO key again to pop up the program guide of the current program. You can press ◄/► keys to know the program guide of the future 16 days. 6.2 EPG Press EPG key to enter into the EPG window. - Page 15 6.7 Left/Right (Volume+/-) Press the ◄/► keys to change the volume. Press the ◄ keys to decrease the volume by 1 step, while press ► key to increase the volume by step1. 6.8 Mute Press the key to mute the sound. You can press the key once again, or press ◄/►...
- Page 16 6.15 Zoom 1. Press ZOOM key to switch among Zoom*1, Zoom*2, Zoom*3, Zoom*4, Zoom*5, Zoom*6, Zoom*8, Zoom*12, Zoom*16. 2. In zoom mode, press the ▲/▼, ◄/► keys to move the cursor up, left, right, down. 3. Press MENU or EXIT key to exit INFORMATIONS Safety precautions: To reduce risk of electric shock, this product should ONLY be opened by an authorized...
