VIVOTEK

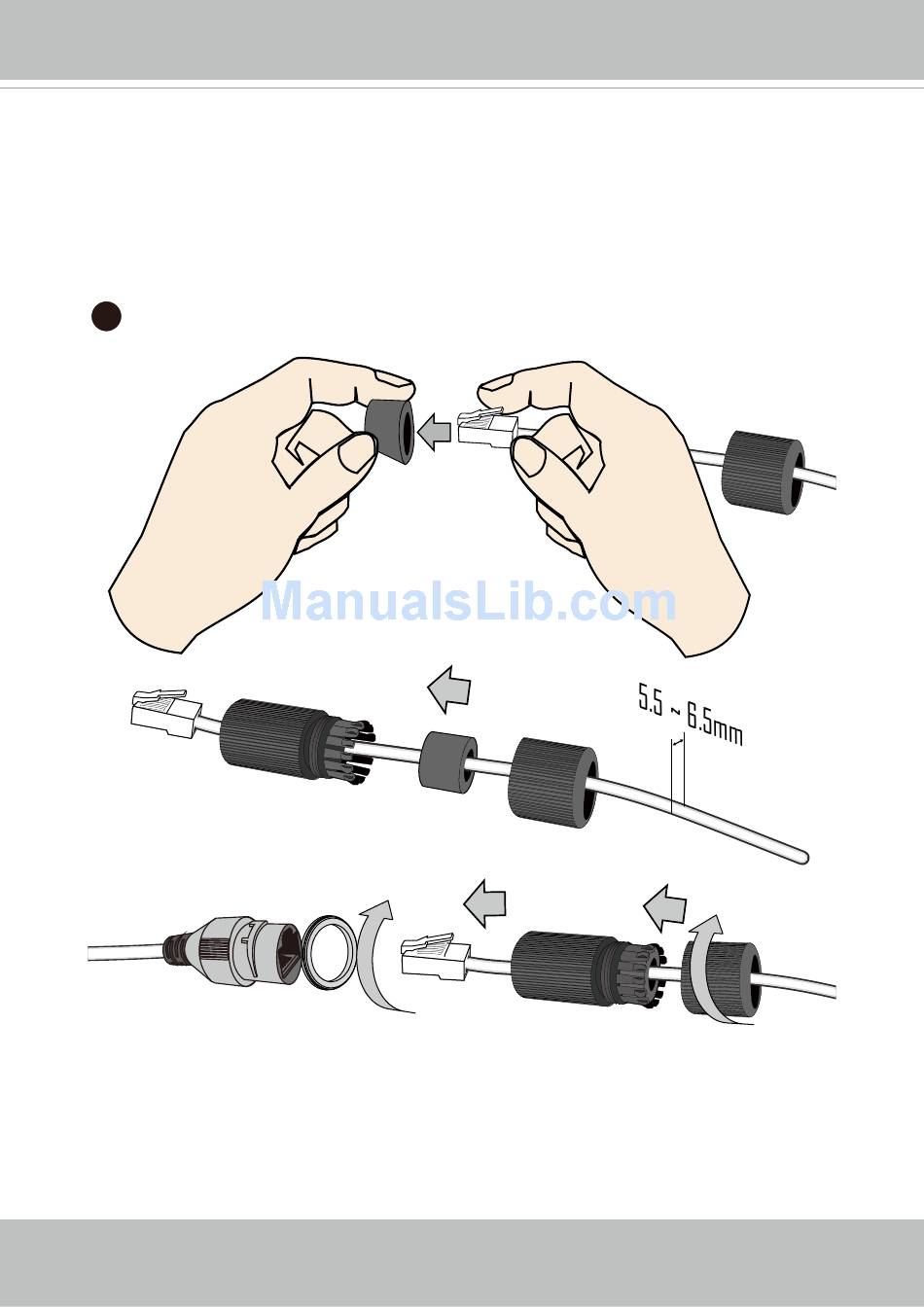

8. When connecting the LAN cable, use the cable housing to make sure the connections
are waterproof.
8-1. Pass the cable through the seal dome, and squeeze the rubber seal through an
RJ45 connector.
8-2. You can then pass the cable through the cable gland body.
8-3. Connect the Ethernet cable to the camera's RJ45 connector with a seal ring. Fasten
up these components. Make sure enough pressure is exerted on the rubber seal.
Connect the other interfaces, such as I/O wires.
8
12 - User's Manual
