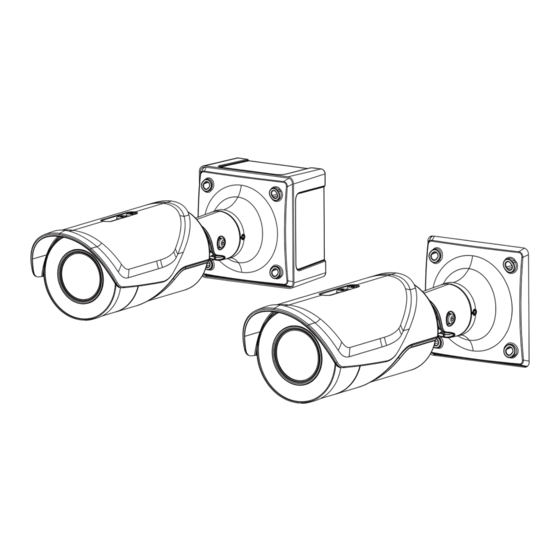

Vivotek IB9391-EHT(W/O JUNCTION BOX) User Manual

Bullet network camera

page of 376

/ 376
Bookmarks

Advertisement

Quick Links

Download this manual

IB9391-EHT

IB9391-EHT(W/O JUNCTION BOX)

User 's Manual

Outdoor • IP66 • IP67 • IK10 • 8MP 30FPS (WDR on) • Day & Night • Remote Focus • P-iris

WDR Pro • Smart Stream III • SNV • 50M Smart IR

Bullet

Network Camera

Rev. 1.0

Advertisement

Need help?

Need help?

Do you have a question about the IB9391-EHT(W/O JUNCTION BOX) and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivotek IB9391-EHT(W/O JUNCTION BOX)

Page 1 IB9391-EHT Bullet IB9391-EHT(W/O JUNCTION BOX) Network Camera User ’s Manual Outdoor • IP66 • IP67 • IK10 • 8MP 30FPS (WDR on) • Day & Night • Remote Focus • P-iris WDR Pro • Smart Stream III • SNV • 50M Smart IR Rev.
Page 2 Applications > DI and DO ...........................134 Applications > Tampering detection ......................135 Applications > Audio detection ........................136 Applications > Package management - a.k.a., VADP (VIVOTEK Application Development Platform) ..138 Recording > Recording settings ........................141 Local storage > SD card management ......................146 Local storage >...
Page 3 The IB9391-EHT is the fagship outdoor bullet network camera from VIVOTEK, equipped with a 4K ultra HD sensor capable of 3840x2160 resolution at 30 fps. With the latest in VIVOTEK WDR Pro technology, the IB9391-EHT is capable of capturing the highest quality images in high contrast environments.
Page 4 VIVOTEK Read Before Use The use of surveillance devices may be prohibited by law in your country. The Network Camera is not only a high-performance web-ready camera but can also be part of a flexible surveillance system. It is the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use.
Page 5 VIVOTEK Symbols and Statements in this Document INFORMATION: provides important messages or advices that might help prevent inconvenient or problem situations. NOTE: Notices provide guidance or advices that are related to the functional integrity of the machine. Tips: Tips are useful information that helps enhance or facilitae an installation, function, or process.
Page 6 1. La caméra ne doit être raccordée qu’à des réseaux PoE, sans routage vers des installations extérieures. 2. Pour les raccordements PoE, utilisez uniquement un équipement de TI homologué UL, avec une sortie PoE. IMPORTANT: Please contact VIVOTEK's certified dealers for power adapters. 6 - User's Manual...
Page 7 VIVOTEK Hardware Installation 1. Jot down the camera's MAC address for later reference. XXXXXX 0002D10766AD 2. Remove the small access panel to access the SD card slot and install a MicroSD card. Installl the panel when done. 3. Use the included alignment sticker to drill holes on the wall, and install the junction box.
Page 8 VIVOTEK 4. If you need to route cables through a conduit, remove the plastic stopper underneath the junction box. 5. Route cables through the conduit, and install a 3/4" conduit to the junction box. Note that the conduit is user-supplied. Even if you route cables through the center hole, a conduit is still recommended for water-proofing.
Page 9 VIVOTEK 6. Install the sunshield by driving 2 screws. 7. Connect the safety tether to the anchor point at the back of the camera. User's Manual - 9...
Page 10 VIVOTEK 8. If used, connect the AC/DC power, DI/DO, or audio wires to the terminal connectors. AC24V MIC P AC24V DC+ (12V) MIC- MIC+ icro DI1- DI1+ DO1- DO1+ (5V) 9. Pass an Ethernet cable through the waterproof cable gland components, and through the rubber seal as shown below.
Page 11 VIVOTEK NOTE: If you are not using the junction box, use putties to seal the cable joints for water-proofing. Connect the ground wire to a grounded earth rod with a resistance smaller than 4Ω, with a section area larger than 25mm , to a ground rod 1.5 meters into the ground.
Page 12 VIVOTEK It is also very important to route cables to form a drip loop. Leakage or moisture can gather in condensation into water drops and run along the cable. A drip loop ensures no water gets to the camera. Drip loop...
Page 13 VIVOTEK 10. Secure the camera to the junction box using 4 included screws. 11. Please visit VIVOTEK’s website to Install the "Shepherd” software utility. The program will search for VIVOTEK Video Receivers, Video Servers or Network Cameras on the same LAN.
Page 14 Software Installation 12. Install the Shepherd utility, which helps you locate and configure your Network Camera in the local network. If your camera comes without the CD, go to VIVOTEK’s website, and locate the utility in the Downloads > Software page.
Page 15 VIVOTEK 12-3. The program will search for all VIVOTEK network devices on the same LAN. 12-4. After a brief search, the installer window will prompt. Click on the MAC and model name that matches the one printed on the product label. You can then double-click on the address to open a management session with the Network Camera.
Page 16 VIVOTEK 13-2. Enter the combination of alphabetic and numeric characters to fulfill the password strength. requirement. The default name for the camera administrator is “root”, and can not be changed. Some, but not all special ASCII characters are supported: !, $, %, -, ., @, ^, _, and ~.
Page 17 VIVOTEK 14. Loosen, but not completely remove, the retention screws on the wall-mount bracket to adjust the camera’s shooting direction. You can pan, tilt, or rotate the camera. User's Manual - 17...
Page 18 VIVOTEK 15. Tighten the retention screws when you are statisfied with the field of view. 16. From a web console, open the firmware configuration page. Enter the Configuration > Media > Image > Focus page. You will see a live stream on screen. If preferred, you can zoom in on the scene.
Page 19 VIVOTEK DI/DO Diagram 1. The DO+ pin provides a 5V output, and the max. load is 50mA. 2. The max. voltage for DO- pins is 30VDC (External power). In order to control AC devices, the following diagram can be taken into consideration.
Page 20 VIVOTEK Wet contact with external DC power source to supply a relay. Switch DC 0V External DC power External AC power with Protected Earth Relay External Device Dry contact and using camera’s DO+ to supply a relay. Switch External AC power...
Page 21 VIVOTEK LED Definitions Item LED status Description Steady Powered and system booting, or network failed LED off Power off Green LED off Network is disconnected Steady Green LED blinks every 1 Connected to network sec. Upgrading firmware Green LED blinks every 1 sec. and LED blinks consecutively every 0.15 sec.
Page 22 VIVOTEK Network Deployment General Connection (PoE) When using a PoE-enabled switch The Network Camera is PoE-compliant, allowing transmission of power and data via a sin- gle Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE- enabled switch via Ethernet cable.
Page 23 VIVOTEK Ready to Use 1. A browser session with the Network Camera should prompt as shown below. 2. You should be able to see live video from your camera. You may also install the 32-channel recording software from the software CD in a deployment consisting of multiple cameras.
Page 24 VIVOTEK Internet connection via a router Before setting up the Network Camera over the Internet, make sure you have a router and follow the steps below. 1. Connect your Network Camera behind a router, the Internet environment is illustrated below.
Page 25 For more information with network configuration options (such as that of streaming ports), please refer to Configuration > Network Settings. VIVOTEK also provides the automatic port forwarding feature as an NAT traversal function with the precondition that your router must support the UPnP port forwarding feature.
Page 26 3. Live video will be displayed in your web browser. 4. If it is the first time installing the VIVOTEK network camera, an information bar will prompt as shown below. Follow the instructions to install the required plug-in on your computer.
Page 27 VIVOTEK ► By default, the Network Camera is not password-protected. To prevent unauthorized access, it is highly recommended to set a password for the Network Camera. For more information about how to enable password protection, please refer to Security on page 99.
Page 28 VIVOTEK IMPORTANT: • Currently the Network Camera utilizes a 32-bit ActiveX plugin. You CAN NOT open a management/view session with the camera using a 64-bit IE browser. • If you encounter this problem, try execute the Iexplore.exe program from C:\Windows\ SysWOW64.
Page 29 VIVOTEK Using RTSP Players To view the streaming media using RTSP players, you can use one of the following players that support RTSP streaming. Quick Time Player VLC media player VLC media player 1. Launch the RTSP player. 2. Choose File > Open URL. A URL dialog box will pop up.
Page 30 VIVOTEK Using 3GPP-compatible Mobile Devices To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet. For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page To utilize this feature, please check the following settings on your Network Camera: 1.
Page 31 Network Camera to the Channel list. For detailed information about how to use the recording software, please refer to the user’s manual of the software or download it from http://www.vivotek.com. Tips: 1. If you encounter problems with displaying live view or the onscreen plug-in control, you may try to remove the plug-ins that might have been installed on your computer.
Page 32 VIVOTEK Main Page This chapter explains the layout of the main page. It is composed of the following sections: VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live Video Window. Resize Buttons VIVOTEK INC. Host Name...
Page 33 VIVOTEK Configuration Area Client Settings: Click this button to access the client setting page. For more information, please refer to Client Settings on page 37. Configuration: Click this button to access the configuration page of the Network Camera. It is suggested that a password be applied to the Network Camera so that only the administrator can configure the Network Camera.
Page 34 VIVOTEK PTZ Panel: This Network Camera supports “digital“ (e-PTZ) pan/tilt/zoom control, which allows roaming a smaller view frame within a large view frame. Please refer to PTZ settiings on page 113 for detailed information. Global View: Click on this item to display the Global View window. The Global View window contains a full view image (the largest frame size of the captured video) and a floating frame (the viewing region of the current video stream).
Page 35 VIVOTEK Video Control Buttons: Depending on the Network Camera model and Network Camera configuration, some buttons may not be available. Snapshot: Click this button to capture and save still images. The captured images will be displayed in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP (*.bmp) format.
Page 36 VIVOTEK Mute: Turn off the Mic volume on the local computer. The button becomes the Mic On button after clicking the Mute button. Full Screen: Click this button to switch to full screen mode. Press the “Esc” key to switch back to normal mode.
Page 37 VIVOTEK Client Settings This chapter explains how to select the stream transmission mode and saving options on the local computer. When completed with the settings on this page, click Save on the page bottom to enable the settings. H.265/H.264 Media Options Select to stream video or audio data or both.
Page 38 VIVOTEK Two way audio Half duplex: Audio is transmitted from one direction at a time, e.g., from a PC holding a web console with the camera. Full duplex: Audio is transmitted in both directions simultaneously. MP4 Saving Options Users can record live video as they are watching it by clicking Start MP4 Recording on the main page.
Page 39 VIVOTEK Joystick settings Enable Joystick Connect a joystick to a USB port on your management computer. Supported by the plug-in (Microsoft’s DirectX), once the plug-in for the web console is loaded, it will automatically detect if there is any joystick on the computer. The joystick should work properly without installing any other driver or software.
Page 40 VIVOTEK Buttons Configuration In the Button Configuration window, the left column shows the actions you can assign, and the right column shows the functional buttons and assigned actions. The number of buttons may differ from different joysticks. Please follow the steps below to configure your joystick buttons: 1.
Page 41 VIVOTEK Buttons Configuration Click the Configure Buttons button, a window will prompt as shown below. Please follow the steps below to configure your joystick buttons: 1. Select a button number from the Button # pull-down menu. Tips: If you are not sure of the locations of each button, use the Properties window in the Game Controllers utility.
Page 42 Click Configuration on the main page to enter the camera setting pages. Note that only Administrators can access the configuration page. VIVOTEK provides an easy-to-use user interface that helps you set up your network camera with minimal effort. In order to simplify the user interface, detailed information will be hidden unless you click on the function item.
Page 43 VIVOTEK System > General settings This section explains how to configure the basic settings for the Network Camera, such as the host name and system time. It is composed of the following two columns: System, and System Time. When finished with the settings on this page, click Save at the bottom of the page to enable the settings.
Page 44 VIVOTEK System time Keep current date and time: Select this option to preserve the current date and time of the Network Camera. The Network Camera’s internal real-time clock maintains the date and time even when the power of the system is turned off.
Page 45 Theme Options (the second tab on this page). The settings will be displayed automatically in this Preview field. The following shows the homepage using the default settings: ■ Hide Powered by VIVOTEK: If you check this item, it will be removed from the homepage. Logo graph Here you can change the logo that is placed at the top of your homepage.
Page 46 VIVOTEK Theme Options Here you can change the color of your homepage layout. There are three types of preset patterns for you to choose from. The new layout will simultaneously appear in the Preview filed. Click Save to enable the settings.
Page 47 VIVOTEK ■ Follow the steps below to set up the customized homepage: 1. Click Custom on the left column. 2. Click the field where you want to change the color on the right column. Color Selector Custom Pattern 3. The palette window will pop up as shown below.
Page 48 VIVOTEK System > Logs This section explains how to configure the Network Camera to send the system log to a remote server as backup. Log server settings Follow the steps below to set up the remote log: 1. Select Enable remote log.
Page 49 You can install the included VAST recording software, which provides an Event Management function group for delivering event messages via emails, GSM short messages, onscreen event panel, or to trigger an alarm, etc. For more information, refer to the VAST User Manual. VIVOTEK Network Cameras Internet 3G cell phone HTTP...
Page 50 VIVOTEK Access log Access log displays the access time and IP address of all viewers (including operators and administrators) in a chronological order. The access log is stored in the Network Camera’s buffer area and will be overwritten when reaching a certain limit.
Page 51 Note: Do not power off the Network Camera during the upgrade! Follow the steps below to upgrade the firmware: 1. Download the latest firmware file from the VIVOTEK website. The file is in .pkg file format. 2. Click Browse… and locate the firmware file.
Page 52 VIVOTEK General settings > Restore This feature allows you to restore the Network Camera to factory default settings. Network: Select this option to retain the Network Type settings (please refer to Network Type on page 81). Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to Import/Export files below on this page).
Page 53 VIVOTEK 3. Open the file with Microsoft ® Notepad and locate your time zone; set the start and end time of DST. When completed, save the file. In the example below, DST begins each year at 2:00 a.m. on the second Sunday in March and ends at 2:00 a.m.
Page 54 VIVOTEK The following message is displayed when attempting to upload an incorrect file format. Export language file: Click to export language strings. VIVOTEK provides nine languages: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文 . Update custom language file: Click Browse… and specify your own custom language file to upload.
Page 55 VIVOTEK Media > Image This section explains how to configure the image settings of the Network Camera. It is composed of the following columns: General settings, IR control, Image settings, Exposure, Focus, and Privacy mask. The Focus window is available only for models that come with motorized lens.
Page 56 VIVOTEK Video orientation: Flip - vertically reflect the display of the live video; Mirror - horizontally reflect the display of the live video. Select both options if the Network Camera is installed upside-down (e.g., on the ceiling) to correct the image orientation. Please note that if you have preset locations, those locations will be cleared after flip/mirror setting.
Page 57 VIVOTEK IR cut filter With a removable IR-cut filter, this Network Camera can automatically remove the filter to let Infrared light pass into the sensor during low light conditions. ■ Auto mode (The Day/Night Exposure Profile will not be available if Auto mode is selected) The Network Camera automatically removes the filter by judging the level of ambient light.
Page 58 VIVOTEK IR control Turn on built-in IR illuminator in night mode Select this to turn on the camera’s onboard IR illuminator when the camera detects low light condition and enters the night mode. Turn on external IR illuminator in night mode Select this to turn on the external IR illuminator when the camera detects low light condition and enters the night mode.
Page 59 VIVOTEK Tips: If there is an object in close proximity, the IR lights reflected back from it can mislead the Smart IR’s calculation of light level. To solve this problem, you can place an “Exposure Exclude” window on an unavoidable object in the Exposure setting window.
Page 60 VIVOTEK Image settings On this page, you can tune the White balance and Image adjustment. Sensor Setting 2: For special situations Sensor Setting 1: For normal situations White balance: Adjust the value for the best color temperature. ■ You may follow the steps below to adjust the white balance to the best color temperature.
Page 61 VIVOTEK Noise reduction ■ Enable noise reduction: Check to enable noise reduction in order to reduce noises and flickers in image. This applies to the onboard 3D Noise Reduction feature. Use the slide bar to adjust the reduction strength. Note that applying this function to the video channel will consume system computing power.
Page 62 VIVOTEK Exposure On this page, you can set the Exposure measurement window, Exposure level, Exposure mode, Exposure time, Gain control, and Day/Night mode settings. You can configure two sets of Exposure settings: one for normal situations, the other for special situations, such as the day/night/schedule mode.
Page 63 VIVOTEK The inclusive window refers to the “weighted window“; the exclusive window refers to “ignored window“. It adopts the weighted averages method to calculate the value. The inclusive windows have a higher priority. You can overlap these windows, and, if you place an exclusive window within a larger inclusive window, the exclusive part of the overlapped windows will be deducted from the inclusive window.
Page 64 VIVOTEK ■ AE Speed Adjustment: This function applies when you need to monitor fast changing lighting conditions. For example, the camera may need to monitor a highway lane or entrance of a parking area at night where cars passing by with their lights on can bring fast changes in light levels.
Page 65 VIVOTEK Focus Focus here refers to the Remote Focus, applicable to Network Cameras that are equipped with a stepping motor lens. The automated focus adjustment function eliminates the needs to physically adjust camera focus. In an outdoor deployment consisting of a large number of cameras, the auto focus function can be very helpful when these cameras become out of focus after days or weeks of operation.
Page 66 VIVOTEK 5. Wait for the scan to complete. After a short while, the clearest image obtained should be displayed and the optimal focus range achieved. Use the arrow marks on the sides to fine-tune the focus if you are not satisfied with the results. You may still need to use the arrow marks to fine-tune the focus depending on the live image on your screen.
Page 67 VIVOTEK Privacy mask Click Privacy Mask to open the settings page. On this page, you can block out sensitive zones to address privacy concerns. ■ To configure privacy mask windows, 1. Click New to add a new window. 2. You can use 4 mouse clicks to create a new masking window, which is recommended to be at least twice the size of the object (height and width) you want to cover.
Page 68 VIVOTEK Media > Video Mode If the 4K Ultra HD display mode is selected, the maximum frame rate is 30 fps. By default, WDR is enabled in this mode. When resolution is reduced to 1080P, the maximum frame rate is 120.
Page 69 VIVOTEK Stream settings This Network Camera supports multiple streams with frame sizes ranging from 480 x 272 to 3840 x 2160 pixels The definition of multiple streams: ■ Stream 1: Users can define the "Region of Interest" (viewing region) and the "Output Frame Size"...
Page 70 VIVOTEK Please follow the steps below to set up those settings for a stream: 1. Select a stream for which you want to set up the viewing region. 2. Select a Region of Interest from the drop-down list. The floating frame, the same as the one in the Gloabl View window on the home page, will resize accordingly.
Page 71 VIVOTEK Click the stream item to display the detailed information. The maximum frame size will follow your settings in the above Viewing Window sections. This Network Camera provides real-time H.265, H.264 and MJPEG compression standards (Triple Codec) for real-time viewing. If the H.265...
Page 72 VIVOTEK The frame rate will decrease if you select a higher resolution. ■ Intra frame period Determine how often for firmware to plant an I frame. The shorter the duration, the more likely you will get better video quality, but at the cost of higher network bandwidth consumption. Select the intra frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds, and 4 seconds.
Page 73 VIVOTEK With the H.265 codec in an optimal scenario and when Dynamic Intra frame is combined with the Smart Stream function, an 80% of bandwidth saving can be achieved compared with using H.264 without enabling these bandwidth-saving features. ■ Smart FPS In a static scene, the algorithm puts old frames in queue when no motions occur in scene.
Page 74 VIVOTEK • Smart codec: Smart codec effectively reduces the quality of the whole or the non- interested areas on a screen and therefore reduces the bandwidth consumed. You can manually specify the video quality for the foreground and the background areas.
Page 75 VIVOTEK As the result, the lower screen is constantly displayed in high details, while the upper half is transmitted using a lower-quality format. Although the upper half is transmitted using a lower quality format, you still have an awareness of what is happening on the whole screen.
Page 76 VIVOTEK ■ Bit rate control Constrained bit rate: A complex scene generally produces a larger file size, meaning that higher bandwidth will be needed for data transmission. The bandwidth utilization is configurable to match a selected level, resulting in mutable video quality performance. The bit rates...
Page 77 VIVOTEK Fixed quality: On the other hand, if Fixed quality is selected, all frames are transmitted with the same quality; bandwidth utilization is therefore unpredictable. The video quality can be adjusted to the following settings: Medium, Standard, Good, Detailed, and Excellent.
Page 78 VIVOTEK mode is selected, the Network Camera sends consecutive JPEG images to the client, If the JPEG producing a moving effect similar to a filmstrip. Every single JPEG image transmitted guarantees the same image quality, which in turn comes at the expense of variable bandwidth usage. Because the media contents are a combination of JPEG images, no audio data is transmitted to the client.
Page 79 VIVOTEK Media > Audio Audio Settings Mute: Select this option to disable audio transmission from the Network Camera to all clients. Note that if muted, no audio data will be transmitted even if audio transmission is enabled on the Client Settings page.
Page 80 Use fixed IP address: Select this option to manually assign a static IP address to the Network Camera. 1. You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network Camera on LAN. Please refer to Software Installation on page 14 for details.
Page 81 VIVOTEK Primary DNS: The primary domain name server that translates hostnames into IP addresses. Secondary DNS: Secondary domain name server that backups the Primary DNS. Primary WINS server: The primary WINS server that maintains the database of computer names and IP addresses.
Page 82 VIVOTEK NOTE: ► If the default ports are already used by other devices connected to the same router, the Network Camera will select other ports for the Network Camera. ► If UPnP is not supported by your router, you will see the following message: Error: Router does not support UPnP port forwarding.
Page 83 VIVOTEK 4. In the Networking Services dialog box, select Universal Plug and Play and click OK. 5. Click Next in the following window. 6. Click Finish. UPnP is enabled. ► How does UPnP work? UPnP networking technology provides automatic IP configuration and dynamic discovery of devices added to a network.
Page 84 VIVOTEK Enable IPv6 Select this option and click Save to enable IPv6 settings. Please note that this only works if your network environment and hardware equipment support ® IPv6. The browser should be Microsoft Internet Explorer 6.5, Mozilla Firefox 3.0 or above.
Page 85 VIVOTEK Please follow the steps below to link to an IPv6 address: 1. Open your web browser. 2. Enter the link-global or link-local IPv6 address in the address bar of your web browser. 3. The format should be: http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/ IPv6 address 4.
Page 86 VIVOTEK 86 - User's Manual...
Page 87 VIVOTEK Network > Streaming protocols HTTP streaming To utilize HTTP authentication, make sure that your have set a password for the Network Camera first; please refer to Security > User account on page 99 for details. Authentication: Depending on your network security requirements, the Network Camera provides two types of security settings for an HTTP transaction: basic and digest.
Page 88 VIVOTEK http://<ip address>:<http port>/<access name for stream 1, 2, 3> URL command -- For example, when the Access name for stream 2 is set to video2.mjpg: 1. Launch Mozilla Firefox. 2. Type the above URL command in the address bar. Press Enter.
Page 89 VIVOTEK Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic, and digest. basic authentication is selected, the password is sent in plain text format, but there can be potential risks of it being intercepted.
Page 90 Unrestricted in scope IMPORTANT: The Multicast metadata port is utilized by VIVOTEK VADP modules to transfer video analytics results, PTZ stream, textual data, and event messages between the camera and the client side running and observing the video analysis. If your client side computer is located outside the local network, you may need to open the associated TCP port on routers and firewall.
Page 91 VIVOTEK SIP is short for Session Initiation Protocol. If necessary, you can change the default port number, 5060, to one between 1025 and 65535. Two way audio port: The Network Camera supports two way audio communication so that operators can transmit and receive audio simultaneously.
Page 92 IP address, to have a fixed host and domain name. Express link Express Link is a free service provided by VIVOTEK server, which allows users to register a domain name for a network device. One URL can only be mapped to one MAC address.
Page 93 DDNS: Dynamic domain name service Enable DDNS: Select this option to enable the DDNS setting. Provider: Select a DDNS provider from the provider drop-down list. VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers. It is recommended that you register Safe100.net to access VIVOTEK’s Network Cameras from the...
Page 94 4. Select Enable DDNS and click Save to enable the setting. ■ CustomSafe100 VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system integrators. You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services.
Page 95 VIVOTEK Network > QoS (Quality of Service) Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality to different services on the network. Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications. Quality can be defined as, for instance, a maintained level of bit rate, low latency, no packet dropping, etc.
Page 96 VIVOTEK QoS/DSCP (the DiffServ model) DSCP-ECN defines QoS at Layer 3 (Network Layer). The Differentiated Services (DiffServ) model is based on packet marking and router queuing disciplines. The marking is done by adding a field to the IP header, called the DSCP (Differentiated Services Codepoint). This is a 6-bit field that provides 64 different class IDs.
Page 97 VIVOTEK Network > SNMP (Simple Network Management Protocol) This section explains how to use the SNMP on the network camera. The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between network devices. It helps network administrators to remotely manage network devices and find, solve network problems with ease.
Page 98 FTP function. You can disable the FTP server function when it is not in use. FTP port: The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK's Shepherd utility to upgrade the firmware via FTP server. By default, the FTP port is set to 21. It can also be assigned to another port number between 1025 and 65535.
Page 99 VIVOTEK Security > User accounts This section explains how to enable password protection and create multiple accounts. Account management The administrator account name is “root”, which is permanent and can not be deleted. If you want to add more accounts in the Account management window, please apply the password for the “root”...
Page 100 VIVOTEK Privilege management Digital Output & PTZ control: You can modify the management privilege as operators or viewers. Select or de-select the checkboxes, and then click Save to enable the settings. If you give Viewers the privilege, Operators will also have the ability to control the Network Camera through the main page.
Page 101 VIVOTEK Security > HTTPS (Hypertext Transfer Protocol over SSL) This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer). It helps protect streaming data transmission over the Internet on higher security level. Create and Install Certificate Method Before using HTTPS for communication with the Network Camera, a Certificate must be created first.
Page 102 VIVOTEK 5. Click Save to preserve your configuration, and your current session with the camera will change to the encrypted connection. 6. If your web session does not automatically change to an encrypted HTTPS session, click Home to return to the main page. Change the URL address from “http://” to “https://“ in the address bar and press Enter on your keyboard.
Page 103 VIVOTEK Create certificate request and install 1. Select the option from the Method pull-down menu. 2. Click Create certificate to proceed. 3. The following information will show up in a pop-up window after clicking Create. Then click Save to generate the certificate request.
Page 104 VIVOTEK 5. Look for a trusted certificate authority, such as Symantec’s VeriSign Authentication Services, that issues digital certificates. Sign in and purchase the SSL certification service. Copy the certificate request from your request prompt and paste it in the CA’s signing request window. Proceed with the rest of the process as CA’s instructions on their webpage.
Page 105 VIVOTEK 7. Open a new edit, paste the certificate contents, and press ENTER at the end of the contents to add an empty line. 8. Convert file format from DOS to UNIX. Open File menu > Conversions > DOS to Unix.
Page 106 VIVOTEK 9. Save the edit using the “.crt” extension, using a file name like “CAcert.crt.” 10. Return to the original firmware session, use the Browse button to locate the crt certificate file, and click Upload to enable the certification. 106 - User's Manual...
Page 107 VIVOTEK Note that 11. When the certifice file is successfully loaded, its status will be stated as Active. a certificate must have been created and installed before you can click on the “Save" button for the configuration to take effect.
Page 108 VIVOTEK Security > Access List This section explains how to control access permission by verifying the client PC’s IP address. General Settings Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1~10 clients (including stream 1 to stream 3). The default value is 10. If you modify the value and click Save, all current connections will be disconnected and automatically attempt to re-link (IE Explorer or Quick Time Player).
Page 109 VIVOTEK ■ Refresh: Click this button to refresh all current connections. ■ Add to deny list: You can select entries from the Connection Status list and add them to the Deny List to deny access. Please note that those checked connections will only be disconnected temporarily and will automatically try to re-link again (IE Explore or Quick Time Player).
Page 110 VIVOTEK There are three types of rules: Single: This rule allows the user to add an IP address to the Allowed/Denied list. For example: 192.168.2.1 Network: This rule allows the user to assign a network address and corresponding subnet mask to the Allow/Deny List.
Page 111 Authentication server (usually a RADIUS server): Checks the client certificate and decides whether to accept the end user’s access request. ■ VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP- PEAP and EAP-TLS. Please follow the steps below to enable 802.1x settings: 1.
Page 112 VIVOTEK 3. When all settings are complete, move the Network Camera to the protected LAN by connecting it to an 802.1x enabled switch. The devices will then start the authentication automatically. NOTE: ► The authentication process for 802.1x: 1. The Certificate Authority (CA) provides the required signed certificates to the Network Camera (the supplicant) and the RADIUS Server (the authentication server).
Page 113 VIVOTEK PTZ > PTZ settings This section explains how to control the Network Camera’s Pan/Tilt/Zoom operation. Digital: Control the e-PTZ operation. Within a field of view,it allows users to quickly move the focus to a target area for close-up viewing without physically moving the camera.
Page 114 VIVOTEK Home page in the E-PTZ Mode x3.3 ■ The e-Preset Positions will also be displayed on the home page. Select one from the drop-down list, and the Network Camera will move to the selected position. ■ If you have set up different preset positions for different streams, you can select one of the video streams to display its separate preset positions.
Page 115 VIVOTEK Patrol settings You can select some preset positions for the Network Camera to patrol. Please follow the steps below to set up a patrol schedule: 1. Select the preset locations on the list, and click 2. The selected preset locations will be displayed on the Patrol locations list.
Page 116 VIVOTEK NOTE: ► The Preset Positions will also be displayed on the Home page. Select one from the Go to menu, and the Network Camera will move to the selected preset position. ► Click Patrol: The Network Camera will patrol along the selected positions repeatedly.
Page 117 VIVOTEK Event > Event settings This section explains how to configure the Network Camera to respond to particular situations (event). A typical application is that when a motion is detected, the Network Camera sends buffered images to an FTP server or e-mail address as notifications. Click on Help, there is an illustration shown in the pop-up window explaining that an event can be triggered by many sources, such as motion detection or external digital input devices.
Page 118 VIVOTEK ■ Event name: Enter a name for the event setting. ■ Enable this event: Select this checkbox to enable the event setting. ■ Priority: Select the relative importance of this event (High, Normal, or Low). Events with a higher priority setting will be executed first.
Page 119 VIVOTEK ■ Audio detection A preset threshold can be configured with an external microphone as the trigger to system event. The triggering condition can be an input exceeding or falling below a threshold. Audio detection can take place as a complement to motion detection or as a method to detect activities not covered by the camera's view.
Page 120 VIVOTEK Once the triggers are configured, they will be listed under the VADP option. 3. Action Define the actions to be performed by the Network Camera when a trigger is activated. ■ Trigger digital output for seconds Select this option to turn on the external digital output device when a trigger is activated. Specify the length of the trigger interval in the text box.
Page 121 VIVOTEK Add server It is necessary to configure the server and media settings so that the Network Camera will know what action to take (such as which server to send the media files to) when a trigger is activated. Click to open the server setting window.
Page 122 VIVOTEK To verify if the email settings are correctly configured, click Test. The result will be shown in a pop-up window. If successful, you will also receive an email indicating the result. Click Save server to enable the settings. Note that after you configure the first event server, the new event server will automatically display on the Server list.
Page 123 VIVOTEK ■ Passive mode Most firewalls do not accept new connections initiated from external requests. If the FTP server supports passive mode, select this option to enable passive mode FTP and allow data transmission to pass through the firewall. The firmware default has the Passive mode checkbox selected.
Page 124 VIVOTEK Network storage: Select to send the media files to a networked storage when a trigger is activated. Please refer to NAS server on page 144 for details. Note that only one NAS server can be configured. Click Save server to enable the settings.
Page 125 VIVOTEK to open the directory: Click 20180120 The format is: HH (24r) Click to open the file list for that hour 2018/01/20 2018/01/20 Click to go back to the previous Click to delete level of the directory selected items Click to delete all...
Page 126 VIVOTEK Add media Add media Click to open the media setting window. You can specify the type of media that will be sent when a trigger is activated. A total of 5 media settings can be configured. There are three choices of media types available: Snapshot, Video Clip, and System log.
Page 127 VIVOTEK ■ Add date and time suffix to the file name Select this option to add a date/time suffix to the file name. For example: Snapshot_20180513_100341 File name preﬁx Date and time sufﬁx The format is: YYYYMMDD_HHMMSS Click Save media to enable the settings.
Page 128 VIVOTEK ■ Maximum file size Specify the maximum file size allowed. Some users may need to stitch the video clips together when searching and packing up forensic evidence. ■ File name prefix Enter the text that will be appended to the front of the file name.
Page 129 VIVOTEK In the Event settings column, the Servers and Medias you configured will be listed; please make sure the Event -> Status is indicated as ON, in order to enable the event triggering action. When completed, click the Save event button to enable the settings and click Close to exit Event Settings page.
Page 130 Please note that there is a limited number of customized scripts you can upload; if the current amount of customized scripts has reached the limit, an alert message will prompt. If you need more information, please contact VIVOTEK technical support. 20180213...
Page 131 VIVOTEK Applications > Motion detection This section explains how to configure the Network Camera to enable motion detection. A total of 5 motion detection windows can be configured. Motion Detection Setting 2: For special situations Motion Detection Setting 1: For normal situations Follow the steps below to enable motion detection: 1.
Page 132 VIVOTEK Photos or videos can be captured instantly and configured to be sent to a remote server (via an Email or FTP server). For more information on how to configure an event setting, please refer to Event settings on page 117.
Page 133 VIVOTEK This motion detection window will also be displayed on the Event Settings page. You can go to Event > Event settings > Trigger to select it as a trigger source. Please refer to page 142 for detailed information. NOTE: ►...
Page 134 VIVOTEK Applications > DI and DO Digital input: Select High or Low as the Normal status for the digital input connection. Connect the digital input pin of the Network Camera to an external device to detect the current connection status.
Page 135 VIVOTEK Applications > Tampering detection This section explains how to set up camera tamper detection. With tamper detection, the camera is capable of detecting incidents such as redirection, blocking or defocusing, or even spray paint. Please follow the steps below to set up the camera tamper detection function: 1.
Page 136 VIVOTEK Applications > Audio detection Audio detection, along with video motion detection, is applicable in the following scenarios: 1. Detection of activities not covered by camera view, e.g., a loud input by gun shots or breaking a door/window. 2. A usually noisy environment, such as a factory, suddenly becomes quiet due to a breakdown of machines.
Page 137 VIVOTEK You can use the Profile window to configure a different Audio detection setting. For example, a place can be noisy in the day time and become very quiet in the night. 1. Click on the Enable this profile checkbox. Once the Audio detection window is opened, the current sound input will be interactively indicated by a fluctuating yellow wave diagram.
Page 138 Applications > Package management - a.k.a., VADP (VIVOTEK Application Development Platform) Users can store and execute VIVOTEK's or 3rd-party software modules onto the camera's flash memory or SD card. These software modules can apply in video analysis for intelligent video applications such as license plate recognition, object counting, or as an agent for edge recording, etc.
Page 139 VIVOTEK To start a module, select the checkcircle in front, and click the Start button. If you should need to remove a module, select the checkcircle in front and then click the Stop button. By then the module status will become OFF, and the X button will appear at the end of the row.
Page 140 VIVOTEK On the License page, register and activate the license for using VIVOTEK's VADP modules. You should acquire the license key elsewhere, and manually upload to the network camera. Follow the onscreen instruction on VIVOTEK's website for the registration procedure.
Page 141 VIVOTEK Recording > Recording settings This section explains how to configure the recording settings for the Network Camera. Recording Settings Insert your SD card and click here to test NOTE: ► Please remember to format your SD card via the camera’s web console (in the Local storage .
Page 142 VIVOTEK If you enable adaptive recording on a camera, only when an event is triggered on Camera A will the server record the full frame rate streaming data; otherwise, it will only request the I frame data during normal monitoring, thus effectively saves bandwidths and storage space.
Page 143 VIVOTEK 2. Destination You can select the SD card or network storage (NAS) for the recorded video files. If you have not configured a NAS server, see details in the following. NAS server Click Add NAS server to open the server setting window and follow the steps below to set up: 1.
Page 144 VIVOTEK If successful, you will receive a test.txt file on the network storage server. 3. Enter a server name. 4. Click Save to complete the settings and click Close to exit the page. ■ Capacity: You can choose either the entire free space available or limit the reserved space. The recording size limit must be larger than the reserved amount for cyclic recording.
Page 145 VIVOTEK f you want to enable recording notification, please click to configure event triggering settings. Event Please refer to Event > Event settings on page 117 for more details. When completed, select Enable this recording. Click Save to enable the setting and click Close to exit this page.
Page 146 VIVOTEK Local storage > SD card management NOTE: • It is recommended to turn OFF the recording activity before you remove an SD card from the camera. • The lifespan of an SD card is limited. Regular replacement of the SD card can be necessary.
Page 147 Flash memory cards have limited lifespan. If the card is used for a long period of time, at some point, it will experience errors and data won't be recorded. VIVOTEK's Smart SD card with Lifespan Notification safeguards against sudden stops of recording due to reaching to the limit of rewriting cycles when it's time to be replaced.
Page 148 VIVOTEK To enable SD card life expectancy event messaging, enter camera web console > Configuration > Event settings > Trigger. Configure an event entry, and select the "SD card life expectancy" checkbox. In the Event settings > Action page, create a media type as the "System log." The system log will be delivered to users when an SD card related event is detected.
Page 149 VIVOTEK's camera firmware automatically detects SD cards, displays its working status, and no configuration is required for normal operation. If you would like to know more details of SD card, please visit our website (www.vivotek. com) or contact your account sales.
Page 150 VIVOTEK Local storage > Content management This section explains how to manage the content of recorded videos on the Network Camera. Here you can search and view the records and view the searched results. Searching and Viewing the Records This column allows the user to set up search criteria for recorded data. If you do not select any criteria and click Search button, all recorded data will be listed in the Search Results column.
Page 151 VIVOTEK Search Results The following is an example of search results. There are four columns: Trigger time, Media type, Trigger type, and Locked. Click to sort the search results in either direction. Numbers of entries displayed on one page Click to open a live view ■...
Page 152 VIVOTEK ■ Lock/Unlock: Select the checkbox in front of a desired search result, then click this button. The selected items will become Locked, which will not be deleted during cyclic recording. You can click again to unlock the selections. For example:...
Page 153 VIVOTEK Appendix URL Commands for the Network Camera 1. Overview For some customers who already have their own web site or web control application, the Network Camera/Video Server can be easily integrated through URL syntax. This section specifies the external HTTP-based application programming interface.
Page 154 VIVOTEK 3. General CGI URL Syntax and Parameters CGI parameters are written in lower-case and as one word without any underscores or other separators. When the CGI request includes internal camera parameters, these parameters must be written exactly as they are named in the camera or video server.
Page 155 VIVOTEK 5. Get Server Parameter Values Note: The access right depends on the URL directory. Method: GET/POST Syntax: http://<servername>/cgi-bin/anonymous/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>] [&<parameter>…] Where the <parameter> should be <group>[_<name>] or <group>[.<name>]. If you do not specify any parameters, all the parameters on the server will be returned.
Page 156 If you omit this parameter, it will redirect to an empty page. (Note: The return page can be a general HTML file(.htm, .html) or a VIVOTEK server script executable (.vspx) file. It cannot be a CGI commandor have any extra parameters.This parameter must be 156 - User's Manual...
Page 157 VIVOTEK placed at the end of the parameter list Return: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: <length>\r\n \r\n <parameter pair> where<parameter pair> is <parameter>=<value>\r\n [<parameter pair>] Only the parameters that you set and are readable will be returned. Example: Set the IP address of server to 192.168.0.123: Request: http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123...
Page 158 VIVOTEK 7. Available parameters on the server Valid values: VALID VALUES DESCRIPTION string[<n>] Text strings shorter than ‘n’ characters. The characters “,’,<,>,& are invalid. string[n~m] Text strings longer than `n’ characters and shorter than `m’ characters. The characters “,’,<,>,& are invalid.
Page 159 VIVOTEK W is the pixel number of width. H is the pixel number of height. Ex: 1920x1080, 2048x1536 available The API is listed in product WebAPIs. non-available The API is not in product WebAPIs. valid The API is listed in product WebAPIs, and is functional.
Page 160 VIVOTEK 7.1system Group: system NAME VALUE SECURITY DESCRIPTION (get/set) hostname string[64] Host name of server (Network Camera, Wireless Network Camera, Video Server, Wireless Video Server). ledoff <boolean> Turn on (0) or turn off (1) all led indicators. date <YYYY/MM/DD>, Current date of system. Set to ‘keep’ to keep keep, date unchanged.
Page 161 VIVOTEK -140: GMT-03:30 Newfoundland -120: GMT-03:00 Brasilia, Buenos Aires, Georgetown, Greenland -80: GMT-02:00 Mid-Atlantic -40: GMT-01:00 Azores, Cape_Verde_IS. 0: GMT Casablanca, Greenwich Mean Time: Dublin, Edinburgh, Lisbon, London 40: GMT 01:00 Amsterdam, Berlin, Rome, Stockholm, Vienna, Madrid, Paris 41: GMT 01:00 Warsaw, Budapest, Bern...
Page 162 VIVOTEK Caledonia 480: GMT 12:00 Aucklan, Wellington, Fiji, Kamchatka, Marshall Is. 520: GMT 13:00 Nuku'Alofa daylight_enable <boolean> Enable automaticdaylight saving time in time zone. daylight_dstactualmode <positive integer> Check if current time is under daylight saving time. (Used internally) daylight_auto_begintime string[19] Display the current daylight saving start time.
Page 163 VIVOTEK user has uploaded. This command can cooperate with other “restoreexceptXYZ” commands. When cooperating with others, the system parameters will be restored to the default value except for a union of the combined results. restoreexceptvadp Restore the system parameters to default <positive integer>...
Page 164 VIVOTEK 7.1.1 system.info Subgroup of system: info (The fields in this group are unchangeable.) NAME VALUE SECURITY DESCRIPTION (get/set) modelname string[40] Internal model name of the server extendedmodelname string[40] ODM specific model name of server (eg. DCS-5610). If it is not an ODM model, this field will be equal to “modelname”...
Page 165 VIVOTEK xcount-1)> 7.2status Group: status NAME VALUE SECURITY DESCRIPTION (get/set) di_i<0~(capability_ndi-1)> <boolean> 0 => Inactive, normal <product dependent> 1 => Active, triggered (capability.ndi > 0) do_i<0~(capability_ndo-1)> <boolean> 0 => Inactive, normal <product dependent> 1 => Active, triggered (capability.ndo > 0) onlinenum_rtsp 0,<positive...
Page 166 VIVOTEK 7.3digital input behavior define Group: di_i<0~(n-1)> for n is the value of "capability_ndi" (capability.ndi > 0) NAME VALUE SECURITY DESCRIPTION (get/set) normalstate high, Indicates open circuit or closed circuit (inactive status) 7.4digital output behavior define Group: do_i<0~(n-1)> for n is the value of "capability_ndo"...
Page 167 VIVOTEK 7.6network Group: network NAME VALUE SECURITY DESCRIPTION (get/set) preprocess <positive integer> An 32-bit integer, each bit can be set separately as follows: Bit 0 => HTTP service; Bit 1=> HTTPS service; Bit 2=> FTP service; Bit 3 => Two way audio and RTSP Streaming service;...
Page 168 VIVOTEK wins1 <ip address> Primary WINS server. wins2 <ip address> Secondary WINS server. 7.6.1 802.1x Subgroup of network: ieee8021x (capability.protocol.ieee8021x > 0) NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable/disable IEEE 802.1x eapmethod eap-peap, eap-tls Selected EAP method identity_peap string[64]...
Page 169 VIVOTEK <product dependent> (capability.naudioin > 0) eventalarm Event/alarm channel for CoS management Management channel for CoS eventtunnel Event/Control channel for CoS Subgroup of network: qos_dscp (capability.protocol.qos.dscp > 0) NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable/disable DSCP video 0~63 Video channel for DSCP...
Page 170 VIVOTEK 7.6.5 HTTP Subgroup of network: http NAME VALUE SECURITY DESCRIPTION (get/set) port 80, 1025 ~ 65535 HTTP port. alternateport 1025~65535 Alternate HTTP port. authmode basic, HTTP authentication mode. digest s<0~(capability_nmediast string[32] Http server push access name for stream N, ream-1)>_accessname...
Page 171 VIVOTEK s<0~(capability_nmediast string[32] RTSP access name for stream N, N= 1~ ream-1)>_accessname capability.nmediastream. <product dependent> (capability.protocol.spush_mjpeg =1 and capability.nmediastream > 0) The value are shown as live.sdp = s0_accessname, (stream1) live2.sdp = s1_accessname, (stream2) live3.sdp = s2_accessname, (stream3) live4.sdp = s3_accessname, (stream4) etc.
Page 172 VIVOTEK 1 ~ 255 Multicasttime to live value. 7.6.8 SIP port Subgroup of network: sip (capability.protocol.sip> 0) NAME VALUE SECURITY DESCRIPTION (get/set) port 1025 ~ 65535 SIP port. 7.6.9 RTP port Subgroup of network: rtp NAME VALUE SECURITY DESCRIPTION (get/set)
Page 173 VIVOTEK 0 => allow 1 => deny ipv4list_i<0~9> Single address: <ip IPv4 address list. address> Network address: <ip address / network mask> Range address:<start ip address - end ip address> ipv6list_i<0~9> string[43] IPv6 address list. 7.8Video input Group: videoin NAME...
Page 174 VIVOTEK * Only available when "capability_image_c<0~(n-1)>_wbmode" !=" -" exposurelevel 0~12 Exposure level "0,12": This range takes the concept from DC's exposure tuning options. The definition is: 0: EV -2.0 1: EV -1.7 2: EV -1.3 3: EV -1.0 4: EV -0.7 5: EV -0.3...
Page 175 VIVOTEK flip <boolean> Flip the image. mirror <boolean> Mirror the image. rotate 0,90,180,270 The rotation angle of image. Support only in Rotation mode. * Only available when " capability_videoin_c<0~(n-1)>_rotation"=1 ptzstatus 0,<positive A 32-bit integer, each bit can be set separately <Not support anymore>...
Page 176 VIVOTEK maxexposure <1~32000>, Maximum exposure time <product dependent> <5~32000>, 1~32000 => 1s ~ 1/32000s <1~8000>, 5~32000 => 1/5s ~ 1/32000s <5~8000>, 1~8000 => 1s ~ 1/8000s etc. 5~8000 => 1/5s ~ 1/8000s etc. * Available value is listed in * This parameter may also restrict image "capability_image_c...
Page 177 VIVOTEK 7.8.1 Video input setting per channel Group: videoin_c<0~(n-1)> for n channel products, and m is stream number n denotes the value of "capability_nvideoin", m denotes the value of "capability_nmediastream" NAME VALUE SECURITY DESCRIPTION (get/set) cmosfreq 50, 60 CMOS frequency.
Page 178 VIVOTEK * Only available when "rbgain" is listed "capability_image_c<0~(n-1)>_wbm ode". * Only valid when "videoin_c<0~(n-1)>_whitebalance" != auto * Normalized range. bgain 0~100 Manual set bgain value of gain control setting. 0: Weak <-> 100: Strong * Only available when "rbgain" is listed "capability_image_c<0~(n-1)>_wbm...
Page 179 Iris, and keep adjusting Gain and Shutter speed automatically. "qualitypriority": Automatically adjust the Iris, Gain and Shutter Speed by VIVOTEK quality algorithm. "manual": Manually adjust with variable Shutter, Iris and Gain. * We support this parameter when the version number (httpversion) is equal or greater than 0302a.
Page 180 VIVOTEK "manual": Manual set P-Iris by "piris_position". "-": not support. (only available when "capability_image_c<0~(n-1)>_sens ortype" is "smartsensor") * Only available when "capability_image_c<0~(n-1)>_iristy pe"=piris piris_position 1~100 Manual set P-Iris. <product 1: Open <-> 100: Close dependent> * Only valid when "piris_mode"=manual or "capability_image_c<0~(n-1)>_sens...
Page 181 VIVOTEK 0: Low <-> 100: High * Only available when "capability_image_c<0~(n-1)>_agc_ mingain" != "-" * Only valid when "piris_mode"=manual or "irismode"=fixed * Normalized range. * Only available when "capability_image_c<0~(n-1)>_expo sure_rangetype" is "twovalues". gainvalue 0~100 Gain value. 0: Low <-> 100: High * Only available when "capability_image_c<0~(n-1)>_agc_...
Page 182 VIVOTEK 0(not support), 1(support) Bit 3 => Support tilt operation; 0(not support), 1(support) Bit 4 => Support zoom operation; 0(not support), 1(support) Bit 5 => Support focus operation; 0(not support), 1(support)(SD/PZ/IZ series only) text string[64] Enclose caption. imprinttimesta <boolean> Overlay time stamp on video.
Page 183 VIVOTEK <5~8000>, 1~8000 => 1s ~ 1/8000s etc. 5~8000 => 1/5s ~ 1/8000s etc. * Available value is listed in "capability_image_c<0~(n-1)>_expo * This parameter may also restrict sure_maxrange" image frame rate from sensor due to sensor generates a frame per exposure time.
Page 184 VIVOTEK sure_rangetype" is "onevalue". * We support this parameter when the version number (httpversion) is equal or greater than 0302a. enablepreview <boolean> Usage for UI of exposure settings. Preview settings of video profile. * Only available when "capability_image_c<0~(n-1)>_expo sure_mode" !=0 crop_position <coordinate>...
Page 185 VIVOTEK "capability_videoin_c<0~(n-1)>_sma rtfps_support" is 1. * We support this parameter when the version number (httpversion) is equal or greater than 0309a. s<0~(m-1)>_h <boolean> Enable "Dynamic intra frame period". 264_dintraperio * Only available when d_enable "capability_videoin_c<0~(n-1)>_dint raperiod_support" is 1. * We support this parameter when the version number (httpversion) is equal or greater than 0301c.
Page 186 VIVOTEK 1: Worst quality 100: Best quality * Only valid when "ratecontrolmode"= vbr and "quant"= 100. The maximum allowed bit rate in fixed s<0~(m-1)>_h 20000~"capability_videoin_c<0~(n-1 " quality mode. 264_maxvbrbitr )>_h264_maxbitrate When the bit rate exceeds this value, frames will be dropped to restrict the bit rate. * Only valid when "ratecontrolmode"= s<0~(m-1)>_h 1~5, 100 Set the pre-defined quality level:...
Page 187 VIVOTEK * Only valid when "ratecontrolmode"= s<0~(m-1)>_h framerate,imagequality Set prioritypolicy 264_prioritypoli * Only valid when "ratecontrolmode"= s<0~(m-1)>_h 1~"capability_videoin_c<0~(n-1)>_h The maximum frame rates of a H264 264_maxframe 264_maxframerate" stream at different resolutions("capability_videoin_c<0~ (n-1)>_resolution") are recorded in "capability_videoin_c<0~(n-1)>_h26 4_maxframerate" s<0~(m-1)>_h...
Page 188 VIVOTEK mode encoded in the same quality. * Only available when h265 is listed in "capability_videoin_codec". s<0~(m-1)>_h 1~5, Set the pre-defined quality level: 265_quant 99, 100 1: Medium 2: Standard 3: Good 4: Detailed 5: Excellent 100: Use the quality level in "qpercent"...
Page 189 VIVOTEK bit rate. * Only available when h265 is listed in "capability_videoin_codec". * Only valid when "ratecontrolmode"= s<0~(m-1)>_h 1~5, 100 Set the pre-defined quality level: 265_cbr_quant 1: Medium 2: Standard 3: Good 4: Detailed 5: Excellent 100: Use the quality level in "cbr_qpercent"...
Page 190 VIVOTEK s<0~(m-1)>_h framerate,imagequality Set prioritypolicy 265_prioritypoli * Only available when h265 is listed in "capability_videoin_codec". * Only valid when "ratecontrolmode"= s<0~(m-1)>_h 1~"capability_videoin_c<0~(n-1)>_h The maximum frame rates of a H265 265_maxframe 265_maxframerate" stream at different resolutions("capability_videoin_c<0~ (n-1)>_resolution") are recorded in "capability_videoin_c<0~(n-1)>_h26 5_maxframerate"...
Page 191 VIVOTEK 100: Use the quality level in "qpercent" 99: Use the quality level in "qvalue" s<0~(m-1)>_m 10~200 Manual video quality level input. The Q jpeg_qvalue (Only valid when value which is used by encoded library "capability_api_httpversion" format is directly. XXXXX_1 or XXXXX_3 ex: 0301a_1 or 0301a_3) * Only valid when "ratecontrolmode"=...
Page 192 VIVOTEK "ratecontrolmode"= cbr. * Only available when "capability_smartstream_version" >= "2.0" s<0~(m-1)>_m 1~100 Select customized quality in a jpeg_cbr_qperc normalized full range. 1: Worst quality 100: Best quality * Only valid when "ratecontrolmode"= cbr and "quant"= 100. * Only available when "capability_smartstream_version"...
Page 193 VIVOTEK dependent> * Only available when "capability_image_c<0~(n-1)>_wdrp ro_mode" > 0 wdrpro_strengt 1~100 The strength of WDR Pro. The bigger value means the stronger <product strength of WDR Pro. dependent> * Only available when "capability_image_c<0~(n-1)>_wdrp ro_strength" is 1 wdrc_mode <boolean> Enable WDR enhanced.
Page 194 VIVOTEK vity 1~20: level 1 <product 21~40: level 2 dependent> 41~60: level 3 61~80: level 4 81~100: level 5 Level 1~4(low ~ high) The higher sensitivity level meas that it is easy to be trigger while scene changed. * Only available when "capability_image_c<0~(n-1)>_aesp...
Page 195 VIVOTEK * Only available when "capability_fisheyelocaldewarp_c<0~( capability_nvideoin)-1>" > 0 Group: videoin_c<0~(n-1)>_s<0~(m-1)>_h264_smartstream2 (capability_smartstream_support=1 and capability_smartstream_version>=2.0) Group: videoin_c<0~(n-1)>_s<0~(m-1)>_h265_smartstream2 (capability_smartstream_support=1, capability_smartstream_version>=2.0 and h265 is listed in "capability_videoin_codec") n denotes the value of "capability_nvideoin",m denotes the value of " capability_nmediastream" NAME VALUE SECURITY DESCRIPTION...
Page 196 VIVOTEK Group: videoin_c<0~(n-1)>_s<0~(m-1)>_h264_smartstream2_win_i<0~(k-1)> (capability_smartstream_support=1, capability_smartstream_version>=2.0 and capability_smartstream_mode_manual = 1) Group: videoin_c<0~(n-1)>_s<0~(m-1)>_h265_smartstream2_win_i<0~(k-1)> (capability_smartstream_support=1, capability_smartstream_version>=2.0 and h265 is listed in "capability_videoin_codec" and capability_smartstream_mode_manual = 1) n denotes the value of "capability_nvideoin",m denotes the value of " capability_nmediastream",k denotes the value of "capability_smartstream_nwindow_manual".
Page 197 VIVOTEK etc. * Available value is listed in * Only available when "capability_image_c "capability_image_c<0~(n-1)>_exposure_mi <0~(n-1)>_exposu nrange" != "-" re_minrange" * Only valid when "piris_mode"=manual or "irismode"=fixed * Only available when "capability_image_c<0~(n-1)>_exposure_ra ngetype" is "twovalues". maxexposure <1~32000>, Maximum exposure time <product dependent>...
Page 198 VIVOTEK "capability_image_c frame rate from sensor due to sensor <0~(n-1)>_exposu generates a frame per exposure time. Ex: If re_maxrange" this is set to 1/5s ~ 1/8000s and camera takes 1/5s on the night, then sensor only outputs 5 frame/s. * Only available when "capability_image_c<0~(n-1)>_exposure_m...
Page 199 "capability_image_c speed automatically. <0~(n-1)>_exposu "qualitypriority": Automatically adjust the re_modetype") Iris, Gain and Shutter Speed by VIVOTEK quality algorithm. "manual": Manually adjust with variable Shutter, Iris and Gain. * We support this parameter when the version number (httpversion) is equal or greater than 0302a.
Page 200 VIVOTEK * Only available when "capability_image_c<0~(n-1)>_wbmode" !=" -" rgain 0~100 Manual set rgain value of gain control setting. 0: Weak <-> 100: Strong * Only available when "rbgain" is listed in "capability_image_c<0~(n-1)>_wbmode". * Only valid when "videoin_c<0~(n-1)>_whitebalance" != auto * Normalized range.
Page 201 VIVOTEK * Only available when "capability_image_c<0~(n-1)>_exposure_ra ngetype" is "twovalues". gainvalue 0~100 Gain value. 0: Low <-> 100: High * Only available when "capability_image_c<0~(n-1)>_agc_maxgain " != "-" and "capability_image_c<0~(n-1)>_exposure_ra ngetype" is "onevalue". * Normalized range. * We support this parameter when the version number (httpversion) is equal or greater than 0302a.
Page 202 VIVOTEK <product quality, but easy to meet rolling or flicker effect dependent> in indoor environment. "indoor": Avoid rolling and flicker effect first. "fixed": Open the iris to maximum. * Only available when "capability_image_c<0~(n-1)>_iristype"=dci wdrpro_mode <boolean> Enable WDR pro <product dependent>...
Page 203 VIVOTEK Level 1~4(low ~ high) The higher speed level meas shorter AE converged time during AE executing. * Only available when "capability_image_c<0~(n-1)>_aespeed" is 1 aespeed_sensitivity 1~100 The sensitivity of AE converge speed. <product dependent> 1~20: level 1 21~40: level 2...
Page 204 VIVOTEK 7.10 IR cut control Group: ircutcontrol (capability.nvideoinprofile> 0 and capability_daynight_c<0~(n-1)>_support > 0) n denotes the value of "capability_nvideoin" NAME VALUE SECURITY DESCRIPTION (get/set) mode auto, Set IR cut control mode day, night, schedule <product dependent> <boolean> Enable/disable Smart IR <product dependent>...
Page 205 VIVOTEK "low,normal,high": if _c<0~(n-1)>_ircut sensitivity_type=op capability_daynight_c<0~(n-1)>_ircutsensiti tions) vity_type=options "1~100": if 1~100 (if capability_daynight capability_daynight_c<0~(n-1)>_ircutsensiti _c<0~(n-1)>_ircut vity_type=normalize sensitivity_type=no rmalize) * Only available when "capability_daynight_c<0~(n-1)> _ircutsensitivity_type" is not "-". User's Manual - 205...
Page 206 VIVOTEK 7.11 Image setting per channel Group: image_c<0~(n-1)> for n channel profucts and m profile n denotes the value of "capability_nvideoin" and m denotes the value of "capability_nvideoinprofile" NAME VALUE SECURITY DESCRIPTION (get/set) brightness -5~5,100 -5: Darker <-> 5: Bright <Not recommended to use this>...
Page 207 VIVOTEK "saturationpercent". * This parameter will not be used after the version number (httpversion) is equal or greater than 0400a. sharpness -3~3,100 -3: Softer <-> 3: Sharper <Not recommended to use this> 100: Use " image_c<0~(n-1)>_sharpnesspercent" * Only available when bit 3 of "capability_image_c<0~(n-1)>_basicsetting"...
Page 208 VIVOTEK is 1 gammacurve 0~100 0: Fine-turned gamma curve by Vivotek. <product dependent> 1: Gamma value = 0.01 2: Gamma value = 0.02 3: Gamma value = 0.03 100: Gamma value = 1 * Note: Although we set gamma value to 100 level, but not all gamma values are valid.
Page 209 VIVOTEK 1:enable * Only available when 'eis' is listed in "capability_image_c<0~(n-1)>_is_mode". eis_strength 1~100 Strength of electronic image stabilizer <product dependent> * Only available when 'eis' is listed in "capability_image_c<0~(n-1)>_is_mode". dis_mode <boolean> Digital image stabilizer <product dependent> 0:disable 1:enable * Only available when 'dis' is listed in "capability_image_c<0~(n-1)>_is_mode".
Page 210 VIVOTEK deinterlace_mode spatial,blend Users can choose between two different deinterlacing techniques: Spatical mode provides the best image quality, while Blend mode provides better image quality (than not using the deinterlace function at all). * Only available when "capability_image_c<0~(n-1)>_deinterlace_s upport" is 1.
Page 211 VIVOTEK * We replace "profile_i0_brightness" with "profile_i0_brightnesspercent". * This parameter will not be used after the version number (httpversion) is equal or greater than 0400a. profile_i<0~(m-1)>_contrast -5~5,100 -5: Less contrast <-> 5: More contrast <Not recommended to use this> 100: Use "...
Page 212 * Only available when bit 3 of "capability_image_c<0~(n-1)>_basicsetting" is 1 profile_i<0~(m-1)>_gammacur 0~100 0: Fine-turned gamma curve by Vivotek. 1: Gamma value = 0.01 2: Gamma value = 0.02 3: Gamma value = 0.03 100: Gamma value = 1 * Note: Although we set gamma value to 100 level, but not all gamma values are valid.
Page 213 VIVOTEK gamma value = 0.45, etc. * Only available when "capability_image_c<0~(n-1)>_gammacurve " is 1 profile_i<0~(m-1)>_lowlightm <boolean> Enable/disable low light mode. * Only available when <product dependent> "capability_image_c<0~(n-1)>_lowlightmode " is 1 profile_i<0~(m-1)>_dnr_mode <boolean> 3D noise reduction. <product dependent> 0:disable 1:enable * Only available when "capability_image_c<0~(n-1)>_dnr"...
Page 214 VIVOTEK * Only available when 'dis' is listed in <product dependent> "capability_image_c<0~(n-1)>_is_mode". profile_i<0~(m-1)>_scene_ena <boolean> Enable/disable scene mode 0: disable <product dependent> 1: enable * Only available when "capability_image_c<0~(n-1)>_scenemode_ support" is 1 profile_i<0~(m-1)>_scene_mo visibility, Value of scene mode noiseless, * Only available when <product dependent>...
Page 215 VIVOTEK 7.12 Exposure window setting per channel Group: exposurewin_c<0~(n-1)> for n channel profucts n denotes the value of "capability_nvideoin" (Only available when "capability_image_c<0~(n-1)>_exposure_mode"=1) NAME VALUE SECURITY DESCRIPTION (get/set) mode auto, custom,blc,hlc "auto": Use full image view as the only exposure window.
Page 216 VIVOTEK "capability_image_c<0~(n-1)>_exposure_wi ndomain". homepx <0~W,0~H> Left-top corner coordinate of the window. W: 0~ The current image width -1 * Only available when px is listed in H: 0~ The current image height -1 "capability_image_c<0~(n-1)>_exposure_wi ndomain". sizepx <0~Wx0~ H> Width and height of the window.
Page 217 VIVOTEK Group: exposurewin_c<0~(n-1)>_profile_i<0~(m-1)>_win_i<0~(k-1)> for m profile and n channel product, n denotes the value of "capability_nvideoin", m denotes the value of "capability_nvideoinprofile", k denotes the value of "capability_image_c<0~(n-1)>_exposure_winnum". (Only available when "capability_image_c<0~(n-1)>_exposure_mode"=1 and when custom is listed in "capability_image_c<0~(n-1)>_exposure_winmode" and valid when "exposurewin_c<0~(n-1)>_mode"=custom or "exposurewin_c<0~(n-1)>_mode"=hlc)
Page 218 VIVOTEK ndomain". sizestd <0~9999x0~9999> Width and height of the window. * Only available when std is listed in "capability_image_c<0~(n-1)>_exposure_wi ndomain". 7.13 Audio input per channel Group: audioin_c<0~(n-1)> for n channel products (capability.naudioin>0) n denotes the value of "capability_nvideoin" NAME VALUE...
Page 219 VIVOTEK volume_external 0~100 Volume when take external microphone as input source. 0: Minimum 100: Maximum * Only available when the channel supports external microphone (The related bit of "capability_audio_extmic" is equal to 1). mute 0, 1 0: Mute off 1: Mute on...
Page 220 VIVOTEK 48000, * Only available if AAC is supported. 64000, 96000, 128000 s0_gamr_bitrate 4750, AMR encoded bitrate in bps. 5150, 5900, * Only available if AMR is supported. 6700, 7400, 7950, 10200, 12200 s0_g711_mode pcmu, Set G.711 companding algorithm. pcma pcmu: µ-law algorithm...
Page 221 VIVOTEK alarm_level 1~100 Audio detection alarm level profile_i0_enable <boolean> Enable/disable this profile setting profile_i0_policy night, The mode which the profile is applied to. schedule * Not support "policy=day" anymore when the version number (httpversion) is equal or greater than 0301a.
Page 222 VIVOTEK 7.16 Motion detection settings Group: motion_c<0~(n-1)> for n channel products n denotes the value of "capability_nvideoin" NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable motion detection. win_sensitivity 0 ~ 100 Sensitivity of all motion detection windows. * The value "0" is reserved for compatibility and will not be used after the version number (httpversion) is equal or greater than 0400a.
Page 223 VIVOTEK H: 0~ The current * Only available when px is listed in image height -1 "capability_motion_windomain". * It's recommended to use polygonsd * This parameter will not be used after the version number (httpversion) is equal or greater than 0400a.
Page 224 VIVOTEK greater than 0400a. width 0 ~ 320 Width of motion detection window. <Not recommended to use * Only available when this> "capability_motion_wintype" = rectangle. * Only available when qvga is listed in "capability_motion_windomain". * It's recommended to use polygonsd...
Page 225 VIVOTEK and will not be used after the version number (httpversion) is equal or greater than 0400a. Group: motion_c<0~(n-1)>_profile_i<0~(m-1)>_win_i<0~(k-1)> for m profile and n channel product, n denotes the value of "capability_nvideoin", m denotes the vaule of "capability_nmotionprofile", k denotes the value of "capability_nmotion".
Page 226 VIVOTEK <Not recommended to use ~ 320,0 ~ 240, 0 ~ (4 points: x0,y0,x1,y1,x2,y2,x3,y3) this> 320,0 ~ 240, 0 ~ * Only available when 320,0 ~ 240 "capability_motion_wintype" = polygon. * Only available when qvga is listed in "capability_motion_windomain".
Page 227 VIVOTEK * It's recommended to use polygonsd * This parameter will not be used after the version number (httpversion) is equal or greater than 0400a. height 0 ~ 240 Height of motion detection window. <Not recommended to use * Only available when ...
Page 228 VIVOTEK 7.17 Tampering detection settings Group: tampering_c<0~(n-1)> for n channel products (capability.tampering > 0) n denotes the value of "capability_nvideoin" NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable or disable tamper detection. threshold 0~100 Threshold of tamper detection. duration 10~600 If tampering value exceeds the "threshold"...
Page 229 VIVOTEK 7.18 DDNS Group: ddns (capability.protocol.ddns > 0) NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable or disable the dynamic DNS. provider CustomSafe100, Safe100 => safe100.net DyndnsDynamic, DyndnsDynamic => dyndns.org (dynamic) DyndnsCustom, DyndnsCustom => dyndns.org Safe100 CustomSafe100 => Custom server using safe100 method <provider>_hostname...
Page 230 VIVOTEK service. 7.21 UPnP port forwarding Group: upnpportforwarding NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable or disable the UPnP port forwarding service. upnpnatstatus The status of UPnP port forwarding, used internally. 0 = OK, 1 = FAIL, 2 = no IGD router, 3 = no need for port forwarding 7.22 System log...
Page 231 VIVOTEK 7.23 SNMP Group: snmp (capability.protocol.snmp > 0) NAME VALUE SECURITY DESCRIPTION (get/set) <boolean> SNMP v2 enabled. 0 for disable, 1 for enable <boolean> SNMP v3 enabled. 0 for disable, 1 for enable secnamerw string[31] Read/write security name secnamero string[31]...
Page 232 1 => Default logo logo_link string[128] Hyperlink of the logo http://www.vivotek. logo_powerbyvvtk_hidden <boolean> 0 => display the power by vivotek logo 1 => hide the power by vivotek logo custombutton_manualtrig <boolean> Show or hide manual trigger (VI) button in ger_show homepage 0 ->...
Page 233 VIVOTEK 7.25 Privacy mask Group: privacymask_c<0~(n-1)> for n channel products and m privacy mask window. n denotes the value of "capability_nvideoin" and m denotes the value of "capability_videoin_c<0~(n-1)>_nprivacymask" NAME VALUE SECURITY DESCRIPTION (get/set) enable <boolean> Enable privacy mask. win_i<0~(m-1)>_enable <boolean>...
Page 234 VIVOTEK 0 ~ W,0 ~ H "capability_image_c<0~(n-1)>_privacymask W: 0~ The current _wintype" = polygon. image width -1 H: 0~ The current * Only available when px is listed in image height -1 "capability_image_c<0~(n-1)>_privacymask _windomain". win_i<0~(m-1)>_polygo 0 ~ 9999,0 ~ 9999, Coordinate of polygon window position.
Page 235 NAME VALUE SECURITY DESCRIPTION (get/set) api_httpversion <string> The version of VIVOTEK WebAPI with 4 This number start integers plus 1 alphabet, There are composed with 0301a. by "major version", "minor version", "revision","_platform". ex: 0301a_1 Major version Increase the major version when change,...
Page 236 VIVOTEK EX: 0302b_1 => Major version = 03, minor version = 02, revision = b, platform = 1 The 4 integer numbers are WebAPI version, we use short name: [httpversion] for it in this document. The 5th character is model-based version for API bug-fix and it's default to "a".
Page 237 VIVOTEK naudiosetting <positive integer> Number of audio settings per channel. <Not support anymore> * Not support this parameter anymore when the version number (httpversion) is equal or greater than 0301a. * We replace "naudiosetting" with "naudioin". More details, please refer the parameter description of "volume_internal"...
Page 238 VIVOTEK (only available when RS-485 interface is supported or SD/PZ/PT/PD/video server series) Bit 6 => (only available when bit0 is 1) Reserved bit; always 0. Bit 7 => (only available when bit0 is 1) External or built-in PT; 0(built-in), 1(external) windowless <boolean>...
Page 239 VIVOTEK 0307a. eptz 0, <positive For "nvideoin" = 1, the definition is as integer> following: A 32-bits integer, each bit can be set separately as follows: Bit 0 => 1st stream supports ePTZ or not. Bit 1 => 2nd stream supports ePTZ or not, and so on.
Page 240 VIVOTEK tampering <boolean> Indicate whether to support tampering detection. tamperingmode tamper,toodark,toob Available tampering mode list. right,tooblurry * Only available when "capability_tampering" is 1. adaptiverecording <boolean> Indicate whether to support adaptive recording. adaptivestreaming <boolean> Indicate whether to support adaptive streaming. supporttriggertypes...
Page 241 VIVOTEK alable protocol_rtp_multicast_ba <boolean> Indicate whether to support backchannel ckchannel multicast. protocol_rtp_tcp <boolean> Indicate whether to support RTP over TCP. protocol_rtp_http <boolean> Indicate whether to support RTP over HTTP. protocol_spush_mjpeg <boolean> Indicate whether to support server push MJPEG. protocol_snmp <boolean>...
Page 242 VIVOTEK * This is kept for compatibility. videoin_codec mjpeg, h264, h265 Available codec of a device, split by comma. <product The sequence is not limited. dependent> FD8183 supports H.264 and MJPEG, then this is "mjpeg,h264". IP9171 supports H.264, MJPEG and H.265, then this is "mjpeg,h264,h265"...
Page 243 VIVOTEK <product affected functions are list here. dependent> The format is "Affect API name":"Policy":"Description" "Policy" can be categorized into following groups: - (disabled) : UI turns grey and users can't select it. - (unchanged) : UI keeps the status as before and user can't change it.
Page 244 VIVOTEK <Not support anymore> microphone input. * Not support this parameter anymore when the version number (httpversion) is equal or greater than 0301a. * We replace "audio_mic" with "audio_intmic". audio_intmic <0~Positive Internal (Built-in) Microphone. Integer> 0: Not support 1: Support Bit 0 for CH0, bit 1 for CH1, and so on.
Page 245 VIVOTEK audioin_codec aac4, gamr, g711, Available audio codec. We take comma to split g726, - codec without any space. <product dependent> aac4: Advanced Audio Coding (AAC) gamr: Adaptive Multi-Rate (AMR) g711: G.711 g726: G.726 -: Not supported. audioout_codec g711, - Available codec list for SIP.
Page 246 VIVOTEK supported. * Only available when "capability_smartstream_support" is 1 smartstream_mode_hybri <boolean> Indicate whether hybrid(autotracking+ manual) smart stream is supported. * Only available when "capability_smartstream_support" is 1 smartstream_nwindow_a <positive integer> Maximum number of tracking window of utotracking autotracking. * Only available when "capability_smartstream_support"...
Page 247 VIVOTEK * It will be replaced by capability_camctrl_ptztunnel. camctrl_ptztunnel <boolean> Indicate whether to support ptztunnel. * We support this parameter when the version number (httpversion) is equal or greater than 0301b. This equals "capability_camctrl_c0_ptztunnel". * This is kept for compatibility.
Page 248 VIVOTEK wireless_beginchannel 1 ~ 14 Indicate the begin channel of wireless network wireless_endchannel 1 ~ 14 Indicate the end channel of wireless network wireless_encrypt_wep <boolean> Indicate whether to support wireless WEP. wireless_encrypt_wpa <boolean> Indicate whether to support wireless WPA. wireless_encrypt_wpa2 <boolean>...
Page 249 VIVOTEK media_videoclip_maxleng <positive integer> Maximum length (second) of a videoclip. media_videoclip_maxpree <positive integer> Maximum duration (second) after event vent occurred in a videoclip. image_iristype <string> Indicate iris type. <Not recommended to use "piris": P-Iris  this> "dciris": DC-Iris  "-": No Iris control support ...
Page 250 VIVOTEK localstorage_supportedge An 32-bit integer, which indicates the <positive integer> supportive application of edge storage. If the value of this parameter is larger than 0, it means that the camera supports edge recording function. bit 0 : It supports to record directly to an on-board SD-Card.
Page 251 VIVOTEK layout_redirection <string> Indicate which function will be redirected to the vadp package path. "-": Not supported. * We support this parameter when the version number (httpversion) is equal or greater than 0309a. Group: capability_camctrl_c<0~(n-1)> n denotes the value of "capability_nvideoin"...
Page 252 VIVOTEK zoommodule <boolean> Indicate whether to support zoom lens. In our product, only SD series and IZ series use the zoom lens. * Both varifocal and zoom lenses are built with movable elements that permit changing the effective focal length. And the key difference...
Page 253 VIVOTEK minpan 0, <positive integer> 0/7 The lower limit for pan position. *Only available when bit0 of "capability_camctrl_c<0~(n-1)>_buildinpt" is "1" maxpan 0, <positive integer> 0/7 The upper limit for pan position. *Only available when bit0 of "capability_camctrl_c<0~(n-1)>_buildinpt" is "1" minpanangle <integer>...
Page 254 VIVOTEK minzoom 0, <positive integer> 0/7 The lower limit for zoom position. *Only available when the value of "capability_camctrl_c<0~(n-1)>_zoommodule" is "1" maxzoom 0, <positive integer> 0/7 The upper limit for zoom position. *Only available when the value of "capability_camctrl_c<0~(n-1)>_zoommodule" is "1"...
Page 255 VIVOTEK lightsensor <boolean> Indicate whether to support light sensor. blackwhitemode <boolean> Indicate whether to support automatically switch to Black & White display during the night mode. * We support this parameter when the version number (httpversion) is equal or greater than 0302a.
Page 256 VIVOTEK Group: capability_videoin_c<0~(n-1)> n denotes the value of "capability_nvideoin" PARAMETER VALUE SECURITY DESCRIPTION (get/set) The lens type of this channel. lens_type fisheye, fixed, fisheye: Fisheye lens varifocal, changeable, fixed: Build‐in fixed‐focus lens. motor, - varifocal: Build‐in varifocal lens. <product dependent> changeable: changeable lens. Like box‐type camera, users can install any C‐Mount or CS‐Mount lens as they wish. motor: Lens with motor to support zoom, focus, etc. ‐: N/A * Only available when [httpversion] >= 0301a rotation <boolean>...
Page 257 VIVOTEK rotationaffect When rotation is enabled, some features may <product dependent> become malfunction or be forced to a given value. The affected functions are list here. The format is "Affect API name":"Policy":"Description" "Policy" can be categorized into following groups: - (disabled) : UI turns grey and users can't select - (unchanged) : UI keeps the status as before and user can't change it.
Page 258 VIVOTEK rotationangle <string> The different angles which camera supports for rotation. * Only avaliable when " " capability_videoin_c<0~(n-1)>_rotation is 1. * We support this parameter when the version number (httpversion) is equal or greater than 0309b. orientation flip,mirror,rotation Indicates the camera supports flip, mirror or <product dependent>...
Page 259 VIVOTEK minresolution A list of <Integer> Represent supported minimum resolution of each stream in current video mode. * The element number is defined as "capability_nmediastream". * We support this parameter when the version number (httpversion) is equal or greater than 0304b.
Page 260 VIVOTEK mjpeg_maxbitrate <positive integer>, - 0/7 Maximum bitrates of MJPEG. The unit is bps. "-" means MJPEG does not support bit rate control. * Only available when 'mjpeg' is listed in "capability_videoin_codec". h264_maxframerate A list of <Positive Maximum fps that the device can encoded with Integer>...
Page 261 VIVOTEK h265_maxframerate A list of <Positive Maximum fps that the device can encoded with Integer> and "-" H.265 on resolutions in current video mode. "-" means not support. * One to one mapping to the resolution in "resolution". * The element number is defined as "nresolution"...
Page 262 VIVOTEK mounttype ceiling, wall, floor,- Indicate the supported mount type. <product dependent> "-": not support * We support this parameter when the version number (httpversion) is equal or greater than 0309c. dintraperiod_support <boolean> 0: Non-support "Dynamic intra frame period" 1: Support "Dynamic intra frame period"...
Page 263 VIVOTEK Group: capability_videoin_c<0~(n-1)>_localdewarp (capability_fisheyelocaldewarp_c<0~(capability_nvideoin)-1> > 0) n denotes the value of "capability_nvideoin" PARAMETER VALUE SECURITY DESCRIPTION (get/set) typeceilingmount 1O, 1P, 2P, 1R, 4R Available dewarp types of ceiling and floor mount. typewallmount 1O, 1P, 1R, 4R Available dewarp types of wall mount.
Page 264 VIVOTEK eptz 0, <positive integer> 0/7 Indicate this mode whether support eptz. For "nvideoin" = 1, the definition is as following: A 32-bits integer, each bit can be set separately as follows: Bit 0 => 1st stream supports ePTZ or not.
Page 265 VIVOTEK effectivepixel <WxH> The visible area of full scene in this video mode. The unit is pixel in source. * If "effectivepixel"<"capability_videoin_c<0~(n-1) >_maxsize", then the visible area is located at the center of full scene. outputsize <WxH> The output size of source, equal to the captured size by device, in this video mode.
Page 266 VIVOTEK minresolution A list of <Integer> Represent supported minimum resolution of each stream in current video mode. * The element number is defined as "capability_nmediastream". * We support this parameter when the version number (httpversion) is equal or greater than 0304b.
Page 267 VIVOTEK maxfps_h264 A list of <Positive Maximum fps which the device can encoded with Integer> and "-" H.264 on resolutions in this video mode. "-" means not support. * One to one mapping to the resolution in "resolution". * The element number is defined as "nresolution"...
Page 268 VIVOTEK to proper position vertically or not. wdrpro_mode 0, 1, 2 0: Non-support WDR Pro 1: Support WDR Pro 2: Support WDR Pro and WDR Pro II wdrpro_strength 0, 1 0: Non-support tuning strength of...
Page 269 VIVOTEK - (enabled) : UI is checked. - (notsupport) : the affected function is not available. "Affect API name" can be described in hierarchy, such as "exposurewin.mode.blc:disabled:" which means blc exposure window is disabled. API name can be one word as well, such as "exposurelevel:fixed:6"...
Page 270 VIVOTEK exposurelevel:ranged:<x>- - (disabled) : UI turns grey and users <x>, can't select it. exposuremode:fixed:auto - (unchanged) : UI keeps the status as before and user can't change it. <x>: nonnegative integer - (hidden) : UI is hidden. <product dependent>...
Page 271 VIVOTEK > 0. * We support this parameter when the version number (httpversion) is equal or greater than 0306d. dnrtype 2d,3d Description about DNR type. * Only available when "capability_image_c<0~(n-1)>_dnr" > 0. * We support this parameter when the version number (httpversion) is equal or greater than 0308a.
Page 272 VIVOTEK "capability_image_c<0~(n-1)>_is_m ode" is not "-". * We support this parameter when the version number (httpversion) is equal or greater than 0302a. is_affect When Is mode is not "-", some minexposure:hidden:, features may become malfunction or mingain:hidden:, be forced to a given value. The wdrpro:unchanged:, affected functions are list here.
Page 273 VIVOTEK integer or string or NULL. "-" means no feature is affected. * Only available when "capability_image_c<0~(n-1)>_is_m ode" is not "-". * We support this parameter when the version number (httpversion) is equal or greater than 0302a. scenemode_support 0: Non-support scene mode...
Page 274 VIVOTEK "Affect API name" can be described in hierarchy, such as "exposurewin.mode.blc:disabled:" which means blc exposure window is disabled. API name can be one word as well, such as "exposurelevel:fixed:6" which means exposurelevel is fixed to level 6. "Description" can be a nonnegative integer or string or NULL.
Page 275 VIVOTEK - (notsupport) : the affected function is not available. "Affect API name" can be described in hierarchy, such as "exposurewin.mode.blc:disabled:" which means blc exposure window is disabled. API name can be one word as well, such as "exposurelevel:fixed:6" which means exposurelevel is fixed to level 6.
Page 276 VIVOTEK selections or values. - (enabled) : UI is checked. - (notsupport) : the affected function is not available. "Affect API name" can be described in hierarchy, such as "exposurewin.mode.blc:disabled:" which means blc exposure window is disabled. API name can be one word as well, such as "exposurelevel:fixed:6"...
Page 277 VIVOTEK value. - (ranged) : UI is fixed to multiple selections or values. - (enabled) : UI is checked. - (notsupport) : the affected function is not available. "Affect API name" can be described in hierarchy, such as "exposurewin.mode.blc:disabled:" which means blc exposure window is disabled.
Page 278 VIVOTEK lens. sensortype rawsensor, Indicate sensor type. smartsensor, "rawsensor": Raw sensor "smartsensor": Smart sensor "-": N/A * We support this parameter when the version number (httpversion) is equal or greater than 0302a. exposure_mode 0: Non-support exposure control.
Page 279 VIVOTEK * Only available when "capability_image_c<0~(n-1)>_ exposure_mode" is 1 and "capability_image_c<0~(n-1)>_expo sure_rangetype" is "onevalue". * We support this parameter when the version number (httpversion) is equal or greater than 0302a. exposure_gainvaluetype fixed, * One to one mapping to the mode maximum, type in "exposure_modetype".
Page 280 VIVOTEK before and user can't change it. - (hidden) : UI is hidden. - (fixed) : UI is fixed to one selection or value. - (ranged) : UI is fixed to multiple selections or values. - (enabled) : UI is checked.
Page 281 VIVOTEK <x>: nonnegative integer <product dependent> "Policy" can be categorized into following groups: - (disabled) : UI turns grey and users can't select it. - (unchanged) : UI keeps the status as before and user can't change it. - (hidden) : UI is hidden.
Page 282 VIVOTEK e_affect exposurewin.mode.blc:hidd enabled, some features may become en:, malfunction or be forced to a given defog:disabled:, value. The affected functions are list wdrpro:disabled:, here. exposurelevel:hidden:, or others The format is "Affect API name":"Policy":"Description" <x>: nonnegative integer <product dependent> "Policy" can be categorized into...
Page 283 VIVOTEK exposure_modetype" and "capability_image_c<0~(n-1)>_ exposure_mode" is 1. * We support this parameter when the version number (httpversion) is equal or greater than 0302a. exposure_qualitypriority When exposure quality priority mode mode_affect exposurewin.mode.blc:hidd is enabled, some features may become en:, malfunction or be forced to a given defog:disabled:, value.
Page 284 VIVOTEK "Description" can be a nonnegative integer or string or NULL. "-" means no feature is affected. * Only available when qualitypriority is listed in "capability_image_c<0~(n-1)>_ exposure_modetype" and "capability_image_c<0~(n-1)>_ exposure_mode" is 1. * We support this parameter when the version number (httpversion) is equal or greater than 0305a.
Page 285 VIVOTEK "exposurewin.mode.blc:disabled:" which means blc exposure window is disabled. API name can be one word as well, such as "exposurelevel:fixed:6" which means exposurelevel is fixed to level 6. "Description" can be a nonnegative integer or string or NULL. "-" means no feature is affected.
Page 286 VIVOTEK * Only available when "capability_image_c<0~(n-1)>_ exposure_mode" is 1 and hlc is listed in "capability_image_c<0~(n-1)>_ exposure_winmode". exposure_hlcmode_affect When hlc mode is enabled, some or others features may become malfunction or be forced to a given value. The <x>: nonnegative integer affected functions are list here.
Page 287 VIVOTEK "-" means no feature is affected. * Only available when "capability_image_c<0~(n-1)>_ exposure_mode" is 1 and hlc is listed in "capability_image_c<0~(n-1)>_ exposure_winmode". * We support this parameter when the version number (httpversion) is equal or greater than 0304a. exposure_wintype ...
Page 288 VIVOTEK "capability_image_c<0~(n-1)>_ exposure_mode" is 1. A list of <Positive Integer> exposure_ntsc_totalrange Available total range for NTSC analog output. * Only available when "capability_image_c<0~(n-1)>_ exposure_mode" is 1. * We support this parameter when the version number (httpversion) is equal or greater than 0301a. A list of <Positive Integer> exposure_pal_totalrange Available total range for PAL analog output. * Only available when "capability_image_c<0~(n-1)>_ exposure_mode"...
Page 289 VIVOTEK * When "exposure_mode"=0, this value must be set to "-". * Only available when "capability_image_c<0~(n-1)>_ exposure_mode" is 1. privacymask_wintype rectangle, The supported mask window type. polygon, "polygon": The window is a 2D 3Drectangle polygon shape. "rectangle": The window is a 2D rectangle shape.
Page 290 VIVOTEK "Policy" can be categorized into following groups: - (disabled) : UI turns grey and users can't select it. - (unchanged) : UI keeps the status as before and user can't change it. - (hidden) : UI is hidden. - (fixed) : UI is fixed to one selection or value.
Page 291 VIVOTEK _mode"=1, this may be either 0 or 1. defog_supportlevel 0, <positive integer> The value indicate the support strength level of defog. defog_affect When defog is enabled, some features wdrpro:unchanged:, may become malfunction or be forced or others to a given value. The affected functions are list here.
Page 292 VIVOTEK * When "defog" = 0, this value must be "-" aespeed 0: Non-support AE speed 1: Support AE speed aespeedsupportlevel <positive integer> The value indicate the support strength level of aespeed. * Only available when "capability_image_c<0~(n-1)>_aesp eed" is 1.
Page 293 VIVOTEK focuswindomain qvga, px, std, - The domain to set a focus window. "qvga": a 320x240 range to represent the whole image. "px": Locate a window in the image with pixels. "std": A normalized 0~9999 range. "-": Not supported. focuswindow_nwindow 0,<positive integer>...
Page 294 VIVOTEK better image quality (than not using the deinterlace function at all). * Only available when capability_image_c<0~(n-1)>_deinte rlace_support is 1 lens_alignment <boolean> Indicate whether to support lens alignment function. * We support this parameter when the version number (httpversion) is equal or greater than 0309b.
Page 295 VIVOTEK 7.29 Event setting Group: event_i<0~2> PARAMETER VALUE SECURITY DESCRIPTION (get/set) name string[40] Identification of this entry. enable 0, 1 Enable or disable this event. priority 0, 1, 2 Indicate the priority of this event: “0”= low priority “1”= normal priority “2”= high priority...
Page 296 VIVOTEK mdwin 0,<positive integer> Indicate the source window id of motion detection. This field is required when trigger condition is “md”. One bit represents one window. The LSB indicates the 1 window. For example, to detect the 1 and 3 windows, set mdwin as 5.
Page 297 VIVOTEK weekday 0~127 Indicate which weekday is scheduled. One bit represents one weekday. bit0 (LSB) = Saturday bit1 = Friday bit2 = Thursday bit3 = Wednesday bit4 = Tuesday bit5 = Monday bit6 = Sunday For example, to detect events on Friday and Sunday, set weekday as 66.
Page 298 VIVOTEK action_server_i<0~4>_ena <boolean> Enable or disable this server action. action_server_i<0~4>_me NULL, 0~4,101 Index of the attached media. 101 means "Recording Notify" action_server_i<0~4>_dat <boolean> Enable this to create folders by date, time, and efolder hour automatically. action_goto_enable <boolean> Enable/disable ptz goto preset position on event <product dependent>...
Page 299 VIVOTEK 7.30 Server setting for event action Group: server_i<0~4> PARAMETER VALUE SECURITY DESCRIPTION (get/set) name string[40] Identification of this entry type email, Indicate the server type: ftp, “email” = email server http, “ftp” = FTP server “http” = HTTP server “ns”...
Page 300 VIVOTEK 7.31 Media setting for event action Group: media_i<0~4> PARAMETER VALUE SECURITY DESCRIPTION (get/set) name string[40] Identification of this entry type snapshot, Media type to send to the server or systemlog, store on the server. videoclip, recordmsg snapshot_source 0~"capability_nmediastream"-1 Indicate the source of media stream.
Page 301 VIVOTEK videoclip_maxduration 1 ~ " Maximum duration of one video clip in capability_media_videoclip_maxlen seconds. gth" videoclip_maxsize 50 ~ " Maximum size of one video clip file in capability_media_videoclip_maxsiz Kbytes. e" 7.32 Recording Group: recording_i<0~1> PARAMETER VALUE SECURITY DESCRIPTION (get/set) name string[40] Identification of this entry.
Page 302 VIVOTEK limitsize <boolean> 0: Entire free space mechanism 1: Limit recording size mechanism cyclic <boolean> 0: Disable cyclic recording 1: Enable cyclic recording notify <boolean> 0: Disable recording notification 1: Enable recording notification notifyserver 0~31 Indicate which notification server is scheduled.
Page 303 VIVOTEK dest The destination to store the recorded data. “cf” means local storage (CF or SD card). “0” means the index of the network storage. cffolder string[128] Folder name. maxsize 100~2000 Unit: Mega bytes. When this condition is reached, recording file is truncated.
Page 304 State or province name in the certificate information. localityname string[128] The locality name in thecertificate information. organizationname string[64] Organization name in the certificate VIVOTEK Inc. information. unit string[64] Organizational unit name in thecertificate VIVOTEK Inc. information. commonname string[64] Common name in the certificate information.
Page 305 VIVOTEK PARAMETER VALUE SECURITY DESCRIPTION (get/set) enabled <boolean> Enable automatic clean up method. Expired and not locked media files will be deleted. maxretentiontime_recordin <boolean> Enable automatic clean up method for video clip g_enabled generated by recording task. The parameter takes effect when autocleanup_enabled is enabled.
Page 306 VIVOTEK maxretentiontime_others_ <string> To specify the expired time for automatic clean maxage up, and it takes effect for all media files except media files generated by recording task. Format is “‘P[Y]Y[MM]M[DDD]DT[hh]H[mm]M[ss]S’ , similar with ISO8601 with symbols P Ex. P7D, it means 7 days. P1DT10H, it means 1 days and 10 hours.
Page 307 VIVOTEK 7.36 ePTZ setting Group: eptz_c<0~(n-1)> for n channel product. (capability.eptz > 0 or capability_fisheye = 1) PARAMETER VALUE SECURITY DESCRIPTION (get/set) osdzoom <boolean> Indicates multiple of zoom in is “on-screen <Not recommended to use display” or not. this> * Reserved for compatibility, and suggest don't use this since [httpversion] >...
Page 308 VIVOTEK Group: eptz_c<0~(n-1)>_s<0~(m-1)> for n channel product and m is the index of video stream which support ePTZ. (capability.eptz > 0 or capability_fisheye = 1) PARAMETER VALUE SECURITY DESCRIPTION (get/set) patrolseq string[120] The patrol sequence of ePTZ. All the patrol position indexes will be separated by ","...
Page 309 (Read only) guid<0~2>_id string[127] The connected seamless streaming ID. (Read only) guid<0~2>_number Number of connected seamless streaming with guid<0~2>_id. (Read only) 7.39 VIVOTEK Application Development Platformsetting Group: vadp NAME VALUE SECURITY DESCRIPTION (get/set) version <string> Indicate the VADP version.
Page 310 Indicate the message that will be show on the running status when mouse over. vvtklicensemec string[40] Indicate the module use VIVOTEK license mechanism Group: vadp_schedule_i<0~(n-1)> for n VADP package number n denotes the value of "capability_vadp_npackage". (Only available when "capability_vadp_npackage" > 0 and the version number of "vadp_version" >= "1.3.2.0")
Page 311 VIVOTEK endtime hh:mm End time of the schedule Group: vadp_event NAME VALUE SECURITY DESCRIPTION (get/set) ntrigger 0,<positive integer> Indicate the number of topics to be transferred to event manager for trigger. triggerlist_i<0~(n-1)>_to string[256] Indicate the event notification with this topic will be transferred to event manager as trigger.
Page 312 VIVOTEK 2: enable PTZ commands with UART tunnel. * Only available when bit7 of capability_ptzenabled is 1 disablemdonptz <boolean> Disable motion detection on PTZ operation. 7.41 camera PTZ control (IZ series) Group: camctrl_c<0~(n-1)> for n channel products (capability_camctrl_c0_zoommodule = 1 and capability_camctrl_c0_buildinpt = 0) n denotes the value of "capability_nvideoin"...
Page 313 VIVOTEK 1: enable PTZ commands with PTZ driver. 2: enable PTZ commands with UART tunnel. * Only available when bit7 of capability_ptzenabled is 1 preset_i<0~(k-1)>_name string[40] Name of the preset location. preset_i<0~(k-1)>_zoom capability_ptz_c<0~(n-1) Zoom position at each preset location. >_minzoom ~ capability_ptz_c<0~(n-1)
Page 314 VIVOTEK >_maxfocus digitalzoom <boolean> Enable/disable digital zoom zoomenhance <boolean> Enable /disable zoom enhancement returnhome <boolean> Enable/disable return home while idle. returnhomeinterval 1~999 While idle over this time interval, idle action will be taken. idleaction_enable <boolean> Enable/disable idle action while idle...
Page 315 VIVOTEK t,manual * Available values are listed in "capability_camctrl_c<0~ (n-1)>_focusmode" preset_i<0~(k-1)>_name string[40] Name of the preset location. preset_i<0~(k-1)>_pan capability_ptz_c<0~(n-1) Pan position at each preset location. >_minpan ~ capability_ptz_c<0~(n-1) >_maxpan preset_i<0~(k-1)>_tilt capability_ptz_c<0~(n-1) Tilt position at each preset location. >_mintilt ~ capability_ptz_c<0~(n-1) >_maxtilt...
Page 316 VIVOTEK >_maxpan axisy capability_ptz_c<0~(n-1) Custom home tilt position. >_mintilt ~ capability_ptz_c<0~(n-1) >_maxtilt axisz capability_ptz_c<0~(n-1) Custom home zoom position. >_minzoom ~ capability_ptz_c<0~(n-1) >_maxzoom axisf capability_ptz_c<0~(n-1) Custom home focus position. >_minfocus ~ capability_ptz_c<0~(n-1) >_maxfocus axisflip <boolean> Custom home flip side. returnhome <boolean>...
Page 317 VIVOTEK "random": the presets of the tour will be recalled randomly. * Only available when "capability_presettourdirection" is 1. * We support this parameter when the version number (httpversion) is equal or greater than 0307a. tour_i<0~19>_checklist string[512] The indexes of preset positions, separated by “,”...
Page 318 VIVOTEK "1": One stop bit is transmitted to indicate the stopbit end of a byte. "2": Two stop bits are transmitted to indicate the end of a byte. If you want to transfer the stopbit for 150% of the normal time used to transfer one bit, the uart_i<0~(n-1)>_stopbit should be set as 2...
Page 319 VIVOTEK paritybit none, For error checking. odd, even stopbit "1": One stop bit is transmitted to indicate the end of a byte. "2": Two stop bits are transmitted to indicate the end of a byte. If you want to transfer the stopbit for 150% of the normal time used to transfer one bit, the uart_i<0~(n-1)>_stopbit should be set as 2...
Page 320 VIVOTEK (get/set) name <string> Default lens name Group: lens_user_i<0~(n-1)> n is lens_user_totalnumbers NAME VALUE SECURITY DESCRIPTION (get/set) name <string> User-defined lens name 7.46 Fisheye info Group: fisheyeinfo (capability.fisheye > 0) NAME VALUE SECURITY DESCRIPTION (get/set) revisedcenteraxis <coordinate> The actual center axis coordinate radius 0, <positive...
Page 321 VIVOTEK 7.47 Fisheye local dewarp setting Group: fisheyedewarp_c<0~(n-1)> (capability_fisheyelocaldewarp_c<0~(n-1)> > 0) n denotes the value of "capability_nvideoin", m denotes the value of "capability_nmediastream" NAME VALUE SECURITY DESCRIPTION (get/set) panspeed -5 ~ 5 Pan speed of regional view <integer>...
Page 322 VIVOTEK 7.49 Auto tracking setting Group: autotrack_c<0~(n-1)> (capability_image_c<0~(n-1)>_autotrack_support > 0) n denotes the value of "capability_nvideoin" PARAMETER VALUE SECURITY DESCRIPTION (get/set) objsize_type -1~2 Type of object size. -1 : customized width and height 0 : object size = 30 x 30...
Page 323 VIVOTEK encrypt none, Encryption method: wep, none: NONE, wpa, wep: WEP, wpa2 wpa: WPA, wpa2: WPA2PSK authmode OPEN, SHARED Authentication mode. * Only valid when "wireless_encrypt" is "wep" keylength 64, 128 Key length in bits. * Only valid when "wireless_encrypt" is "wep"...
Page 324 VIVOTEK 8. Useful Functions Drive the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>] [&do3=<state>][&do4=<state>] Where state is 0 or 1; “0” means inactive or normal state, while “1” means active or triggered state.
Page 325 VIVOTEK Query Status of the Digital Input(capability.ndi > 0) Note: This request requires Viewer privileges Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/getdi.cgi?[di0][&di1][&di2][&di3] If no parameter is specified, all of the digital input statuses will be returned. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <length>\r\n \r\n [di0=<state>]\r\n...
Page 326 VIVOTEK Query Status of the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3] If no parameter is specified, all the digital output statuses will be returned. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <length>\r\n \r\n [do0=<state>]\r\n...
Page 327 VIVOTEK Capture Single Snapshot Note: This request requires Normal User privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>][&resolution=<value>] [&quality=<value>][&streamid=<value>] If the user requests a size larger than all stream settings on the server, this request will fail. PARAMETER VALUE DESCRIPTION channel 0~(capability_nvideoin -1) The channel number of the video source.
Page 328 VIVOTEK Account Management Note: This request requires Administrator privileges. Method: POST Syntax: http://<servername>/cgi-bin/admin/editaccount.cgi? method=<value>&username=<name>[&userpass=<value>][&privilege=<value>] [&privilege=<value>][&return=<return page>] PARAMETER VALUE DESCRIPTION method Add an account to the server. When using this method, the“username” field is necessary. It will use the default value of other fields if not specified.
Page 329 VIVOTEK System Logs Note: This request require Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/syslog.cgi Server will return the most up-to-date system log. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <syslog length>\r\n \r\n <system log information>\r\n Upgrade Firmware Note: This request requires Administrator privileges.
Page 330 VIVOTEK ePTZ Camera Control (capability.eptz > 0 and capability_fisheye = 0) Note: This request requires camctrl privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/eCamCtrl.cgi?channel=<value>&stream=<value> [&move=<value>] – Move home, up, down, left, right [&auto=<value>] – Auto pan, patrol [&zoom=<value>] –Zoom in, out [&zooming=<value>&zs=<value>] –Zoom without stopping, used for joystick [&x=<value>&y=<value>&w=<value>&h=<value>&resolution=<value>] - Zoom in, out on a specific area...
Page 331 VIVOTEK http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?stream=0&zooming=wide&zs=5 zooming is used to indicate the moving direction, and zs is used to indicate the speed. To stop a continuous movement, you have to use the command as below: http://IPAddr/cgi-bin/camctrl/eCamCtrl.cgi?stream=0&zoom=stop&zs=0 2. [Area zoom]: it means to zoom in on a specific area, here is an example for a directly moving...
Page 332 VIVOTEK <integer> The direction of movement, used for joystick control. <integer> 0 ~ 7 Set the speed of movement, “0” means stop. <integer> x-coordinate clicked by user. It will be the x-coordinate of center after movement. <integer> y-coordinate clicked by user.
Page 333 VIVOTEK ePTZ Recall (capability.eptz > 0 and capability_fisheye = 0) Note: This request requires camctrl privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/eRecall.cgi?channel=<value>&stream=<value>& recall=<value>[&return=<return page>] PARAMETER VALUE DESCRIPTION channel <0~(n-1)> Channel of the video source. stream <0~(m-1)> Stream. recall Text string less than 40 One of the present positions to recall.
Page 334 VIVOTEK delpos <Text string less than Delete preset location from the preset list. 40 characters> return <return page> Redirect to the page <return page> after the parameter is assigned. The <return page> should be the relative path according to the root of camera.
Page 335 VIVOTEK 8.12 UART HTTP Tunnel Channel (capability.nuart > 0) Note: This request requires Operator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/operator/uartchannel.cgi?[channel=<value>] ------------------------------------------------------------------------- GET /cgi-bin/operator/uartchannel.cgi?[channel=<value>] x-sessioncookie: string[22] accept: application/x-vvtk-tunnelled pragma: no-cache cache-control: no-cache ------------------------------------------------------------------------- POST /cgi-bin/operator/uartchannel.cgi x-sessioncookie: string[22] content-type: application/x-vvtk-tunnelled pragma : no-cache...
Page 336 VIVOTEK 8.13 Event/Control HTTP Tunnel Channel (capability. evctrlchannel > 0) Note: This request requires Administrator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/admin/ctrlevent.cgi ------------------------------------------------------------------------- GET /cgi-bin/admin/ctrlevent.cgi x-sessioncookie: string[22] accept: application/x-vvtk-tunnelled pragma: no-cache cache-control: no-cache ------------------------------------------------------------------------- POST /cgi-bin/admin/ ctrlevent.cgi x-sessioncookie: string[22] content-type: application/x-vvtk-tunnelled...
Page 337 VIVOTEK 8.14 Get SDP of Streams Note: This request requires Viewer access privileges. Method: GET/POST Syntax: http://<servername>/<network_rtsp_s<0~m-1>_accessname> “m” is the stream number. “network_accessname_<0~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to the “subgroup of network: rtsp” for setting the accessname of SDP.
Page 338 VIVOTEK 8.16 Senddata (capability.nuart > 0) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/senddata.cgi? [com=<value>][&data=<value>][&flush=<value>] [&wait=<value>] [&read=<value>] PARAMETER VALUE DESCRIPTION 1 ~ <max. com port The target COM/RS485 port number. number> data <hex decimal The <hex decimal data> is a series of digits from 0 ~ 9, A ~ F. Each data>[,<hex decimal...
Page 339 VIVOTEK 8.17 Storage managements (capability.storage.dbenabled > 0) Note: This request requires administrator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=<cmd_type>[&<parameter>=<value>…] The commands usage and their input arguments are as follows. PARAMETER VALUE DESCRIPTION cmd_type <string> Required. Command to be executed, including search, insert, delete, update, and queryStatus.
Page 340 VIVOTEK Indicate if the file is locked or not. 0: file is not locked. 1: file is locked. A locked file would not be removed from UI or cyclic storage. triggerTime <text> Optional. Indicate the event trigger time. (not the file created time) Format is “YYYY-MM-DD HH:MM:SS”...
Page 341 VIVOTEK label <integer primary key> Required. Identify the designated record. Ex. label=1 isLocked <boolean> Required. Indicate if the file is locked or not. Ex. Update records whose key numbers are 1 and 5 to be locked status. http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=update&isLocked=1&label=1&label=5 Ex. Update records whose key numbers are 2 and 3 to be unlocked status.
Page 342 VIVOTEK 8.18 Virtual input (capability.nvi > 0) Note: Change virtual input (manual trigger) status. Method: GET Syntax: http://<servername>/cgi-bin/admin/setvi.cgi?vi0=<value>[&vi1=<value>][&vi2=<value>] [&return=<return page>] PARAMETER VALUE DESCRIPTION vi<num> state[(duration)nstate] Ex: vi0=1 Setting virtual input 0 to trigger state Where "state" is 0, 1. “0”...
Page 343 VIVOTEK Request 2 will not be accepted during the execution time(15 seconds). 8.19 Open Timeshift Stream (capability.timeshift > 0, timeshift_enable=1, timeshift_c<n>_s<m>_allow=1) Note: This request requires Viewer access privileges. Syntax: For HTTP push server (MJPEG): http://<servername>/<network_http_s<m>_accessname>?maxsft=<value>[&tsmode=<value>&reftime=<v alue>&forcechk&minsft=<value>] For RTSP (MP4 and H264), the user needs to input theURL below into an RTSP compatible player.
Page 344 VIVOTEK Return Code Description 400 Bad Request Request is rejected because some parameter values are illegal. 415 Unsupported Media Type Returned, if forcechk appears,when minsft is not achievable or the timeshift feature of the target stream is not enabled. 8.20 RemoteFocus (capability_image_c<0~(n-1)>_remotefocus=1)
Page 345 VIVOTEK function zoom, Function type focus, zoom - Move focus motor auto, focus – Move focus motor scan, auto – Perform auto focus scan – Perform focus scan stop, positioning, stop – Stop current operation getstatus positioning – Position the motors getstatus–Information of motors, return value as below:...
Page 346 VIVOTEK steps 1 ~ <motor_max> Motor’s moving steps. It works only if function=zoom | focus and direction=forward | backward. <motor_max> is refer to remote_focus_focus_motor_max or remote_focus_zoom_motor_max which replied from "function=getstatus" * This parameter is for additional fine-tune, the value is from 1 to 30.
Page 347 VIVOTEK 8.21 BackFocus (capability_image_c<0~(n-1)>_remotefocus=4) Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/remotefocus.cgi?function=<value>[&direction=<value>] [&position=<value>][&steps=<value>][&iris] PARAMETER VALUE DESCRIPTION User's Manual - 347...
Page 348 VIVOTEK function focus, Function type auto, focus – Move focus motor scan, auto – Perform auto focus stop, scan – Perform focus scan stop – Stop current operation positioning, irisopen, positioning – Position the motors irisenable, resetfocus – reset focus position to default resetfocus, irisopen –...
Page 349 VIVOTEK steps 1 ~ <motor_max> Motor’s moving steps. It works only if function=focus and direction=forward | backward. <motor_max> is refer to remote_focus_focus_motor_max which replied from "function=getstatus" * This parameter is for additional fine-tune, the value is from 1 to 30.
Page 350 VIVOTEK 8.23 Upload Files Note: This request requires Administrator privileges. Method: POST Syntax: For daylight saving time configuration file: http://<servername>/cgi-bin/admin/upload_dst.cgi Post data: filename =<file name>\r\n \r\n <multipart encoded form data> For language file: http://<servername>/cgi-bin/admin/upload_lan.cgi Post data: filename =<file name>\r\n \r\n <multipart encoded form data>...
Page 351 VIVOTEK 8.24 Update Lens Configuration (capability_image_c<0~(n-1)>_lensconfiguration_support > 0) Note: This request requires Administrator privileges. Method: GET Syntax: For list a name of lens currently used: http://<servername>/cgi-bin/admin/update_lens.cgi?get_currentlens For list all names of lens installed in camera: http://<servername>/cgi-bin/admin/update_lens.cgi?list_lens For choose selected lens configuration: http://<servername>/cgi-bin/admin/update_lens.cgi?choose_lens=<value>...
Page 352 VIVOTEK upload_lens_profile_input = <file name>\r\n \r\n <multipart encoded form data> Server will accept the file named <file name> to upload the lens profile to camera. 8.25 Media on demand (capability.localstorage.modnum > 0) Media on demand allows users to select and receive/watch/listen to metadata/video/audio contents on demand.
Page 353 VIVOTEK 8.26 Fisheye local dewarp camera control (capability.fisheye > 0 and capability.fisheyelocaldewarp.c0 > 0, only support in 1R mode) Note: This request requires camctrl privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/fdCamCtrl.cgi?channel=<value>&stream=<value> [&move=<value>] – Move home, up, down, left, right [&zoom=<value>] – Zoom wide, tele [[&speedpan=<value>][&speedtilt=<value>][&speedzoom=<value>]]...
Page 354 VIVOTEK zoom wide Zoom larger view with current speed. tele Zoom further with current speed. speedpan -5 ~ 5 Set the pan speed of current command. speedtilt -5 ~ 5 Set the tilt speed of current command. speedzoom -5 ~ 5 Set the zoom speed of current command.
Page 355 VIVOTEK 8.27 3D Privacy Mask (capability_image_c<0~(n-1)>_privacymask_wintype = 3Drectangle) n denotes the value of "capability_nvideoin" Note: This request requires admin user privilege Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/setpm3d.cgi?method=<value>&maskname=<value>&[maskheight=<valu e>&maskwidth=<value>&videosize=<value>&return=<return page>] PARAMETER VALUE DESCRIPTION method Add a 3D privacy mask at current location delete...
Page 356 VIVOTEK 8.28 Camera Control (capability_camctrl_c<0~(n-1)>_zoommodule = 1) Note: This request requires Viewer privileges. Method: GET/POST Syntax: (for control API) http://<servername>/cgi-bin/camctrl/camctrl.cgi?[channel=<value>][&camid=<value>] [&move=<value>] – Move home, up, down, left, right [&focus=<value>] – Focus operation [&zoom=<value>] – Zoom in, out [&zooming=<value>&zs=<value>] – Zoom without stopping, used for joystick [&vx=<value>&vy=<value>&vs=<value>] –...
Page 357 VIVOTEK speedpan -5 ~ 5 Set the pan speed. speedtilt -5 ~ 5 Set the tilt speed. speedzoom -5 ~ 5 Set the zoom speed. speedfocus -5 ~ 5 Set the focus speed. speedapp -5 ~ 5 Set the auto pan/patrol speed.
Page 358 VIVOTEK * We support this function when the version number of the PTZ control module is equal or greater than 5.0.0.20. getsetpreset Adds a named preset at current position, and return the preset index. * We support this function when the version number of the PTZ control module is equal or greater than 5.0.0.20.
Page 359 VIVOTEK gettiltangle <integer> Get the current tilt angle. *Only available when bit1 of "capability_camctrl_c<0~(n-1)>_buildinpt" is "1" getzoom 0, <positive integer> Get the current zoom position. getratio <decimal> Get the current zoom ratio. getfocus 0, <positive integer> Get the current focus position.
Page 360 VIVOTEK getmaxratio <decimal> Get the maximum ratio of optical zoom. * We support this parameter when the version number (getversion) is equal or greater than 5.0.0.14 getmaxdratio <decimal> Get the maximum ratio of digital zoom. * We support this parameter when the version number (getversion) is equal or greater than 5.0.0.14...
Page 361 VIVOTEK 8.30 Preset Locations (capability_camctrl_c<0~(n-1)>_zoommodule = 1) Note: This request requires Operator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/operator/preset.cgi?[channel=<value>] [&addpos=<value>][&delpos=<value>][&return=<return page>] PARAMETER VALUE DESCRIPTION addpos string[30] Add one preset location to the preset list. channel 0~"capability_nvideoin"-1 Channel of the video source. delpos string[30] Delete preset location from preset list.
Page 362 VIVOTEK 8.31 SmartSD (capability_localstorage_smartsd > 0) Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/smartsd.cgi?function=<value> PARAMETER VALUE DESCRIPTION 362 - User's Manual...
Page 363 VIVOTEK function getstatus Function type getstauts : Information of smartSD internal status return value as below: smartsd_lifetime_num: Accumulated amount of data that has been written smartsd_lifetime_den: Card-guaranteed amount of data that can be written smartsd_lifetime_rate: The ratio of smartsd_lifetime_num to smartsd_lifetime_den.
Page 364 VIVOTEK 8.32 Connect to AP (capability_network_wireless > 0) Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/connect_ap.cgi PARAMETER VALUE DESCRIPTION Apply the wireless settings and connect to AP. 8.33 Get wireless information (capability_network_wireless > 0) Note: This request requires Administrator privileges.
Page 365 VIVOTEK 8.34 Get wireless signal strength (capability_network_wireless > Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/getwlsignalstrength.cgi PARAMETER VALUE DESCRIPTION Get wireless signal strength. 8.35 WPS transaction (capability_network_wireless > 0) Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/start_wps.cgi...
Page 366 VIVOTEK 8.36 Peripheral control (capability_peripheral_c<0~(n-1)>_ devicecontrol > 0) Note: This request requires Administrator privileges. Method: GET/POST Syntax: (for control API) http://<servername>/cgi-bin/admin/peripheral.cgi?channel=<value>&operation=set [&washer_mode=<value>] – Set washer mode [&washer_status=<value>] – Set washer status [&washer_dwelltime=<value>] – Set washer clean time [&heater_status=<value>] – Set heater status Example: http://myserver/cgi-bin/admin/peripheral.cgi?channel=0&operation=set&washer_mode=wiper&...
Page 367 VIVOTEK *Only available when capability_peripheral_c<0~(n-1)>_washer_supp ort=1 Disable the functionality of washer control system. *Only available when capability_peripheral_c<0~(n-1)>_washer_supp ort=1 washer_dwelltime 15~999 Apply washer washer control system operation time (including the time when spraying and wiper actions take place). *Only available when capability_peripheral_c<0~(n-1)>_washer_supp...
Page 368 VIVOTEK Pragma: no-cache\r\n \r\n supportdevice=washer,heater\r\n washer_status=off\r\n PARAMETER VALUE DESCRIPTION channel 0~"capability_nvideoin"-1 Channel of the video source. supportdevice Get support peripheral device. washer_supportmode Get the support mode of washer control system, its value is the same with "capability_peripheral_ c<0~(n-1)>_washer_mode". *Only available when capability_peripheral_c<0~(n-1)>_washer_supp...
Page 369 VIVOTEK an internal condition.‘trigger’ status will be transfer to ‘auto’ after reach the internal condition. *Only available when capability_peripheral_c<0~(n-1)>_heater_suppo rt=1 8.37 Optimized IR control (capability_daynight_c<0~(n-1)>_optimizedir > 0) Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/optimizedir.cgi?function=<value>[&channel=<value>] PARAMETER VALUE...
Page 370 VIVOTEK Example: http://myserver/cgi-bin/admin/optimizedir.cgi?function=getstatus Response: HTTP/1.0 200 OK\r\n Cache-control: no-cache\r\n Pragma: no-cache\r\n \r\n "optimizedir_c0_irmode='auto'" "optimizedir_c0_irnum='5'" "optimizedir_c0_irstrength='1,97,100,100,100'" "optimizedir_c0_irstatus='normal'" Syntax: (for control API) http://<servername>/cgi-bin/admin/optimizedir.cgi?channel=<value>&operation=<value>&irmode=manual [&strength=<value>] – Set IR strength PARAMETER VALUE DESCRIPTION channel 0~"capability_nvideoin"-1 Channel of the video source.
Page 371 VIVOTEK http://myserver/cgi-bin/admin/optimizedir.cgi?channel=0&operation=set&irmode=manual& strength=50,70,50,50,50 Response: HTTP/1.0 200 OK\r\n Cache-control: no-cache\r\n Pragma: no-cache\r\n \r\n "optimizedir_c0_irstrength='50,70,50,50,50'" "optimizedir_c0_irmode='manual'" Example: http://myserver/cgi-bin/admin/optimizedir.cgi?channel=0&operation=settoall&irmode=manual&strength=100 Response: HTTP/1.0 200 OK\r\n Cache-control: no-cache\r\n Pragma: no-cache\r\n \r\n "optimizedir_c0_irstrength='100,100,100,100,100'" "optimizedir_c0_irmode='manual'" Example: http://myserver/cgi-bin/admin/optimizedir.cgi?channel=0&operation=set&irmode=auto&strength=50,70,50,50, Response: HTTP/1.0 200 OK\r\n...
Page 372 VIVOTEK http://myserver/cgi-bin/admin/optimizedir.cgi?channel=0&operation=set&strength=50,70,50,50,50 Response: HTTP/1.0 200 OK\r\n Cache-control: no-cache\r\n Pragma: no-cache\r\n \r\n ERROR: Must have the "irmode=manual" argument! Syntax: (for querying API) http://<servername>/cgi-bin/admin/optimizedir.cgi?channel=<value>&operation=get [&support_irmode] – list all adjustment mode that IR supports [&irmode] – Get current IR mode ...
Page 373 Technical Specifications VIVOTEK Technical Specifications Model IB9391-EHT Audio Capability Two-way Audio System Information Compression G.711, G.726 External microphone input Multimedia SoC (System-on-Chip) Interface External line output Flash 128MB Network Users Live viewing for up to 10 clients Camera Features IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/...
Page 374 All specifications are subject to change without notice. Copyright © VIVOTEK INC. All rights reserved. Ver. 5 6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C. | T: +886-2-82455282 | F: +886-2-82455532 | E: sales@vivotek.com | W: www.vivotek.com...
Page 375 VIVOTEK Technology License Notice AMR-NB Standard THIS PRODUCT IS LICENSED UNDER THE AMR-NB STANDARD PATENT LICENSE AGREEMENT. WITH RESPECT TO THE USE OF THIS PRODUCT, THE FOLLOWING LICENSORS’ PATENTS MAY APPLY: TELEFONAKIEBOLAGET ERICSSON AB: US PAT. 6192335; 6275798; 6029125; 6424938; 6058359. NOKIA CORPORATION: US PAT.
Page 376 取扱説明書に従って正しい取り扱いをして下さい Liability VIVOTEK Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. VIVOTEK Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose.

This manual is also suitable for:

Ib9391-eht Ib9391-ehtv-v2
