CM2 Sidescan Sonar User Manual
2. System Components
C-Shell
The C-Shell is an optional polypropylene clamshell enclosure for the STR. The C-Shell converts an STR into
a fully waterproof (IP67) unit, complete with waterproof connectors. The STR can be quickly fitted or
removed.

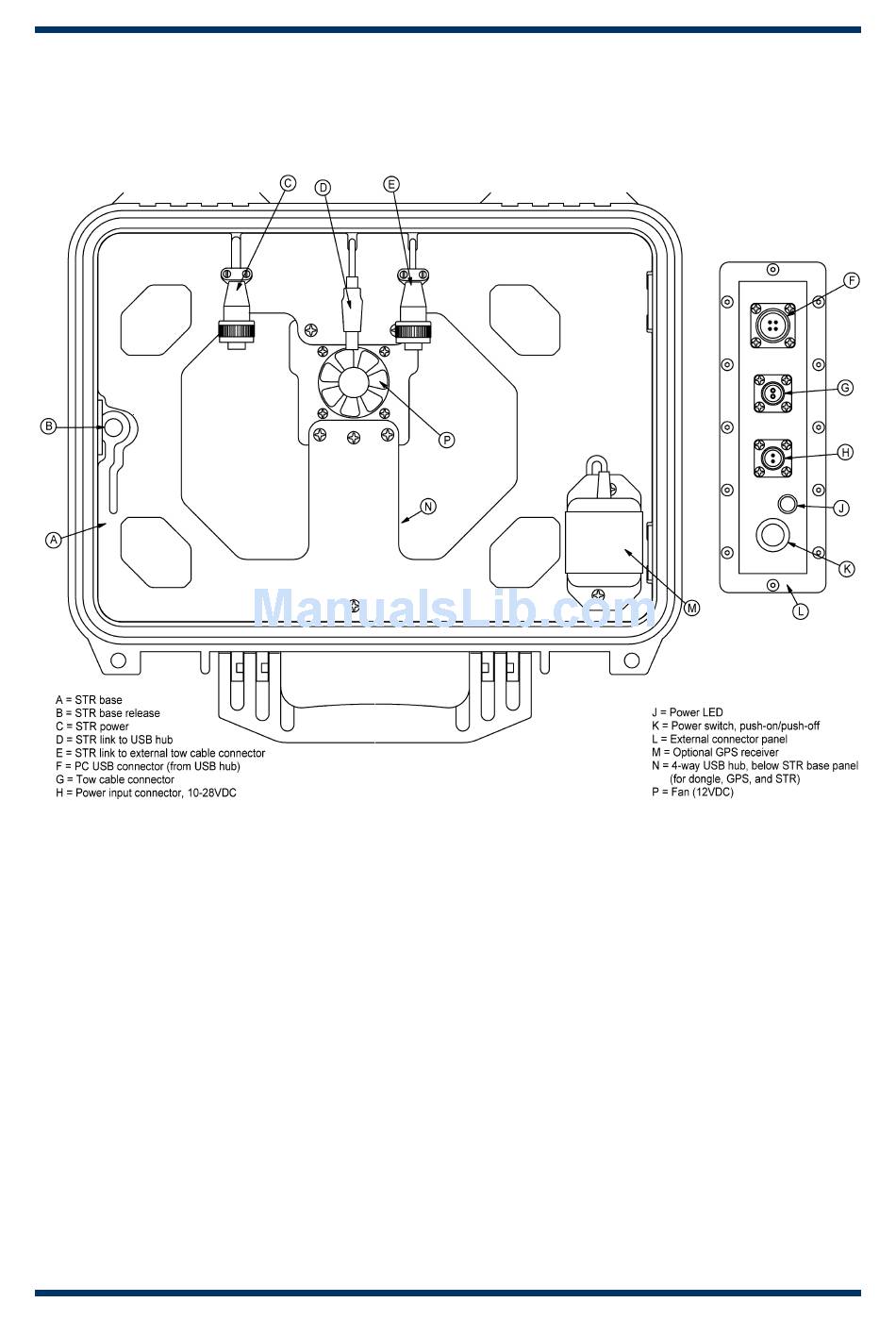

C-Shell, Panel and Connectors
The C-Shell includes a 4-way USB hub that can be used to house a dongle for the acquisition software. The
C-Shell can also be specified with an integral GPS receiver: the GPS output is fed to the hub for
transmission to the external USB link.
Version 3.6 (2008)
3
