CM2 Sidescan Sonar User Manual
3. Installing the System

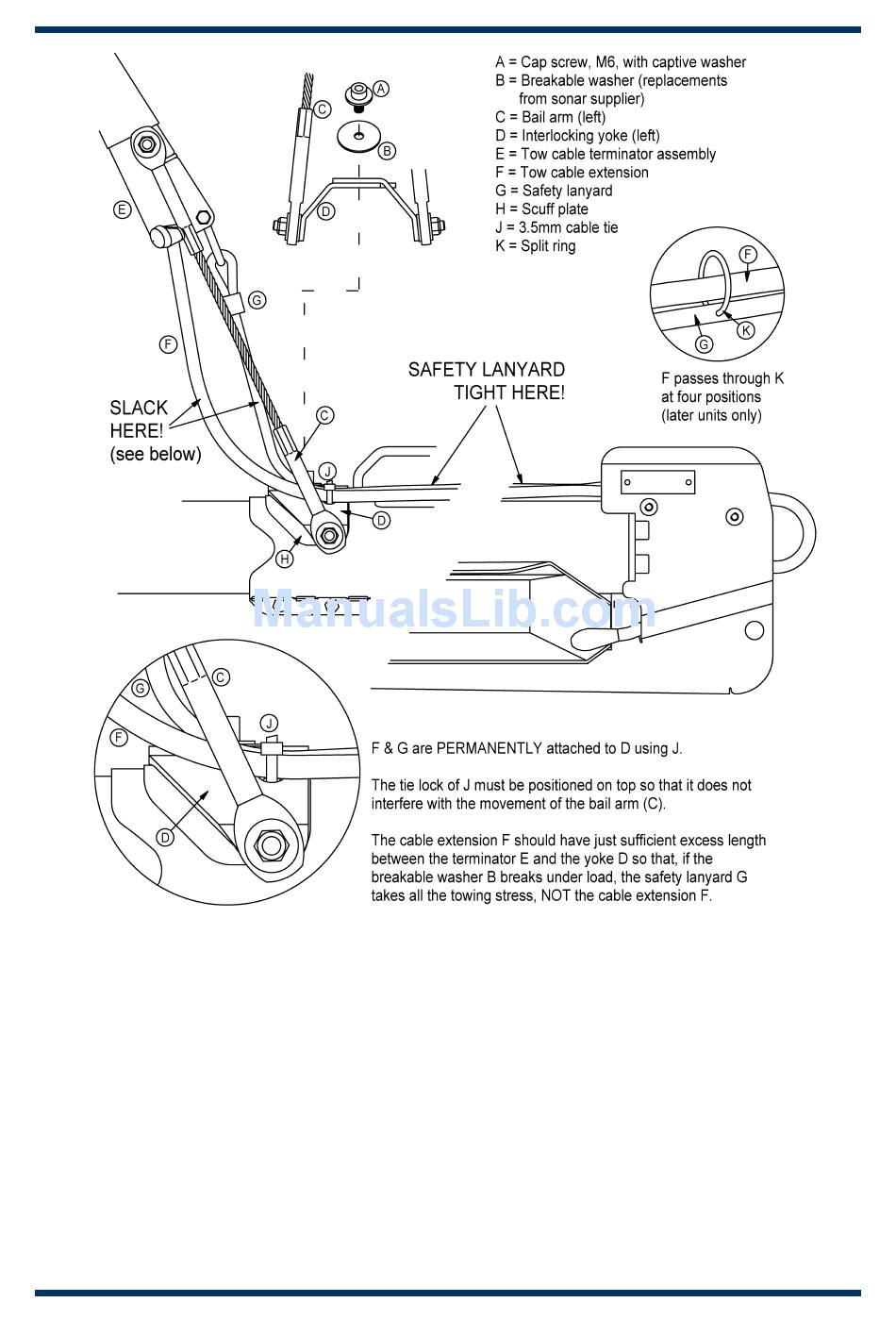

Attaching the Towing Bail
Checking system operation
With the whole system now connected as described earlier in this Section, apply power to the STR, C-Shell
or C-Case. The red Power indicator should light.
Start...
Towfish
If MaxView has been installed, open it and select
from the
menu. Alternatively press the
Start Towfish
Quick Select
spacebar then select
from the
menu. If some other acquisition software is
installed instead of MaxView, the towfish can be started using that software.
When the towfish is commanded to start, the green Trigger indicator on the STR should light continuously
Start Towfish
Energizing...
whilst the
dialog displays the
message. This message should be automatically
Connecting...
replaced after a short period by
Energizing...
The
message indicates that a voltage of approximately 42VDC* is being supplied to the tow
cable connector. This voltage is passed to the towfish to charge its internal capacitors and start its operation.
Version 3.6 (2008)
