USER MANUAL
DBX-98

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DBX-98 and is the answer not in the manual?

Questions and answers

Related Manuals for Alecto DBX-98

Summary of Contents for Alecto DBX-98

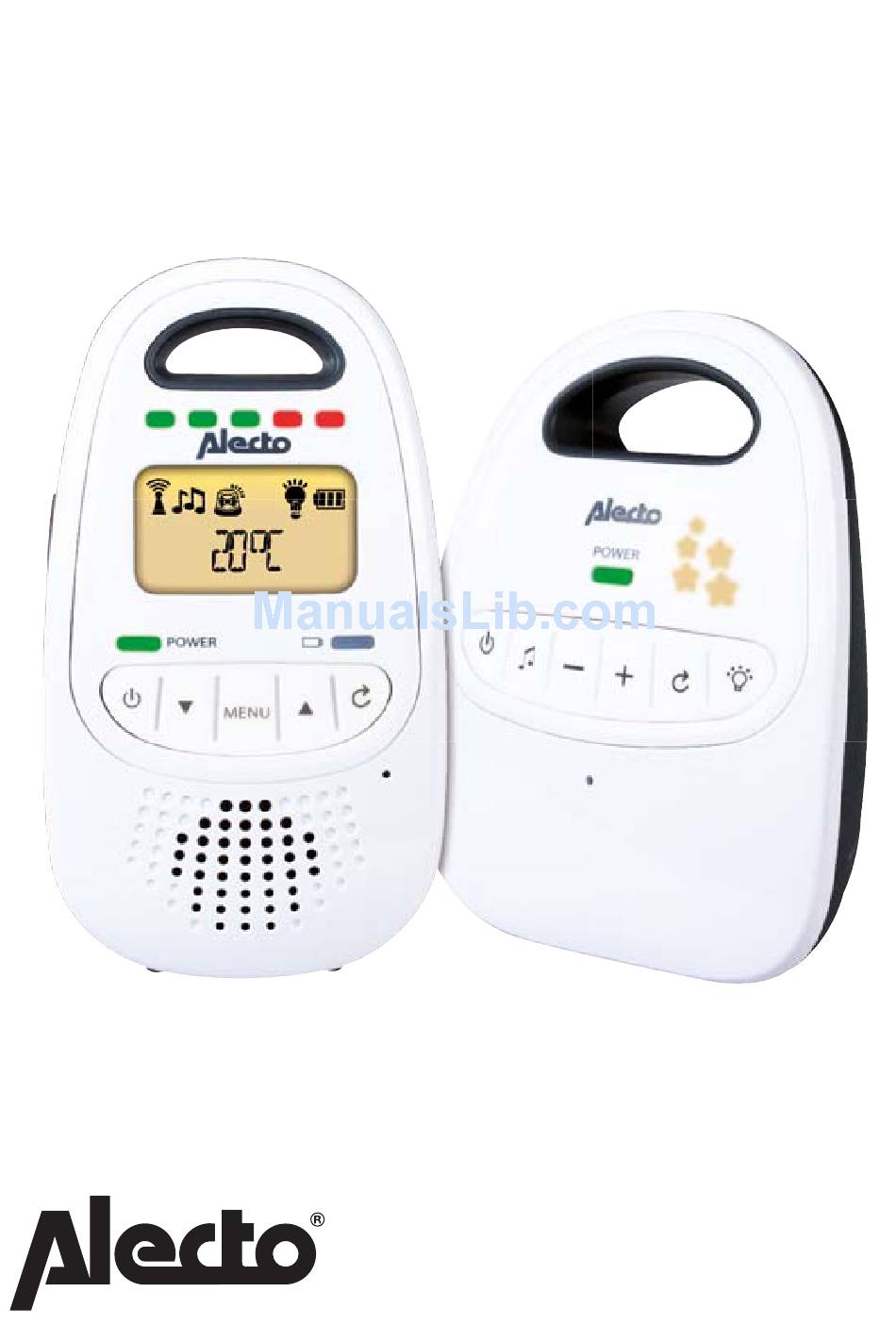

  • Page 1 USER MANUAL DBX-98...

  • Page 2: Overview

    1 OVERVIEW 1.1 OVERVIEW PARENT UNIT: Display: - Link check (fl ashes when there is no link) - lights up when playing lullabies - lights up when the sound war- ning has been setup - lights up when sound is set to MENU 0 (off) - lights up when...

  • Page 3: Overview Baby Unit

    8. Battery light:: Lights up when the power adapter is connected (note: DOES NOT turn off even when the batteries are full). Flashes if the batteries are running low. 9. Keys : Back button while setting up 10. Keys : Increase volume button 11.

  • Page 4: Installation

    2 INSTALLATION 2.1 PARENT UNIT: The parent unit is powered by the two supplied rechargeable batteries. These batteries can be charged using the included power adapter. Take Note: Only use rechargeable batteries! Normal batteries are not rechargeable and may explode if charging causing irreparable damage to the parent unit.

  • Page 5: Baby Unit

    The parent unit can be used immediately. The display shows the charging development of the batteries (depending on the settings of the baby monitor (the parent unit will be turned either on or off, how high the volume level is, the baby cries a lot), the batteries will the fully charged after 12 to 24 hours.

  • Page 6: How To Use

    3 HOW TO USE Please note that this baby monitor should only be used as an added as- sistance. The unit does not replace the physical presence and oversight of a parent or guardian. 3.1 ON/OFF SWITCH: 3 sec. Press the on/off button for approximately 3 seconds to turn the device on.

  • Page 7: Listening

    3.3 LISTENING: Receiving Volume: Press the keys on the parent unit in or- der to set the volume level (5 levels + sound off). • The set volume level will be shown with the indication lights. • When the maximum or minimum volume has been reached an additional double beep sound will be heard when pressing the + or - key.

  • Page 8: Lullabies

    3.5 LULLAIBIES: The baby unit has 5 different programmed lullabies. The selected lullaby will be played for 15 minutes. Press the button once on the baby unit in order to start or stop the lullaby. To change the lullaby pres the button to select a new lullaby.

  • Page 9: Nightlight

    3.7 NIGHTLIGHT: The night light can be switched on or off using the baby unit, or remotely switched off from the parent unit. From the baby unit: Press the button on the baby unit to switch the night light on or off. From the parent unit: Menu Pres the MENU key.

  • Page 10: Tempature Dipslay

    3.9 TEMPERATURE DISPLAY When the baby is at rest, the temperature in the baby room will be shown in degree Celsius on the display of the parent unit. The range of the temperature display is between 12°C and 35°C When the temperature exceeds these limits a warning will be shown on the display: [ LOW TEMP ] or [ HIGH TEMP ].

  • Page 11: General

    In addition to checking the range, and connection control, it is recom- mended to regularly check the connection during usage. The DBX-98 should not be used for anything else than for detecting sounds from within your own private premises; anyone else within the listening perimeter of the baby monitor should be informed.

  • Page 12: Range

    4.3 RANGE: The connection range of the baby monitor is up to 300 meters in an open fi eld and 50 meters in a house; the range can differ according to external conditions (concrete walls, other baby monitors, cordless phones, etc). 4.4 BATTERY USAGE: Fully charged NiMH batteries, with a capacity of 400mAh, can supply the parent unit with power for more than 12 hours without needing the...

  • Page 13: Maintenance

    5 DECLARATION OF CONFORMITY This device complies with the essential requirements and provisions as defi ned in the European Directive 1999/5/ EC. The declaration of conformity is available on the website at: WWW.ALECTO.INFO 6 TECHNICAL SPCIFICATIONS Number of channels: 120 (selected automatically) Frequancy: 1881.792 - 1897.344 MHz...

  • Page 14: Mulfunctions Table

    (good) connection, you will not be able to but the parent unit cannot turn the parent unit on. (The batteries provide be switched on. power for the parent unit; the adapter only ensures that the batteries are being charged). For extra information please consult: www.alecto.info...

  • Page 15: Table Of Contents

    TABLE OF CONTENTS OVERVIEW OVERVIEW PARENT UNIT ..........2 OVERVIEW BABY UNIT ............. 3 INSTALLATION PARENT UNIT ..............4 BABY UNIT ................5 PLACEMENT TIPS .............. 5 HOW TO USE ON/OFF SWITCH ..............6 LINK CHECK ............... 6 LISTENING ................. 7 DISPLAY LANGUAGE ............

  • Page 16: Garranty

    9 GARRANTY The Alecto DBX-98 has a guarantee of 24 MONTHS after the date of purchase. We guarantee during this period the free repair of defects caused from the material and workmanship. Some things are kept for the assessment of the importer.
