Deluxe atv boomless sprayer

Advertisement

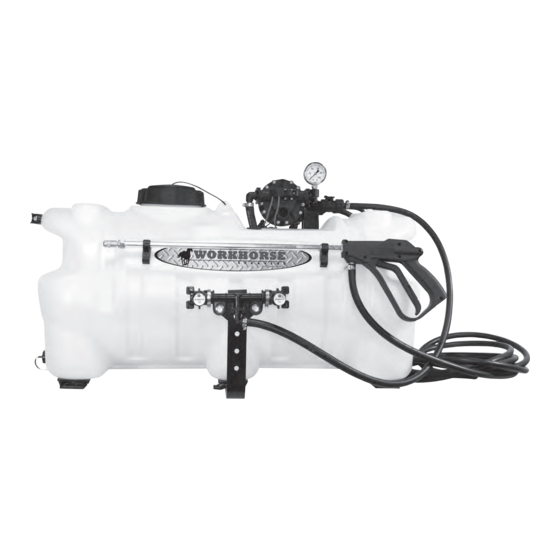

ATV 25BL
DELUXE ATV BOOMLESS SPRAYER
Polyethylene Tank
12 Volt Diaphram Pump
4.0 G.P.M.
Lever Handgun
15 Ft. of 3/8" Hose (handgun)

— GENERAL INFORMATION

The purpose of this manual is to assist you in assembling,
operating and maintaining your lawn and garden sprayer.
Please read it carefully as it furnishes information which
will help you achieve years of dependable trouble-free

— ASSEMBLY

Tools required:
1 – 7/16" End Wrench
1 – 3/16" Allen Wrench
1 – Phillips Screwdriver
1 – Thread Sealant
PSE-PRECISION SPRAY EQUIPMENT
, a divison of Green Leaf, Inc. 9490 N BALDWIN ST FONTANET, IN 47851 www.green-leaf.us 800-654-9808
®
WORKHORSE
WORKHORSE
Assembly / Operation Instructions / Parts
S
P
R
Pressure Gauge
Adjustable Pressure range (0-45 PSI Max.)
2 Nozzle Boomless Tips
Quick Detach Spray Boom Feature

— WARRANTY / PARTS / SERVICE

Workhorse products are warranted for one year from the date of
purchase against manufacture or workmanship defects for personal
or homeowner usage with proof of purchase. Workhorse products
are warranted for 90 days for commercial users. Any unauthorized
modification of a Workhorse brand sprayer will void warranty.
Your authorized dealer is the best source of replacement
parts and service. To obtain prompt, efficient service,
always remember to give the following information:
1. Correct part description and part number.
2. Model number of your sprayer.
Part description and part numbers can be obtained from the illu-
strated parts list section of this manual.
Whenever you need parts or repair service, contact your distributor/
dealer first. For warranty work always take your original sales slip,
or other evidence of purchase date, to your distributor / dealer.
A
Y
E
R
S
®
by PSE®, a Division of Green Leaf, Inc®
by PSE®, a Division of Green Leaf, Inc®
PSE
P R E C I S I O N S P R AY E Q U I P M E N T
®
®
a division of Green Leaf, Inc
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATV 25BL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Workhorse ATV 25BL

  • Page 1 — WARRANTY / PARTS / SERVICE The purpose of this manual is to assist you in assembling, Workhorse products are warranted for one year from the date of operating and maintaining your lawn and garden sprayer. purchase against manufacture or workmanship defects for personal or homeowner usage with proof of purchase.
  • Page 2 — OPERATION — AFTER SPRAYING This sprayer is designed to be attached to an ATV rack or After use, fill the sprayer part way with water. Start the other stable surface. The pumping system draws solution sprayer and allow clear water to be pumped through the from the tank, through the strainer and to the pump.
  • Page 3 Assembly Instructions Assembly Instructions PARTS LIST 1.0--Install ATV Boom Mounts & ATV Helix Lever ITEM PART NUMBER DESCRIPTION on bottom of tank as illustrated using 5/16" 600132 25 Gallon Tank Flat Head Screws. Note the the orientation 600133 Tank Lid of all parts as their orientation is essent a i l for proper assembly.
  • Page 4 Spray Assembly Instructions 2.0--Install Boomless Mounting Brackets onto ATV Angle Bracket using 5/16" x .875" bolts and 5/16" nuts. 2.1--Insert Quick Clip into the back of the Boomless Manifold PARTS LIST Assembly (The Quick Clip can only be installed before mounting the Boomless Manifold to the Mounting Bracket) ITEM PART NUMBER...
  • Page 5 Pump & Valve Illustration Boom Hose Assembly Wand Hose Assembly PARTS LIST ITEM PART NUMBER DESCRIPTION 640451 2.2 GPM Pump 630201 4.0 GPM Pump 630031 5.0 GPM Pump 600289 Manifold Body Install Wand Hose Assembly onto 600291 Elbow (2.2 pumps) Swivel Barb Assembly, by placing a Hose Clamp over the open end of the 600292...
  • Page 6: Specifications

    PowerFLO 5900 Series ™ 12 Volt DC Motor-Driven Diaphragm Pumps Model: 5900: 4.0 GPM Specifications — Recommendations — Motor: Electrical: Type: 12 VDC, permanent magnet, totally enclosed, non-ventilated The 5900 series pumps are designed for intermittent duty. Leads: 14 AWG, 12” long Make sure that “OFF”...
  • Page 7: Troubleshooting Guide

    Troubleshooting Guide — 11/15 Problem/Causes and Remedies: Pump will not Shut Off (Output line closed and no leaks) Pump will not Start Check: Check: • Air trapped in outlet line or pump head • Correct voltage (±10%) and electrical connections •...
