Workhorse ATV 2507 Assembly, Operation And Parts Manual

— GENERAL INFORMATION
The purpose of this manual is to assist you in assembling,
operating and maintaining your lawn and garden sprayer.
Please read it carefully as it furnishes information which
will help you achieve years of dependable trouble-free
operation.
— ASSEMBLY
Tools required:
1 – 7/16" End Wrench
2 – 1/2" End Wrenches
1 – Thread Sealant
PRECISION SPRAY EQUIPMENT , a divison of Green Leaf, Inc. 9490 N BALDWIN ST FONTANET, IN 47851 www.workhorsesprayers.com 800-654-9808
®
WORKHORSE
WORKHORSE
Assembly / Operation Instructions / Parts
S P R A
by PSE®, a Division of Green Leaf, Inc® by PSE®, a Division of Green Leaf, Inc®
ATV 2507

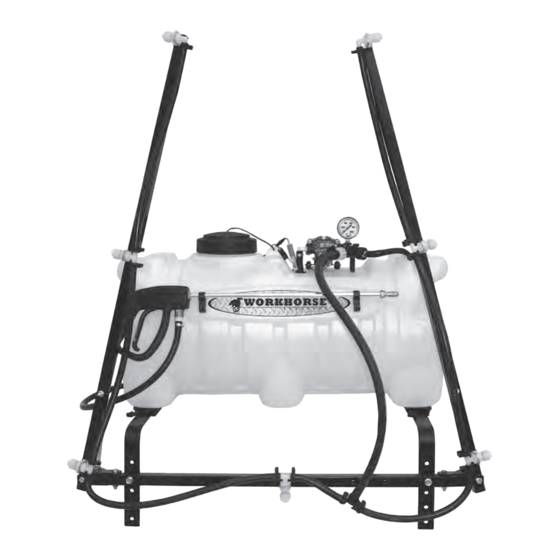

25 GALLON DELUXE ATV SPRAYER - 7 NOZZLE
Polyethylene Tank
12 Volt Diaphram Pump
2.0 G.P.M.
Lever Handgun
15 Ft. of 3/8" Hose (handgun)
Pressure Gauge
Adjustable Pressure range (0-60 PSI Max.)
7 Nozzle Fold Out Boom
Quick Detach Spray Boom Feature
— WARRANTY / PARTS / SERVICE
Products are warranted for one year from date of purchase
against manufacturer or workmanship defects.
Your authorized dealer is the best source of replacement
parts and service. To obtain prompt, efficient service,
always remember to give the following information:
1. Correct part description and part number.
2. Model number of your sprayer.
Part description and part numbers can be obtained from the
illustrated parts list section of this manual.
Whenever you need parts or repair service, contact your
distributor / dealer first. For warranty work always take your
original sales slip, or other evidence of purchase date, to
your distributor / dealer.
Y E R S
®
PSE
P R E C I S I O N S P R AY E Q U I P M E N T
®
®
a division of Green Leaf, Inc
®
