— GENERAL INFORMATION
The purpose of this manual is to assist you in assembling, operating
and maintaining your lawn and garden sprayer.
Please read it carefully as it furnishes information which will help you
achieve years of dependable trouble-free operation.
— ASSEMBLY INSTRUCTIONS
Tools required:
2 — 7/16" End Wrenches
1 — 9/16" End Wrench
1 — 1/2" End Wrench
1 — Pliers
1 — Thread Sealant
1 — Blade Screwdriver
1 — 3/16" Allen Wrench
WARNING: Some chemicals will damage the pump valves if allowed to soak untreated for a long period of time.
Always flush the pump with water after use. Do not allow chemicals to sit in pump for extended times of idleness.
Follow chemical manufacturers instructions on disposal of all waste water from the sprayer.
PRECISION SPRAY EQUIPMENT, a divison of Green Leaf, Inc. 9490 N BALDWIN ST FONTANET, IN 47851 www.grnleafinc.com
WORKHORSE
WORKHORSE
Assembly / Operation Instructions / Parts
S
P
R
A
Y
by PSE, a Division of Green Leaf, Inc®
by PSE, a Division of Green Leaf, Inc®
MODEL # ATV 2522

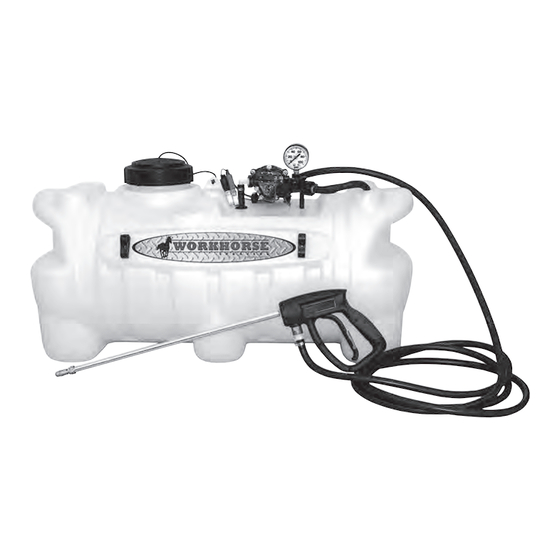

DELUXE ATV 2 NOZZLE SPRAYER
• Polyethylene Tank
• 2 Nozzle Boom Assembly
• 12 Volt Diaphragm Pump
• 2.0 G.P.M.
• Quick Attach Mounting System
• 80 inch coverage with Check Valve and Filter
• Lever Handgun
• 15 Ft. of 3/8" Hose (Handgun)
• Pressure Gauge
• Adjustable Pressure Range (0-60 PSI Max.)
• Custom Mounting Straps
— WARRANTY / PARTS / SERVICE
Products are warranted for one year from date of purchase
against manufacturer or workmanship defects.
Your authorized dealer is the best source of replacement parts
and service. To obtain prompt, efficient service, always remember
to give the following information: 1) Correct part description and
part number.
2) Model number and serial number of your
sprayer.
Part description and part numbers can be obtained from the
illustrated parts list section of this manual.
Whenever you need parts or repair service, contact your distribu-
tor / dealer first. For warranty work always take your original sales
slip, or other evidence of purchase date, to your distributor /
dealer.
E
R
S
PSE
P R E C I S I O N S P R AY E Q U I P M E N T
a division of Green Leaf, Inc
®
