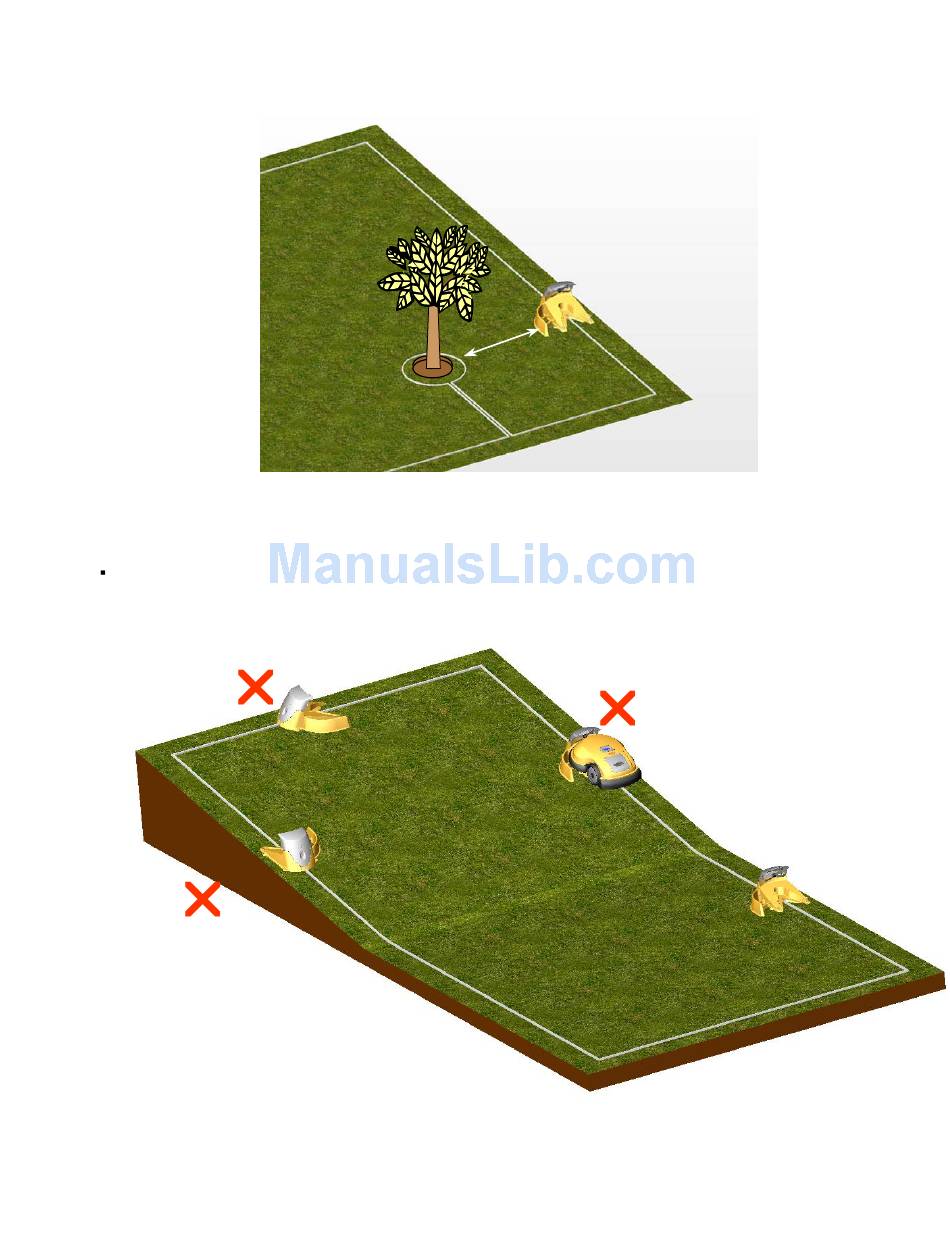

A minimum distance of 8 feet (2.5 meters) is required between the Charging Station fence and the
perimeter island. See figure 1.5.
Place the Charging Station on level ground. Do not place the Charging Station on a slopping ground.
See figure 1.6. The area under and around the Charging Station MUST be flat to insure proper
Charging of the mower into the Charging Station. Ensure both drive wheels are leveled with the
Charging Station base.
Figure 1.6 – Placing Charging Station on Level Ground
14
Greater than
8 feet (2.5m)
Figure 1.5 – Distance From Perimeter Island
Sloping – improper
Relatively Level – OK
OK
