Charging Station & Perimeter Wire Setup
CAUTION! Refer to
the specific safety
instructions related
with operation of the
RoboMower with a
Charging Station, as
specified in the
Safety chapter.
1.1 Charging Station Zone
Before setting up the perimeter wire and Charging Station, it is best to examine your lawn and determine
the best location for the Charging Station. The Charging Station is a fully automatic solution suitable for
one area or zone, thus it is recommended to set it up in the largest area or zone. To mow other areas,
simply drive the RoboMower to the area you want to mow and operate it in the automatic mode as
explained in this Manual. When this area is completed, drive the mower back to the station for re-charging.

Setup in Charging Zone

1.2 Charging Station Placement

There is a maximum distance of 50 feet (15 meters) from the receptacle to the Charging Station, see
figure 1.2. Do not use an extension cord to increase this distance. Should a distance of more than 50
feet (15 m) be required, refer to a locally qualified electrical professional to install a power source in
order to place power within the specified distance.
Position the Charging Station with the fence facing to the inside of the lawn. See figure 1.2.
12
Chapter 1
Cover
2
2 2
Screw (x2)
6 6
6
Fence
3 3
3

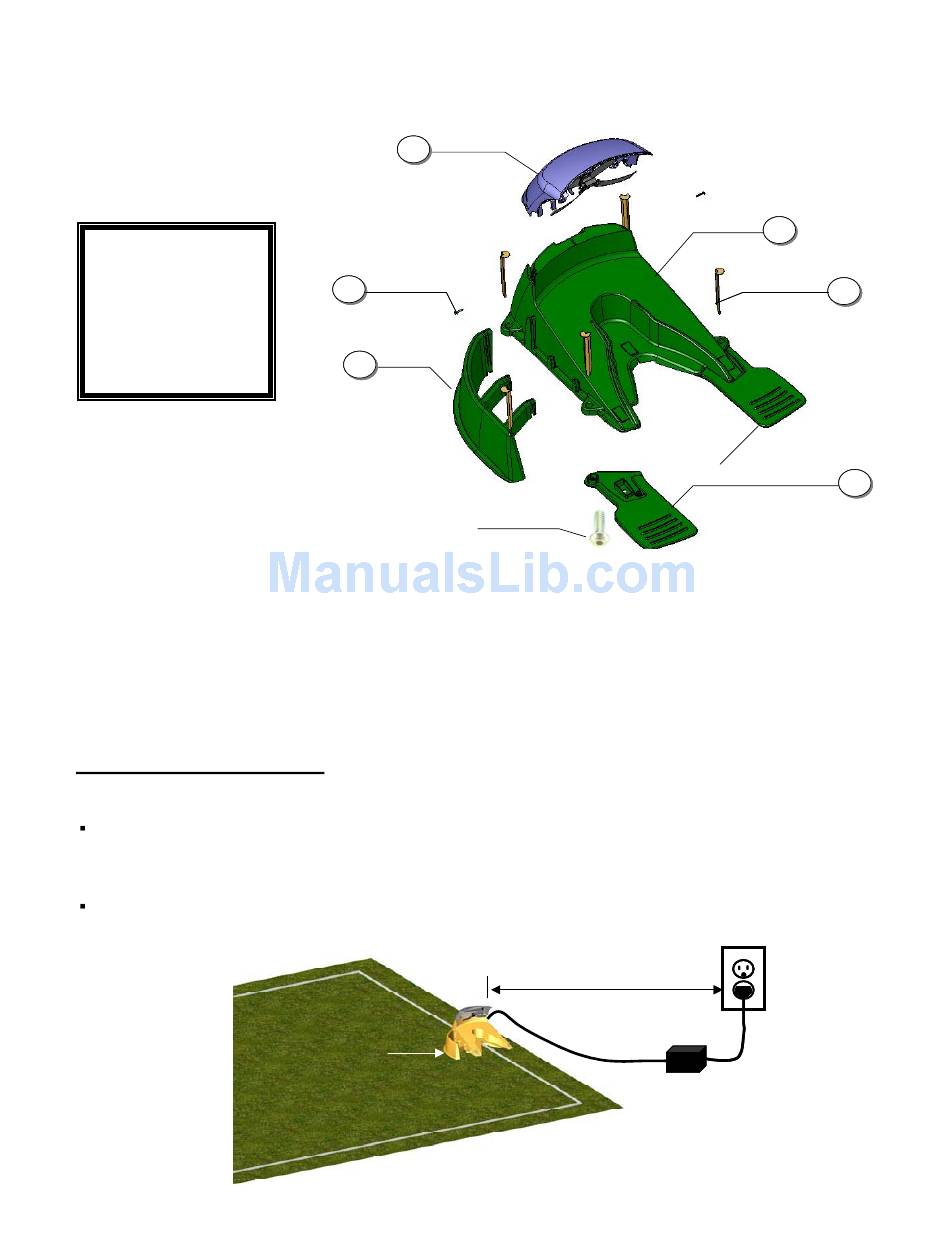

Figure 1.1 Charging Station Assembly
The Fence
The Fence
should be
should be
inside lawn
inside lawn
Figure 1.2 – Distance From Power Receptacle
Screw (x2)
Maximum 50 ft (15m)
Maximum 50 ft (15m)
40 Volts
40 Volts
Power Supply
Power Supply
Base
1 1
1
Stake (x5)
5 5
5
Drive wheel supports
4 4
4
Receptacle
Receptacle
120 V
120 V
230 V
230 V
