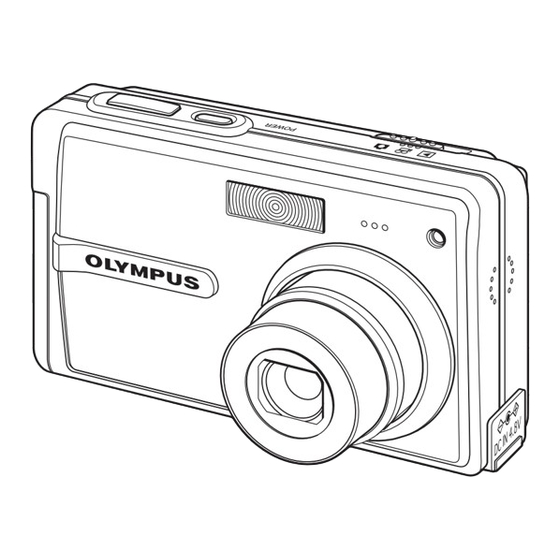

DIGITAL CAMERA

FE-150/X-730
FE-160/X-735
Advanced
Manual
Thank you for purchasing an Olympus digital camera. Before you start to use your new
camera, please read these instructions carefully to enjoy optimum performance and a
longer service life. Keep this manual in a safe place for future reference.
We recommend that you take test shots to get accustomed to your camera before taking
important photographs.
In the interest of continually improving products, Olympus reserves the right to update or
modify information contained in this manual.
The images of the LCD screen and illustrations of the camera used in this manual may
differ from the actual product. For this manual, all of the images are based on the FE-150/
X-730 model.
Detailed explanations of all the functions for
getting the most out of your camera.
