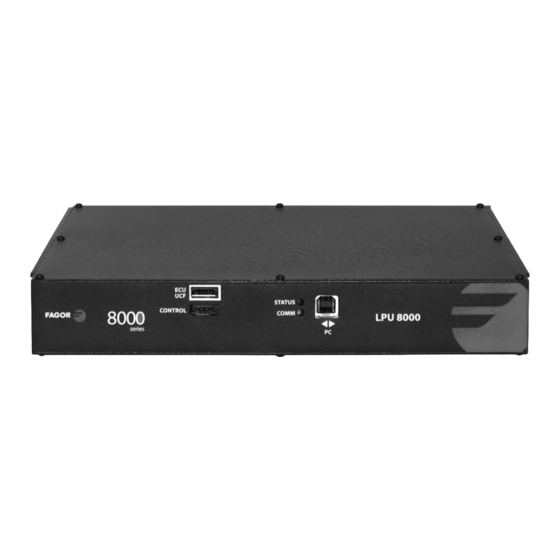

LPU 8000 Unidad de Programación Local ● Local Programing Unit ● Unité de Programmation Locale ● Unità di Programmazione Locale ●...
Page 2
5. Porta USB per PC locale 5. Puerto USB para PC local 5. Port USB pour PC local ■ Características principales Main specifications Característiques principales Caratteristiche principali LPU 8000 Local PC : USB Device CDC12Mbps Comunicaciones Communications Communications Comunicazioni Bus Comms: CAN 500kbps protocol...
Page 3
■ EJEMPLO DE APLICACIÓN APPLICATION EXAMPLE EXEMPLE D’APPLICATION ESEMPIO DI APPLICAZIONE Housing mounting TV SATELITE VIGILANCIA USB-A/USB-A USB-B/USB-A Nº Housing Rack 19” Transmodulador Transmodulateur DVB S/S2 - DVB T Transmodulatore 08280 / 08281 DVB S/S2 - DVB T DVB S/S2 - DVB T Transmodulator DVB S/S2 - DVB T Amplificador SHA 8000...
Page 4
En el programa de PC, pulsando el botón de Conectar se ■ ● INSTALACIÓN Y PUESTA EN MARCHA establece la conexión entre el PC y la LPU 8000. - Las conexiones y desconexiones de los módulos se realizarán con la fuente de alimentación desconectada de la red.
Page 5
Actualisation du firmware des appareils. Sur le programme du PC, appuyez sur le bouton Connecter ● pour établir la connexion entre le PC et la LPU 8000. ■ INSTALLATION ET MISE EN MARCHE - Pour la réalisation des connexions et déconnections des modules, la source d'alimentation devra être...
Page 6
Connect the USB B cable to the PC connector on the unit modules from the PC. ● LPU 8000 and the USB A connector to the PC. o Equipment firmware updates. Once the USB cable is connected, the PC will prompt ●...
Page 7
Programmazione e monitoraggio dei moduli dell'header ● del driver corrispondente. Una volta installato, verrà SCM 8000 dal PC. riconosciuta la LPU 8000 che è pronta per essere utilizzata. o Aggiornamento del firmware delle apparecchiature. Nel programma per il PC, premendo il pulsante Collega si ●...
Page 8
Fagor Electrónica, S.Coop. San Andrés, s/n. P. O. Box 33 E-20500 Mondragón (Spain) Tel. +34 943 712 526 Fax +34 943 712 893 E-mail: rf.sales@fagorelectronica.es www.fagorelectronica.com...
