  • Page 1: Air Conditioning

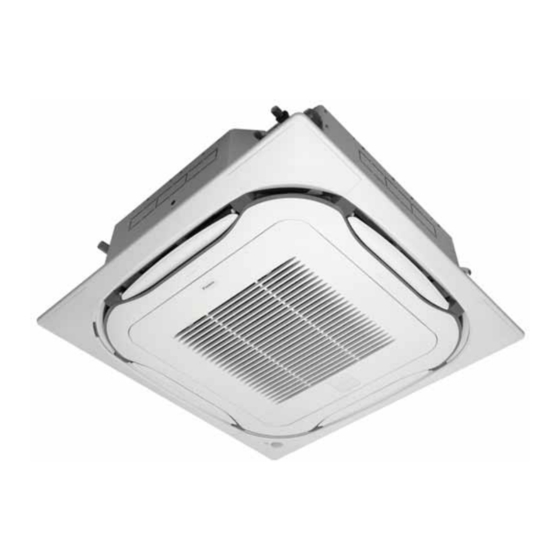

    Air Conditioning Technical Data Round flow cassette EEDEN13-204 FXFQ-A...

  • Page 3: Table Of Contents

    • Indoor Unit • Round flow cassette • FXFQ-A TABLE OF CONTENTS FXFQ-A Features ............. 2 Specifications .

  • Page 4: Features

    • Indoor Unit • Round flow cassette • FXFQ-A Features e m s U n i o o r Q - A u n d I n d V R V F X F • The round flow cassette provides a more comfortable environment •...

  • Page 5: Specifications

    • Indoor Unit • Round flow cassette • FXFQ-A Specifications FXFQ100 FXFQ125 2-1 Technical Specifications FXFQ20A FXFQ25A FXFQ32A FXFQ40A FXFQ50A FXFQ63A FXFQ80A Cooling capacity Nom. 11.2 14.0 Heating capacity Nom. 10.0 12.5 16.0 Power input - 50Hz Cooling Nom. 0.038 0.053...

  • Page 6: Electrical Specifications

    • Indoor Unit • Round flow cassette • FXFQ-A Specifications FXFQ100 FXFQ125 2-1 Technical Specifications FXFQ20A FXFQ25A FXFQ32A FXFQ40A FXFQ50A FXFQ63A FXFQ80A Sound pressure level Cooling High Nom. Heating High Nom. Refrigerant Type R-410A Piping connections Liquid Type Flare connection 6.35...

  • Page 7: Electrical Data

    • Indoor Unit • Round flow cassette • FXFQ-A Electrical data 3 - 1 Electrical Data ≤ • VRV Systems • Indoor Unit...

  • Page 8: Safety Device Settings

    • Indoor Unit • Round flow cassette • FXFQ-A Safety device settings 4 - 1 Safety Device Settings ∼ • VRV Systems • Indoor Unit...

  • Page 9: Options

    • Indoor Unit • Round flow cassette • FXFQ-A Options 5 - 1 Options ∼ ∼ • VRV Systems • Indoor Unit...

  • Page 10: Capacity Tables

    • Indoor Unit • Round flow cassette • FXFQ-A Capacity tables 6 - 1 Cooling Capacity Tables FXFQ-A TC: Total capacity; kW Cooling Capacity SHC: Sensible heat capacity; kW Indoor air temp. 14.0 °CWB 16.0 °CWB 18.0 °CWB 19.0 °CWB 20.0 °CWB...

  • Page 11: Heating Capacity Tables

    • Indoor Unit • Round flow cassette • FXFQ-A Capacity tables 6 - 2 Heating Capacity Tables FXFQ-A Heating Capacity Indoor air temp. °CDB Unit size 16.0 18.0 20.0 21.0 22.0 24.0 10.5 10.5 10.0 13.1 13.1 12.5 12.1 11.7 10.9...

  • Page 12: Capacity Correction Factor

    • Indoor Unit • Round flow cassette • FXFQ-A Capacity tables 6 - 3 Capacity Correction Factor FXFQ-A Capacity correction factor Te = 9°C Indoor air 14.0 °CWB 16.0 °CWB 18.0 °CWB 19.0 °CWB 20.0 °CWB 22.0 °CWB 24.0 °CWB temperature 20.0 °CDB...
  • Page 13 • Indoor Unit • Round flow cassette • FXFQ-A Capacity tables 6 - 3 Capacity Correction Factor FXFQ-A Capacity correction factor Te = 11°C Indoor air 14.0 °CWB 16.0 °CWB 18.0 °CWB 19.0 °CWB 20.0 °CWB 22.0 °CWB 24.0 °CWB temperature 20.0 °CDB...

  • Page 14: Dimensional Drawings

    • Indoor Unit • Round flow cassette • FXFQ-A Dimensional drawings 7 - 1 Dimensional Drawings • VRV Systems • Indoor Unit...

  • Page 15: Dimensional Drawings With Fresh Air Intake

    • Indoor Unit • Round flow cassette • FXFQ-A Dimensional drawings 7 - 2 Dimensional Drawings with Fresh Air Intake • VRV Systems • Indoor Unit...
  • Page 16 • Indoor Unit • Round flow cassette • FXFQ-A Dimensional drawings 7 - 2 Dimensional Drawings with Fresh Air Intake • VRV Systems • Indoor Unit...

  • Page 17: Centre Of Gravity

    • Indoor Unit • Round flow cassette • FXFQ-A Centre of gravity 8 - 1 Centre of Gravity ∼ ∼ • VRV Systems • Indoor Unit...

  • Page 18: Piping Diagrams

    • Indoor Unit • Round flow cassette • FXFQ-A Piping diagrams 9 - 1 Piping Diagrams • VRV Systems • Indoor Unit...

  • Page 19: Wiring Diagrams

    • Indoor Unit • Round flow cassette • FXFQ-A Wiring diagrams 10 - 1 Wiring Diagrams - Single Phase • • VRV Systems • Indoor Unit...

  • Page 20: Sound Data

    • Indoor Unit • Round flow cassette • FXFQ-A Sound data 11 - 1 Sound Pressure Spectrum • VRV Systems • Indoor Unit...
  • Page 21 • Indoor Unit • Round flow cassette • FXFQ-A Sound data 11 - 1 Sound Pressure Spectrum • VRV Systems • Indoor Unit...
  • Page 22 • Indoor Unit • Round flow cassette • FXFQ-A Sound data 11 - 1 Sound Pressure Spectrum • VRV Systems • Indoor Unit...
  • Page 23 • Indoor Unit • Round flow cassette • FXFQ-A Sound data 11 - 1 Sound Pressure Spectrum • VRV Systems • Indoor Unit...
  • Page 24 • Indoor Unit • Round flow cassette • FXFQ-A Sound data 11 - 1 Sound Pressure Spectrum • VRV Systems • Indoor Unit...

  • Page 25: Air Flow Patterns

    • Indoor Unit • Round flow cassette • FXFQ-A Air flow patterns 12 - 1 Air Flow Pattern - Cooling • VRV Systems • Indoor Unit...
  • Page 26 • Indoor Unit • Round flow cassette • FXFQ-A Air flow patterns 12 - 1 Air Flow Pattern - Cooling • VRV Systems • Indoor Unit...
  • Page 27 • Indoor Unit • Round flow cassette • FXFQ-A Air flow patterns 12 - 1 Air Flow Pattern - Cooling • VRV Systems • Indoor Unit...
  • Page 28 • Indoor Unit • Round flow cassette • FXFQ-A Air flow patterns 12 - 1 Air Flow Pattern - Cooling • VRV Systems • Indoor Unit...
  • Page 29 • Indoor Unit • Round flow cassette • FXFQ-A Air flow patterns 12 - 1 Air Flow Pattern - Cooling • VRV Systems • Indoor Unit...
  • Page 30 • Indoor Unit • Round flow cassette • FXFQ-A Air flow patterns 12 - 1 Air Flow Pattern - Cooling • VRV Systems • Indoor Unit...
  • Page 31 • Indoor Unit • Round flow cassette • FXFQ-A Air flow patterns 12 - 1 Air Flow Pattern - Cooling • VRV Systems • Indoor Unit...
  • Page 32 • Indoor Unit • Round flow cassette • FXFQ-A Air flow patterns 12 - 1 Air Flow Pattern - Cooling • VRV Systems • Indoor Unit...

  • Page 33: Air Flow Pattern - Heating

    • Indoor Unit • Round flow cassette • FXFQ-A Air flow patterns 12 - 2 Air Flow Pattern - Heating • VRV Systems • Indoor Unit...
  • Page 34 • Indoor Unit • Round flow cassette • FXFQ-A Air flow patterns 12 - 2 Air Flow Pattern - Heating • VRV Systems • Indoor Unit...
  • Page 35 • Indoor Unit • Round flow cassette • FXFQ-A Air flow patterns 12 - 2 Air Flow Pattern - Heating • VRV Systems • Indoor Unit...
  • Page 36 • Indoor Unit • Round flow cassette • FXFQ-A Air flow patterns 12 - 2 Air Flow Pattern - Heating • VRV Systems • Indoor Unit...
  • Page 37 • Indoor Unit • Round flow cassette • FXFQ-A Air flow patterns 12 - 2 Air Flow Pattern - Heating • VRV Systems • Indoor Unit...
  • Page 38 • Indoor Unit • Round flow cassette • FXFQ-A Air flow patterns 12 - 2 Air Flow Pattern - Heating • VRV Systems • Indoor Unit...
  • Page 39 • Indoor Unit • Round flow cassette • FXFQ-A Air flow patterns 12 - 2 Air Flow Pattern - Heating • VRV Systems • Indoor Unit...
  • Page 40 • Indoor Unit • Round flow cassette • FXFQ-A Air flow patterns 12 - 2 Air Flow Pattern - Heating • VRV Systems • Indoor Unit...
  • Page 41 All content is copy- righted by Daikin Europe N.V. Naamloze Vennootschap - Zandvoordestraat 300, B-8400 Oostende - Belgium - www.daikin.eu - BE 0412 120 336 - RPR Oostende...
